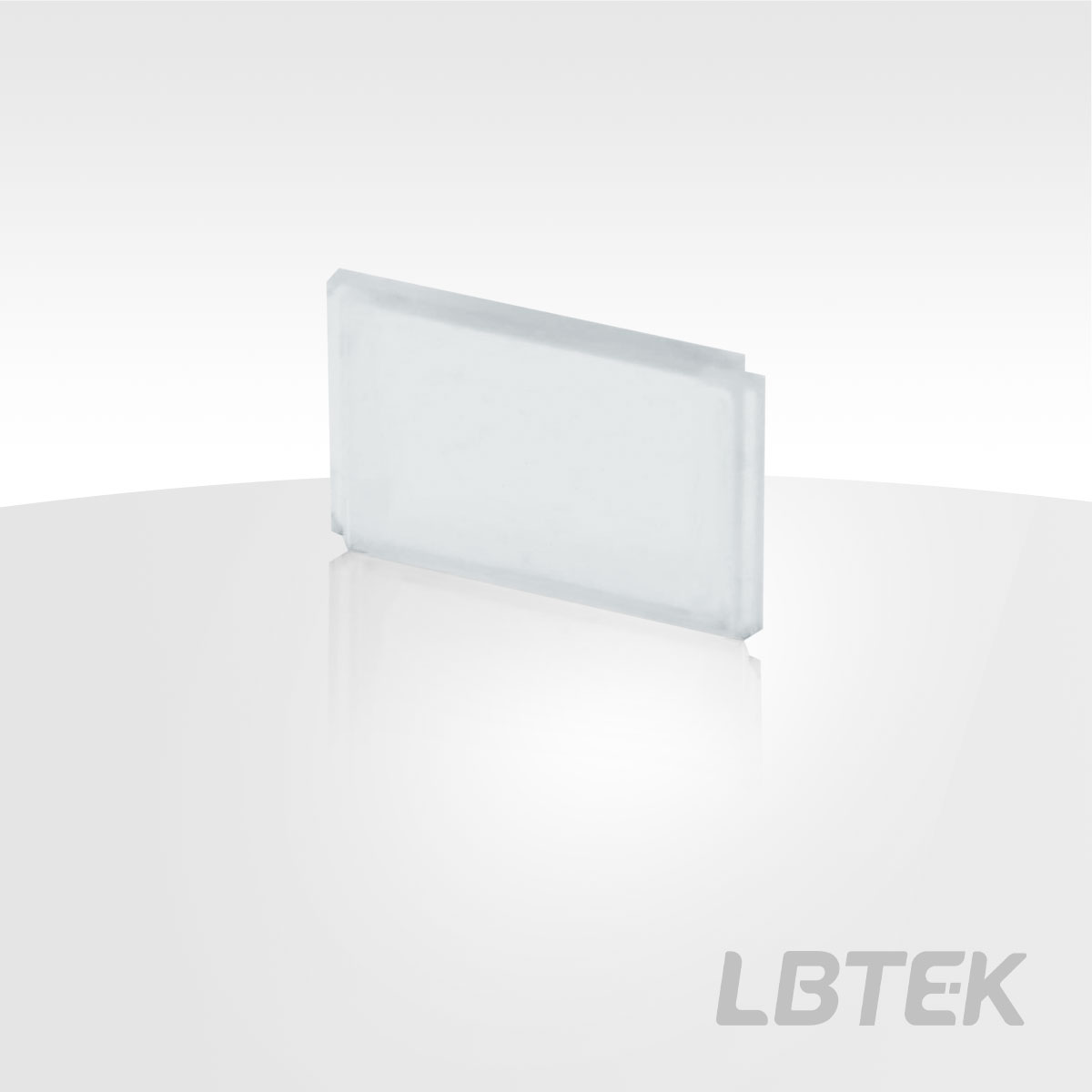

UV fused silica/ITO glass

The fast axis orientation of liquid crystal molecules exhibits a periodic continuous gradient along the x-direction

Cell gap: 3/7/12μm optional, grating period optional

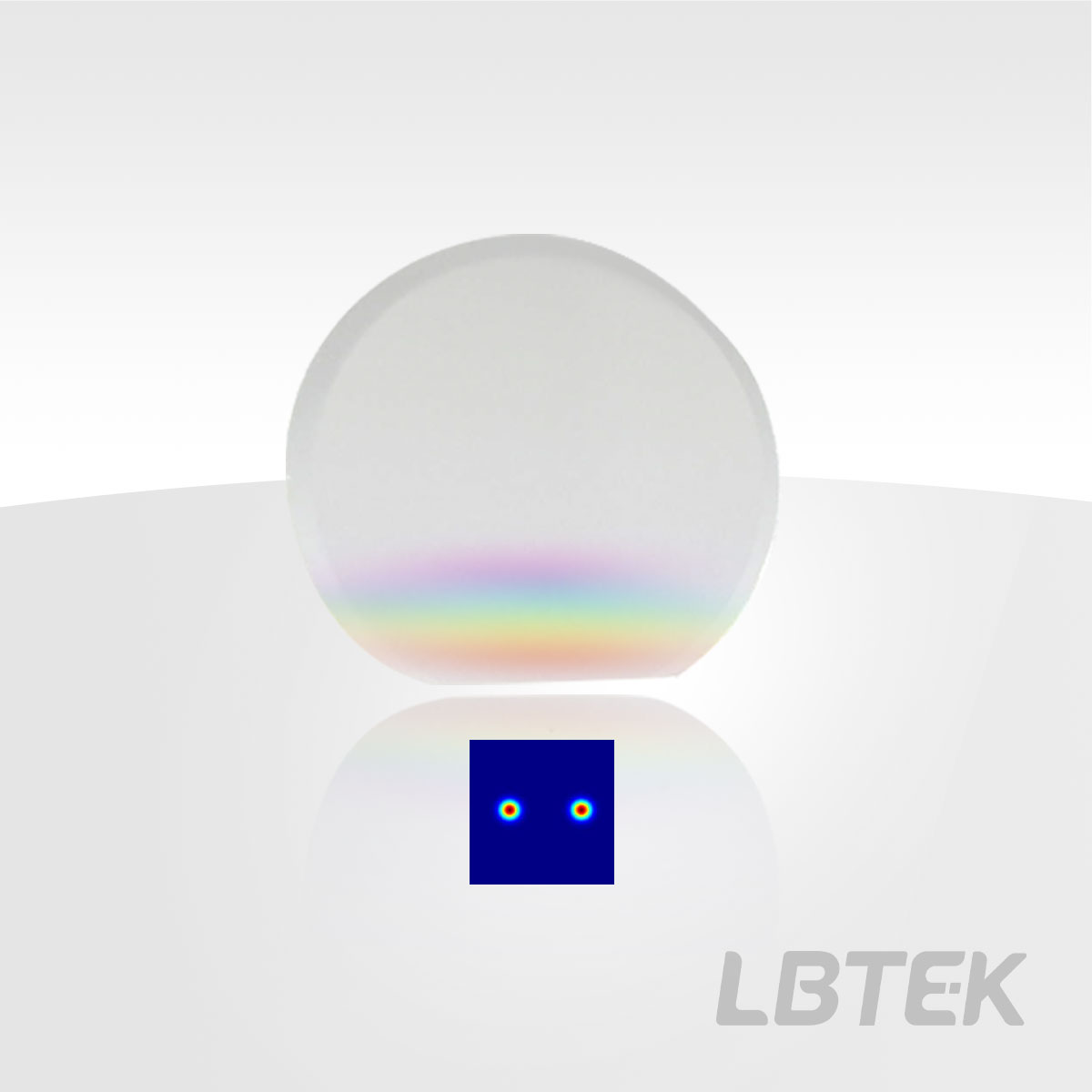

Liquid Crystal Polymer/N-BK7 window plate, sandwich flat plate structure, no housing, with trimmed edges

Fast axis orientation of liquid crystal molecules with a periodic continuous gradient along the x-direction, with λ/2 retardation

Capable to achieve energy proportion-adjustable beam splitting and beam scanning functions

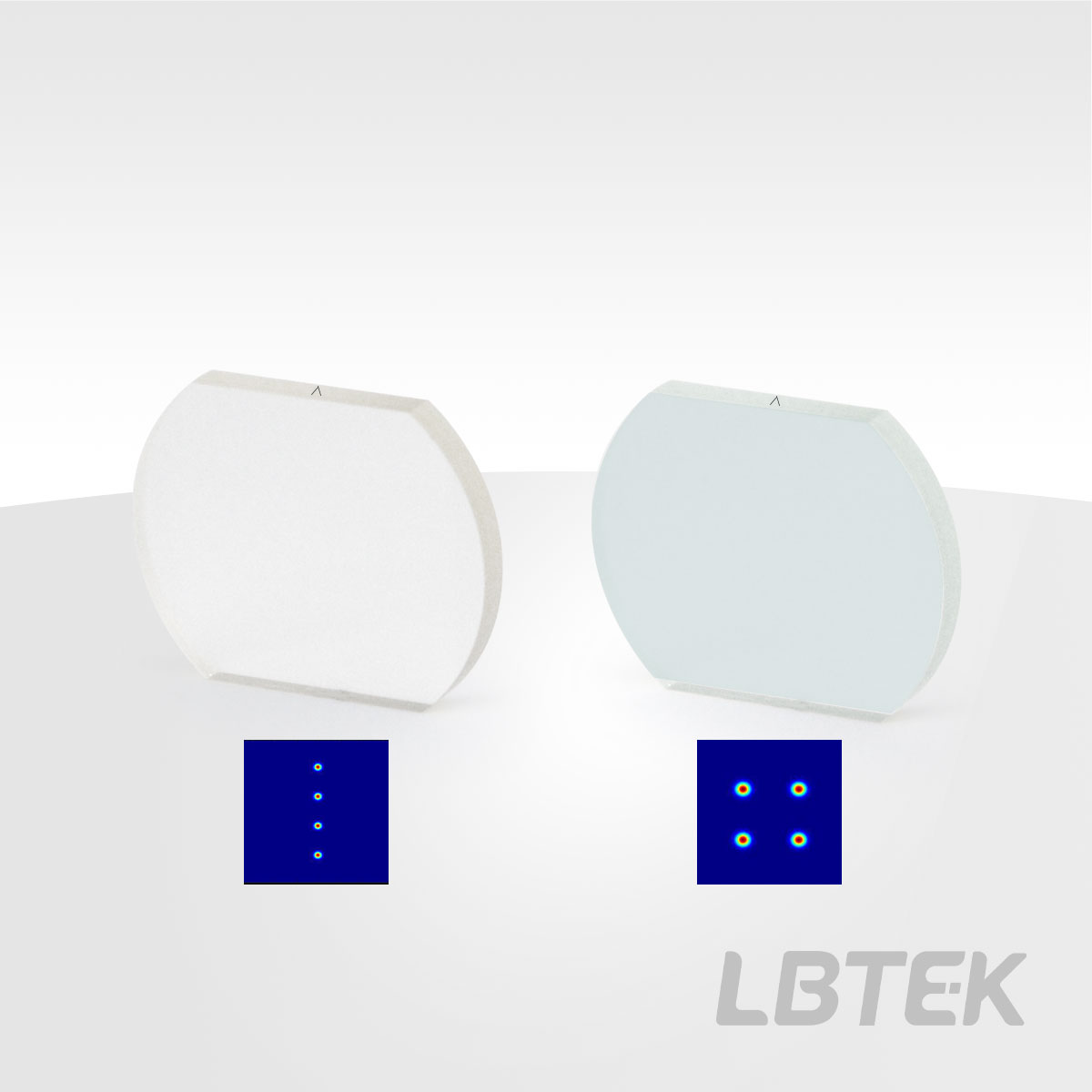

Liquid Crystal Polymer/N-BK7 Window, Three-Layer 1-Inch Double-Edged Substrate

Multi-Level Grating and Wave Plate Combination for Beam Splitting Function

Linearly Polarized Light Incidence, Suitable for 1D or 2D Uniform Beam Splitting

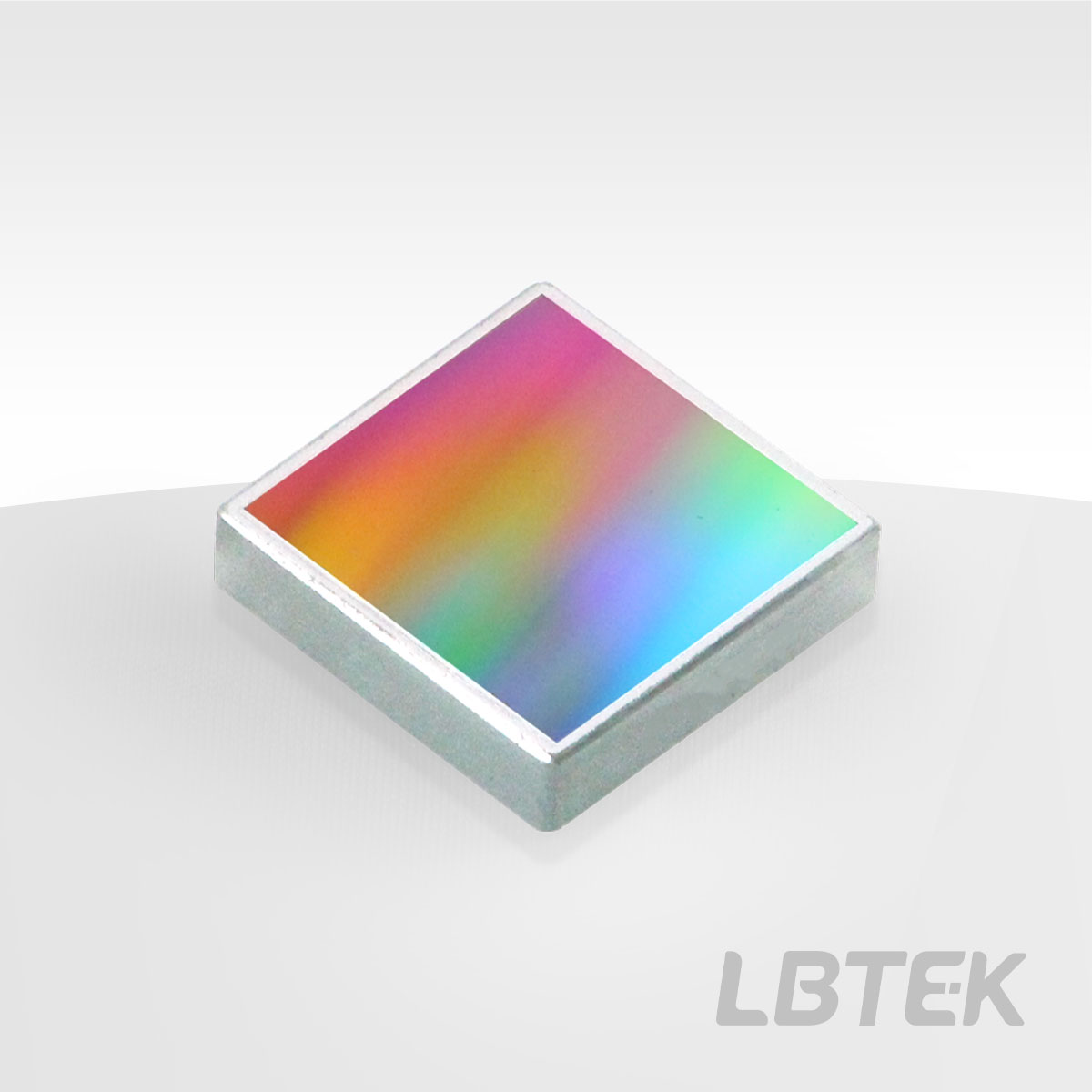

Optical element material: soda-lime glass

Blaze wavelength options: 300 nm, 500 nm, 750 nm, 1000 nm, 1250 nm, 1500 nm

Diffraction efficiency at blaze wavelength: 60%~80%
