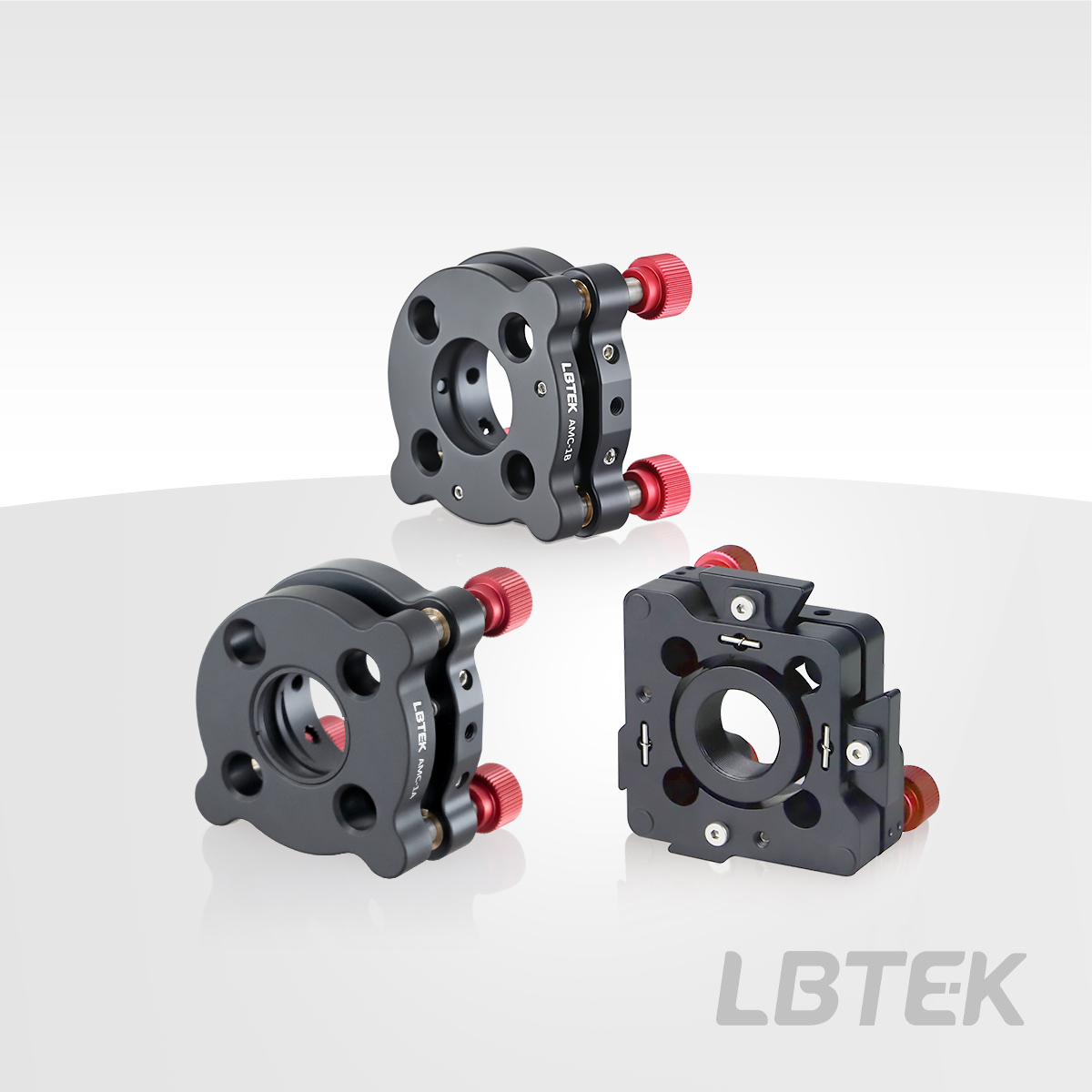

Material: 6061-T6 Aluminum Alloy

Two precision adjusters

Pitch and yaw adjustment angle ±3° or ±4°

With 3 adjusters, linear movement range ±3 mm

Compatible with Ø25.4 mm optical components

Optical component mounting method: optional retaining ring or set screw

Equipped with 3 adjusters, linear movement range ±3 mm, pitch and yaw angle ±3°, adjustment precision 0.2°/turn

Compatible with Ø50.8 mm optical components

Compatible with 60 mm coaxial systems

Cost-effective industrial-grade mirror mounts

4 tension spring design for enhanced structural stability

Adjusters with locknuts ensure long-term stability

Miniature structural design, ideal for integration into products

Ultra-hard spring and threaded locking mechanism ensure long-term stability

440C stainless steel ball and sapphire spacers, wear-resistant with low friction coefficient

Thicker backplate for enhanced stability

Adjustable angle range ±4°

Adjusting screws to press the flexure clamp against the optic or using set screws to secure the optic

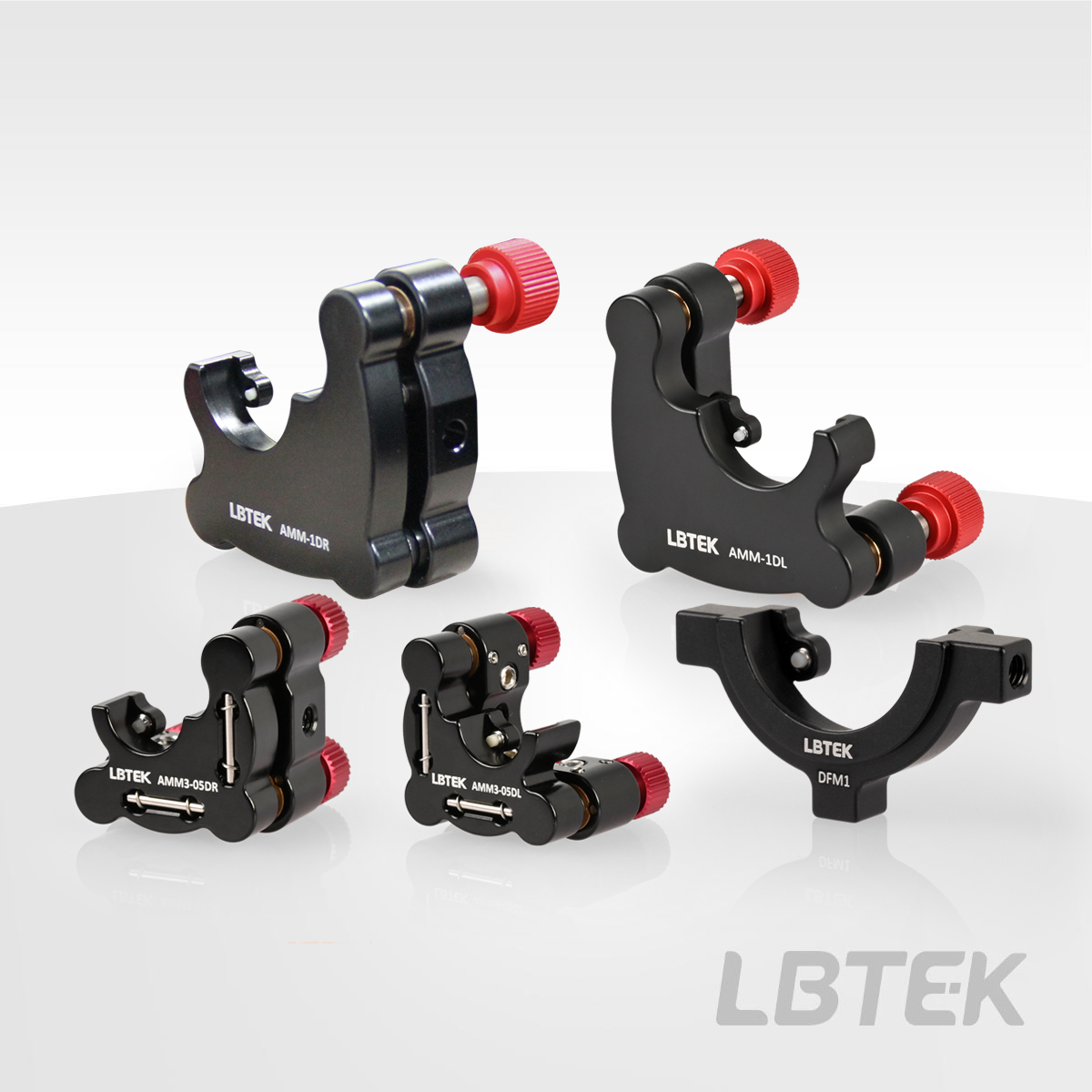

For mounting D-shaped optical components with a diameters of 25.4 mm/12.7 mm

Maximizing clear aperture to avoid blocking other beams in beam-splitting

Mounted horizontally or vertically

For optical components with diameters of 12.7 mm, 25.4 mm, and 50.8 mm

The clear-edge design allowing close-proximity beams to pass through the exposed outer radius of the optical component without obstruction from the front plate of the mount

Supporting both left-handed and right-handed mounting

Material: 6061-T6 Aluminum Alloy

±4° pitch and yaw adjustment with 0.4° precision per rotation

Includes three M4 countersunk holes for versatile mounting options

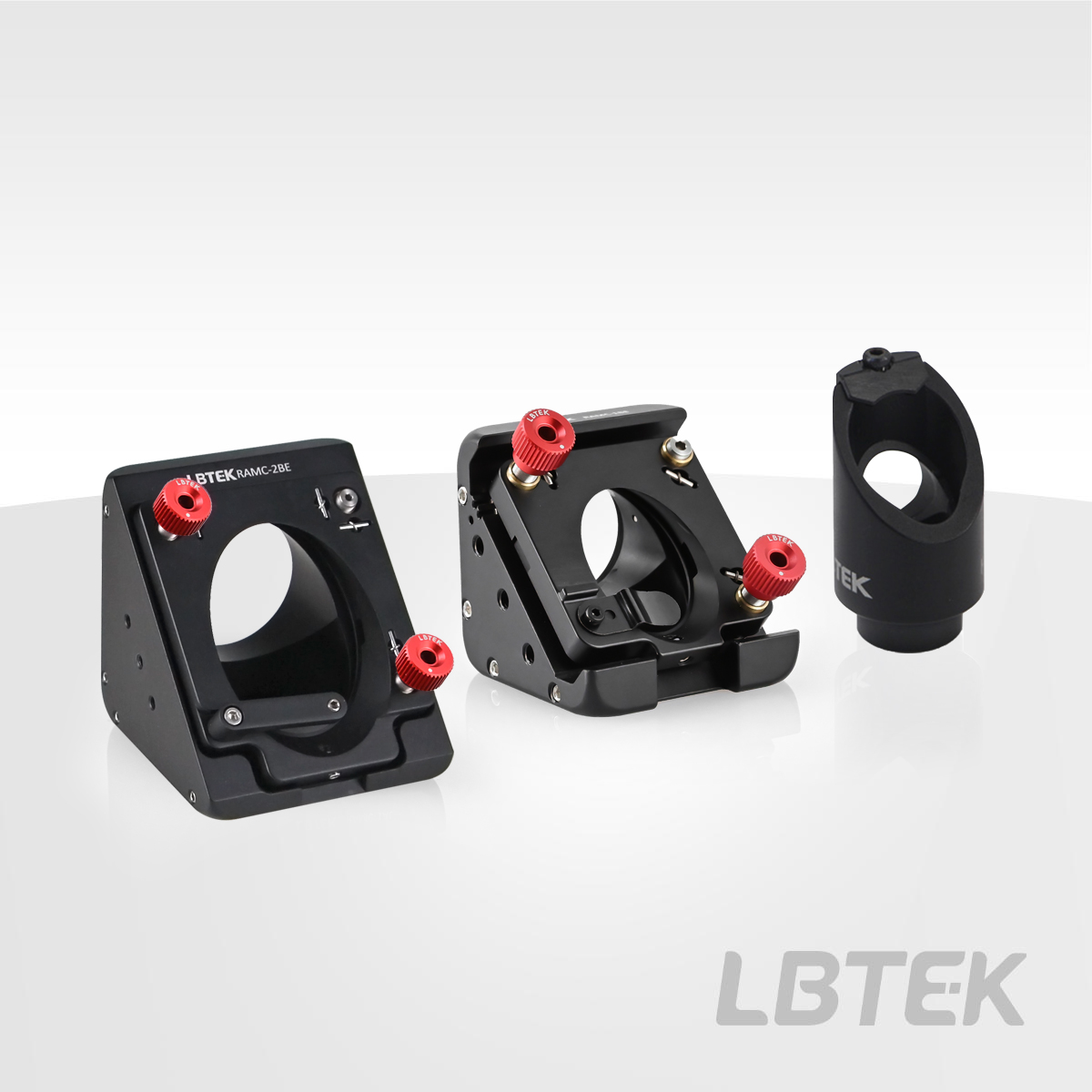

Suitable for mounting elliptical optical elements

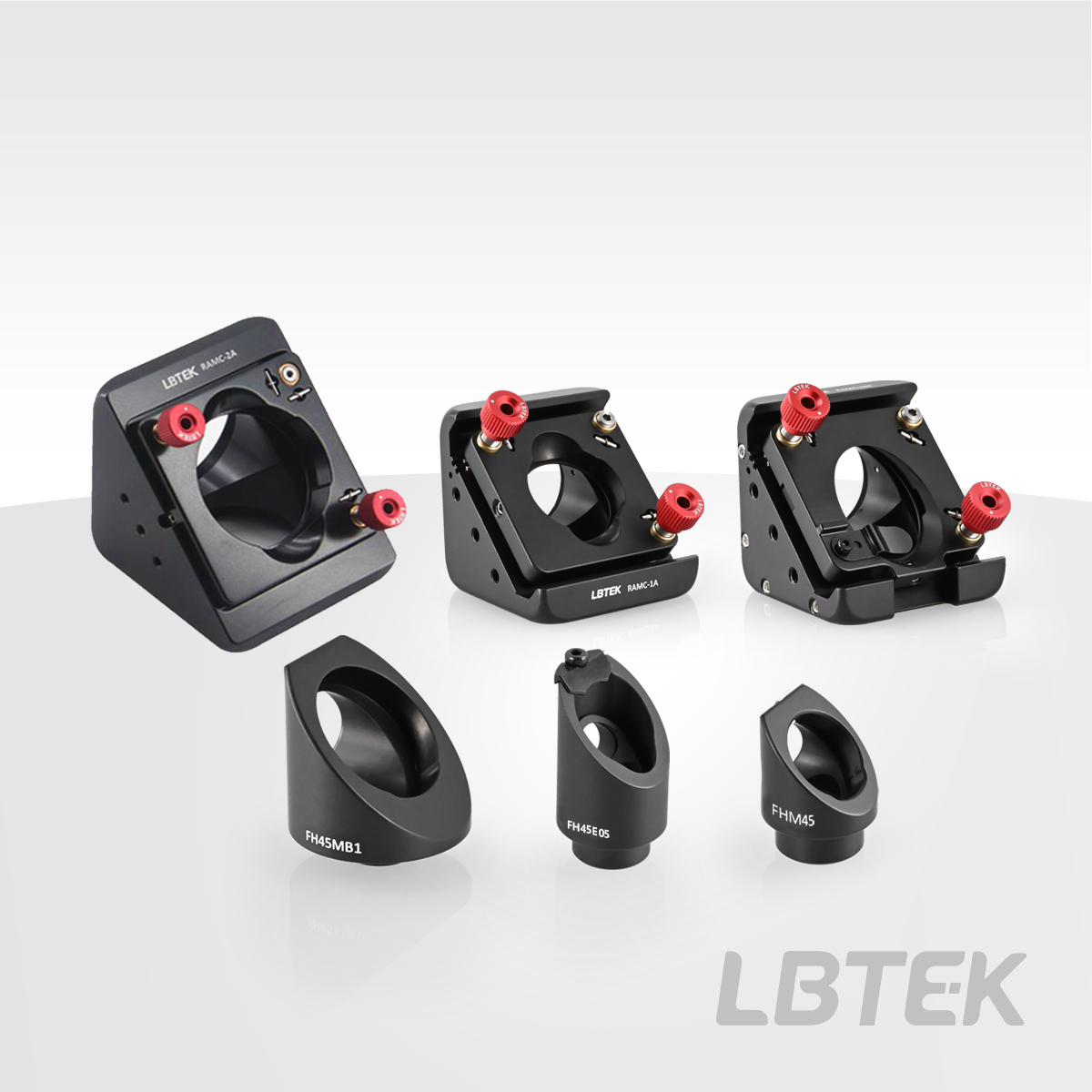

Provides 45° fixed mounting and adjustable right-angle mounting

Achieves 90° optical path deflection, adjustable right-angle mounting compatible with coaxial systems and lens sleeves

Indexed with 16 positions at 22.5° increments

Balls and V-groove design results in repeatability better than 10 µrad

Component surfaces fabricated from black anodized

Material: 6061-T6 Aluminum Alloy

Countersunk Hole Specification: M4

Compatible with Various Optical Components

Angle range: ±4°

Knobless adjuster, reducing space occupation

Two M4 tapped holes on the back plate for vertical and horizontal post mounting

Combining the features of optical mounts and manual rotation mounts

Providing ±3° or ±4° of pitch and yaw adjustment

Capable of continuous 360° rotation with 2° scale precision, can be individually locked

Lockable adjuster, thicker back plate for enhanced stability

Three adjusters providing ±4° of angle adjustment

Two options for fixation: retaining ring and set screw

Material: 6061-T6 Aluminum Alloy

Surface: Black Anodized

The mounting holes are orthogonally distributed at 90°, compatible with both left-handed and right-handed operation habits, offering flexible layout.

Supports bidirectional adjustment in pitch and yaw, with an adjustment range of up to ±4°

Equipped with two precision adjustment knobs, enabling high-precision fine-tuning operations
