LBTEK-Portable Digital Optical Power Meter Kit

Product Description

The kit consists of a LYNX console and a PM series sensor
Wavelength range covers 200 - 1700 nm
Minimum resolution 0.1 nW, measurement error within ±3%
Each sensor is individually calibrated, traceable to NIM
5-inch LCD touch screen digital console

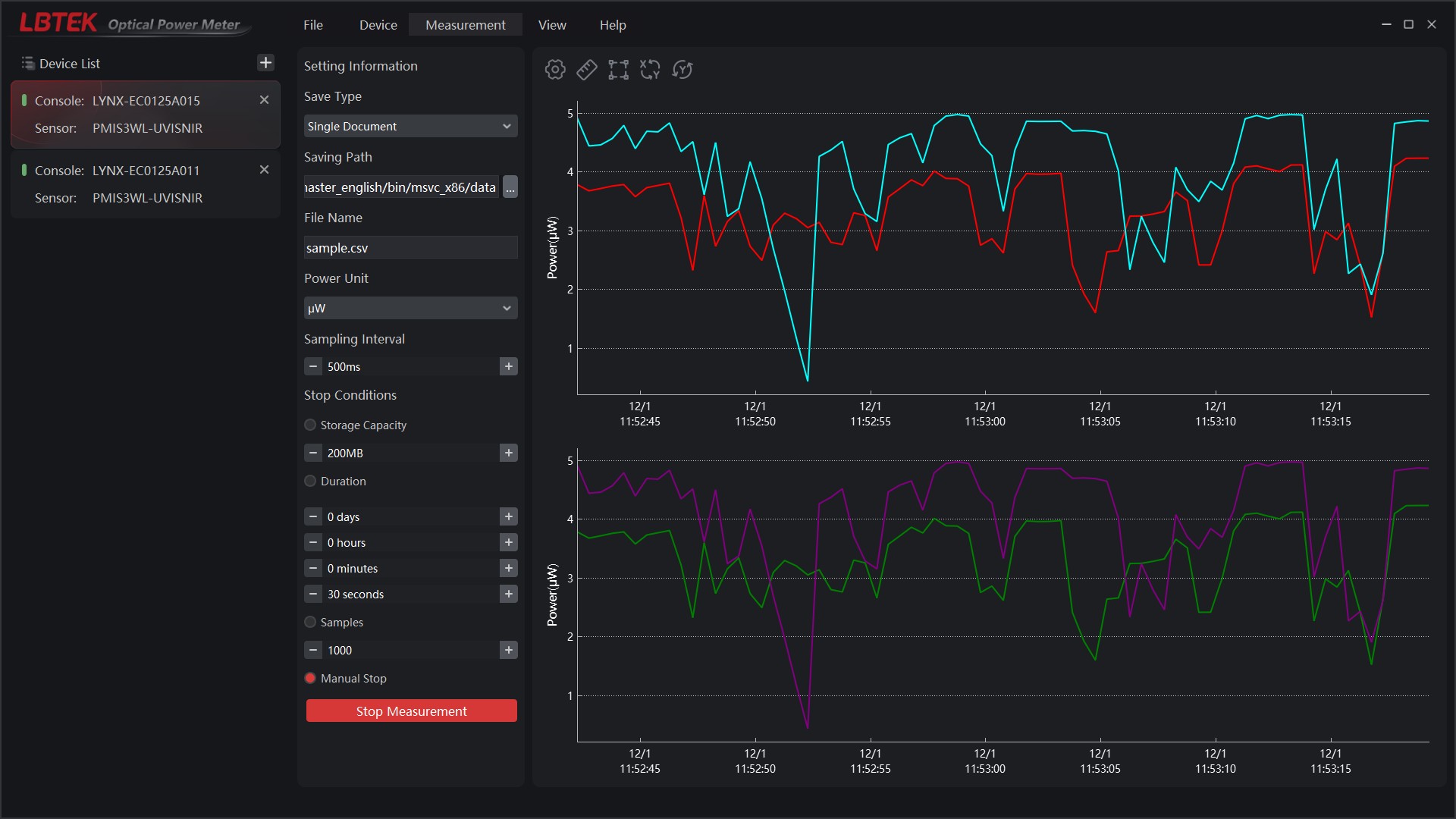

The host computer software supports multi-channel measurement, providing multi-dimensional chart display

LBTEK Portable Digital Optical Power Meter Kit consists of a LYNX console and a PM series sensor, combining portability with high-precision measurement. The sensor converts optical signals into electrical signals, which are then amplified, filtered for noise reduction, and converted from analog to digital to output a stable digital signal. The console is equipped with a 5-inch LCD touch screen and physical buttons for reading sensor data and calibration information, quickly calculating accurate measurement results. All sensors undergo rigorous calibration, with results traceable to the National Institute of Metrology (NIM) of China, ensuring measurement reliability. The accompanying host computer software supports multidimensional analysis and multi-channel coordinated measurement to meet diverse experimental needs.

Diagram

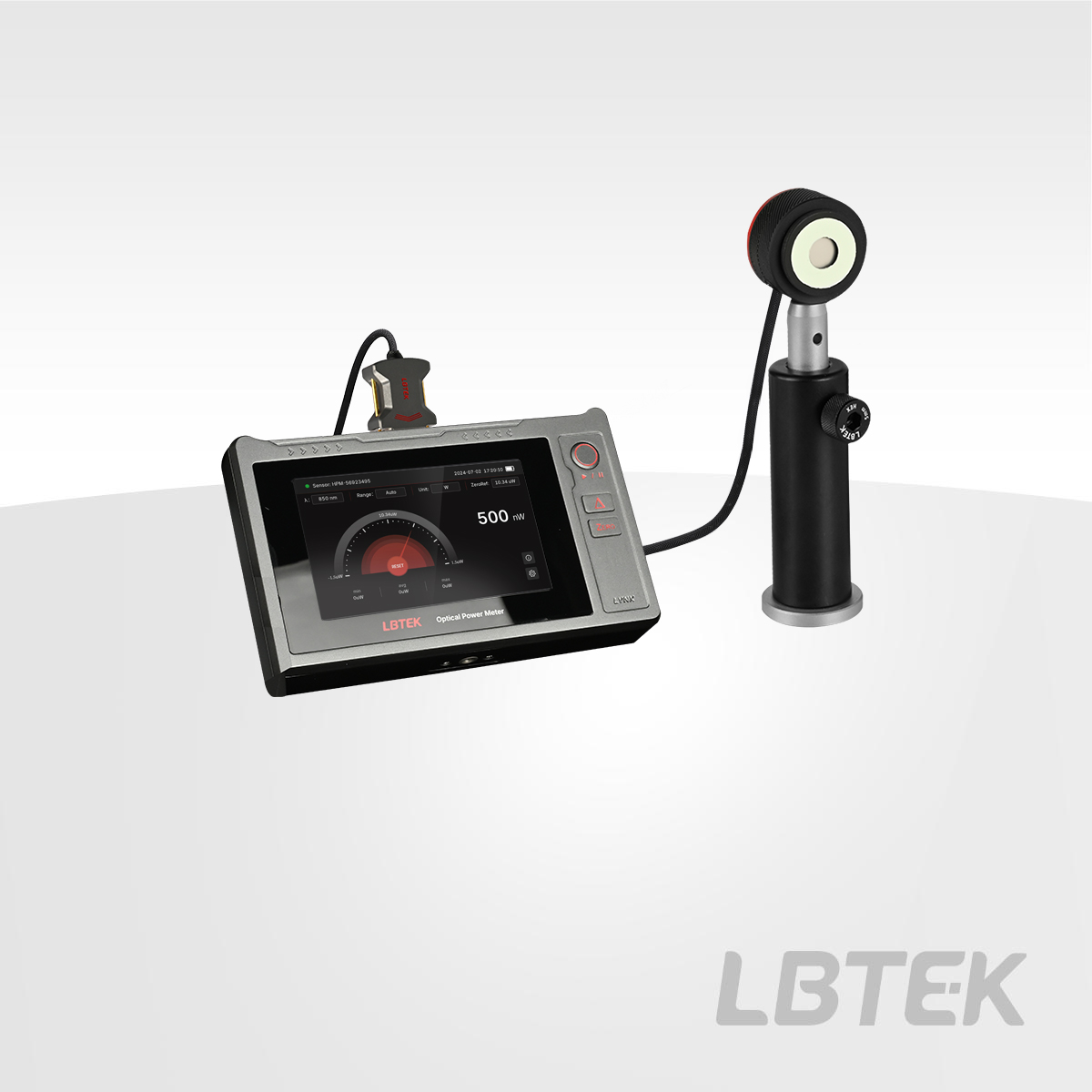

LYNX Console, with Standard Sensor

Wavelength Range: 200 - 1100 nm
Power Range: 500 nW - 500 mW
Effective Receiving Aperture Ø9.5 mm
Front with SM1 External Thread
Compatible with 30 mm Coaxial System

The LBTEK LYNX-K1 kit consists of the LYNX console and a standard sensor, featuring a broad spectral response range of 200 - 1100 nm and a measurement range of 500 nW - 500 mW. The sensor adopts an effective receiving aperture of Ø9.5 mm, easily handling large beam spot measurements. The front integrates an SM1 external thread interface, flexibly accommodating dual-mode input from free space and fiber optic light sources. Compatible with 30 mm coaxial optical systems, it can be seamlessly and rapidly integrated into various experimental setups, significantly improving setup efficiency.

The PMS500M-UVISNIR sensor is placed in a 30 mm coaxial system.

	Product Model	Console Unit	Sensor Unit	Wavelength range	Power Range	Unit Price	Compare	Lead Time
	LYNX-K1 New	LYNX	PMS500M-UVISNIR	200 - 1100 nm	500 nW - 500 mW	$1,658.84		2 weeks	Add Cart

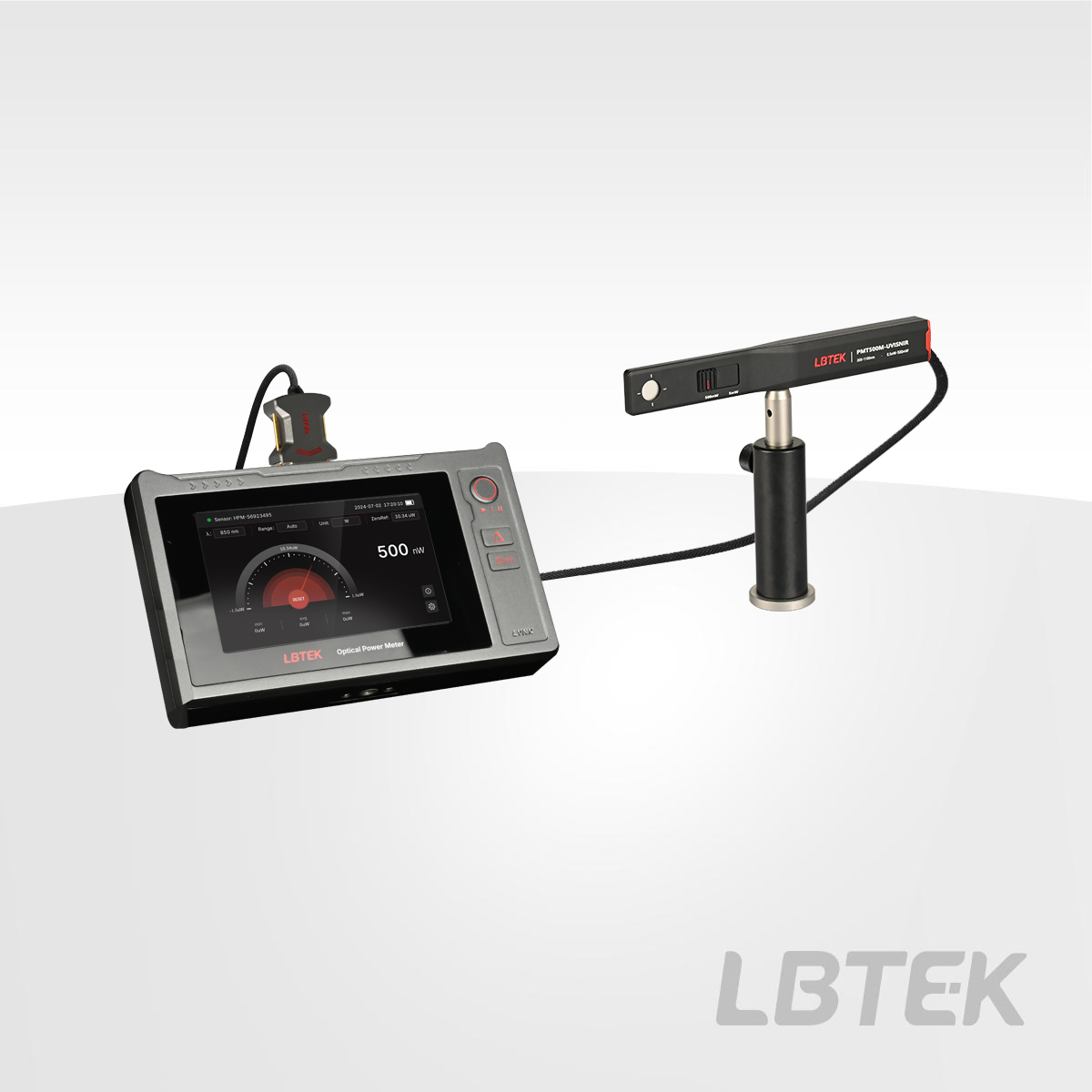

LYNX Console, with Thin Sensor

Wavelength Range: 200 - 1100 nm
Power range: 500 pW - 500 mW
5 mm thickness, suitable for confined spaces and compact optical path layouts
Slide filter design, one-click switching of power range
Standard rotating accessory, supports 360° free rotation
Optional FiberBench-SM1 Mount, integrated with SM1 external thread interface and FiberBench-compatible mounting base

The LBTEK LYNX-K2 kit consists of a LYNX console and a thin sensor, with an operating wavelength covering 200 - 1100 nm. The sensor integrates a sliding neutral density filter for intelligent dual-range switching: when the filter is removed, it can accurately capture weak light signals from 500 pW to 5 mW; when the filter is loaded, the range extends to 500 mW. The 5 mm thickness sensor design, enabling high-precision power measurements in narrow spaces or compact optical paths. It comes with a standard rotating accessory that supports 360° full-angle free adjustment, ensuring precise adaptation to any optical path angle. An optional FiberBench-SM1 Mount is available, integrating an SM1 external thread interface and a FiberBench mounting base, allowing seamless direct connection to standard optical tables and simplifying system setup.

PMT500M - UVISNIR is equipped with rotating accessories and a FiberBench-SM1 Mount, supporting diverse measurement scenarios.

	Product Model	Console Unit	Sensor Unit	Wavelength range	Power Range	Unit Price	Compare	Lead Time
	LYNX-K2 New	LYNX	PMT500M-UVISNIR	200 - 1100 nm	500 pW - 500 mW	$1,776.51		2 weeks	Add Cart

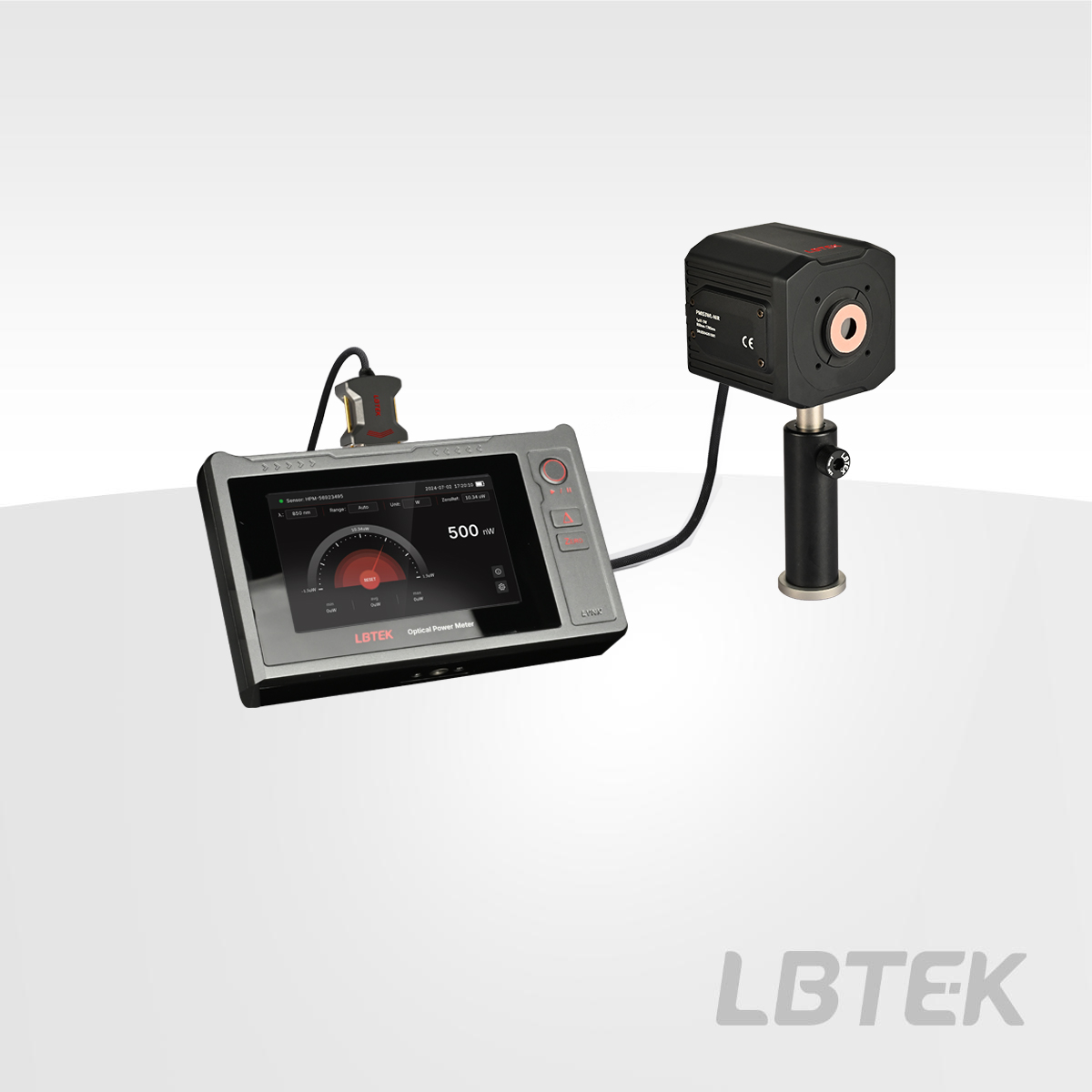

LYNX Console, with Integrating Sphere Sensor

Wavelength Range 250 - 1700 nm
Power Range 1 μW - 3 W
Uniform diffuse reflection on inner wall, eliminating light source errors
Measurement results not limited by incident angle or beam shape
Supports Ø12 mm, Ø22 mm dual aperture switching
Compatible with 30 mm coaxial system

The LBTEK LYMX-K3/LYMX-K4 kit consists of a LYNX console and an integrating sphere sensor. The wavelength range is 250 - 1700 nm, covering ultraviolet, visible, and near-infrared regions; the power range is 1 μW - 3 W, supporting high-power light source detection. The highly diffuse reflective PTFE inner wall eliminates the influence of incident angle and beam shape, ensuring measurement stability. The unique dual-aperture structure enables switching between Ø12 mm/Ø22 mm apertures via a removable SM1 adapter, providing operational flexibility while maintaining measurement accuracy. The integrated design ensures rapid deployment, meeting efficient measurement needs in laboratories and production lines.

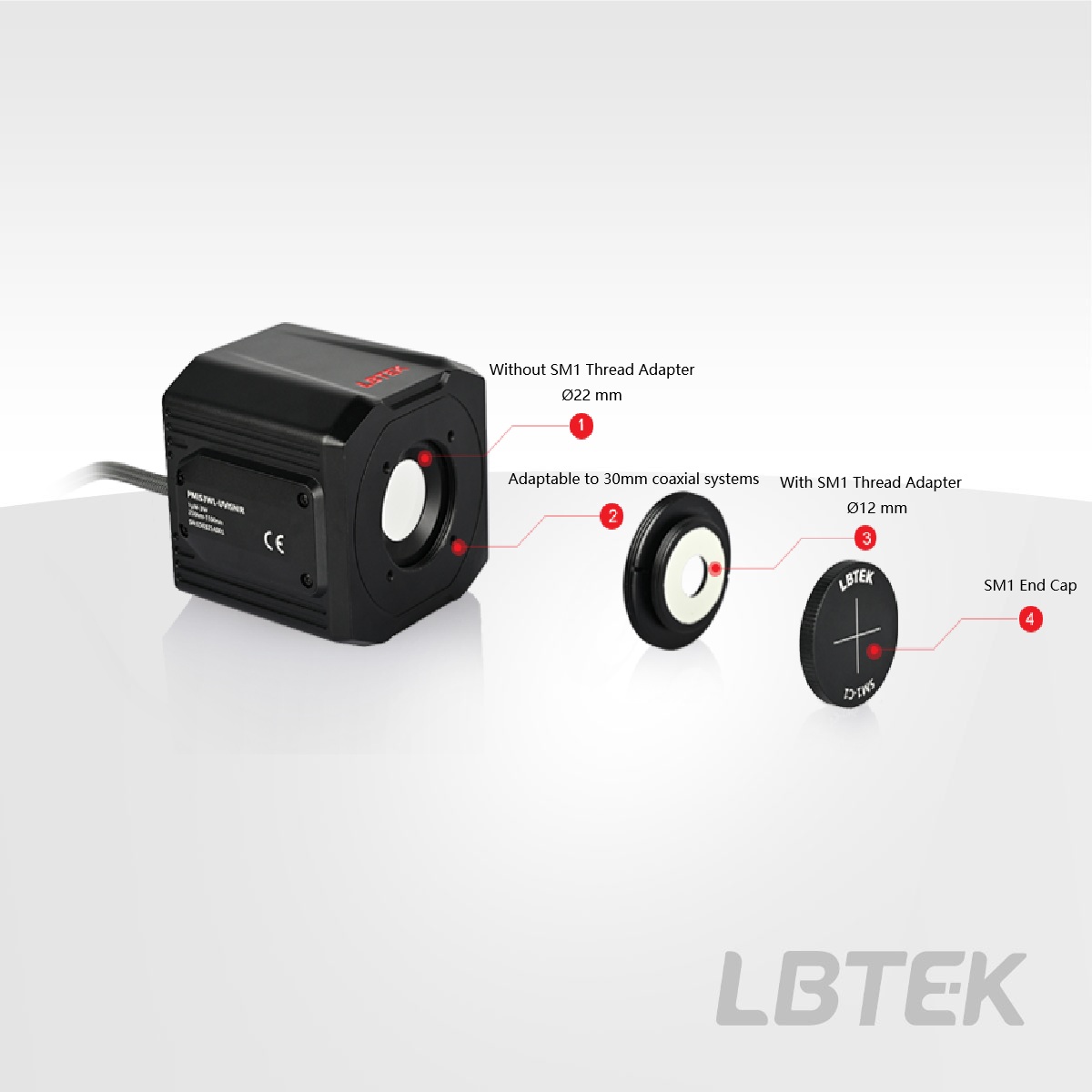

Schematic diagram of PMIS3WL-UVISNIR light source input port

	Product Model	Console Unit	Sensor Unit	Wavelength range	Power Range	Unit Price	Compare	Lead Time
	LYNX-K3 New	LYNX	PMIS3WL-UVISNIR	250 - 1100 nm	1 μW - 3 W	$2,273.33		2 weeks	Add Cart
	LYNX-K4 New	LYNX	PMIS3WL-NIR	800 - 1700 nm	1 μW - 3 W	$2,273.33		2 weeks	Add Cart
