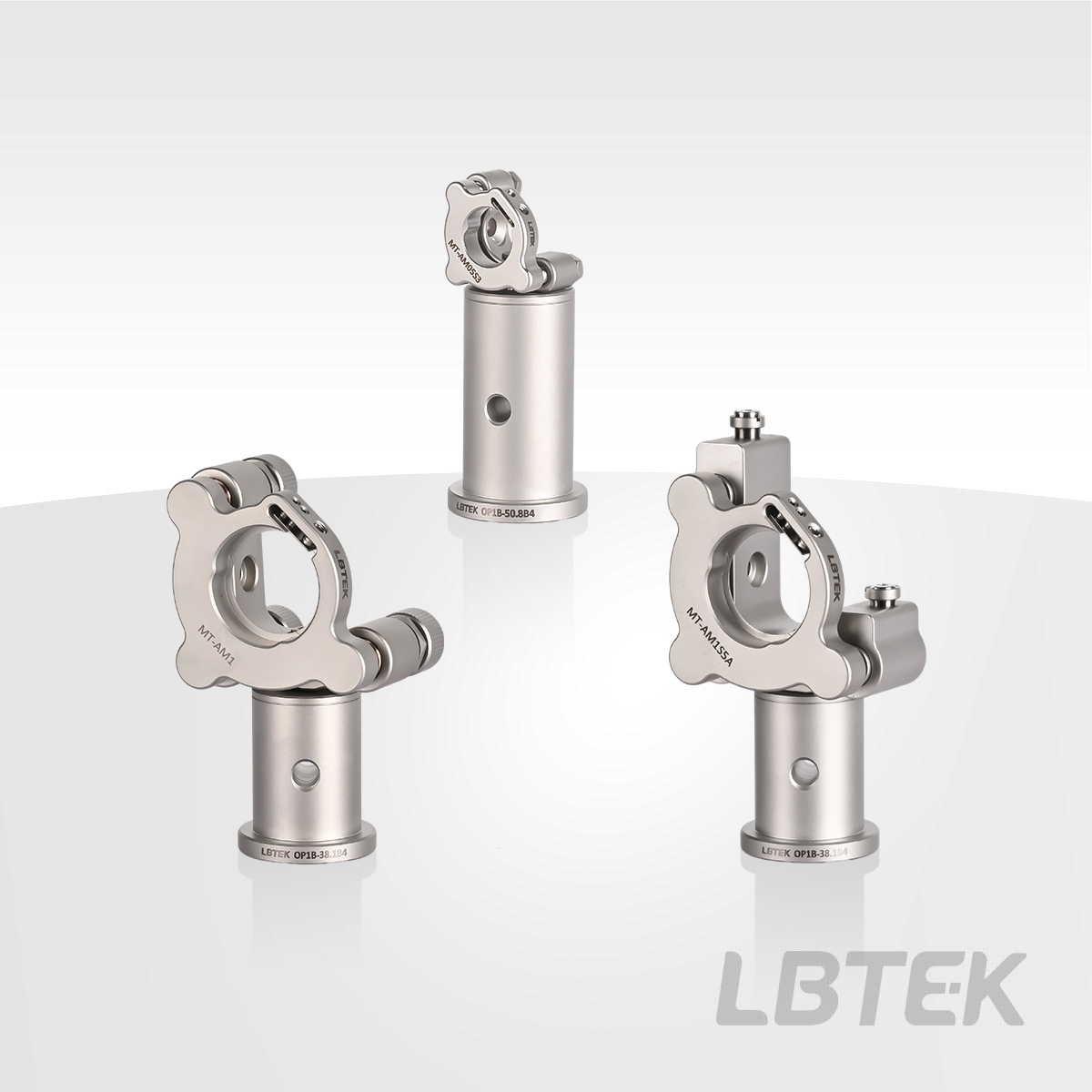

The LBTEK 2.5-inch optical height high-stability Mirror Mount assembly integrates a high-stability Mirror Mount and a custom post to form a 2.5-inch optical axis height assembly kit.

     MT-AM05S3 is used to secure collimators; MT-AM1 and MT-AM1S5A are used to mount Optical Components with a mounted diameter of 25.4 mm.

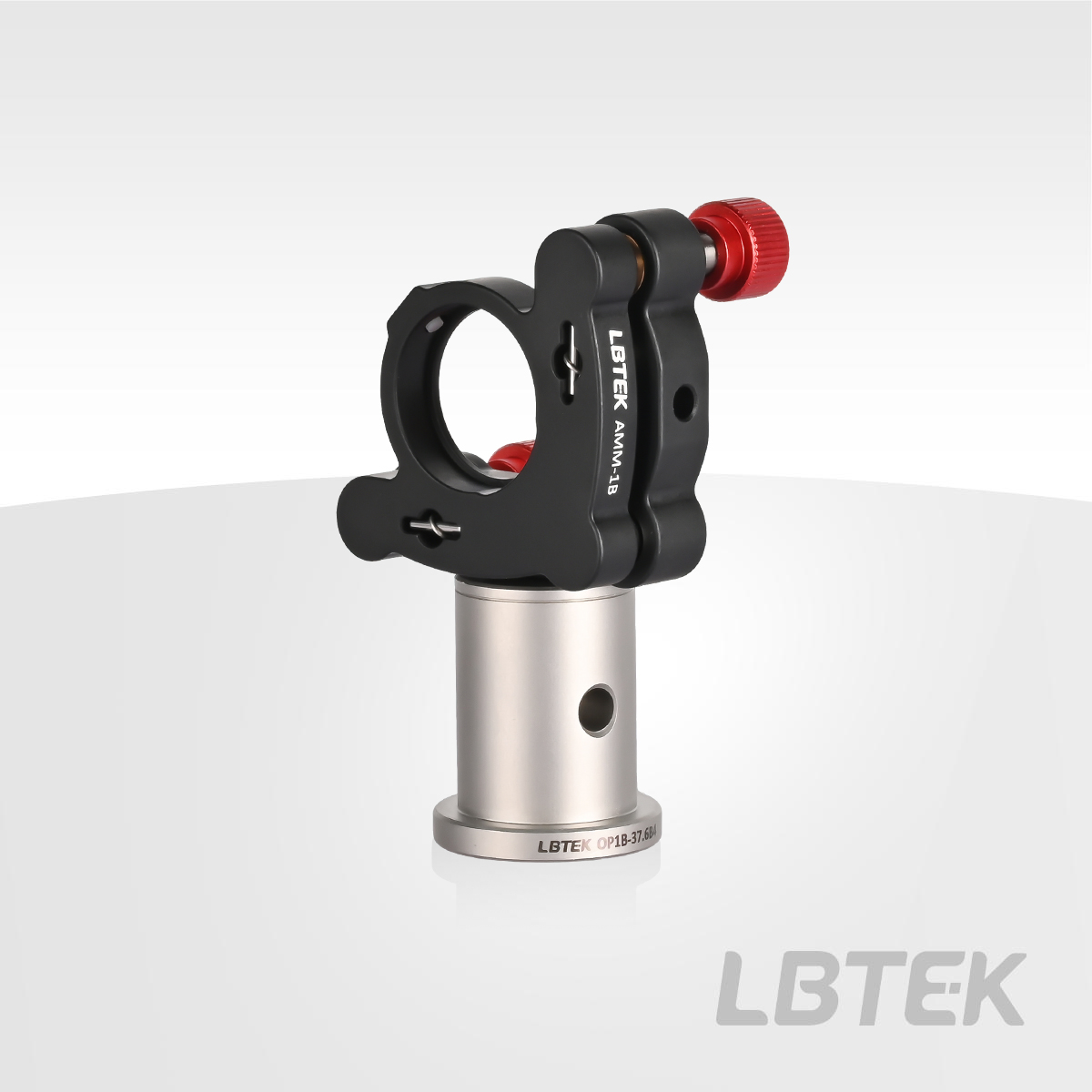

     The LBTEK 2.5-inch optical height standard Mirror Mount assembly integrates the AMM-1B and a custom post to form a 2.5-inch optical axis height assembly kit.

     The AMM-1B is an LBTEK B-type standard O-type adjustment mount, with a smooth, unthreaded bore, securing Optical Components with set screws and achieving ±4 ° pitch and yaw angle adjustment through two M6x0.25 adjusters.

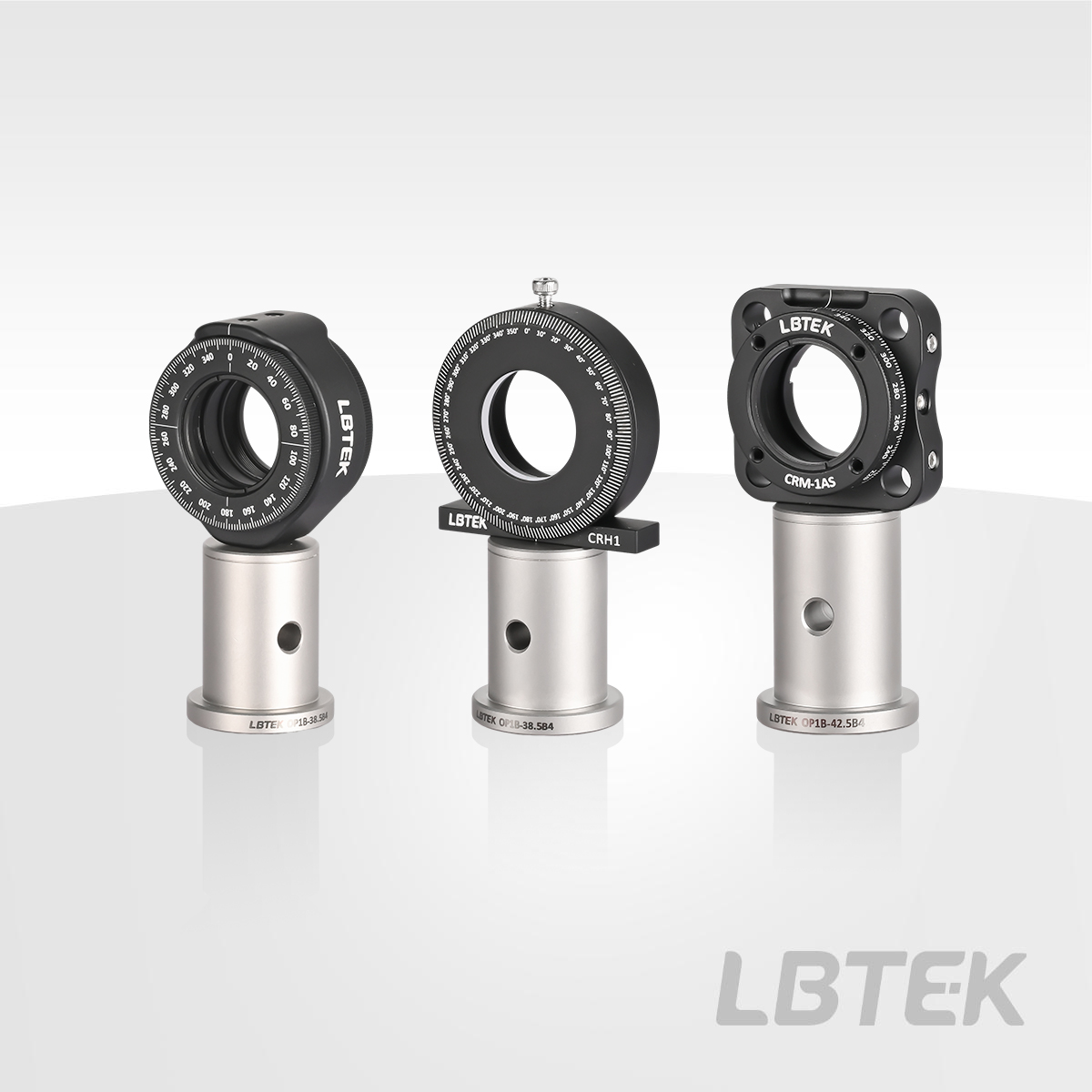

     The LBTEK 2.5-inch optical height rotation mount assembly integrates CRM-1AS or TRM1 or CRH1 with corresponding custom posts to form a 2.5-inch optical axis height assembly kit.

     Among them, TRM1 consists of a dual rotation mounting base and two rotation mounting rings, suitable for mounting two Ø25.4 mm Optical Components. Both side rotation mounting rings feature SM1 internal threads and can mount Optical Components up to 6.4 mm thick using the included SM1R retaining rings. The mounting rings are magnetically attached to the base, making installation and removal extremely convenient; therefore, different Optical Components can be quickly switched by replacing the inner rings.

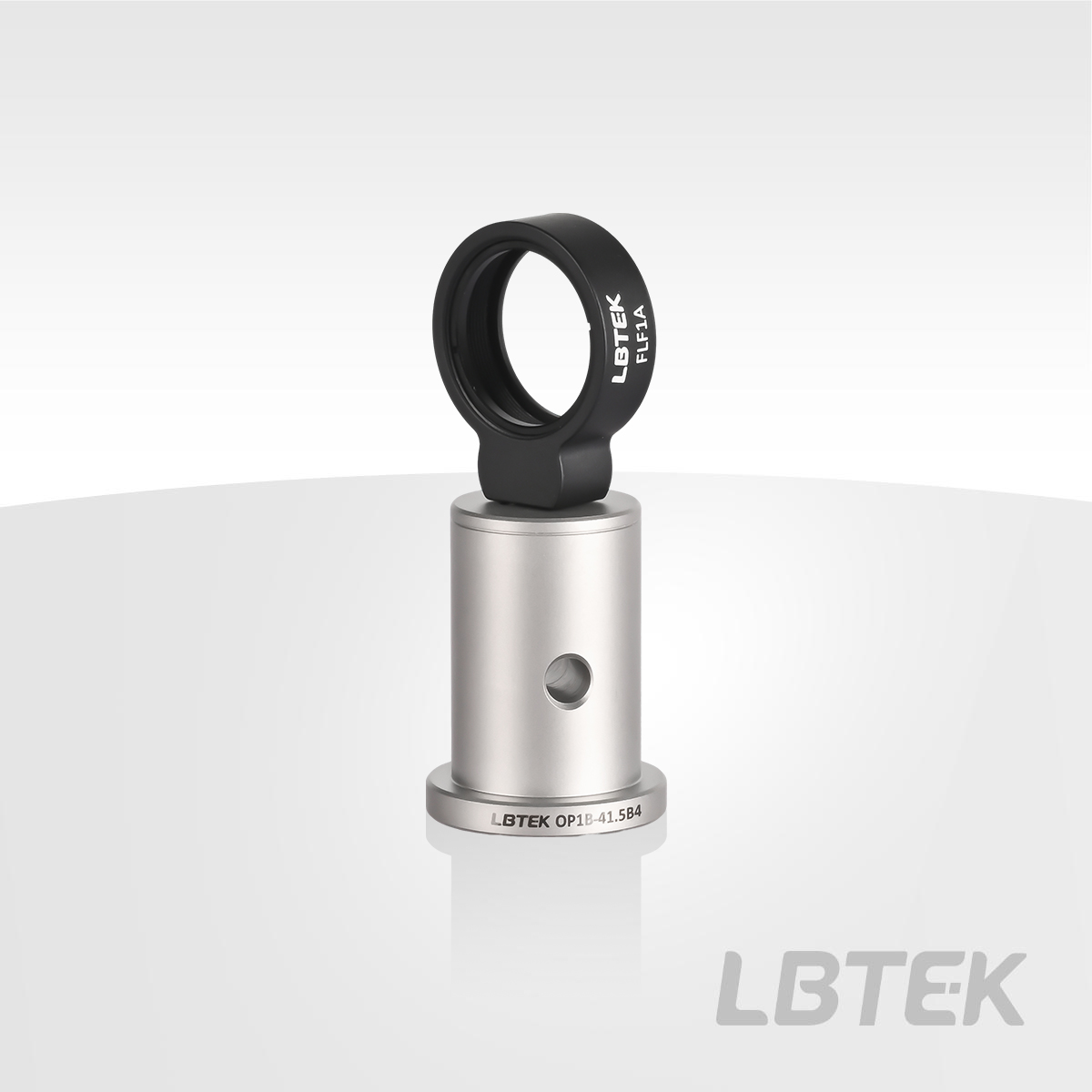

     LBTEK 2.5-inch optical height Lens mount assembly FLF1A and custom post form a 2.5-inch optical axis height assembly kit.

     The FLF1A fixed mount is suitable for mounting Ø25.4 mm Optical Components, features an Optical Components mounting step, and includes 1 retaining ring.

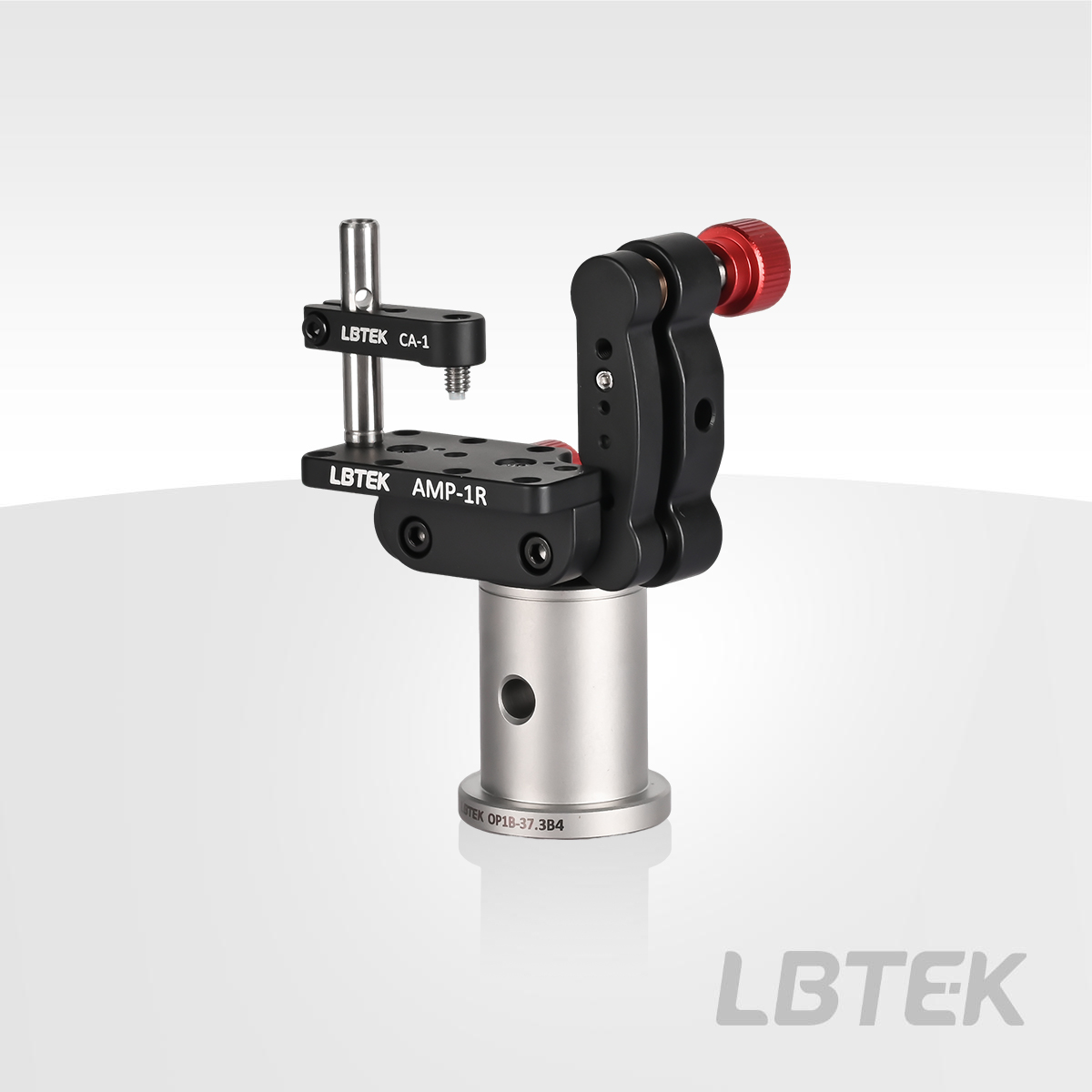

     The LBTEK 2.5-inch optical height Prism Mount assembly integrates AMP-1R or PCMG05 or PCMG1, with corresponding custom posts, forming a 2.5-inch optical axis height assembly kit.

     Among them, AMP-1R is a two-dimensional adjustable Prism Mount; two M6x0.25 adjustment lead screws enable ±4° pitch and yaw angles of the mount;

     PCMG05 and PCMG1 are adhesive-type Prism Mounts.

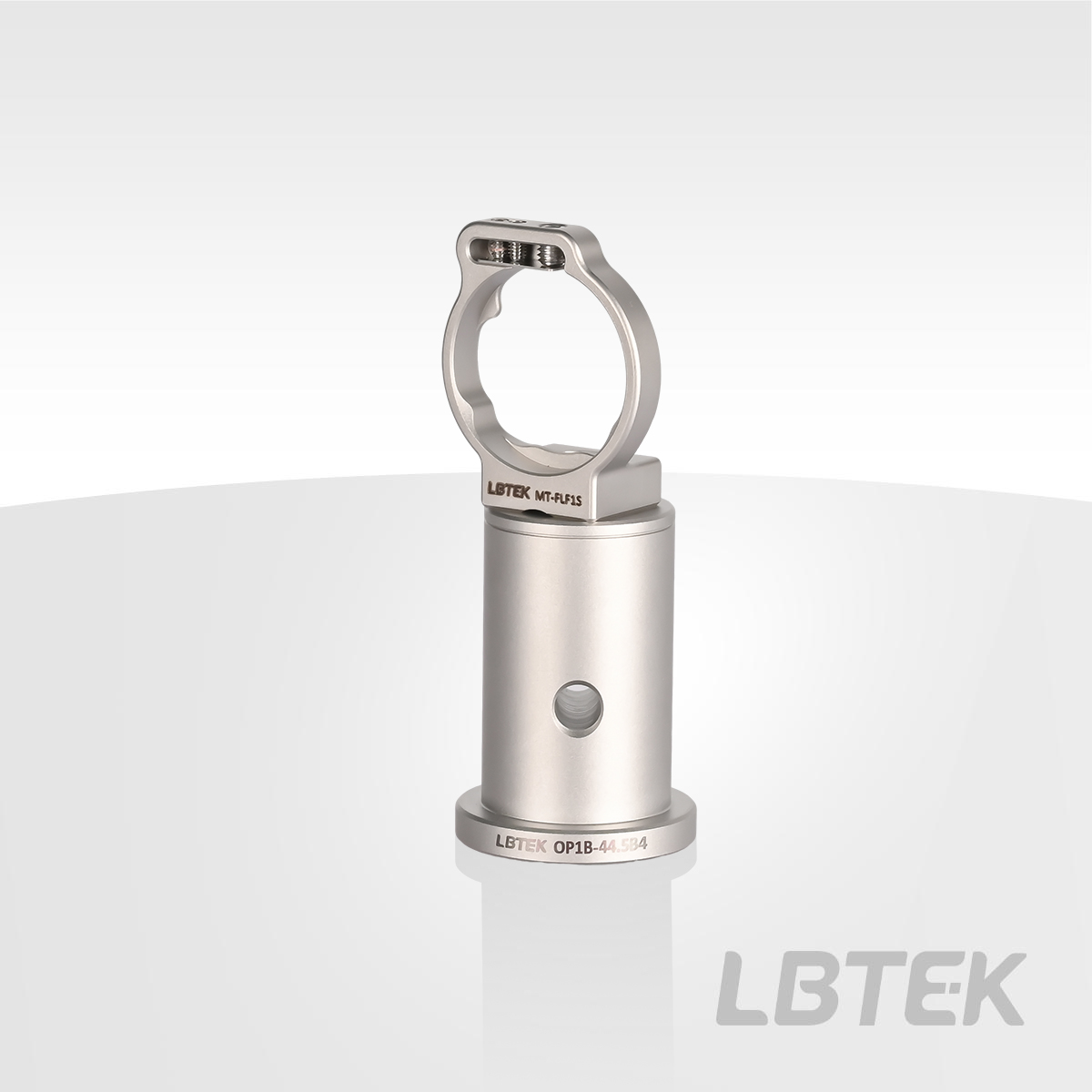

     The LBTEK 2.5-inch optical height high-stability Lens Mount Assembly integrates MT-FLF1S and a custom post to form a 2.5-inch optical axis height assembly kit.

     The MT-FLF1S is used to mount Ø25.4 mm Optical Components. Its Optical Components mounting slot face has cutouts, which can increase the Clear Aperture (CA). This design is particularly suitable for mounting beamsplitters at a 45° angle of incidence(AOI), and can also be used to mount a Mirror. The Optical Components are secured by flexible leaf springs and set screws, providing stable mounting and use.

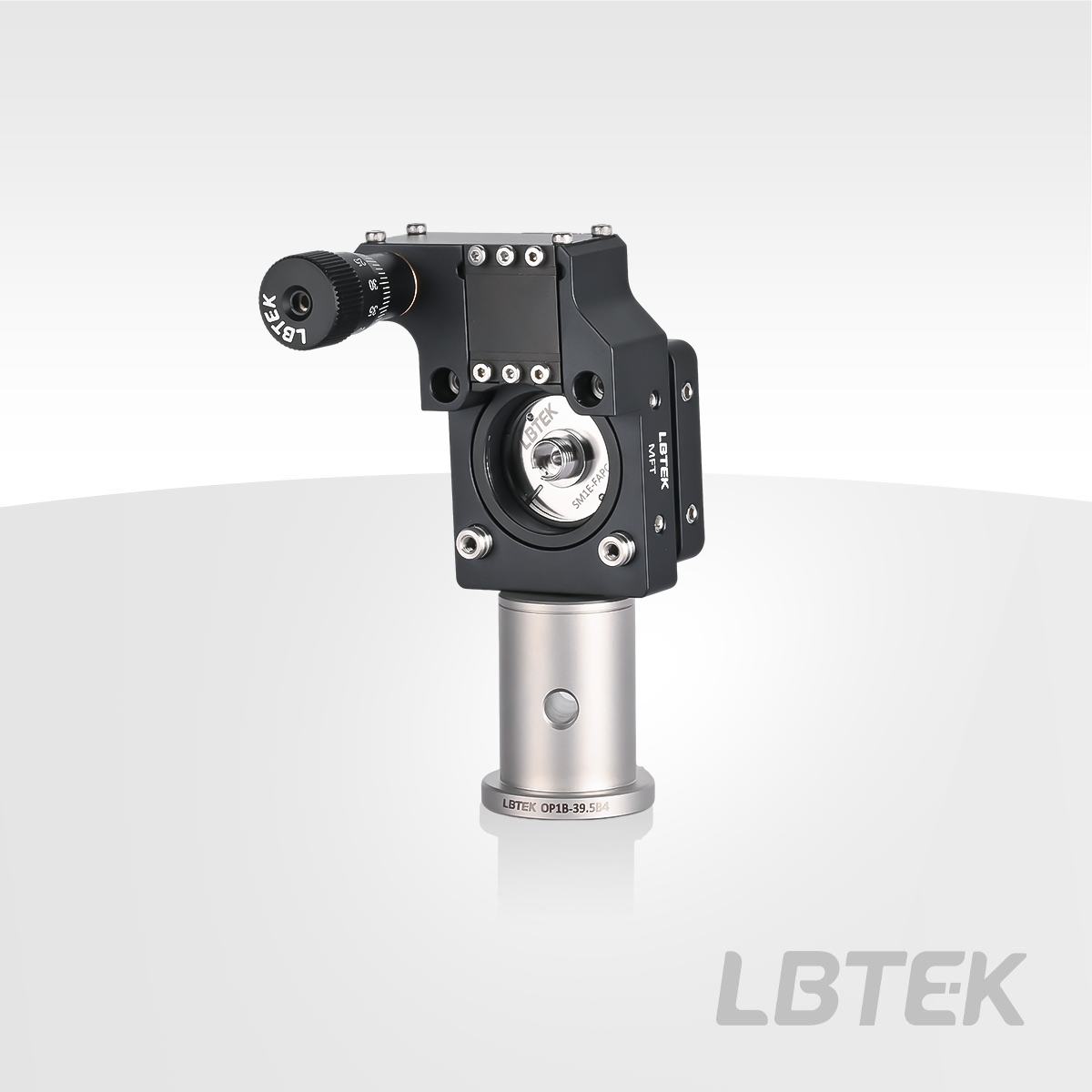

     The LBTEK 2.5-inch optical height Z-axis translation fiber coupling module integrates MFT, OPM-9BSK, MOP-25-P4, SM1E-FAPC, and a custom post, forming a 2.5-inch optical axis height assembly kit.

     Among them, the MFT mount provides repeatable Z-axis travel within a 30 mm coaxial system, and can be used to compensate for focusing errors in Optical Fiber alignment or spatial filtering applications in coaxial systems. The translation ring of the MFT mount has an SM1(1.035"-40) internal thread, translated by a precision micrometer actuator with 1 µm divisions, with a translation travel of 1.0 mm.
