- 3-inch light height kit
- Adjustable angle ±2.5° or ±4°

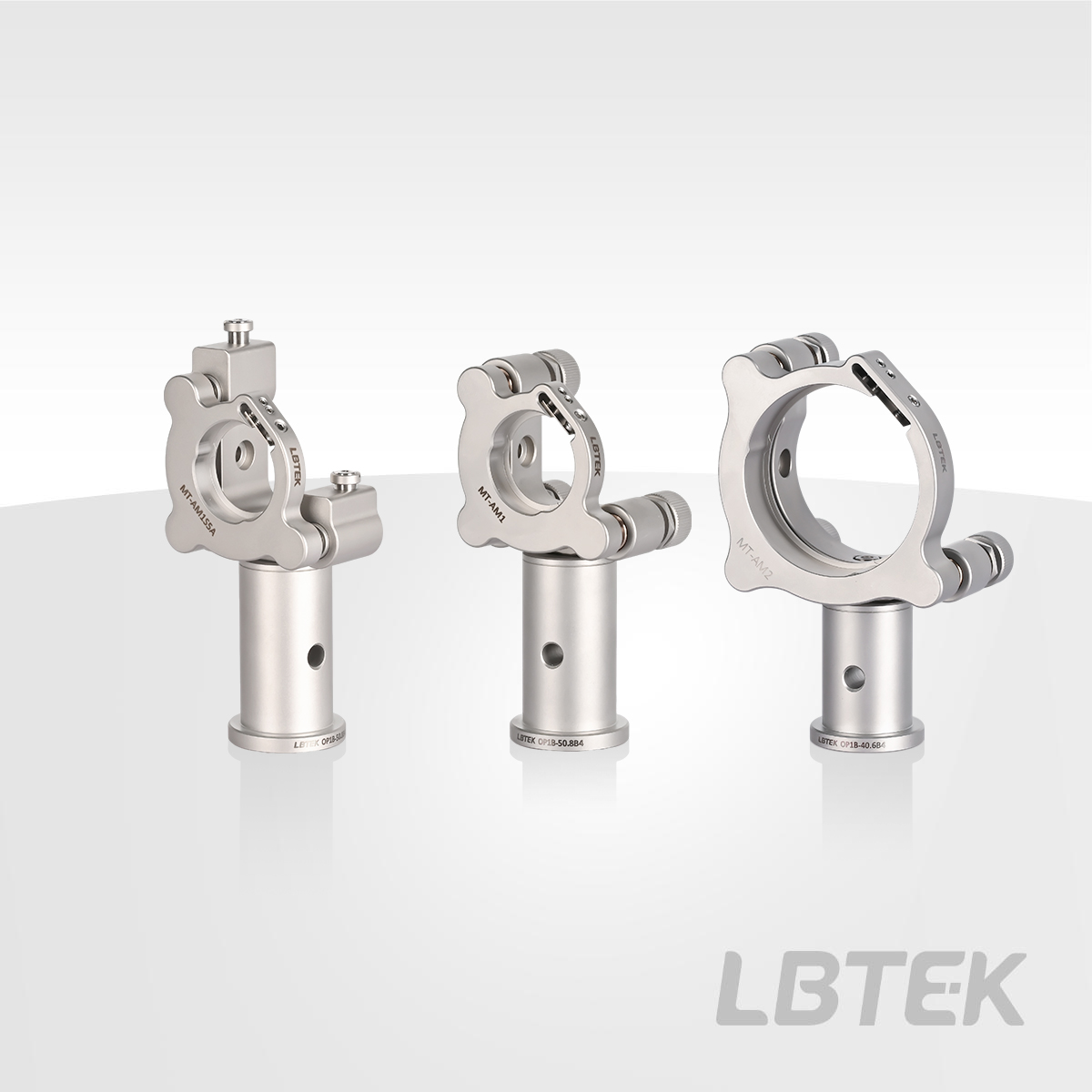

The LBTEK 3-inch optical height high-stability Mirror Mount set integrates high-stability mirror mounts and custom posts to form a 3-inch optical axis height assembly kit.
Among them, MT-AM1 and MT-AM1S5A are used to mount Optical Components with a mounted diameter of 25.4 mm; MT-AM2 is used to mount Optical Components with a mounted diameter of 25.4 mm.
3-inch light height series for combined use
Product Model | Applicable optical element diameter | Optical component mounting method | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
 | MT-AM1-3S New | Ø25.4 mm | Flexible spring leaf and fixing screw | $113.34 | today | Add Cart | ||
| MT-AM2-3S New | Ø50.8 mm | Flexible spring plate and fixing screw | $291.10 | today | Add Cart |
- 3 inch optical height kit
- Adjustable angle ±3° or ±4°
- Two precision adjusters

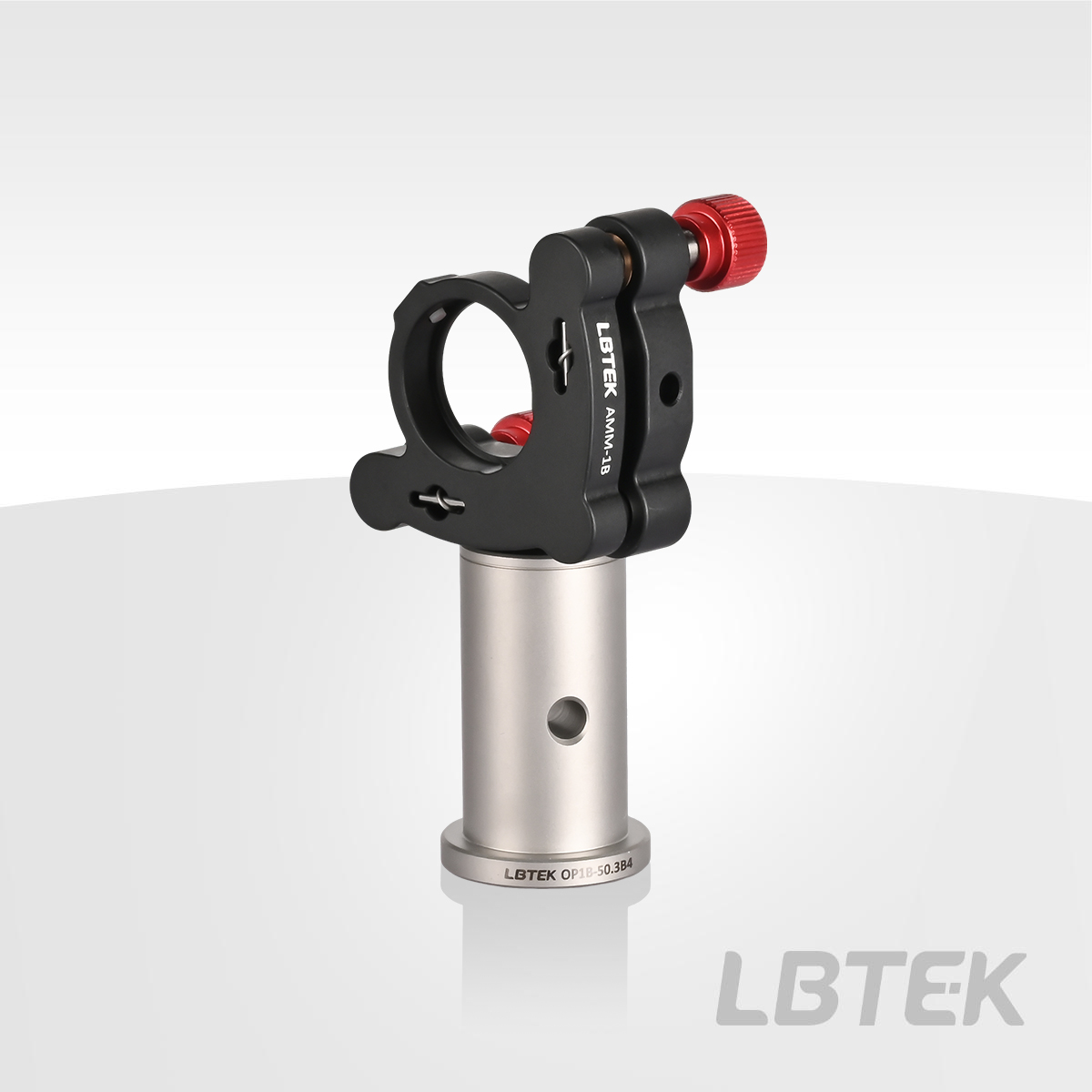

LBTEK 3-inch optical height standard Mirror Mount Set integrates AMM-1B and custom posts to form a 3-inch optical axis height assembly kit.
Among them, AMM-1B is an LBTEK B-type standard O-type mount. The bore is smooth and unthreaded; Optical Components are secured with set screws, and ±4° pitch and yaw angle adjustment is achieved via two M6x0.25 adjusters.
3-inch light-height series for combined use
Product Model | Applicable optical element diameter | Minimum applicable thickness for optical components | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| AMM-1B-3S New | Ø25.4 mm | 3 mm | $33.17 | today | Add Cart |
- 3 inch lift kit
- Install Ø25.4 mm or Ø50.8 mm Optical Components

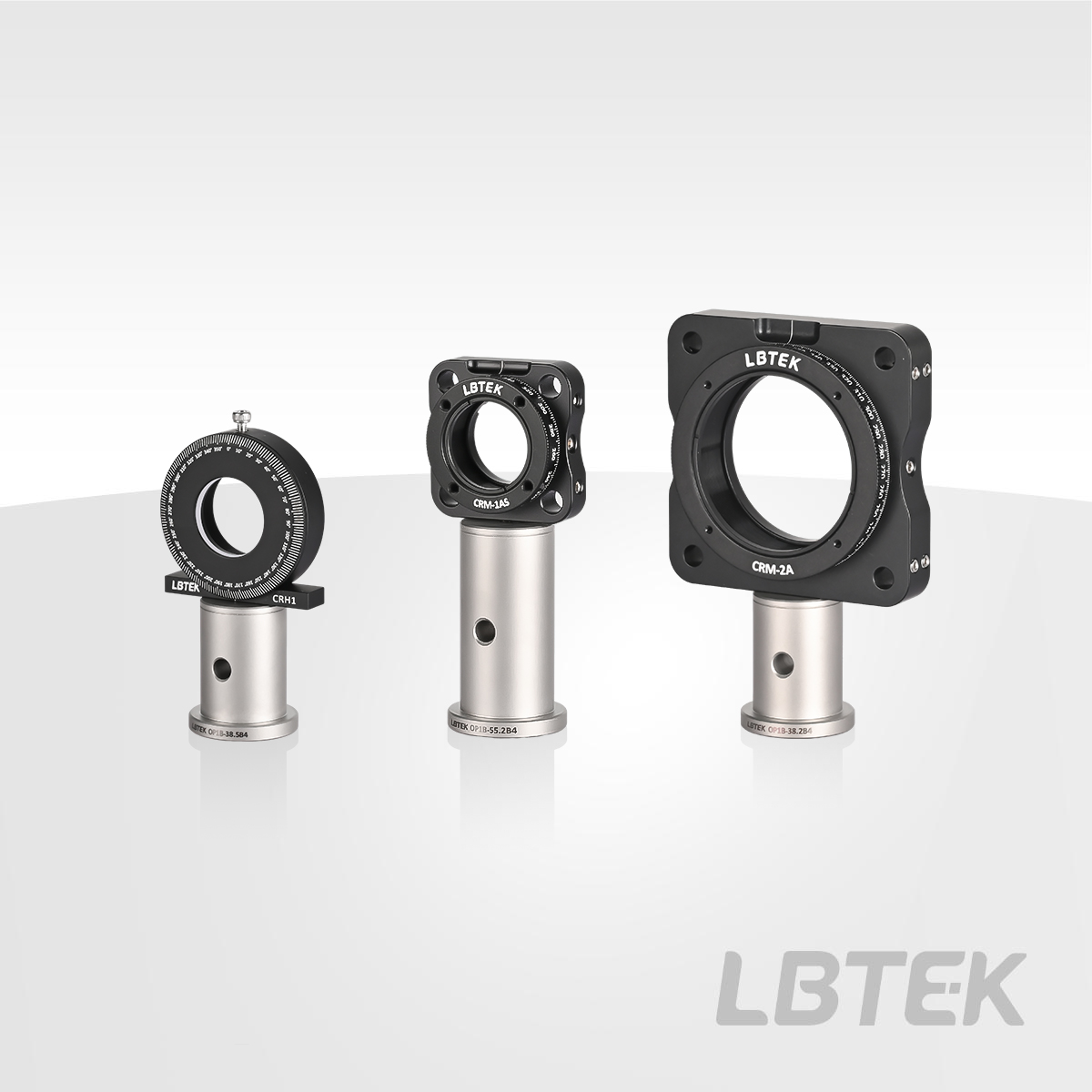

The LBTEK 3-inch optical height rotation mount assembly integrates CRM-1AS, CRM-2A, or CRH1 with corresponding custom posts to form a 3-inch optical axis height assembly kit.
3-inch optical height series for combined use
Product Model | Applicable optical element diameter | Maximum applicable thickness of optical components | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| CRM-1AS-3S New | Ø25.4 mm | 9.4 mm | $68.53 | today | Add Cart | ||
| CRM-2AS-3S New | Ø50.8 mm | 12.8 mm | $110.74 | today | Add Cart |
- 3-inch light height kit
- Internal thread, with mounting step for Optical Components

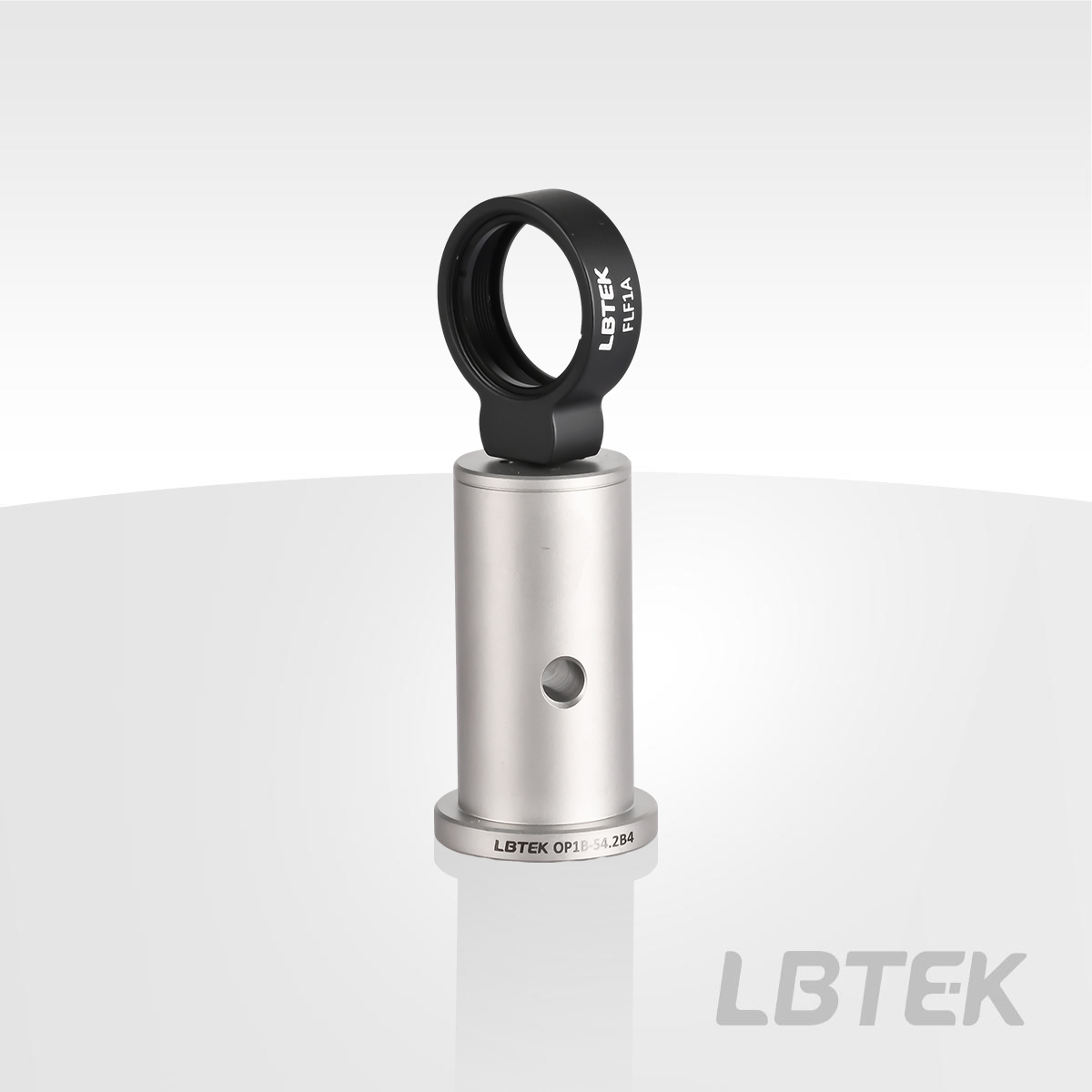

LBTEK 3-inch optical height Lens mount set FLF1A and custom post form a 3-inch optical axis height assembly kit.
The FLF1A fixed mount is suitable for mounting Ø25.4 mm Optical Components, has an Optical Components mounting step, and comes with 1 retaining ring.
3-inch Light Height Series for combined use
Product Model | Applicable optical element diameter | Maximum applicable thickness of optical components | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| FLF1A-3S New | Ø25.4 mm | 7.2 mm | $26.59 | today | Add Cart |
- 3-inch light height kit
- Flexible spring leaf and fixing screws secure Optical Components.

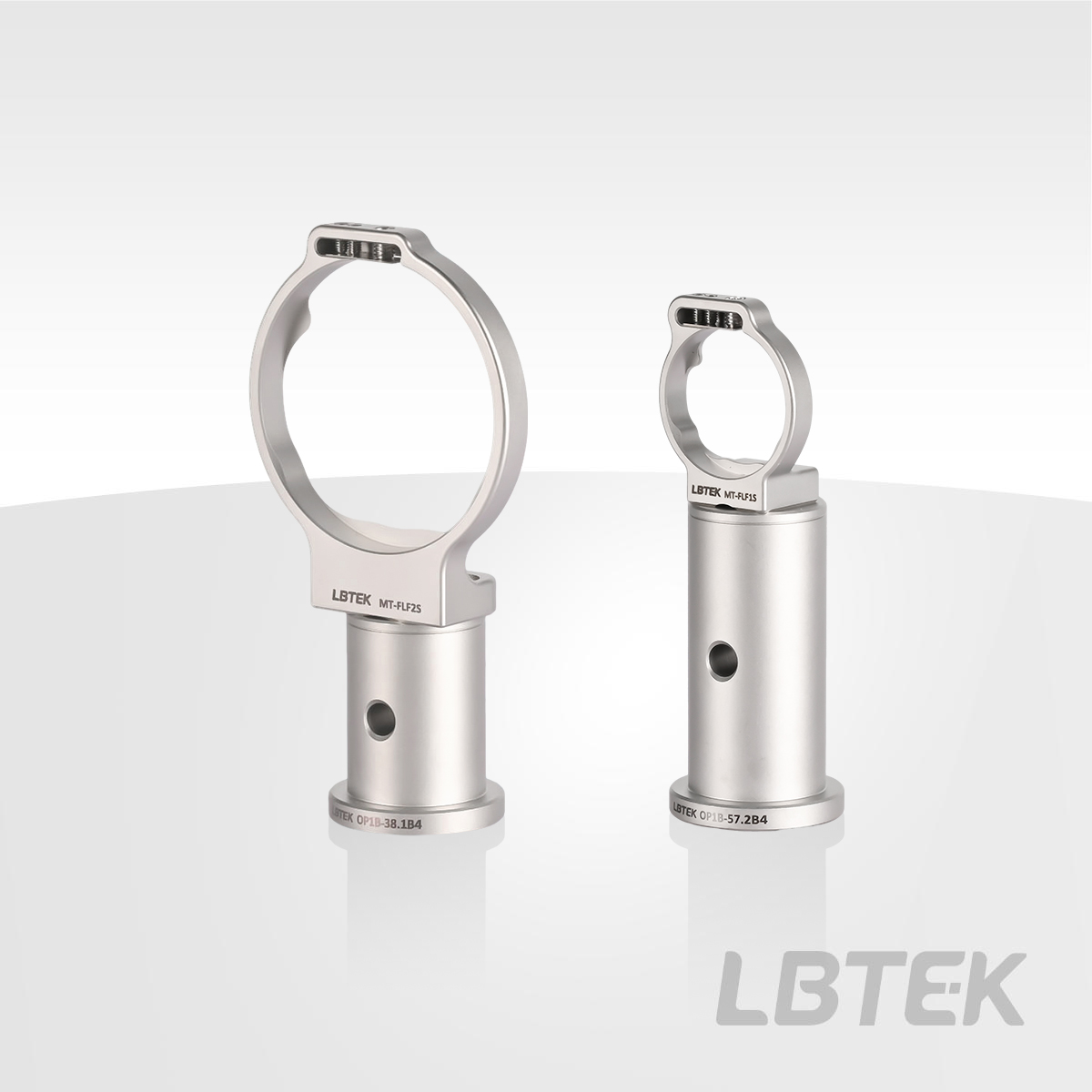

The LBTEK 3-inch optical height high-stability lens mount kit integrates MT-FLF1S, MT-FLF2S, and custom posts, forming a 3-inch optical axis height assembly kit.
Among them, MT-FLF1S and MT-FLF2S are respectively used to mount Ø25.4 mm and Ø50.8 mm Optical Components. The mounting slot face for Optical Components has a cutout, which can increase the Clear Aperture (CA). This design is especially suitable for mounting beamsplitters at a 45° angle of incidence(AOI), and can also be used to mount Mirror. The Optical Components are fixed by flexible leaf springs and fixing screws, providing stable installation and use.
3-inch light height series for combined use
Product Model | Applicable optical element diameter | Optical component mounting method | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| MT-FLF1S-3S New | Ø25.4 mm | Flexible spring contact fixation | $64.69 | today | Add Cart | ||
| MT-FLF2S-3S New | Ø50.8 mm | Flexible spring fixing | $88.26 | today | Add Cart |
- 3-inch light height kit
- K key facing up
- The Optical Fiber is located on one side of the Z-axis displacement stage adjustment mount.
- Compatible with 30 mm coaxial systems

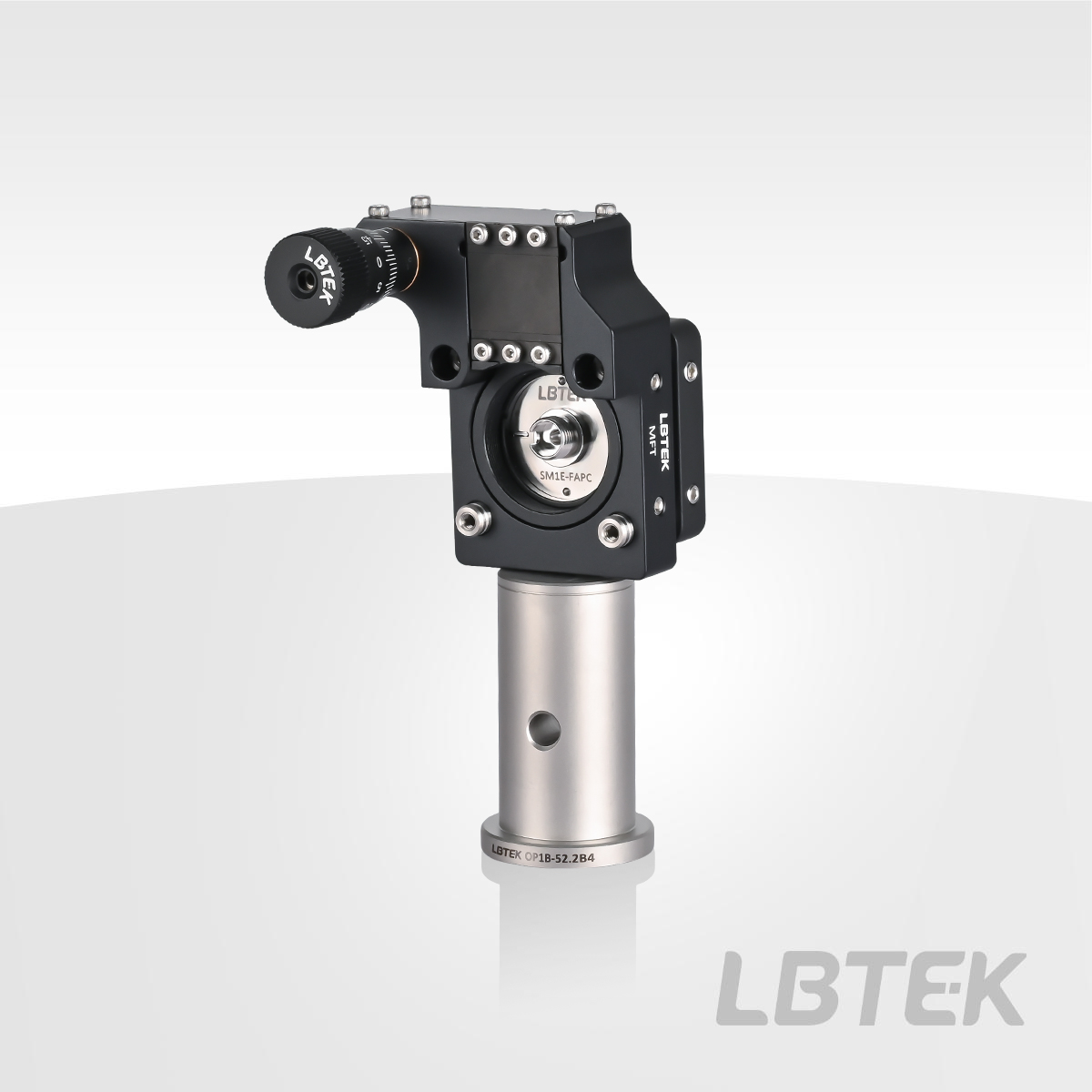

The LBTEK 3-inch optical height Z-axis translation fiber coupling module integrates the MFT, OPM-9BSK, MOP-25-P4, SM1E-FAPC, and a custom post, forming a 3-inch optical axis height assembly kit.
The MFT mount provides repeatable Z-axis travel within a 30 mm coaxial system and can be used to compensate for focusing errors in Optical Fiber alignment or spatial filtering applications in coaxial systems. The translation ring of the MFT mount has SM1 (1.035"-40) internal threads and is translated by a precision micrometer drive with 1 µm graduations, with a translation travel of 1.0 mm.
3-inch light height series for combined use
Product Model | Applicable optical element diameter | Compatible Applications | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| MFT-3S New | Ø25.4 mm | 30 mm coaxial system | $265.19 | today | Add Cart |
