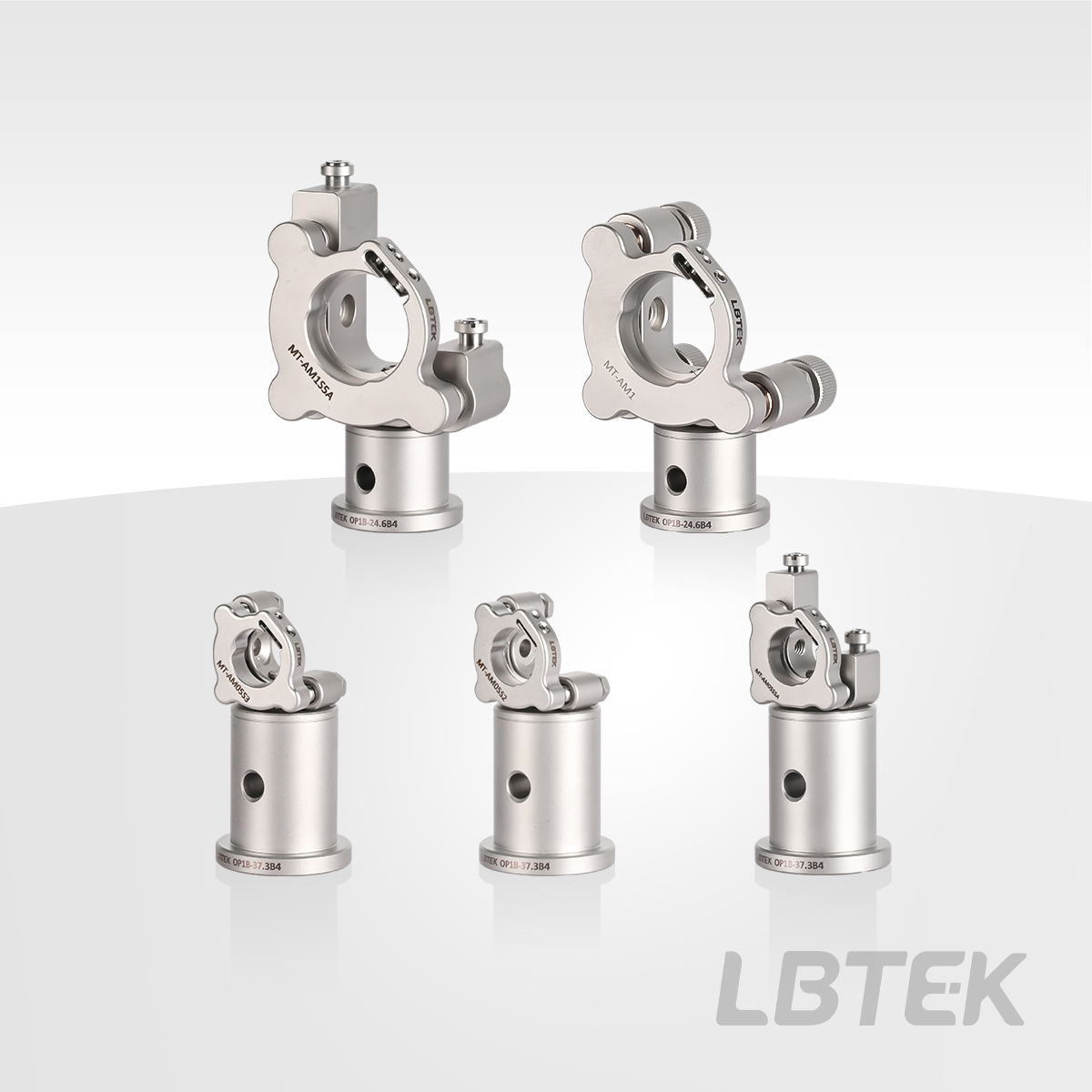

The LBTEK 50 mm high-stability Mirror Mount kit integrates high-stability Mirror Mounts and custom posts to form a 50 mm optical axis height assembly kit.

     Among them, MT-AM1 and MT-AM1S5A are used to mount Optical Components with a mounted diameter of 25.4 mm, MT-AM05S3 is used to mount 12 mm collimators; MT-AM05S2 and MT-AM05S5 are used to mount Optical Components with a mounted diameter of 12.7 mm

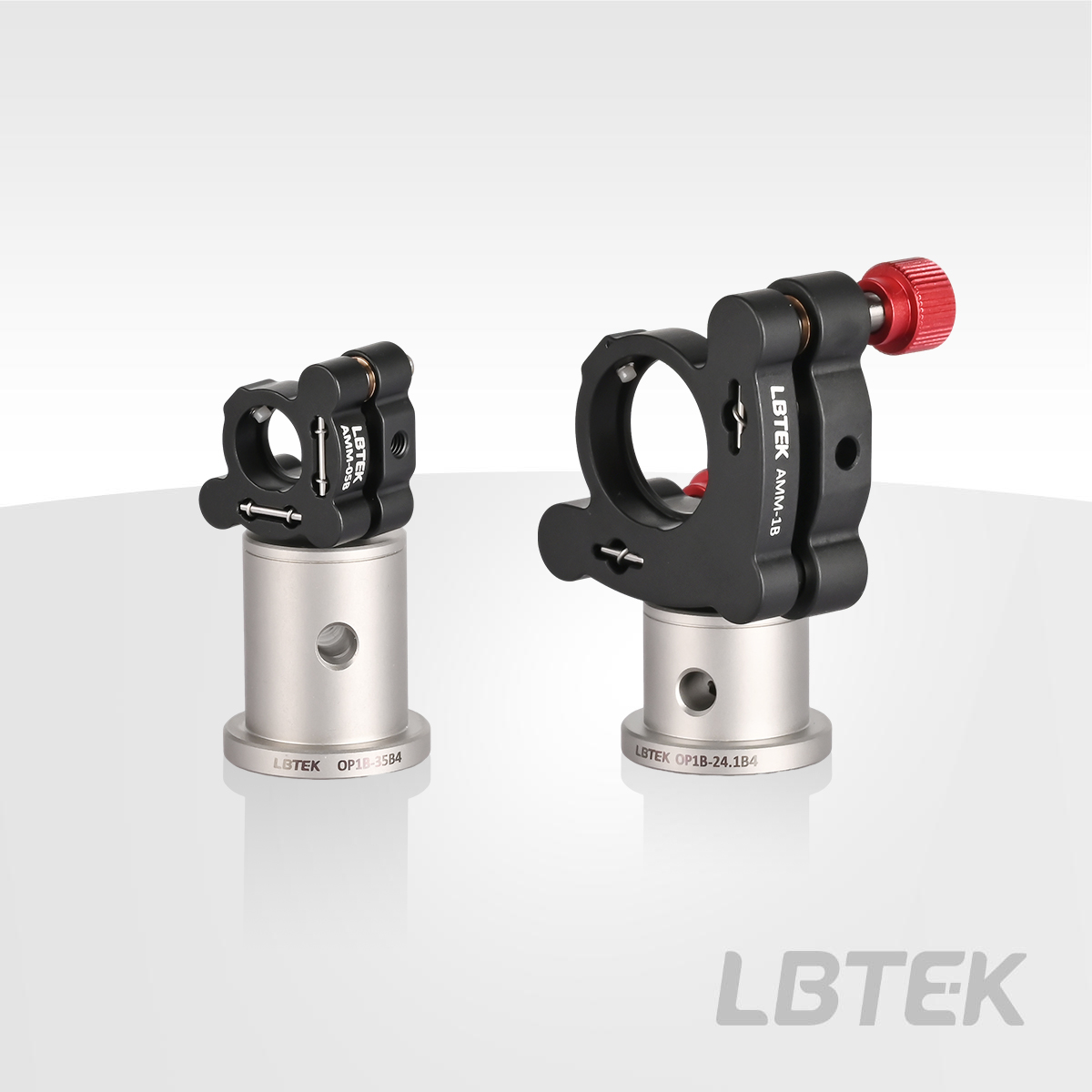

     The LBTEK 50 mm optical height standard Mirror Mount assembly integrates AMM-05B or AMM-1B with a custom post to form a 50 mm optical axis height assembly kit.

     Among them, AMM-05B and AMM-1B are LBTEK B-type standard O-type mounts, with a smooth-walled, unthreaded bore. Optical Components are secured with set screws, and ±4 ° pitch and yaw angle adjustment is achieved through 2 M6x0.25 adjusters.

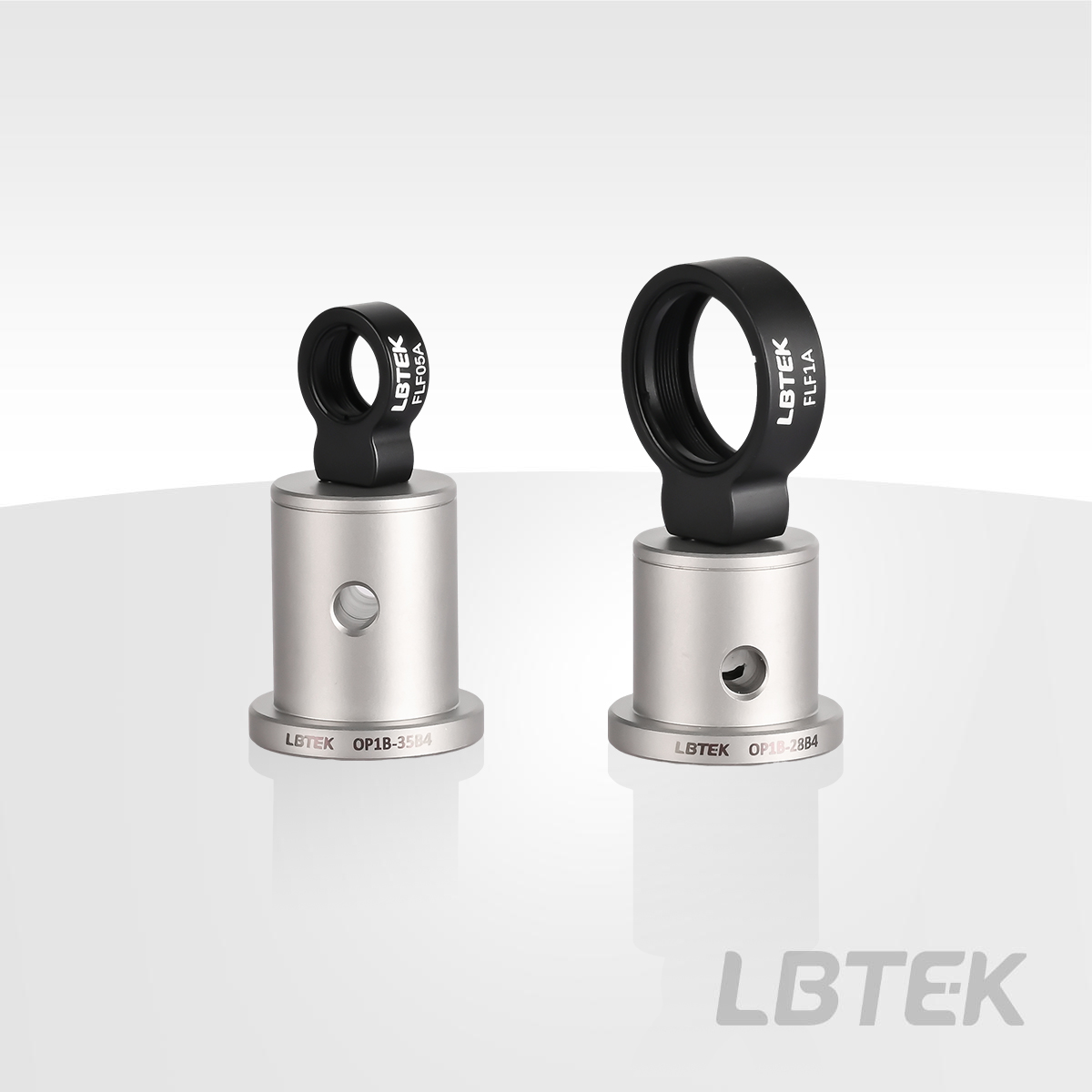

     The LBTEK 50 mm optical height Lens mount set integrates FLF05A or FLF1A with a custom post to form a 50 mm optical axis height assembly kit.

     The FLF05A and FLF1A fixed mounts are used to mount Optical Components with mounted diameters of 12.7 mm and 25.4 mm, respectively, with a mounting step for Optical Components and include 1 retaining ring.

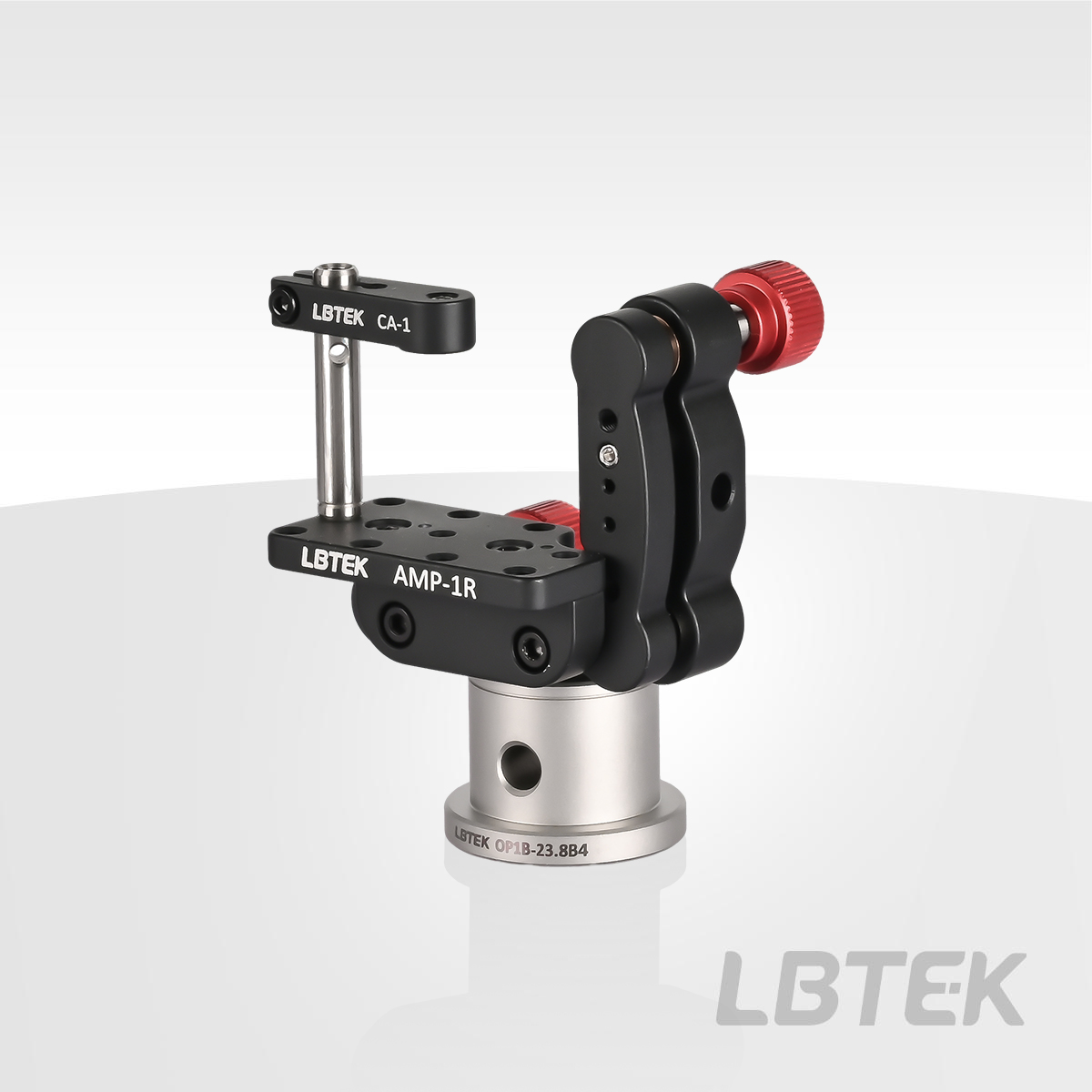

     The LBTEK 50 mm optical height Prism Mount Set integrates AMP-1R or PCMG05 or PCMG1, and together with the corresponding custom posts, forms a 50 mm optical axis height assembly kit.

     Among them, AMP-1R is a two-dimensional adjustable prism adjustment mount; two M6x0.25 adjustment lead screws can achieve ±4° pitch and yaw angle adjustment for the mount;

     PCMG05 and PCMG1 are adhesive-type Prism Mounts.

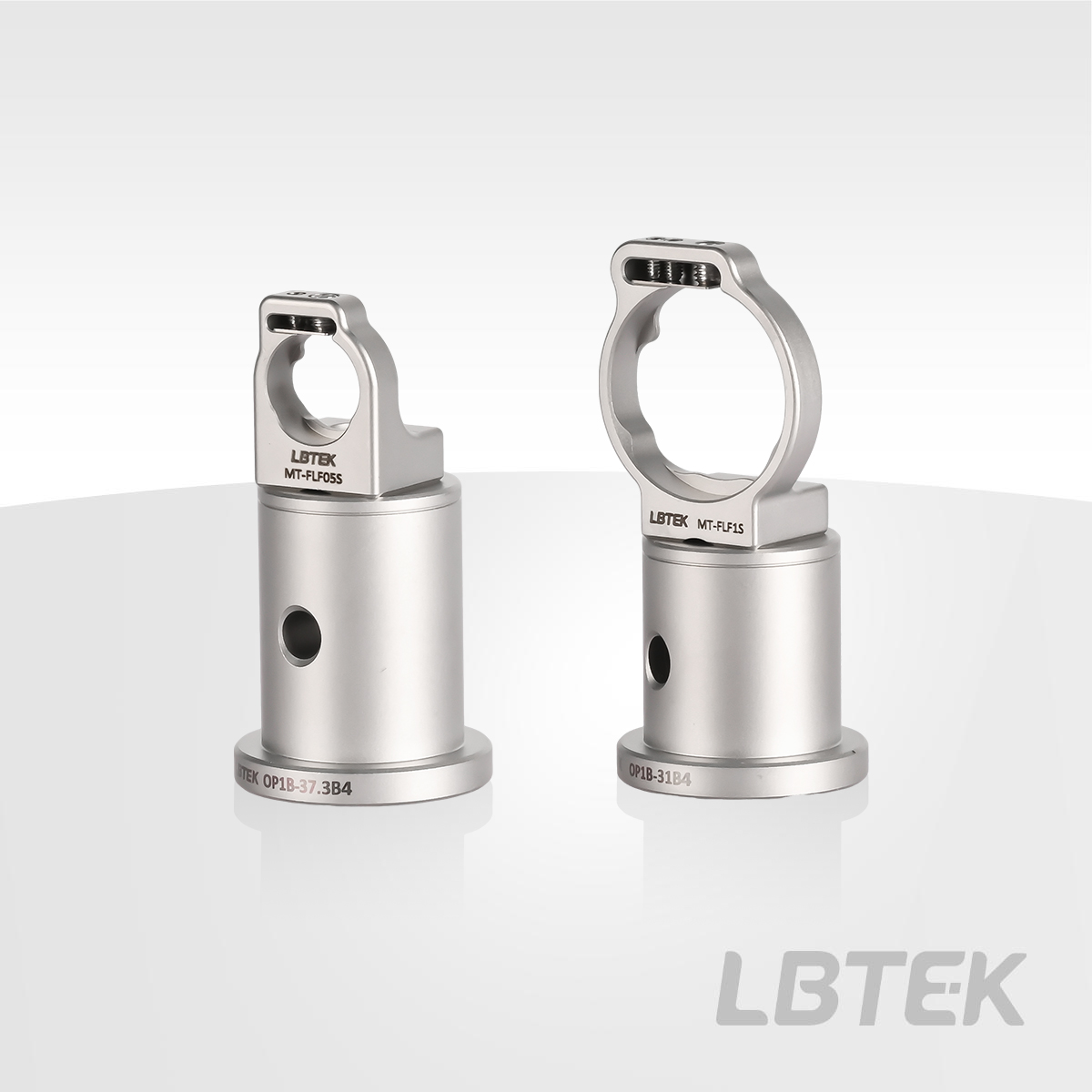

     LBTEK 50 mm high-stability Lens mount assembly integrates MT-FLF05S or MT-FLF1S with a custom post to form a 50 mm optical axis height assembly kit.

     MT-FLF05S and MT-FLF1S are respectively used to mount Optical Components with mounted diameters of 12.7 mm and 25.4 mm. The mounting slot face of the Optical Components has cutouts, which can increase the Clear Aperture (CA). This design is particularly suitable for mounting beamsplitters at a 45° angle of incidence(AOI), and can also be used to mount a Mirror. The Optical Components are secured by flexible spring tabs and fixing screws, providing stable mounting and use.

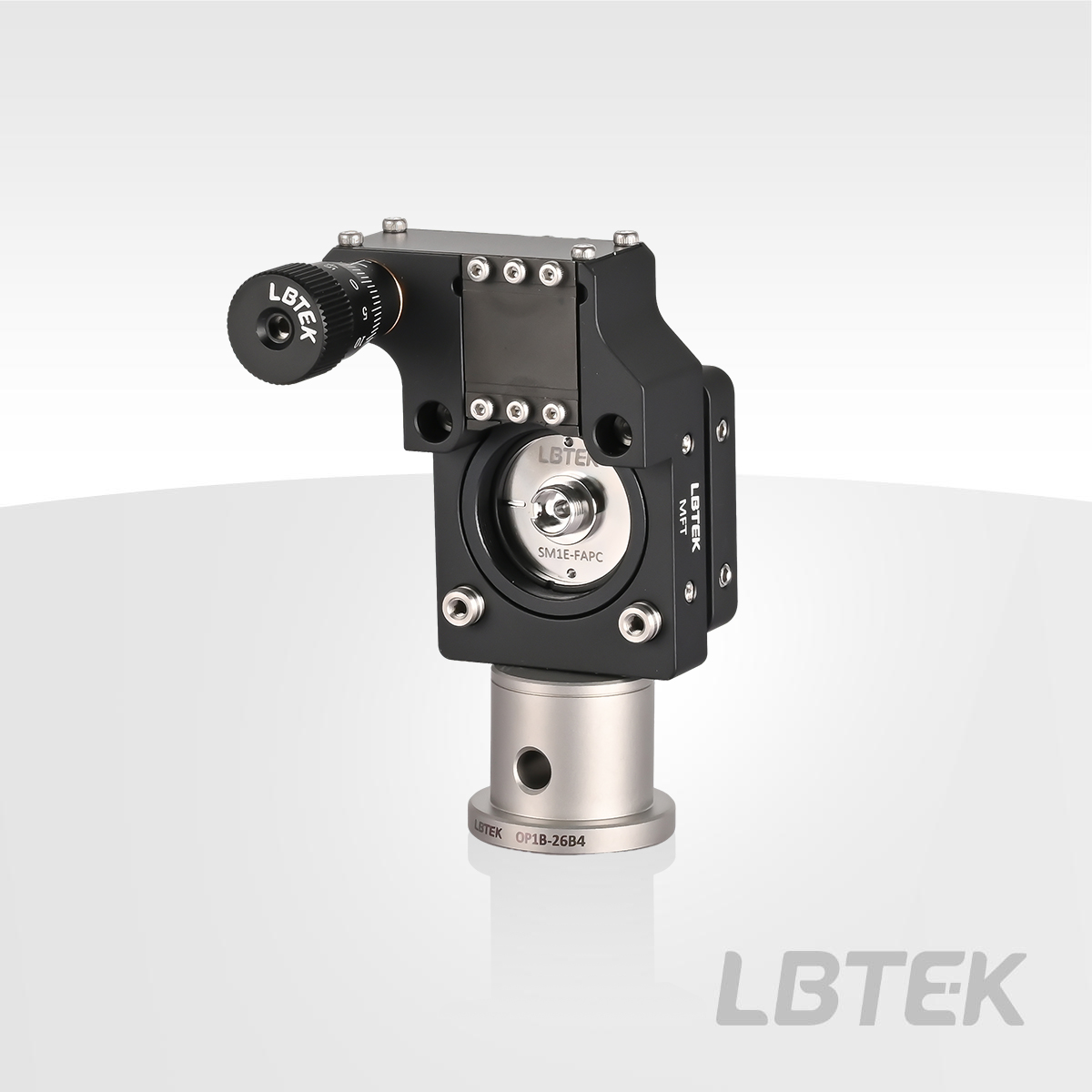

     The LBTEK 50 mm optical height Z-axis translation fiber coupling module integrates MFT, OPM-9BSK, MOP-25-P4, SM1E-FAPC, and a custom post, forming a 50 mm optical axis height assembly kit.

     Among them, the MFT mount provides repeatable Z-axis travel within a 30 mm coaxial system and can be used to compensate for focusing errors in Optical Fiber alignment or spatial filtering applications in coaxial systems. The translation ring of the MFT mount has SM1(1.035"-40) internal threads and is translated by a precision micrometer drive with 1 µm graduations, with a translation travel of 1.0 mm.
