8 or 24 output channels optional

Sequence time resolution: 1ns

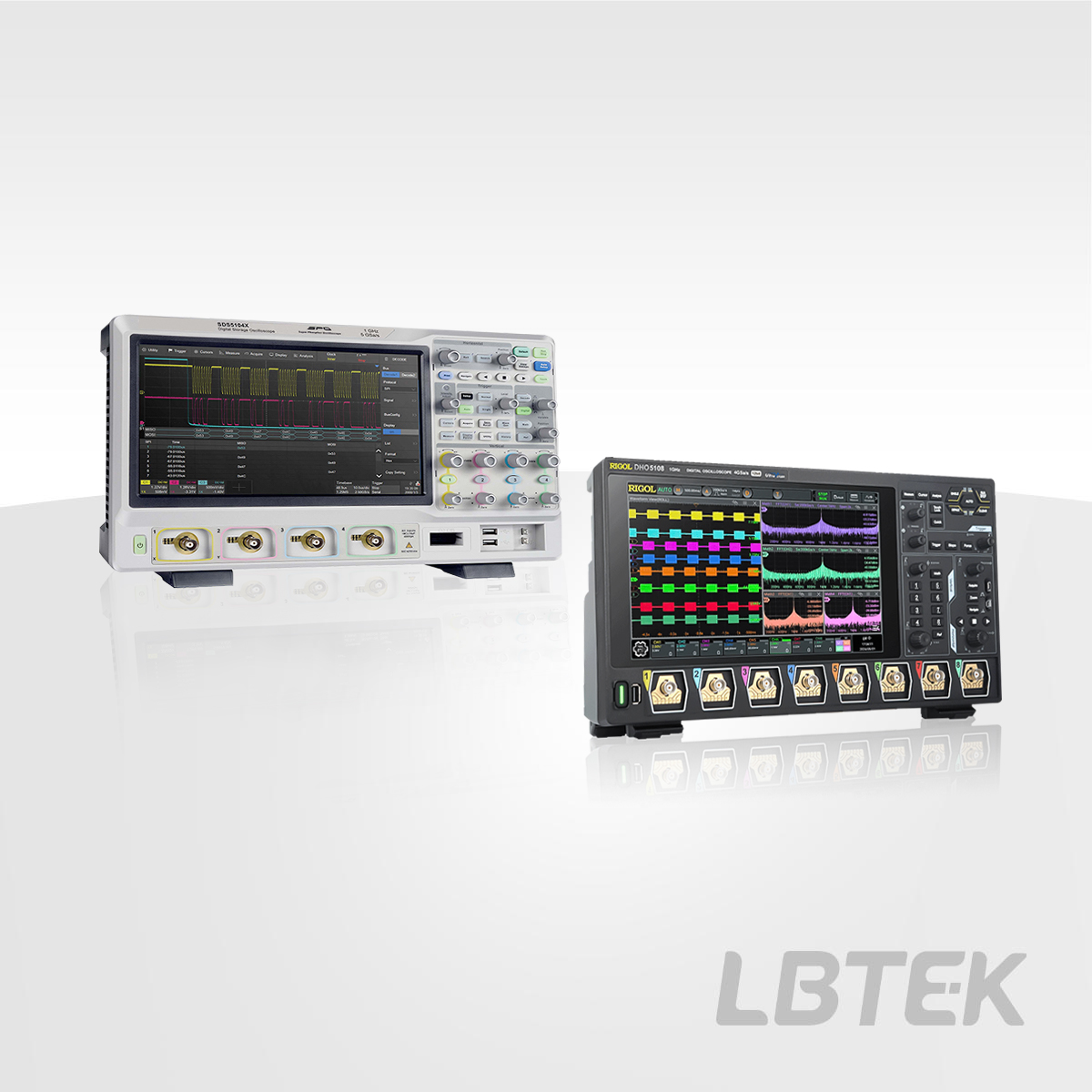

Up to 6 GHz analog bandwidth

Vertical resolution: 8-bit, 10-bit, and 12-bit selectable

2-channel/4-channel/8-channel

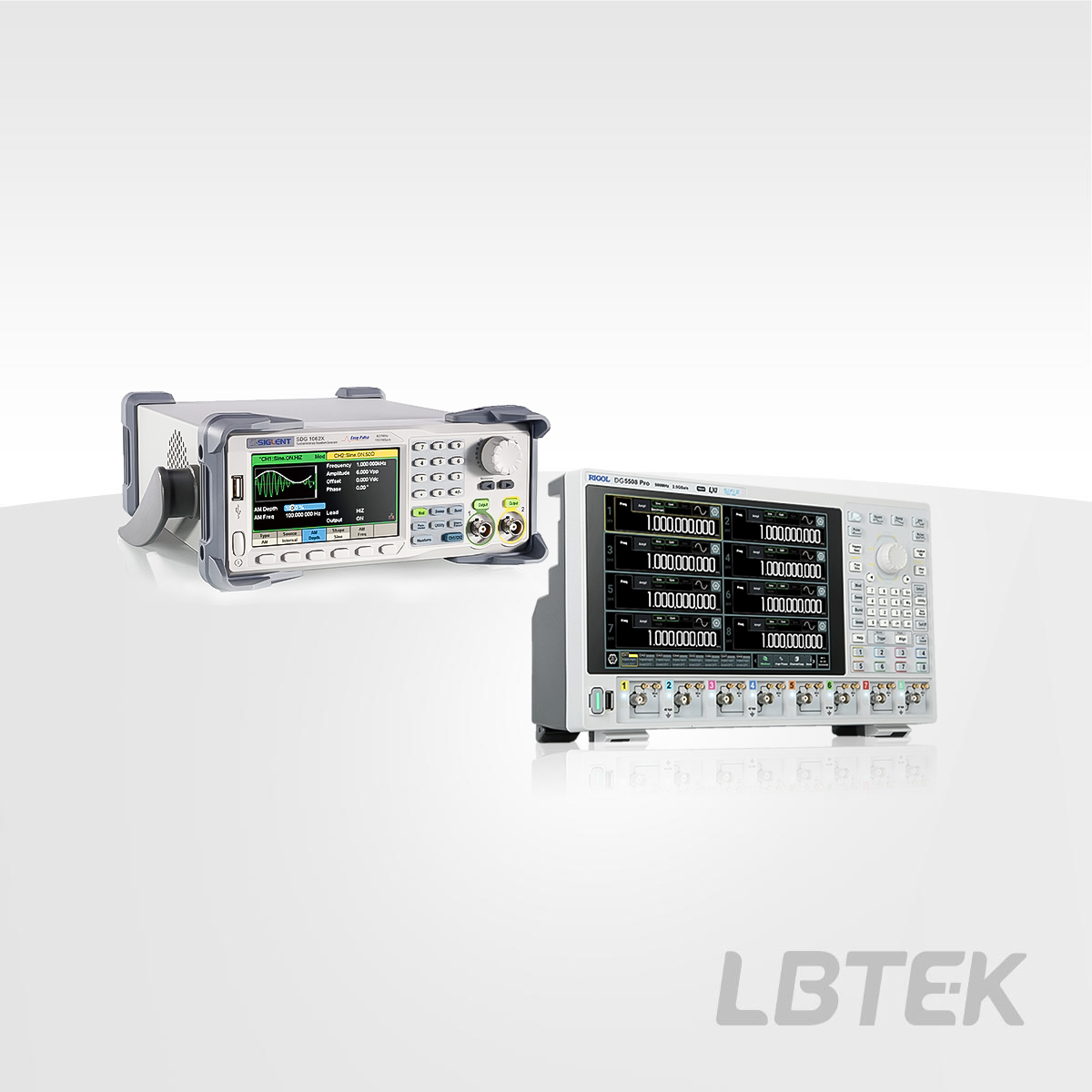

2/4/8 channel output

Maximum output frequency: 500 MHz

Supports multiple analog and digital modulation functions

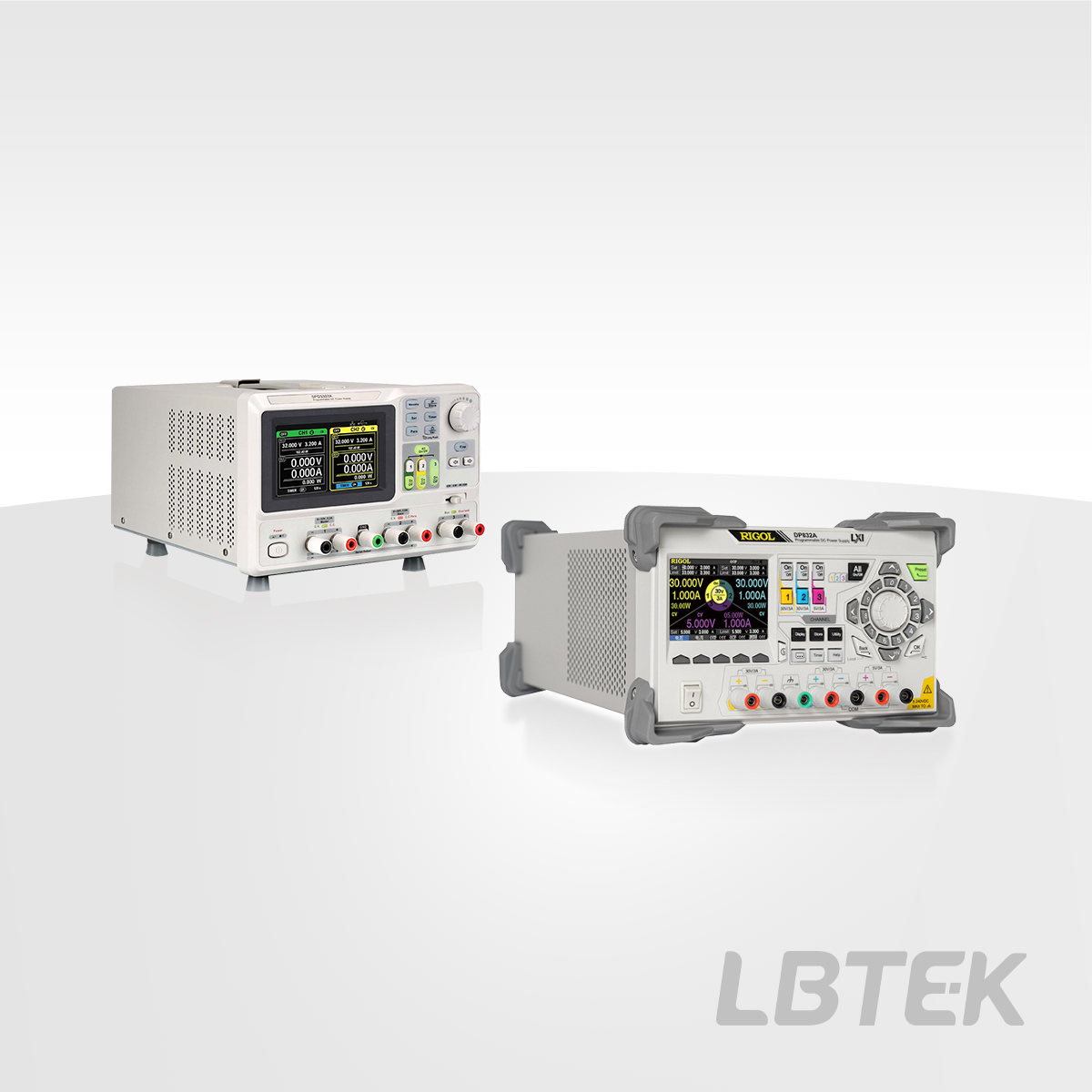

Three-channel high-precision power supply with independent controllable outputs

Clear graphical interface with waveform display function

100 V/120 V/220 V/230 V compatible design to meet the needs of different power grids

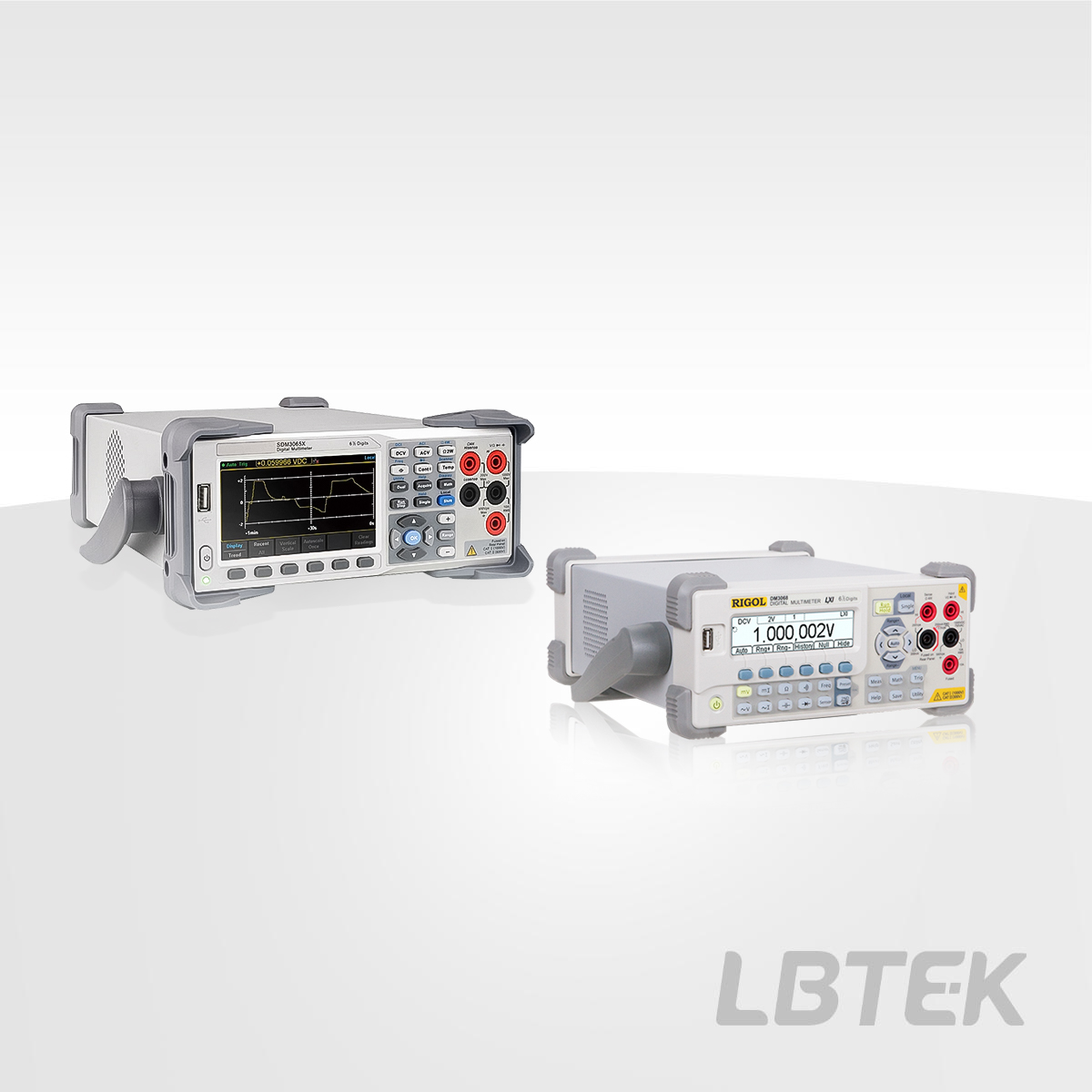

It can measure voltage, current, resistance, capacitance, and temperature

Rich calculation functions such as maximum, minimum, and average values

Graphical user interface, easy and convenient to operate

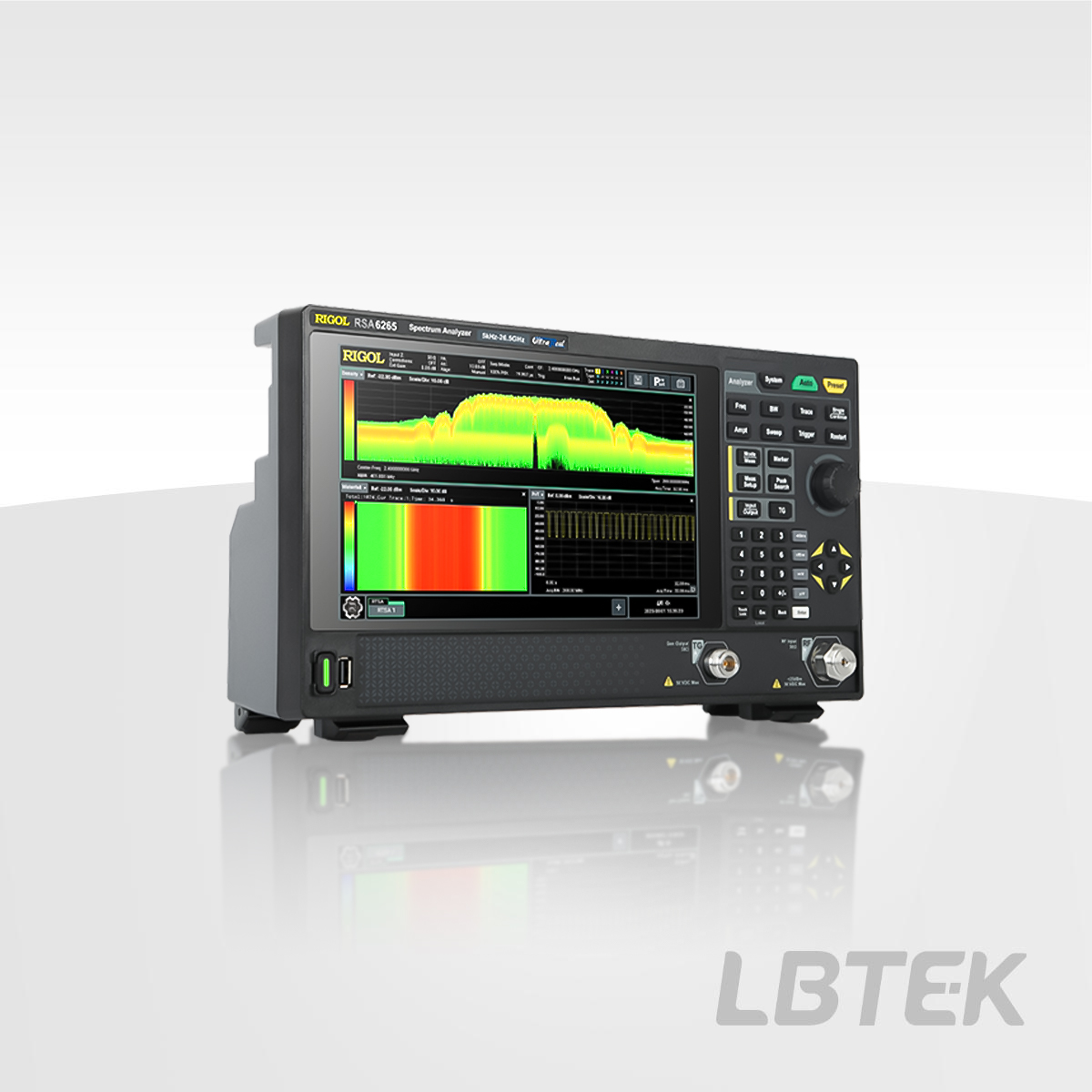

Frequency measurement range covers 5kHz~26.5GHz

Five measurement modes: GPSA, RTSA, VSA, EMI, and ADM

Multi-window simultaneous display of multiple measurement values

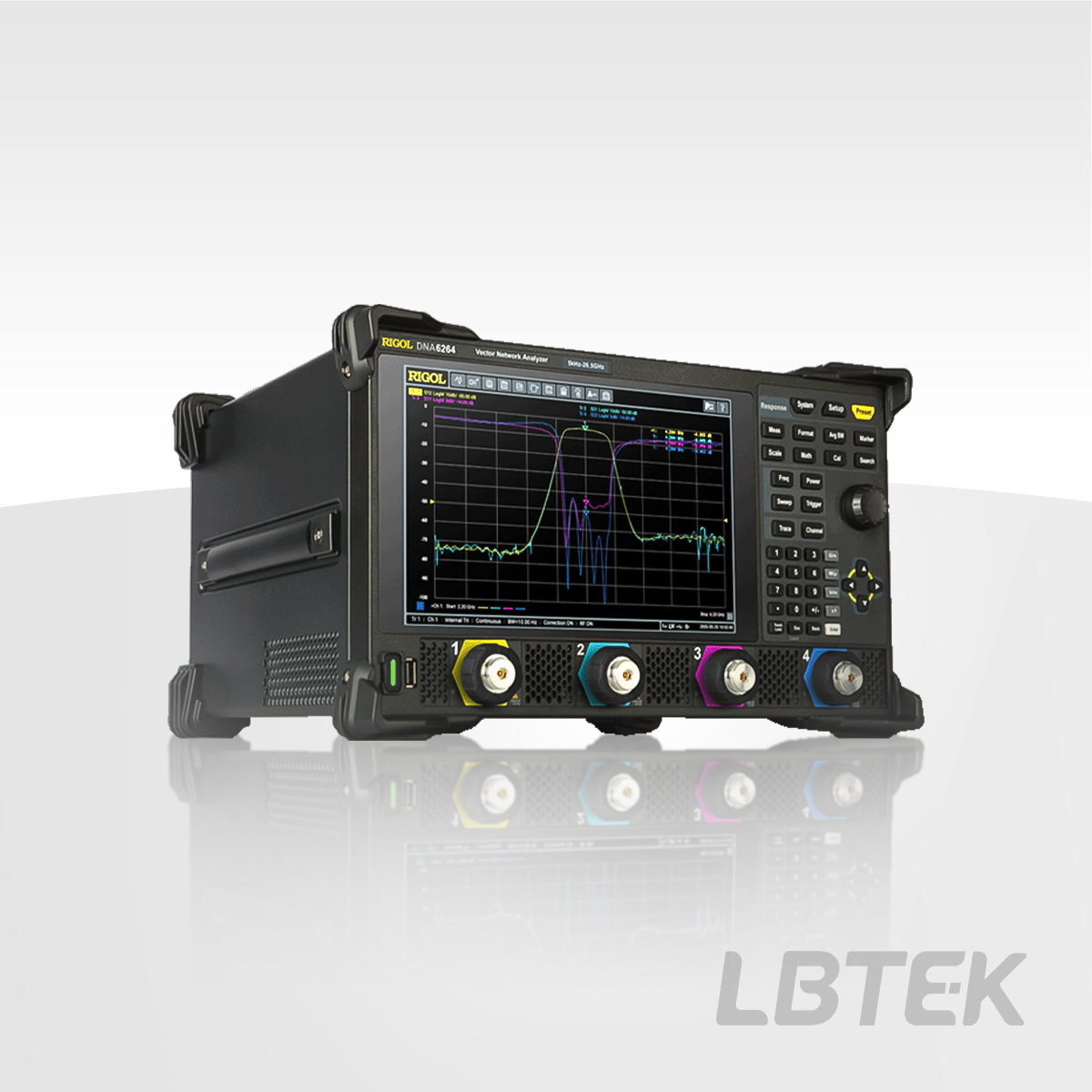

Frequency Range: 5 kHz ~ 26.5 GHz

Number of Ports: 2/4 Ports

Integrates functions such as S-parameters, impedance, VSWR, TDA time domain analysis, fixture embedding/de-embedding, antenna testing, etc.

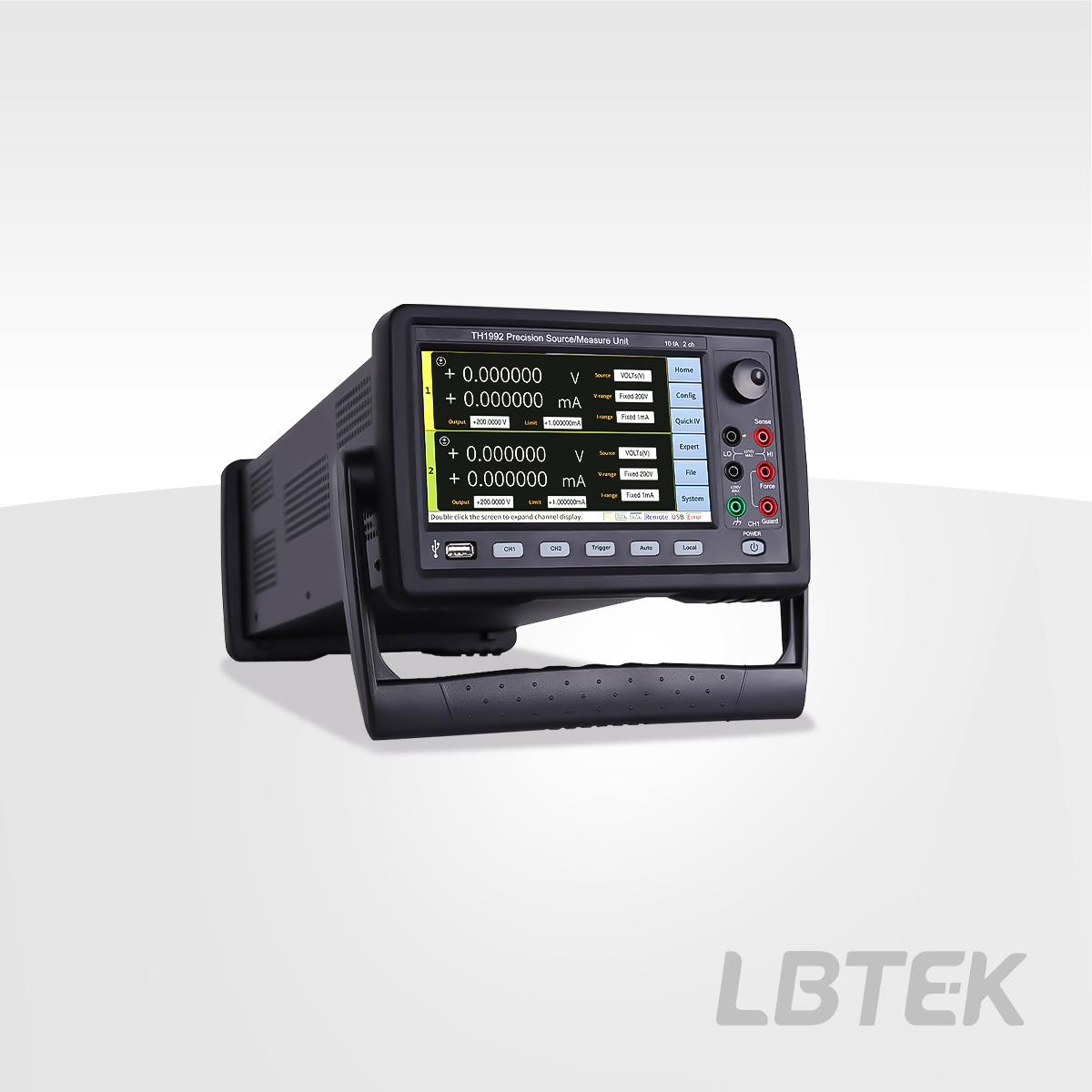

Number of channels: 2

Output up to ±210V DC voltage, ±3A DC current, and ±10.5A pulse current
