High Extinction Ratio: > 10 000:1, > 100 000:1

Material: Calcite, α-BBO

Wavelength Range: 200 nm-3.0 μm

High Extinction Ratio: > 10000:1, > 100000:1

Material: Calcite, α-BBO

Operating Wavelength: 200 nm-3.0 μm

Extinction Ratio up to 100,000:1 (Upon the incidence of unpolarized light, two orthogonally polarized beams can be obtained at the output with an extinction ratio of up to 100000:1.)

Optimized Assembly Design (Calcite prisms are cemented with an optical adhesive, while α-BBO prisms are joined via optical contact.)

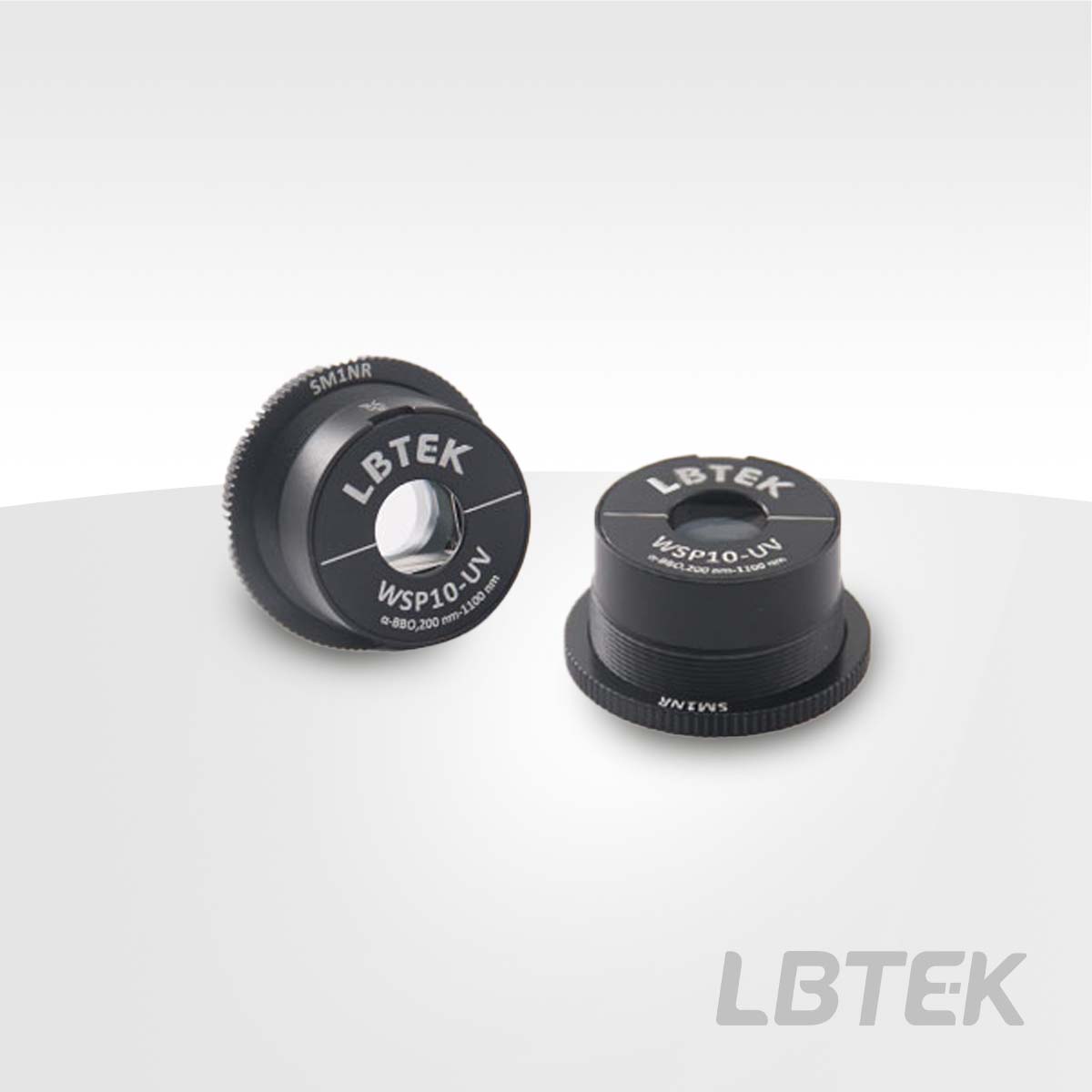

Integrated Mechanical Housing (Pre-installed in a non-removable, black-anodized mechanical housing. One end features an SM1 external thread with a locking ring for counter-locking and polarization control, while the opposite end is smooth. Both ends are compatible with LBTEK's mounts.)

Extinction Ratio up to 100,000:1 (Upon the incidence of unpolarized light, two linearly polarized beams can be obtained at the output with an extinction ratio of up to 100,000:1.)

Cemented Design (The two crystal prisms are cemented together using an adhesive.)

Integrated Mechanical Housing (Pre-installed in a non-removable, black-anodized mechanical housing, the prism includes an engraved schematic indicating the input direction. One end features an SM1 external thread with a locking ring for counter-locking and polarization control, while the opposite end is smooth. Both ends are compatible with LBTEK's mounts.)
