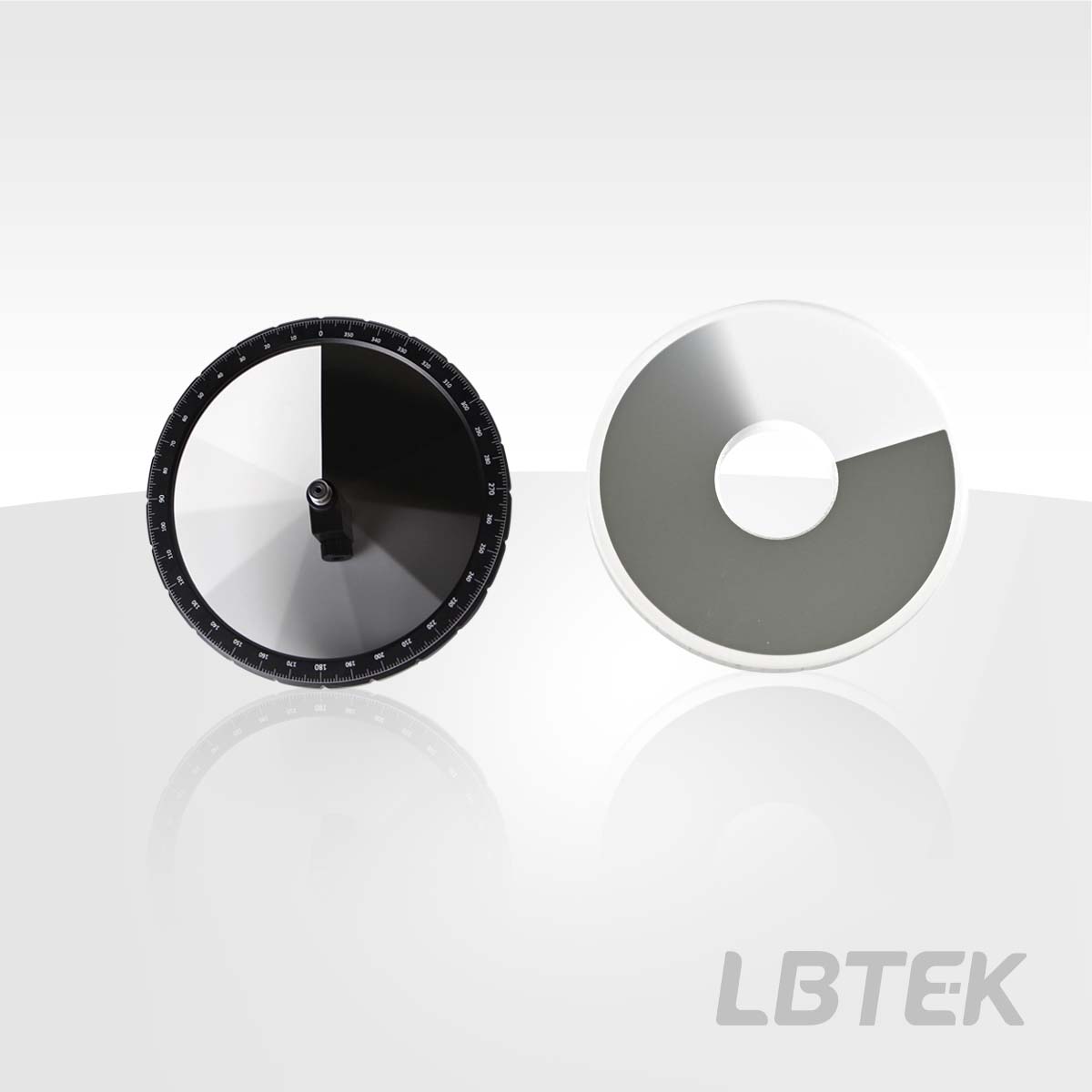

OD value adjustable through rotating the angle

Ø50 mm filter wheel

Continuous and stepped options available

The OD value can be adjusted by rotating the filter angle

Circular shape with continuously adjustable OD value

Suitable for working wavelength range of 240-1200 nm

OD value can be adjusted by rotating the filter angle

Circular shape, OD value continuously adjustable

Anti-reflection coating: 350 nm-700 nm

OD value can be adjusted by rotating the filter angle

Circular shape, OD value continuously adjustable

Anti-reflection coating: 650-1050 nm

Adjustable OD value by rotation the angle

Circular, 8 or 10 different OD steps

Applicable for 240 - 1200 nm wavelength

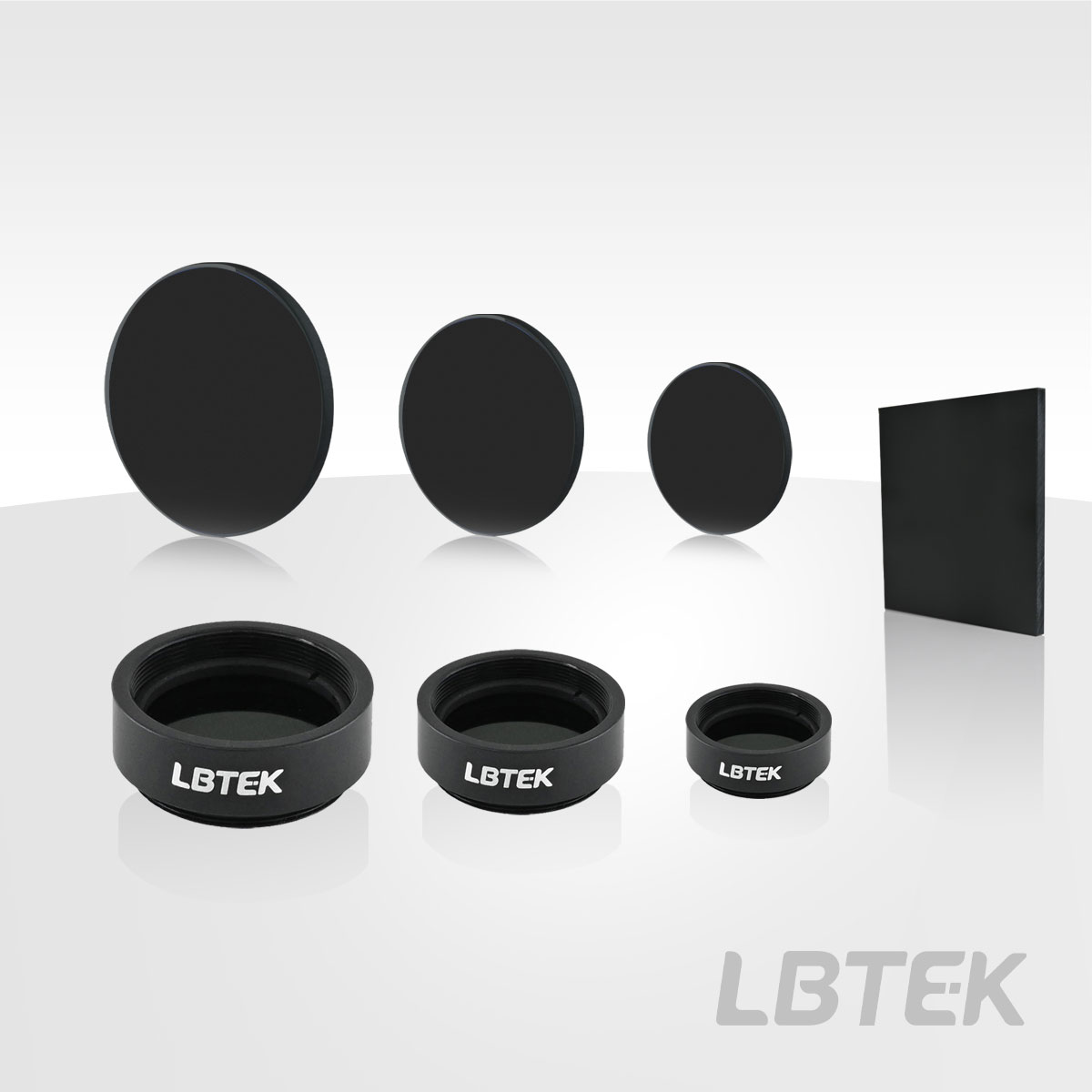

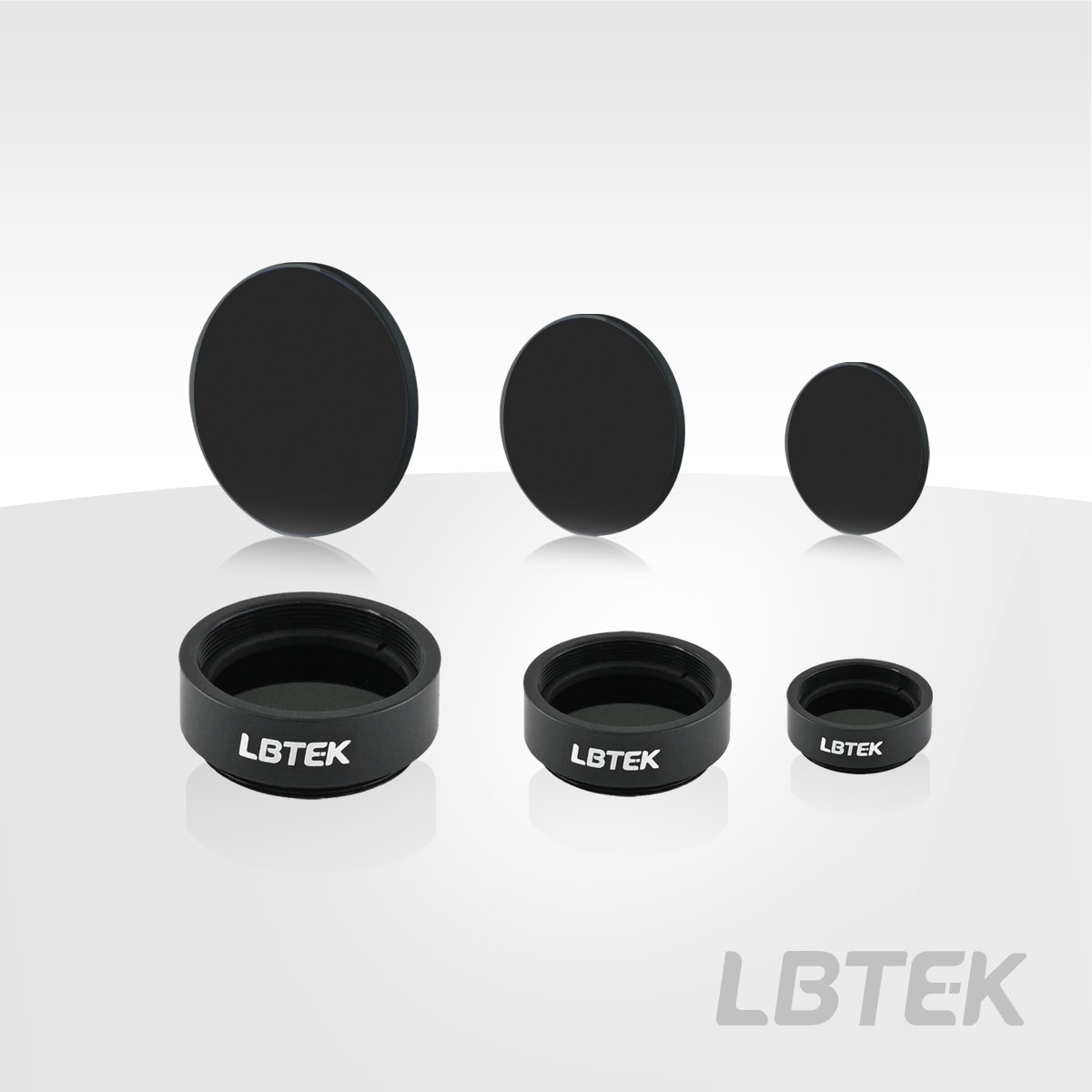

Absorptive Neutral Density Attenuators

Uncoated: 400 nm-650 nm

OD: 0.1-8.0

Absorptive Neutral Density Attenuators

Anti-Reflection Coating: 400 nm-700 nm

OD: 0.1-6.0

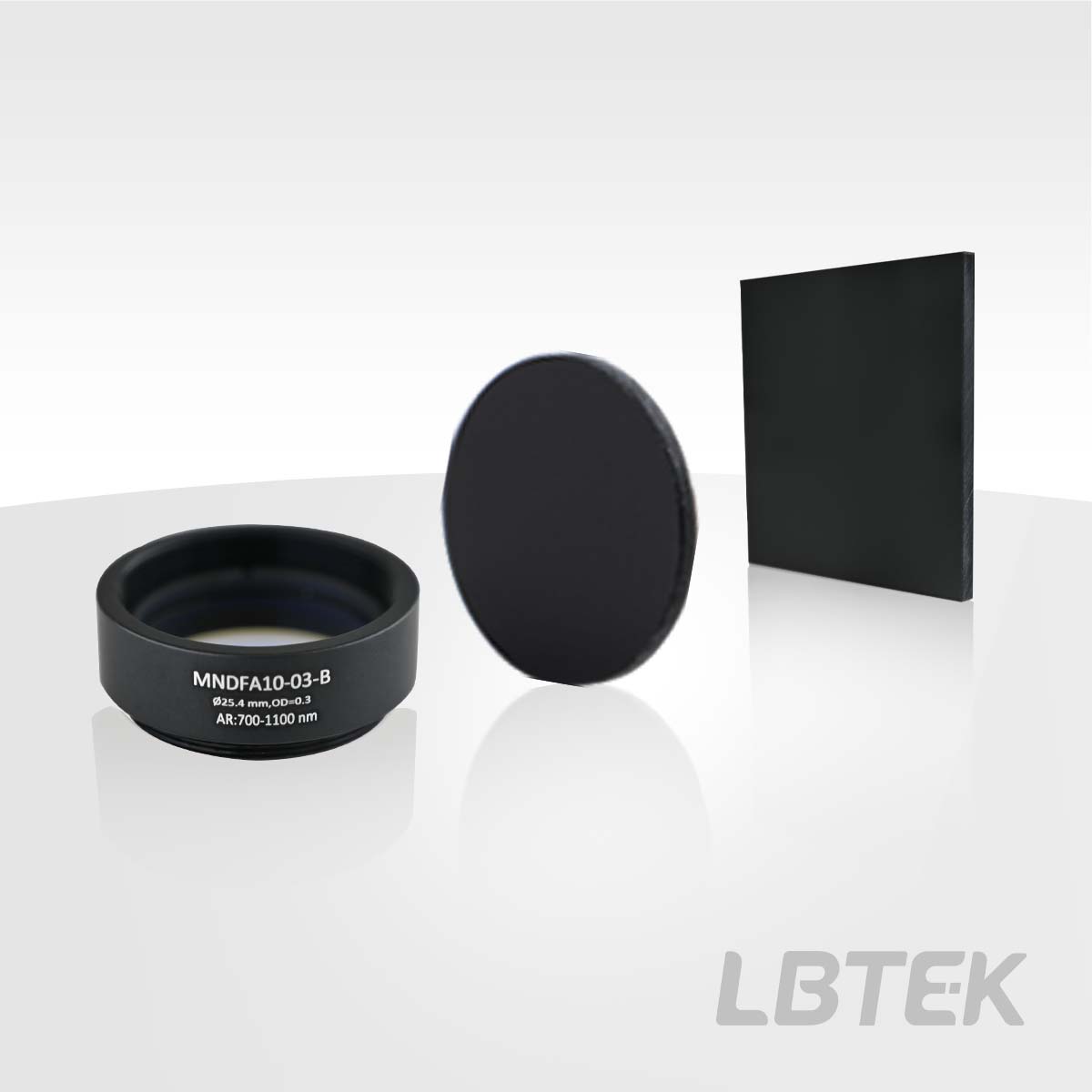

Absorption-type Neutral Density Attenuator

Anti-reflection Coating: 700 nm-1100 nm

OD: 0.1-6.0

Absorptive Neutral Density Attenuator

Anti-Reflection Coating: 1100 nm-1700 nm

OD: 0.1-4.0

Uncoated: 1.0 μm-2.6 μm

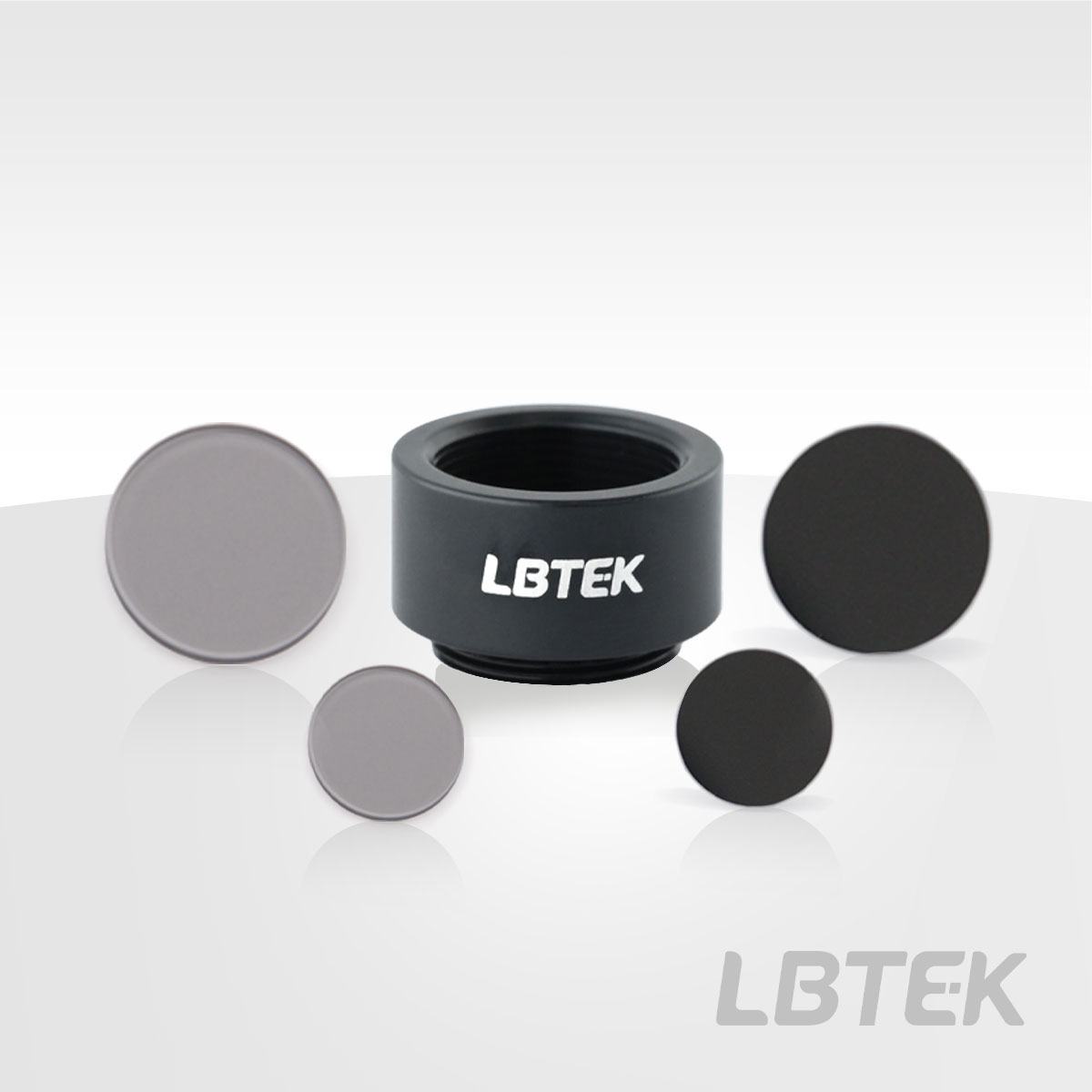

Attenuating low power lasers

OD: 0.3, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0, 6.0

Substrate Material: N-BK7

Working Wavelength: 350 nm-1100 nm

OD: 0.2, 0.3, 0.4, 0.5, 1.0, 2.0, 3.0, 4.0

Substrate Material: N-BK7

Working Wavelength: 1100-1700 nm

OD: 0.2, 0.3, 0.4, 0.5, 1.0, 2.0, 3.0, 4.0

Substrate: ZnSe

Working Wavelength: 2.0 μm-16.0 μm

OD：0.3、1.0、2.0、3.0

All filter element diameters are 25.4 mm

The packaging box kit is stored independently with compartments for easy carrying

The turret-style mounting kit uses a stress-free snap ring for easy installation
