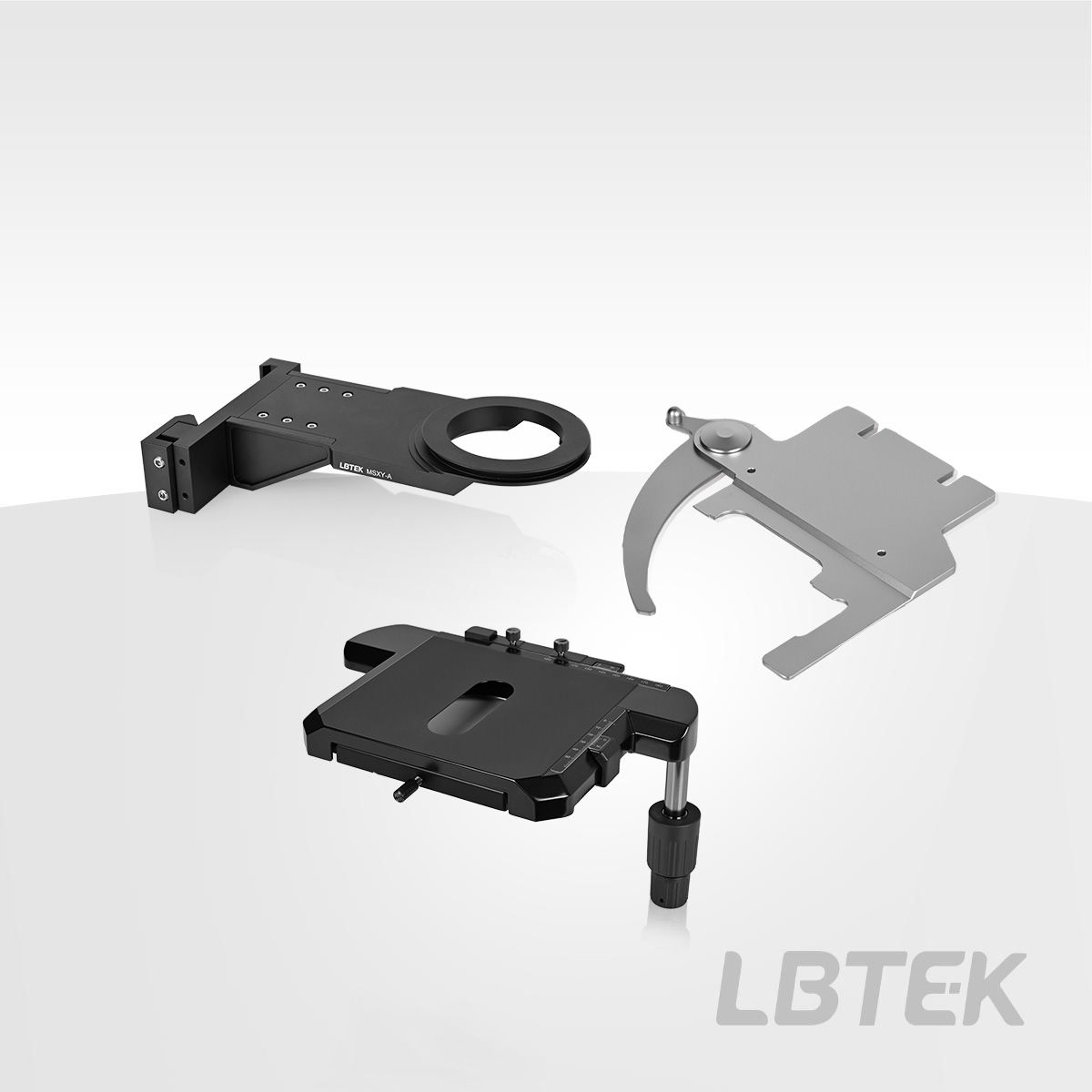

Displacement stage adapter arm for self-assembled microscopy systems, installs any Olympus U-SV series XY displacement stage 196.5mm from the edge of the self-assembled microscope rail, 95mm dovetail clamp compatible with self-assembled microscope main body bracket

Manual displacement stage provides independent travel of 80 mm on the X-axis and 54 mm on the Y-axis, with a vernier accuracy of 100um

Displacement stage compatible with slide holders or any Olympus U-H series slide sample holders

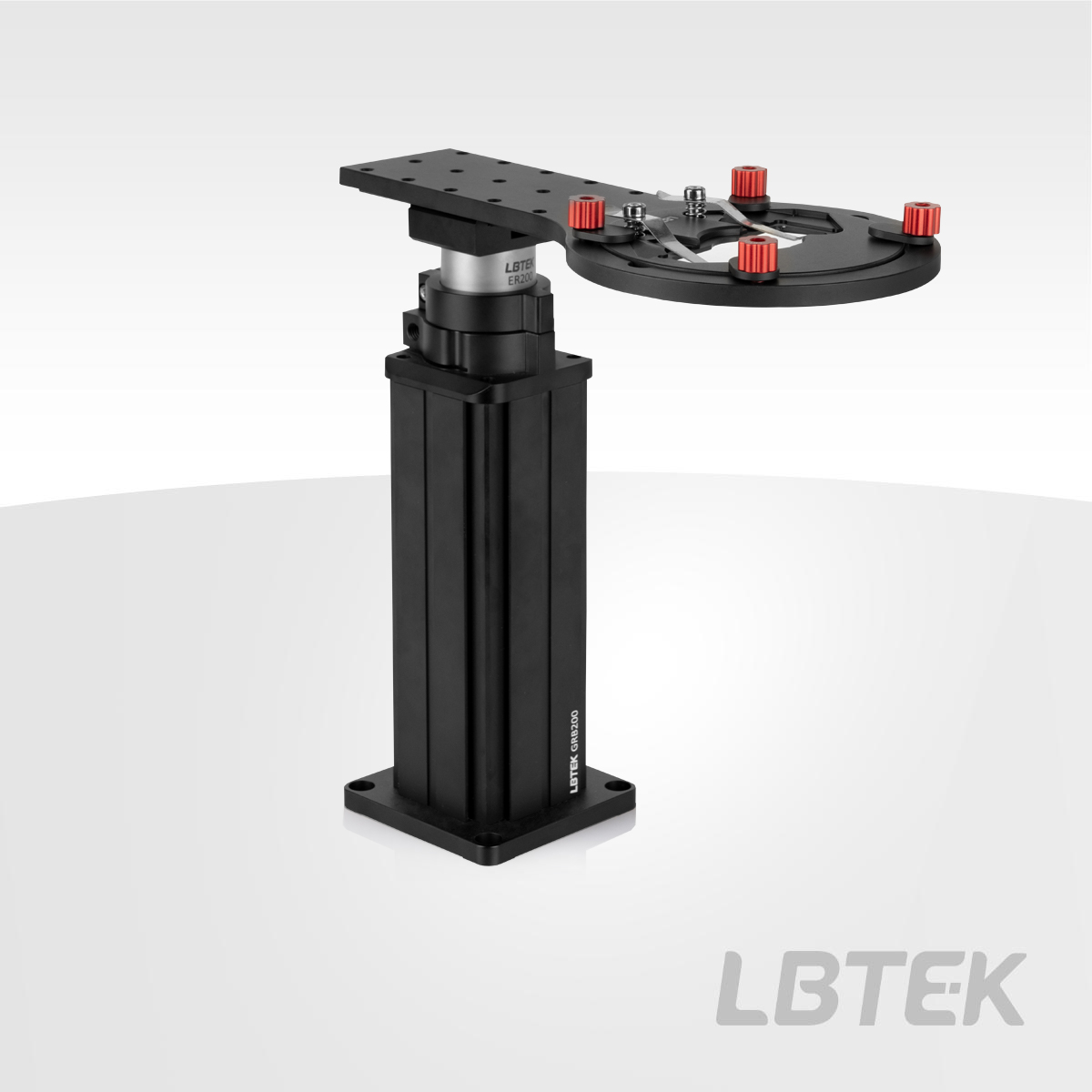

Manual rigid brackets can hold samples or experimental equipment below or around the objective lens

Designed for use with slides, petri dishes, recording chambers, patch clamps, multi-well plates, and DIY accessories

Suitable for both upright and inverted microscopes

Three drive types: end direct drive, left-side drive, and right-side drive;

Linear crossed roller guide for high load capacity and high positioning accuracy;

Multiple single-axis translation stages can be freely assembled into XY-axis and XYZ-axis stages;

XY Dual-axis translation stage；

Stage surface with center SM1 tapped hole;

It can be equipped with microscope slide spring clips;

Single-axis/dual-axis/triple-axis manual linear translation stages available;

Three drive types: end direct drive, left-side drive, and right-side drive;

Linear crossed roller guide for high load capacity and high positioning accuracy;
