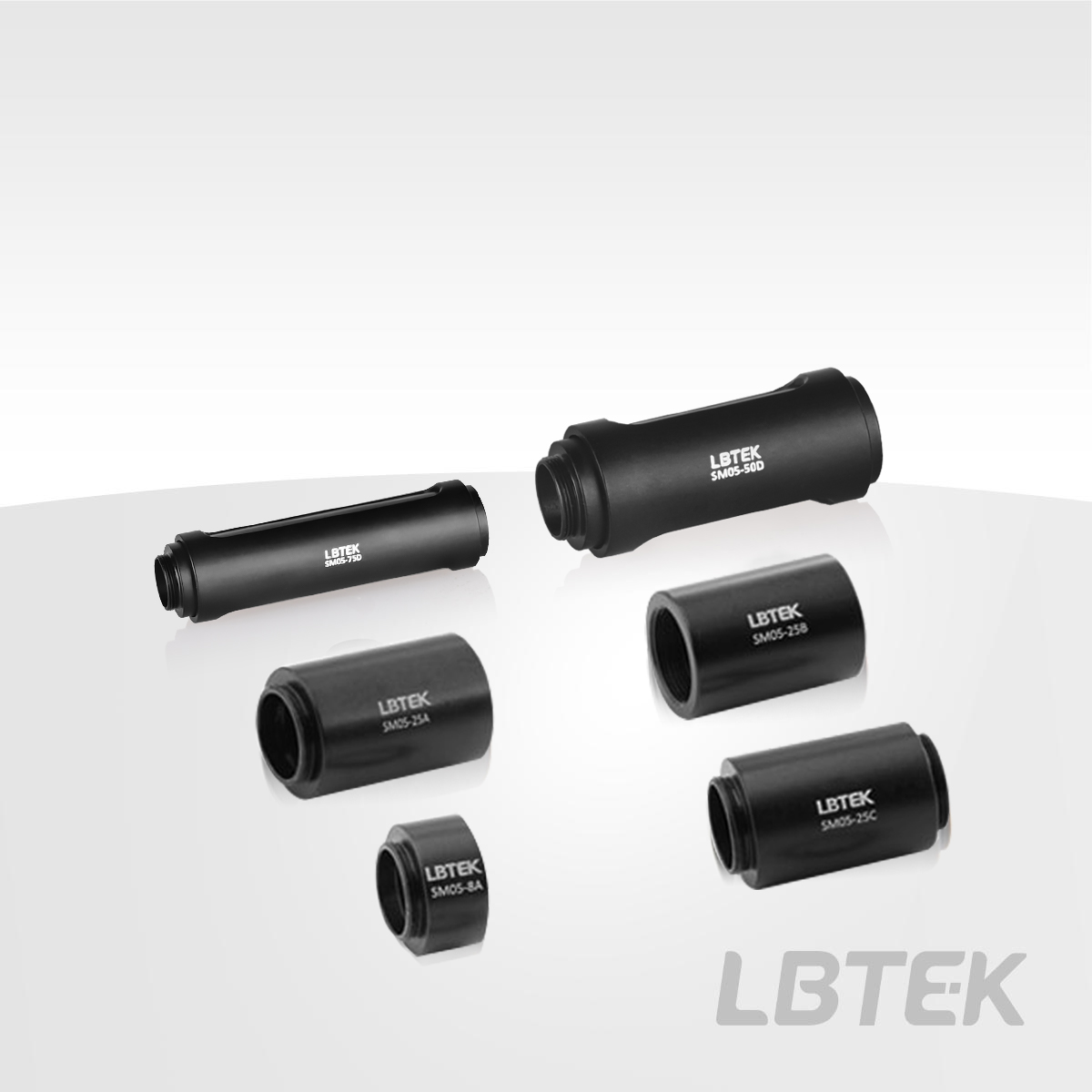

Suitable for building compact optical systems

Thread specification SM05

Available in four versions: double-ended internal and external threads (SM05-xxA), internal threads (SM05-xxB), external threads (SM05-xxC), and double-ended internal and external threaded slotted lens sleeves (SM05-xxD)

Suitable for building compact optical systems

Thread configuration: SM1

Available in three versions: double-ended internal and external threads (SM1-xxA, xxD), internal threads (SM1-xxB), and external threads (SM1-xxC)

Suitable for building compact optical systems

Thread specification SM1.5

Light blocking, mounted with Ø38.1 mm optical components

Suitable for building compact optical systems

Thread configuration: SM2

Available in three versions: internal-external threads (SM2-xxA), internal threads (SM2-xxB), and external threads (SM2-xxC)

One end with external threads, the other end with internal threads

Expandable design allowing construction of multi-component optical systems

Includes 1 retaining ring and 1 external retaining ring

The internal lens tube can move back and forth without any rotational motion

Allows precise control of the working distance of optical components

Position can be locked via side screws

Quick-install structure

Center hole available with online testing of laser intensity distribution

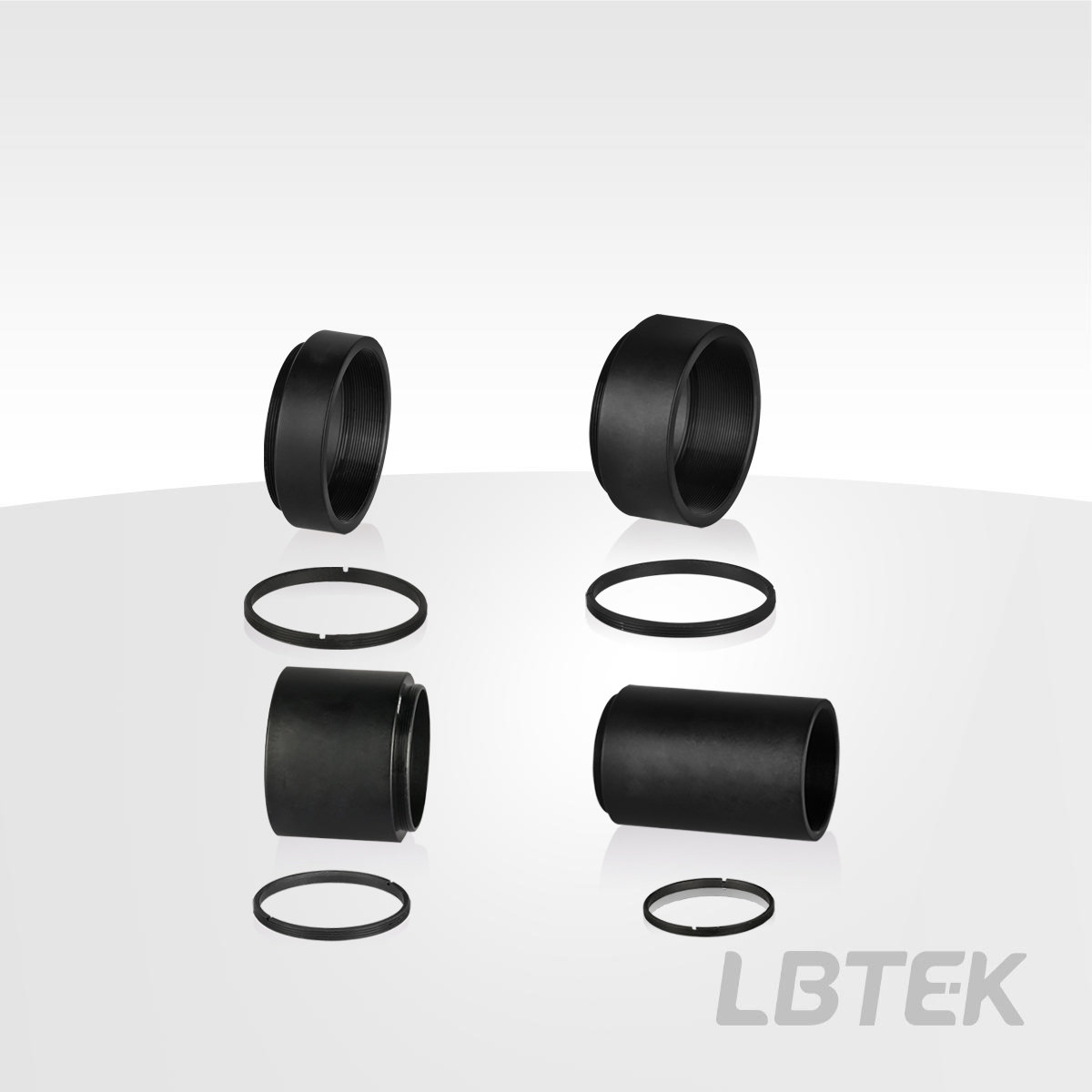

Suitable for building compact optical systems

Thread specification SM30

Provides one version with internal and external threads at both ends (SM30-xxA)

Suitable for building compact optical systems

Thread specification SM3

Provides internal and external threads at both ends (SM3-xxA)
