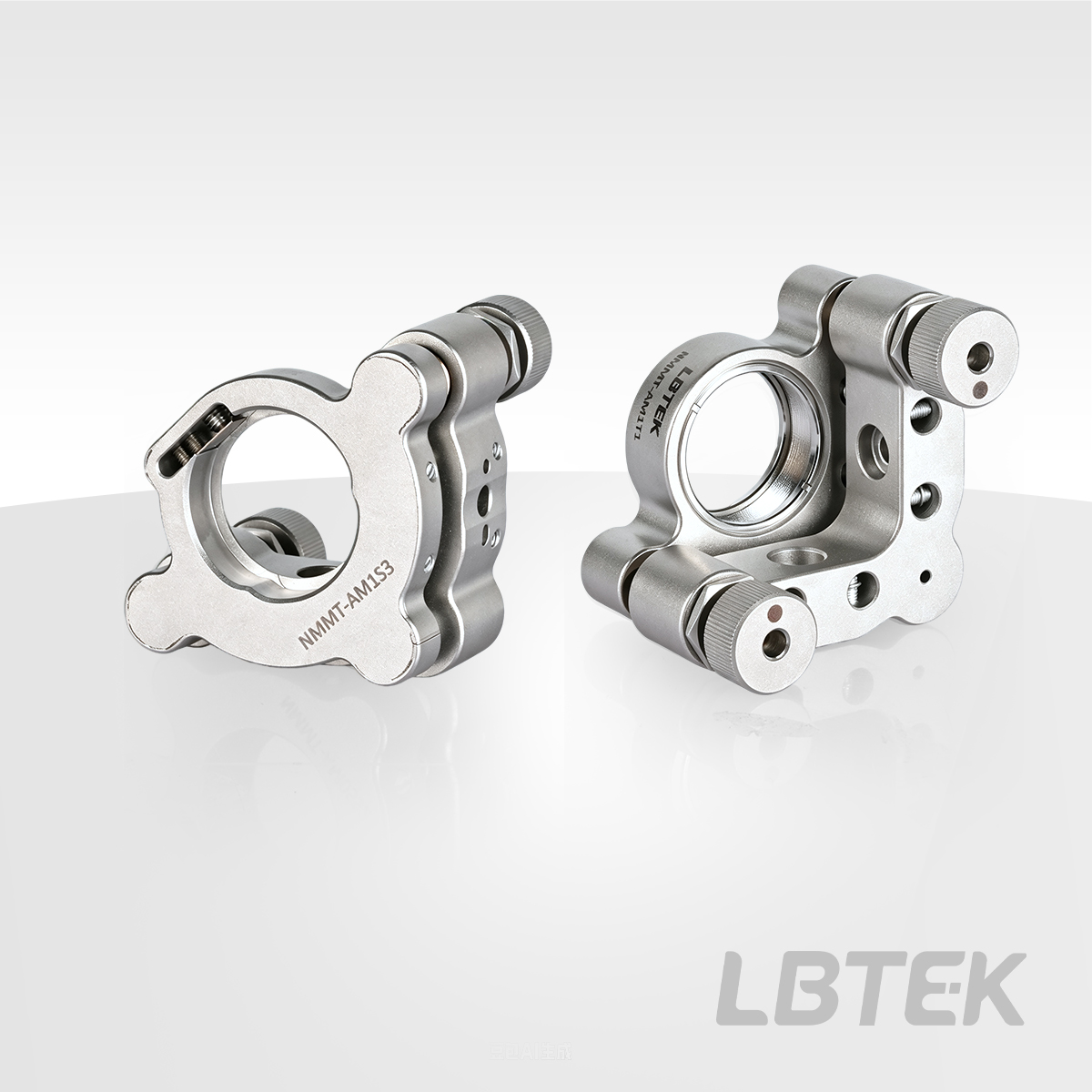

LBTEK 1-inch vacuum stainless steel mirror mount is used to mount 25.4 mm diameter Optical Components and comes with 2 M6×0.25 precision adjusters. Two Optical Components mounting methods are available. NMMT-AM1S3 secures Optical Components with a flexible spring leaf and set screws, and the minimum thickness of the Optical Components is 2 mm; NMMT-AM1T1 secures Optical Components directly with a retaining ring. The mount comes with 2 stainless steel retaining rings, and the maximum thickness of Optical Components secured by retaining ring is no more than 8 mm.
With 2 M6×0.25 precision adjusters, the pitch and yaw of Optical Components can be adjusted using a hex wrench. The side of the optical mount has M4 countersunk mounting holes. When purchasing LBTEK low-magnetic mirror mounts, titanium alloy ultra-thin head screws are included. This series of products does not include a hex wrench; NMHK series wrenches can be purchased from LBTEK.

1-inch low-magnetic mirror mount for use with a low-magnetic post
Product Model | Optical component mounting method | Adjuster specifications/quantity | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| NMMT-AM1S3 New | Flexible spring fixation | M6×0.25 precision adjuster with knob/2 pcs | $106.35 | 8 weeks | Add Cart | |||
| NMMT-AM1T1 New | retaining ring | Precision adjuster with knob M6×0.25/2 pcs | $140.75 | today | Add Cart |

LBTEK 1-inch vacuum Stainless Steel mirror mount is used to mount Optical Components with a Diameter of 25.4 mm, with 3 M6×0.25 Precision Adjusters and side Flexure Spring Mounting to secure the Optical Components; the 3 M6×0.25 Precision Adjusters allow the Pitch, Yaw, and Z-axis distance of the Optical Components to be adjusted with a hex wrench (Note: adjusting the Z-axis distance affects the Pitch and Yaw angle ranges); the side of the optical mount has M4 countersunk mounting holes. LBTEK low-magnetic mirror mounts come with titanium alloy ultra-thin head screws. Hex wrenches are not included with this series; NMHK series wrenches can be purchased from 麓邦

The 1-inch low-magnetic mirror mount is used with low-magnetic Mounting Posts
Product Model | Optical component mounting method | Adjuster specifications/quantity | Optical axis center height | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
| NMMT-AM1M New | Flexure Spring Mounting | M6×0.25 Precision Adjuster with Knurled Knobs/3 pcs | 25 mm | $122.25 | 6 weeks | Add Cart | |||
| MT-AM1M New | Flexure Spring Mounting | M6×0.25 Precision Adjuster with Knurled Knobs/3 pcs | 25 mm | $122.25 | today | Add Cart |
