- Complimentary titanium alloy screw installation included.
- Compatible with cube beamsplitters with edge lengths of 10 mm, 12.7 mm, and 25.4 mm
- Optical mount for mounting a beam splitter to a flexure spring

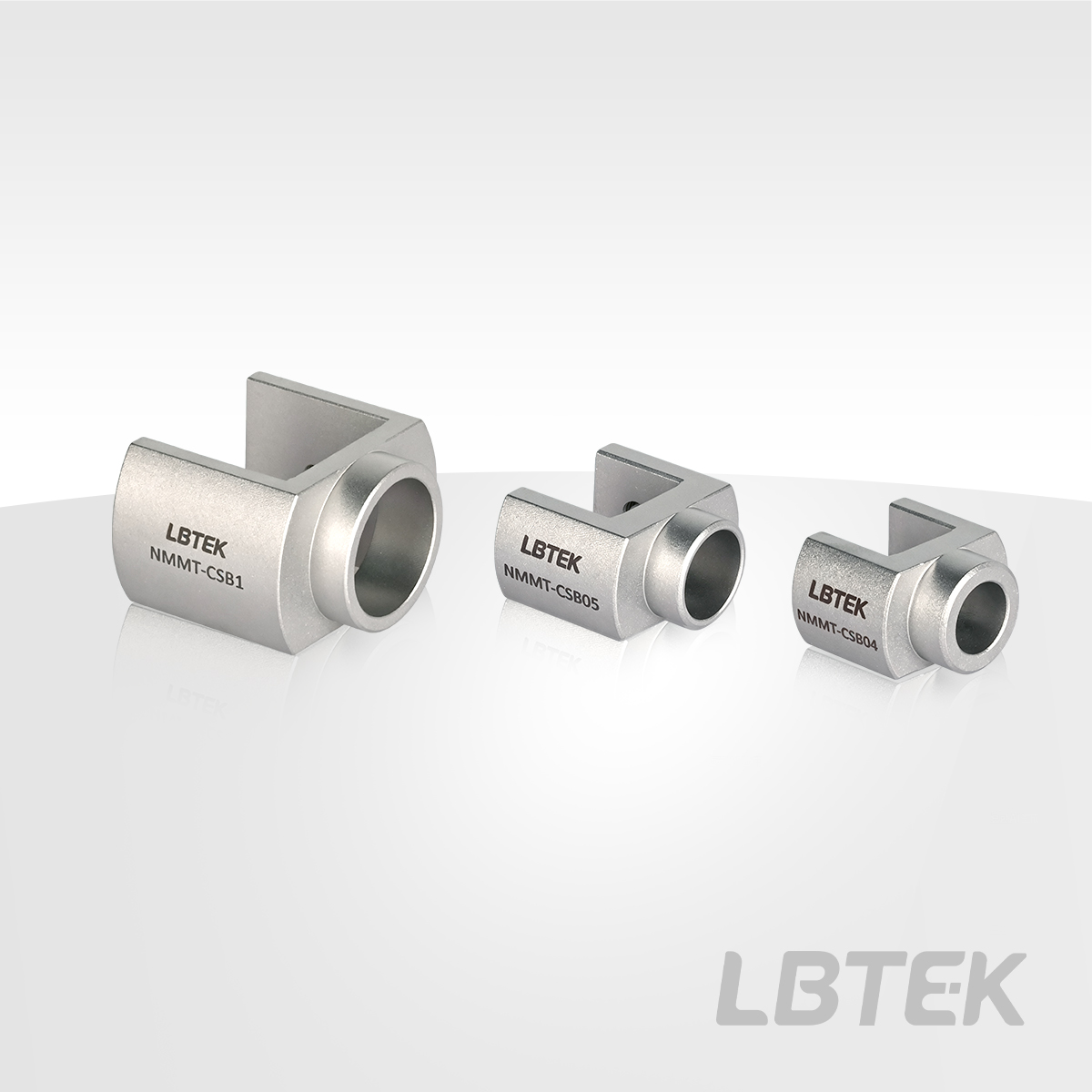

LBTEK NMMT Series Weakly Magnetic Cube Beamsplitter Mount is used to mount 10.0 mm, 12.7 mm, and 25.4 mm edge-length beamsplitter cubes into 0.5 in. and 1.0 in. Optical Components mounts, allowing the transmitted beam to pass through the Clear Aperture (CA) of the adjustment mount for pitch and yaw adjustment of the beamsplitter cube. It features four-sided Clear Aperture (CA) and a large clear aperture area.
The beamsplitter cube is secured by a titanium alloy set screw with a nylon tip at the top of the mount. The head of the mount can be directly installed into an Optical Components mount with flexure spring retention, making installation relatively simple and convenient. A hex wrench is not included with this series; NMHK series wrenches can be purchased from LBTEK.
Use NMMT-CSB1 to mount a beamsplitter cube with an edge length of 25.4 mm
Product Model | Applicable beam splitter cube side length | Applicable mounting bracket models | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
 | NMMT-CSB04 New | 10 mm | 0.5-inch set screw | $52.08 | today | Add Cart | ||
| NMMT-CSB05 New | 12.7 mm | 0.5-inch set screw | $60.85 | today | Add Cart | ||
| NMMT-CSB1 New | 25.4 mm | 1-inch set screw | $78.67 | today | Add Cart |
