Specifications
Feedback
Product Description
Attributes
Material
Top threaded hole specifications
Bottom threaded hole specifications

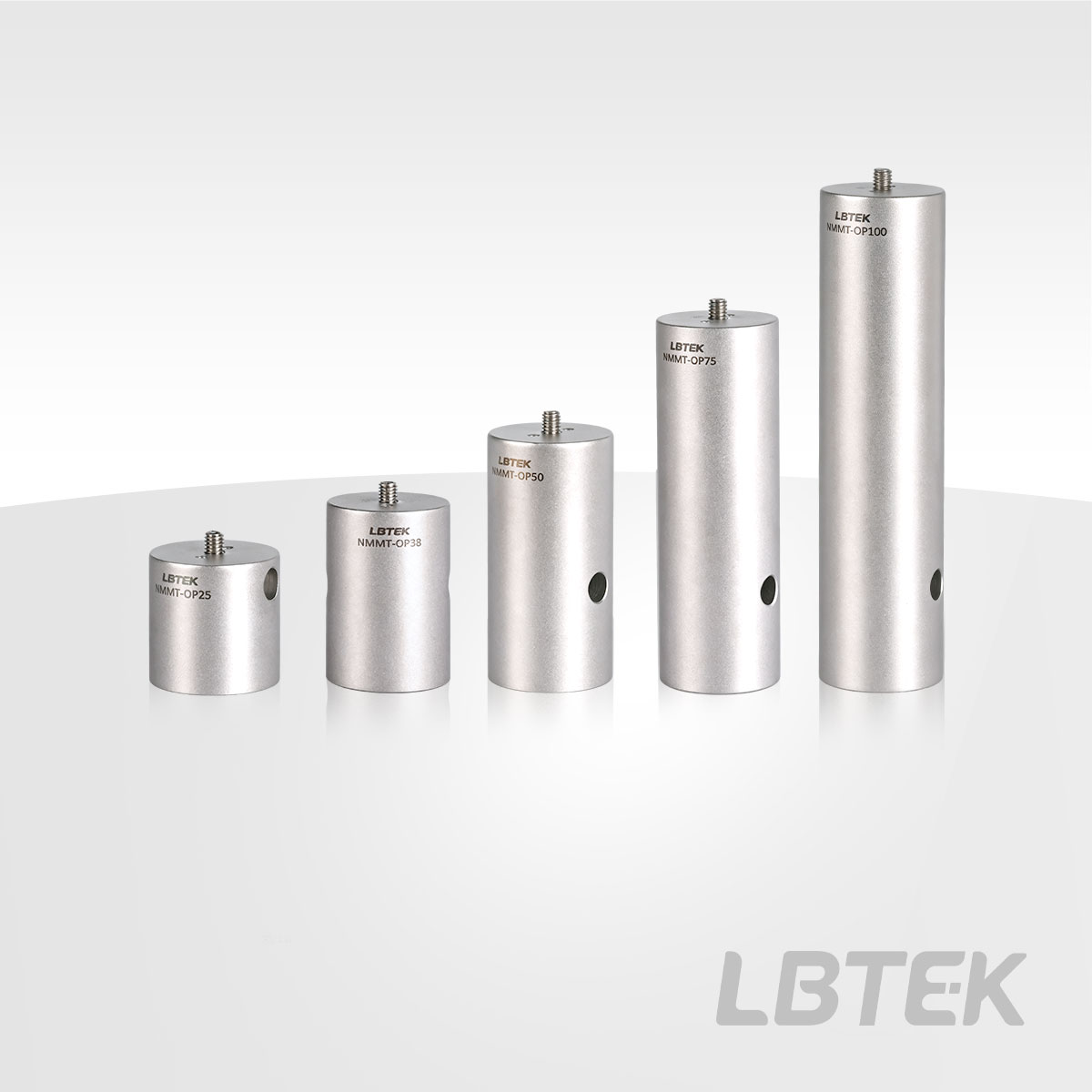

Low Magnetic 316L Stainless Steel Extension Rod
- Top M4 thread, bottom M6 thread
- Length: 25 mm, 38 mm, 50 mm, 75 mm, 100 mm optional
- Includes one M4 titanium alloy cup point set screw
LBTEK NMMT Series Weak Magnetic Posts are made of 316L stainless steel and specially treated to fully restore the magnetic martensite generated during machining to a non-magnetic austenitic structure. Each post has an M4 thread at the top and an M6 thread at the bottom, both with Ø2 mm alignment holes for positioning Optic Mounts. There is an alignment hole 20 mm from the bottom M6 threaded side, which can be used with MOP Series coaxial posts to align multiple mounts along the optical axis. Different lengths are available; currently, five lengths are offered: 25 mm, 38 mm, 50 mm, 75 mm, and 100 mm posts.

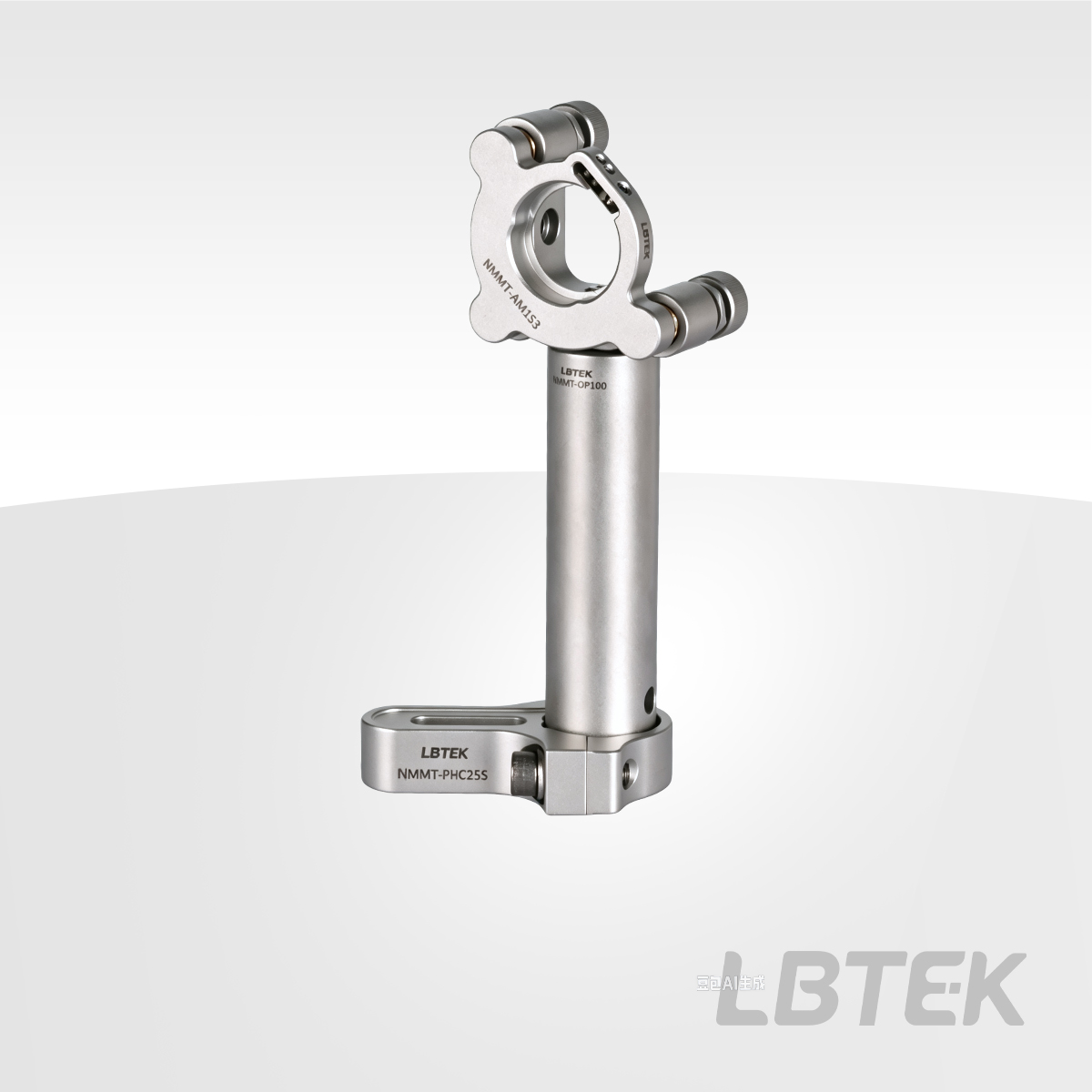

Combined use of weak magnetic series products
Product Model | Outer diameter | Length | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
 | NMMT-OP25 New | 25 mm | 25 mm | $39.20 | today | Add Cart | ||
| NMMT-OP38 New | 25 mm | 38 mm | $40.02 | today | Add Cart | ||
| NMMT-OP50 New | 25 mm | 50 mm | $43.72 | today | Add Cart | ||
| NMMT-OP75 New | 25 mm | 75 mm | $47.83 | today | Add Cart | ||
| NMMT-OP100 New | 25 mm | 100 mm | $52.08 | today | Add Cart |
