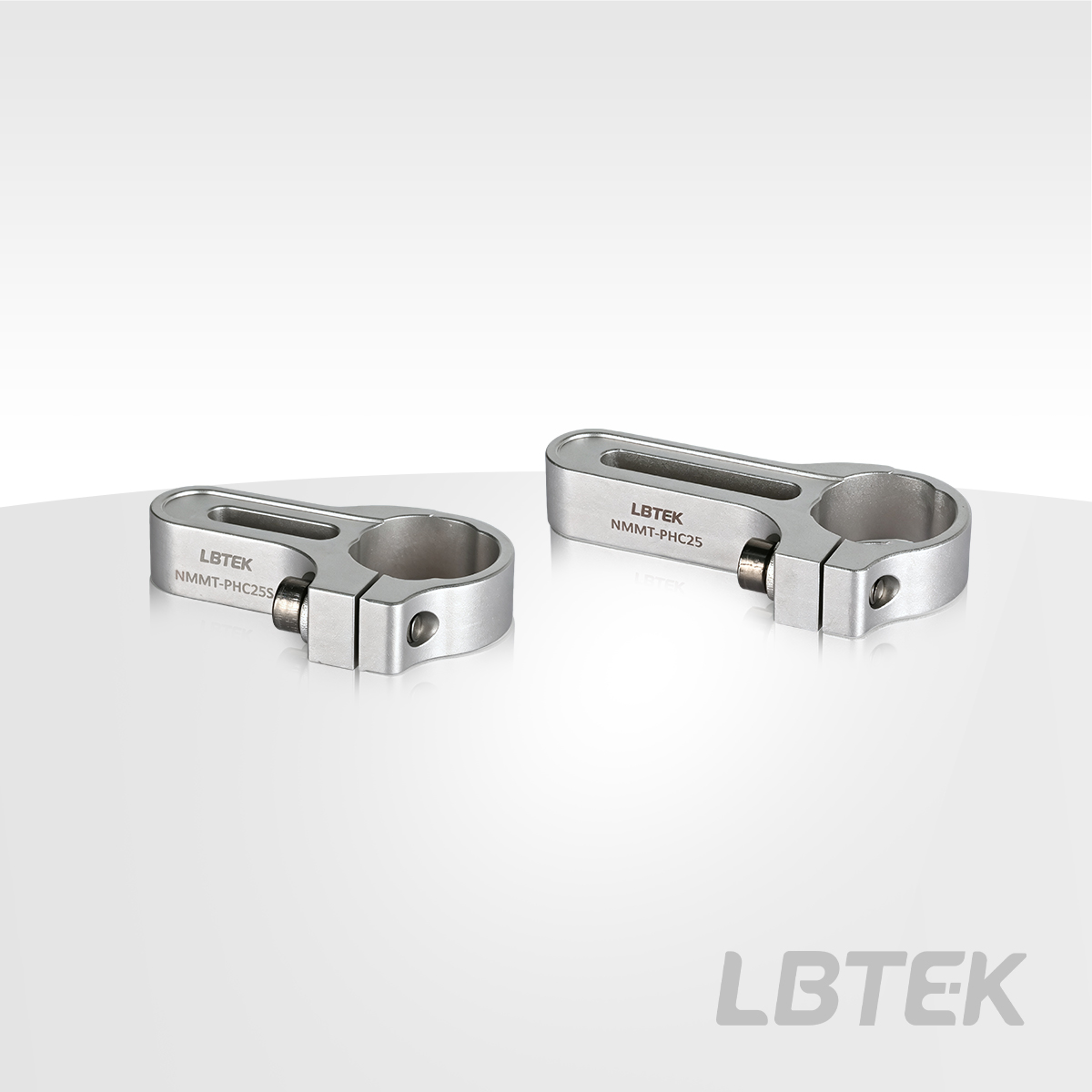

Low-magnetic, gapless flexure clamp for Ø25 mm post
- For Ø25 mm rods
- Optional obround counterbore length: 19 mm, 33 mm
- Mounting hole depth 15.2 mm, maximum distance from fastening position to hole bottom surface 6.4 mm.
- 3-point contact, flexible clamping mechanism

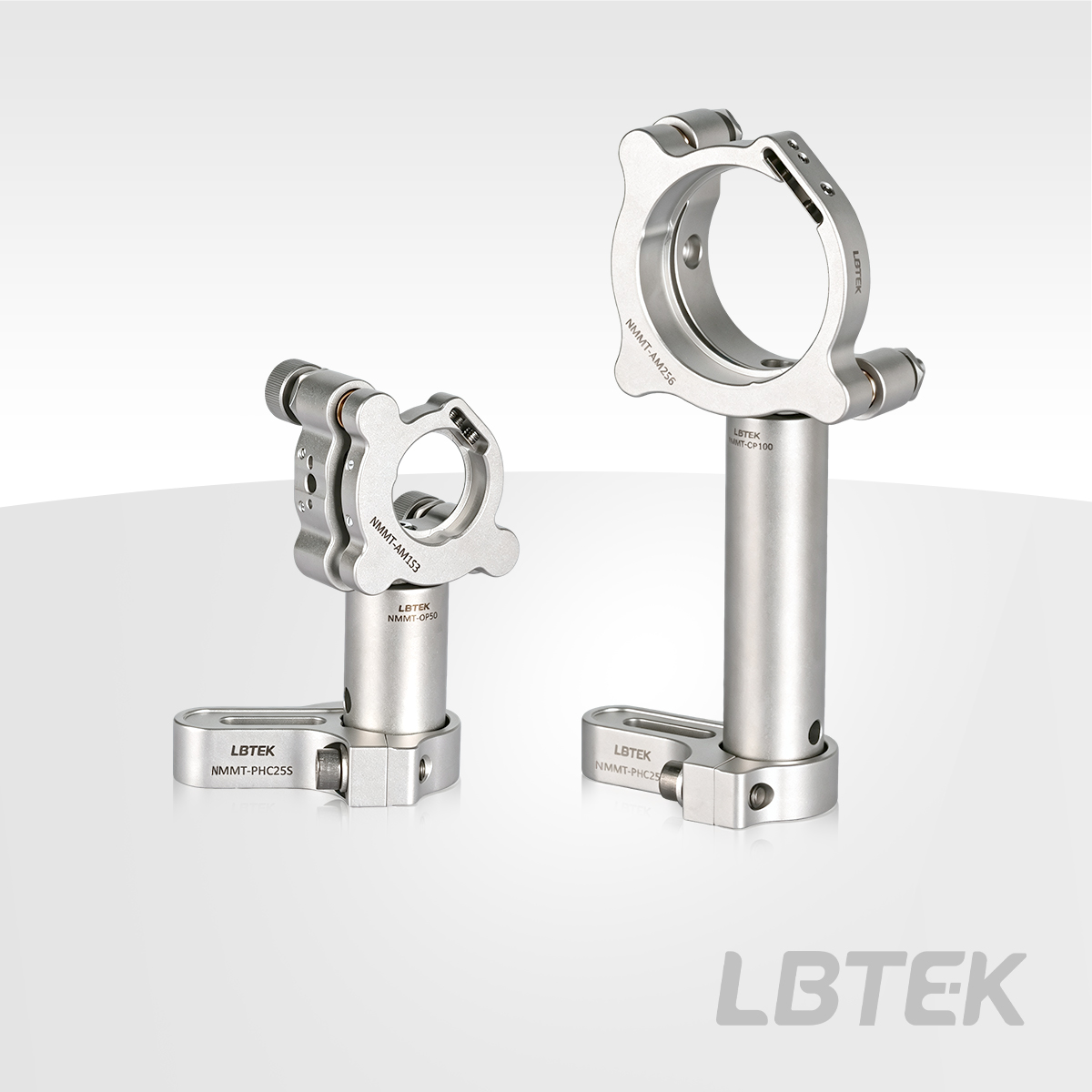

LBTEK low-magnetic zero-clearance flexure clamp, for mounting Ø25 mm posts, the flexure clamp and mounting slot are secured by separate screws. The post is locked by an M6 titanium alloy socket head cap screw on the side of the flexure. Due to the flexure design of the product, never tighten the screw when the clamp is empty, as this will damage the product. Each clamp block is supplied with one M6 titanium alloy socket head cap screw and one Ø6 mm titanium flat washer for slotted hole mounting. This product series does not include a hex wrench; NMHK series wrenches can be purchased from LBTEK.
Weak magnetic gap-free flexible clamping block compatible with Ø25 mm extension rod
Product Model | Applicable extension rod size | Countersunk waist groove length | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
 | NMMT-PHC25 New | Ø25 mm | 33 mm | $79.22 | today | Add Cart | ||
| NMMT-PHC25S New | Ø25 mm | 19 mm | $83.74 | today | Add Cart |
