LBTEK-Triple Lens Fiber Collimator

Product Description

The triplet-lens fiber collimator design provides an output with an approximately Gaussian distribution.
Low Wavefront Error: λ/8 (PV, Typical Value)
FC/PC and FC/APC two types of Optical Fiber connectors are available
Available with optional wavelengths of 780 nm and 1550 nm.
Low pointing error: 2 mrad (typical)

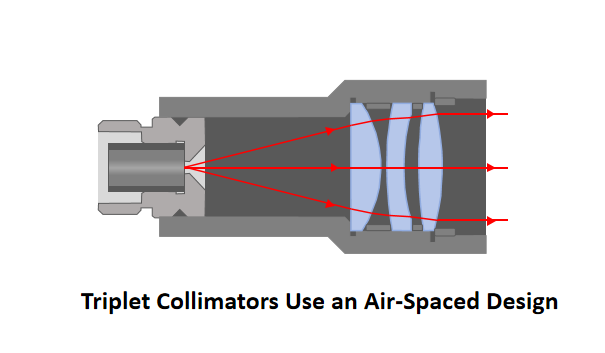

The Triplet Lens Fiber Collimator features an air-spaced triplet lens, providing superior beam quality compared to aspheric lens collimators. The advantages of the low-aberration triplet lens design include an M² factor closer to 1 (Gaussian beam), a smaller divergence angle, and lower wavefront error. LBTEK Triplet Lens Fiber Collimators are available with FC/PC and FC/APC fiber connector types, designed for use with Single-Mode Fiber Patch Cables, and offer two wavelength options: 780 nm and 1550 nm. Additionally, the triplet lens collimator uses a high-precision 2.2 mm keyed connector with a tight-tolerance ceramic ferrule, providing excellent pointing repeatability and making it easy for users to remove and replace the optical fiber. LBTEK also provides various custom solutions, including custom special dimensions, Design Wavelength, Output Spot Diameter, and other specifications. For specific custom requirements, please contact LBTEK technical support.

Diagram

三合透镜光纤准直器，780 nm

wavelength range: 780 nm
Multiple Focal Length Options Available
Optical Fiber Interface: FC/PC, FC/APC optional

The triplet lens fiber collimator provided by LBTEK has no moving parts, features a compact form factor, and is unaffected by misalignment, simplifying free-space-to-fiber coupling. The triplet lens fiber collimator with FC/PC connector or FC/PC connector has an effective focal length (EFL) of approximately 6 mm, 12 mm, 18 mm, or 25 mm, and is coated with an antireflection coating (AR coating) to reduce reflectance. For detailed parameters, please refer to the specification table. LBTEK provides a variety of custom solutions; for specific custom requirements, please contact LBTEK technical support.

The Fiber Collimator is installed in AMM-1A together with TAD-12

Product Model	Focal length	Operating Wavelength	Numerical Aperture (NA)	Spot diameter	Unit Price	Lead Time
TFC780-6-PC New	6 mm	780 nm	0.28	1.27 mm	$435.82	today	Add Cart
TFC780-6-APC New	6 mm	780 nm	0.28	1.27 mm	$435.82	today	Add Cart
TFC780-12-APC New	12 mm	780 nm	0.28	2.54 mm	$435.82	today	Add Cart
TFC780-12-PC New	12 mm	780 nm	0.28	2.54 mm	$435.82	today	Add Cart
TFC780-18-APC New	18 mm	780 nm	0.28	3.71 mm	$435.82	today	Add Cart
TFC780-18-PC New	18 mm	780 nm	0.28	3.71 mm	$435.82	today	Add Cart
TFC780-25-APC New	25 mm	780 nm	0.25	5.23 mm	$435.82	today	Add Cart
TFC780-25-PC New	25 mm	780 nm	0.25	5.23 mm	$435.82	today	Add Cart

Triplet Lens Fiber Collimator, 1550 nm

Wavelength range: 1550 nm
Multiple focal lengths available.
Optical Fiber Interface: FC/PC, FC/APC optional

The Triplet Lens Fiber Collimator provided by LBTEK has no moving parts and a Compact Form Factor that is unaffected by misalignment, simplifying Free-Space-to-Fiber Coupling. The Triplet Lens Fiber Collimator with FC/PC connector or FC/PC connector has an Effective Focal Length (EFL) of approximately 6 mm, 12 mm, 18 mm, or 25 mm, and is coated with an Antireflection Coating (AR Coating) to reduce Reflectance. Please refer to the specification table for detailed parameters. LBTEK provides various custom solutions; please contact LBTEK technical support for specific custom requirements.

Fiber Collimator is installed in the AMM-1A together with the TAD-12.

Product Model	Focal length	Operating Wavelength	Numerical Aperture (NA)	Spot diameter	Unit Price	Lead Time
TFC1550-6-APC New	6 mm	1550 nm	0.28	1.15 mm	$435.82	today	Add Cart
TFC1550-6-PC New	6 mm	1550 nm	0.28	1.15 mm	$435.82	today	Add Cart
TFC1550-12-APC New	12 mm	1550 nm	0.28	2.33 mm	$435.82	today	Add Cart
TFC1550-12-PC New	12 mm	1550 nm	0.28	2.33 mm	$435.82	today	Add Cart
TFC1550-18-APC New	18 mm	1550 nm	0.28	3.45 mm	$435.82	today	Add Cart
TFC1550-18-PC New	18 mm	1550 nm	0.28	3.45 mm	$435.82	today	Add Cart
TFC1550-25-APC New	25 mm	1550 nm	0.25	4.82 mm	$435.82	today	Add Cart
TFC1550-25-PC New	25 mm	1550 nm	0.25	4.82 mm	$435.82	today	Add Cart
