- Used for mounting Optical Components with a mounted diameter of 50.8 mm
- 2 precision adjusters with side holes, multiple adjustment methods
- Adjustable angle ±4°
- 调节精度：0.27°/turn

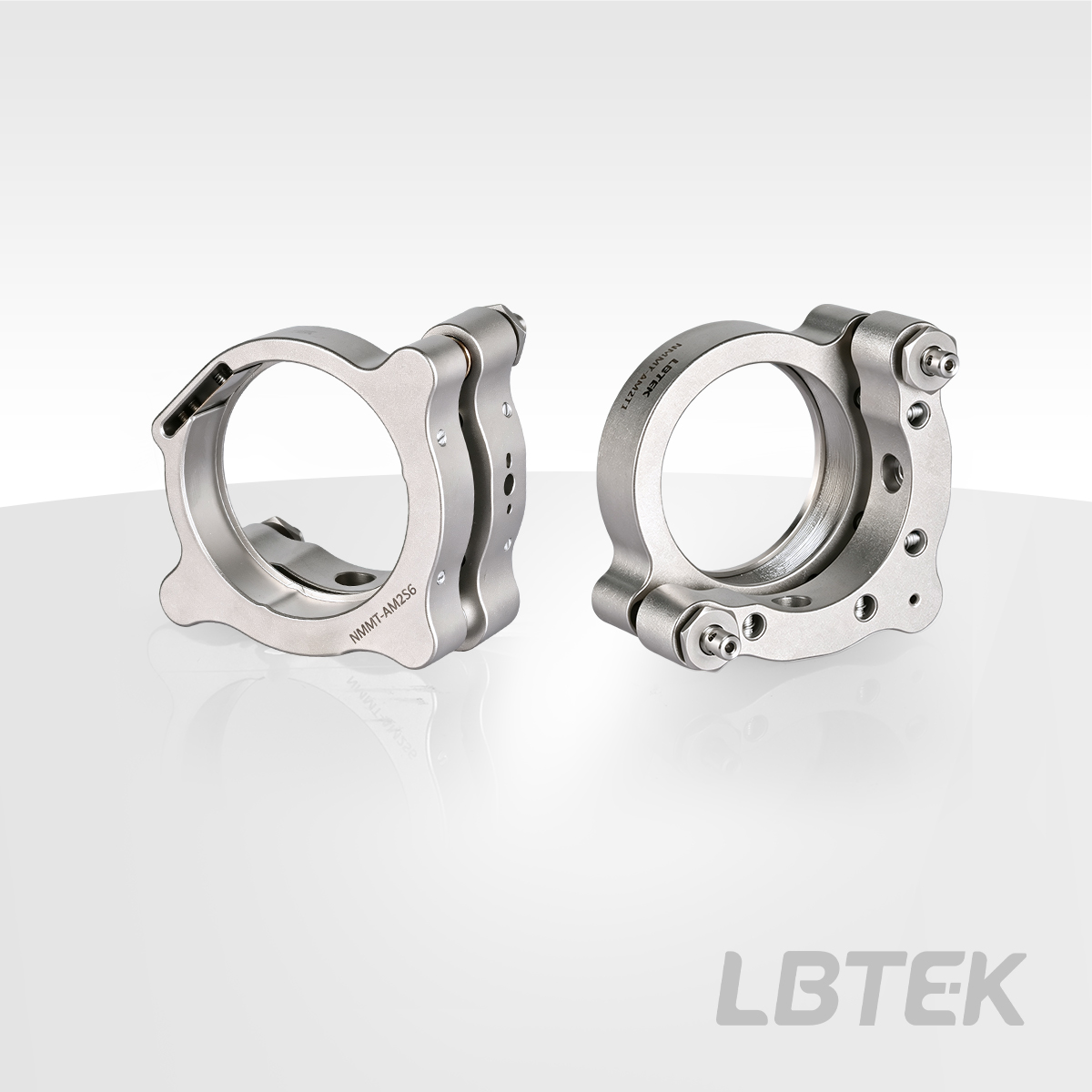

LBTEK 2-inch weak magnetic stainless steel mirror mount is used to mount Optical Components with a mounted diameter of 50.8 mm, with 2 M6×0.25 precision adjusters with side holes. Two fixing methods for Optical Components are available. NMMT-AM2S6 secures Optical Components with a flexible spring plate and fixing screws; the minimum thickness of Optical Components is 4 mm. NMMT-AM2T1 uses a retaining ring to directly secure Optical Components; purchase of the mirror mount includes 2 stainless steel retaining rings, and the maximum thickness of Optical Components secured by retaining ring does not exceed 12 mm.
The side of the optical adjustment mount has M4 countersunk mounting holes. Purchase of LBTEK weak magnetic mirror mounts includes titanium alloy ultra-thin head screws. This series of products does not include hex wrenches; NMHK series wrenches can be purchased from LBTEK.

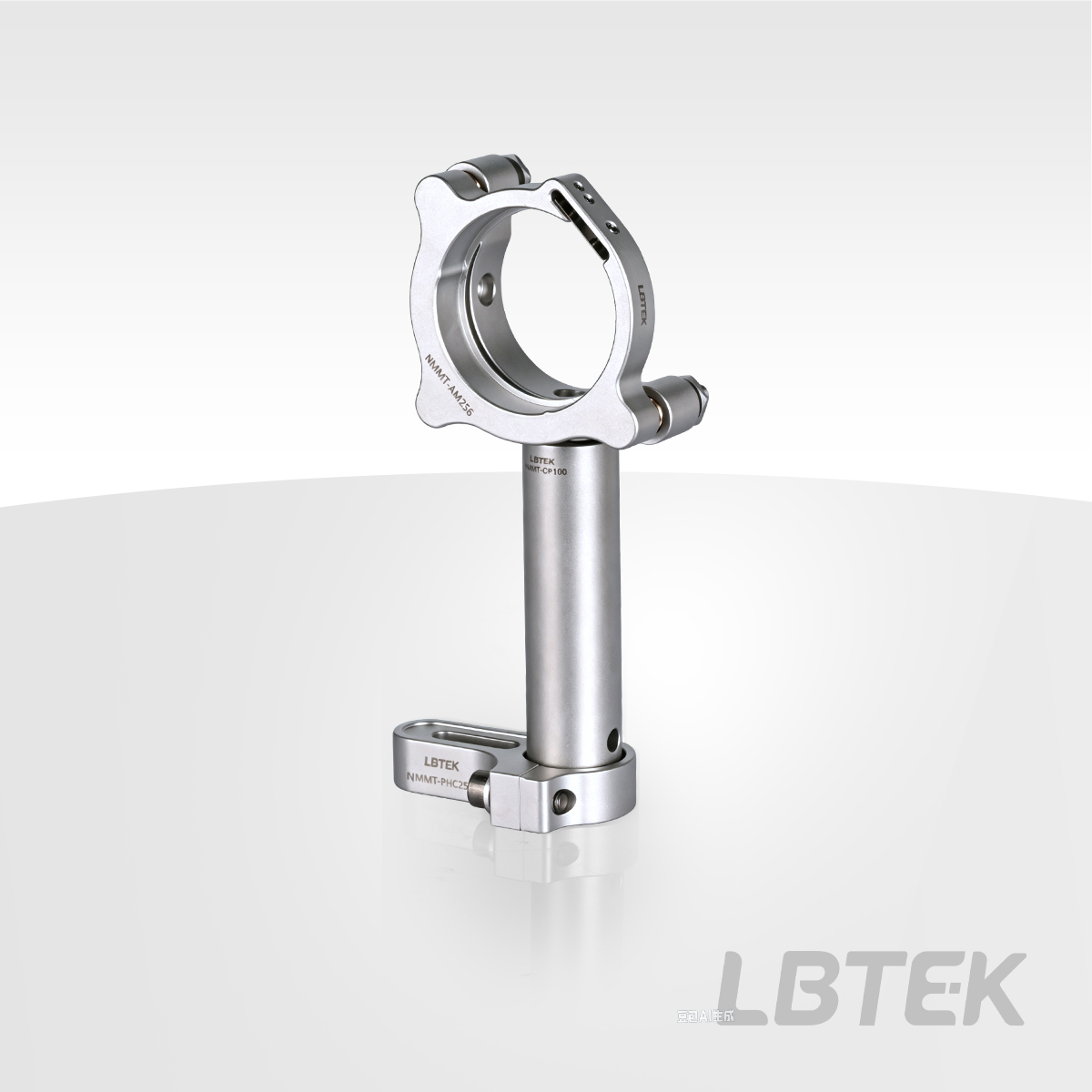

The 2-inch low-magnetic mirror mount is used with a low-magnetic post.
Product Model | Optical component mounting method | Adjuster specifications/quantity | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
 | NMMT-AM2S6 New | Flexible spring fixing | Knobless M6×0.25 precision adjuster/2 pcs | $283.28 | today | Add Cart | ||
| NMMT-AM2T1 New | retaining ring | Knobless M6×0.25 precision adjuster/2 pcs | $312.89 | today | Add Cart |
