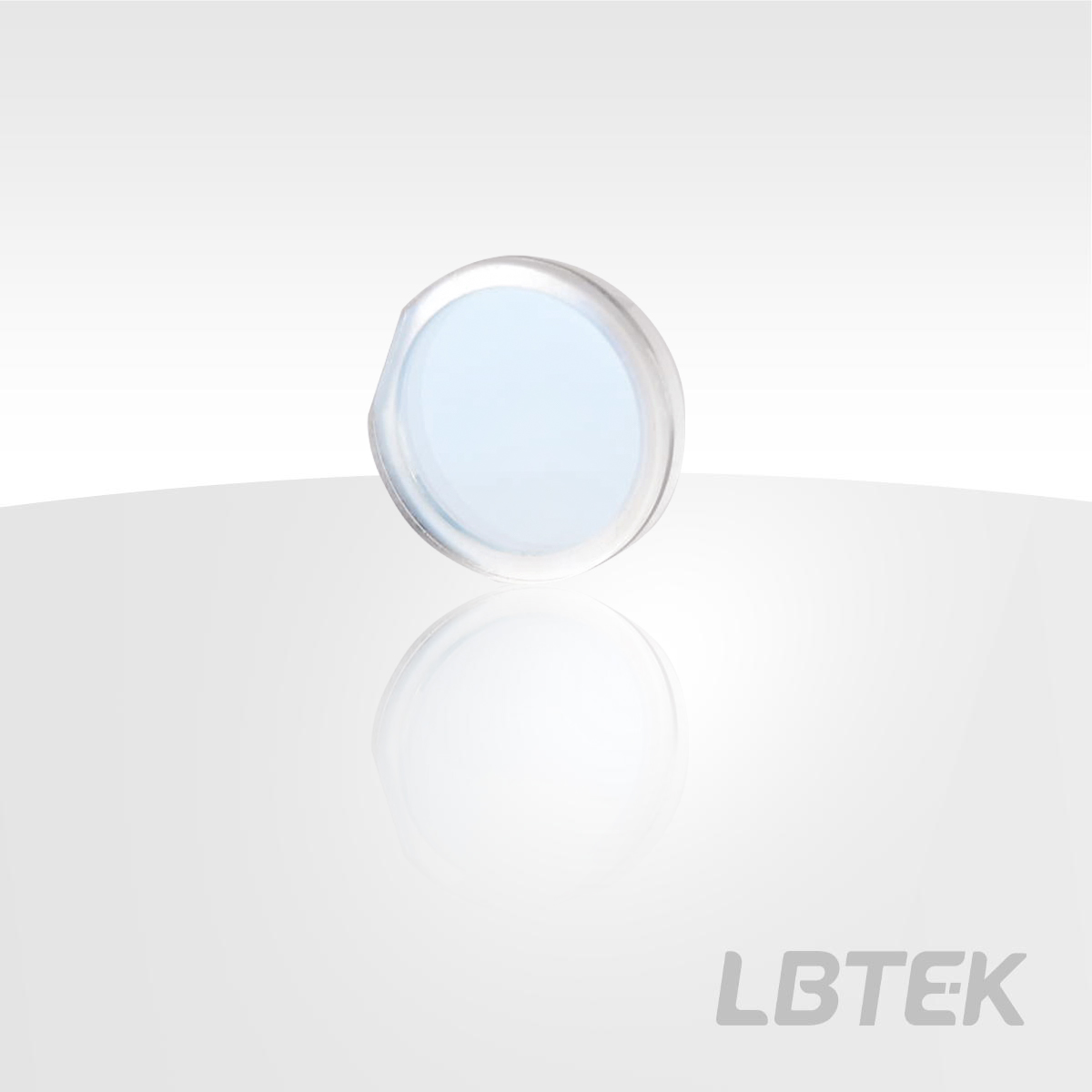

LBTEK crystalline quartz Air-spaced Zero-Order Quarter-Wave Plate (λ/4) is composed of two crystalline quartz waveplates with a spacer sandwiched between them. The fast Axis directions of the two crystalline quartz waveplates are perpendicular to each other, and their phase delay difference is π/2. It is commonly used to convert linearly polarized light into circularly polarized light. Compared with cemented crystalline quartz Zero-Order Waveplates, in the Air-spaced Zero-Order Waveplate, the two crystalline quartz waveplates are separated by a spacer to form an Air-spaced gap; this structure is suitable for higher-power Laser applications. The crystalline quartz Air-spaced Zero-Order Quarter-Wave Plate (λ/4) kit consists of 10 waveplates with the same Design Wavelength and Ø12.7 mm. The side of the waveplate has a D-shaped cut edge, which can be used to indicate the fast Axis direction of the waveplate. The Design Wavelengths of the waveplate kit include common wavelengths used in fields such as laser cooling, atomic clocks, and precision measurement in Quantum Technologies: 509 nm, 556 nm, 671 nm, 780 nm, 795 nm, 813 nm, 852 nm, 1013 nm. In addition to the standard crystalline quartz Air-spaced Zero-Order Quarter-Wave Plate (λ/4), LBTEK also provides a variety of custom solutions, including custom special sizes, Design Wavelengths, phase delay values, and other specifications. For specific custom requirements, please contact LBTEK technical support.
