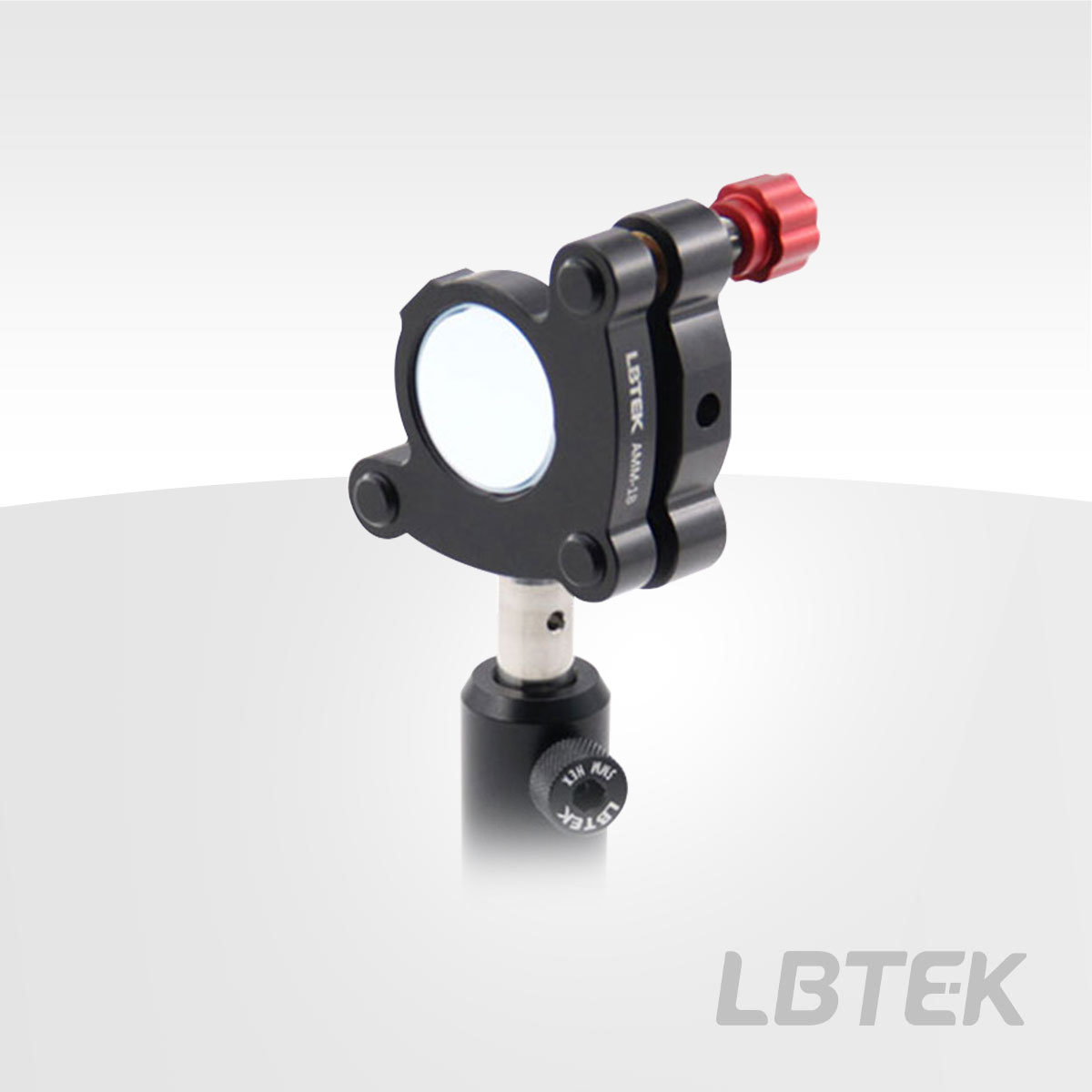

LBTEK Dielectric Coating Flat Mirror Kit (Ø25.4 mm circular) includes 6 pieces of Ø25.4 mm circular Dielectric Coating Flat Mirrors and 6 AMM-1B mirror mounts. The Mirror uses a UV Fused Silica (UVFS) substrate and provides three wavelength ranges: 400 nm-750 nm (BDM1-A), 750 nm-1100 nm (BDM1-B), and 1100 nm-1650 nm (BDM1-C); within their respective wavelength ranges and at 0°-45° angle of incidence(AOI), the Reflectance Ravg > 99%. The AMM-1B mirror mount secures the Mirror with M4 nylon-tip set screws, is compatible with a 2 mm hex wrench, and uses two M6 precision threaded actuators to achieve pitch/yaw two-axis adjustment, with an adjustment range of ±4° and adjustment precision of 0.4°/turn.

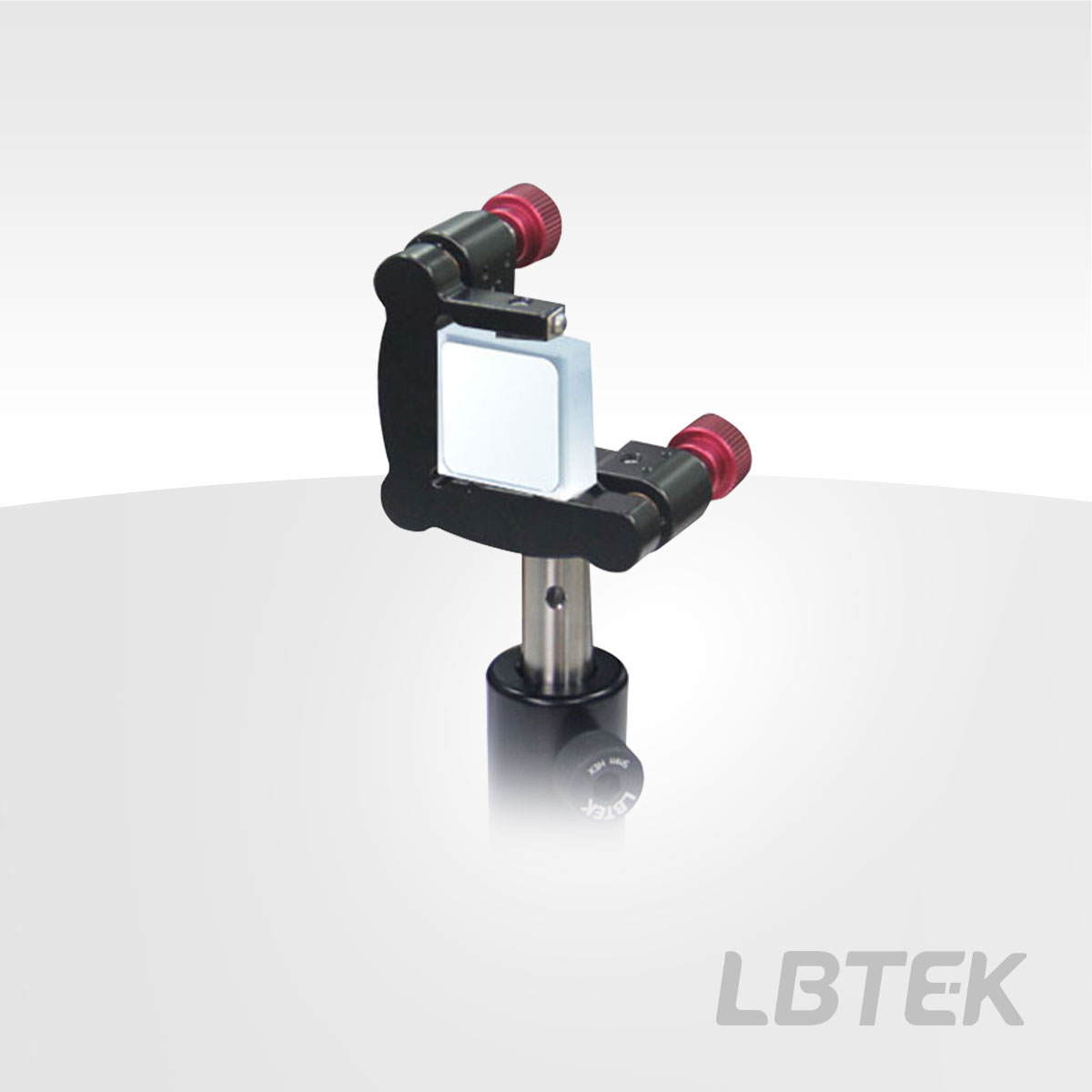

LBTEK Dielectric Coating Flat Mirror Kit (Square) includes 6 pcs 25.4 mm×25.4 mm square Dielectric Coating Flat Mirrors and 6 AMM3-1SR mounts. Each Mirror uses a UV Fused Silica (UVFS) substrate and offers three wavelength range: 400 nm-750 nm (BDM1S-A), 750 nm-1100 nm (BDM1S-B), and 1100 nm-1650 nm (BDM1S-C). Within their respective wavelength range: at 0°-45° angle of incidence(AOI), Reflectance Ravg >99%. The AMM3-1SR mount uses an elastic pressure pad to create flexure deformation and clamp Optical Components, is compatible with a 2 mm hex wrench, and uses 2 M4 precision threaded actuators to achieve two-axis pitch/yaw adjustment, with an adjustment range of ±4° and adjustment precision of 0.4°/turn.
