LBTEK-Automatic Leveling

Product Description

Automatic leveling, easy operation
6-DOF active vibration isolation, excellent vibration isolation performance
Real-time monitoring and display of tabletop vibration
The vibration isolation level can reach VC-E and VC-F.
Lightweight and convenient, easy to install, ready to use once connected to power.

LBTEK offers Active Vibration Isolation Platform series - Auto Leveling. The Active Vibration Isolation Platform is composed of a base, support elements, a stage, sensors, a controller, and an actuator system. The stage is supported by springs, keeping it in a floating state. The vibration state of the stage is monitored by extremely sensitive sensors. The controller analyzes and processes the feedback signals from the sensors, and controls the actuators to generate real-time reaction forces against the stage's vibration, achieving 6 degrees of freedom active vibration isolation.

Attributes

Vibration IsolatorMetal spring

System Vibration Isolation Degrees of Freedom6

Vibration Isolation Bandwidth0.5~150Hz

ActuatorVoice coil motor

Vibration isolation efficiency80%@2Hz，90%@5Hz，99%@10Hz

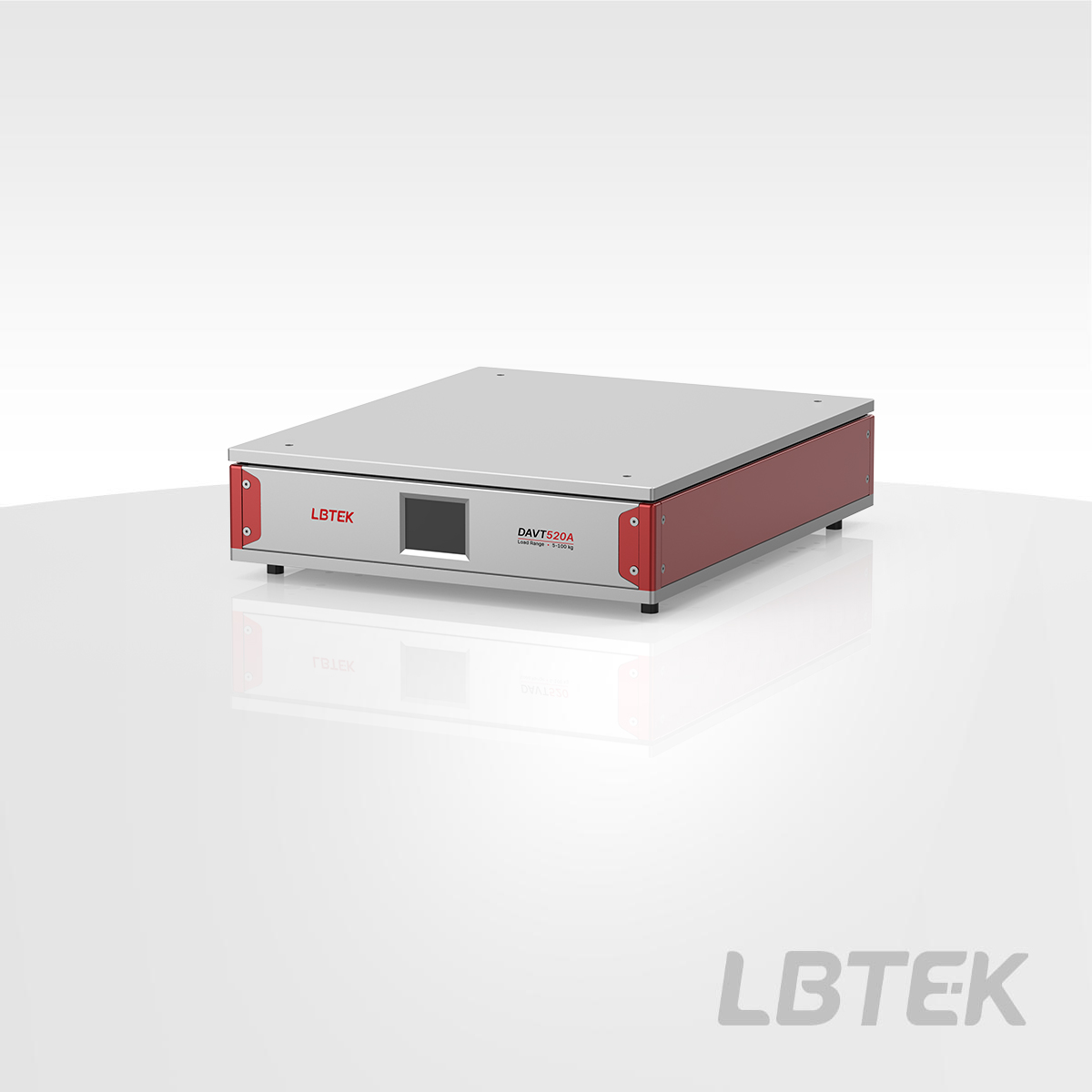

Auto Leveling - No-Hole Countertop

Automatic leveling, no M6 threaded holes on the tabletop, small vibration isolation platform for desktop use.
System vibration reduction degrees of freedom: 6
Vibration isolation bandwidth: 0.5~150 Hz
Vibration isolation principle: The actuator provides thrust to actively attenuate amplitude.

LBTEK's desktop active vibration reduction series platform - auto-leveling no-hole tabletop series products are lightweight and convenient, easy to install, require no air source, can be used once connected to power, and are simple to operate. They can monitor tabletop vibration in real time and offer excellent vibration reduction performance, making them suitable for precision Microscopes, laser Interferometers, precision experimental operation tables, semiconductors, and other instruments and equipment with stringent vibration requirements.

LBTEK has launched desktop Active Vibration Isolation Platforms in sizes of 520mm×440mm, 600mm×500mm, and 800mm×800mm. If you have other custom requirement such as special sizes or adding threaded holes of different specifications to the load-bearing tabletop, please contact LBTEK customer service.

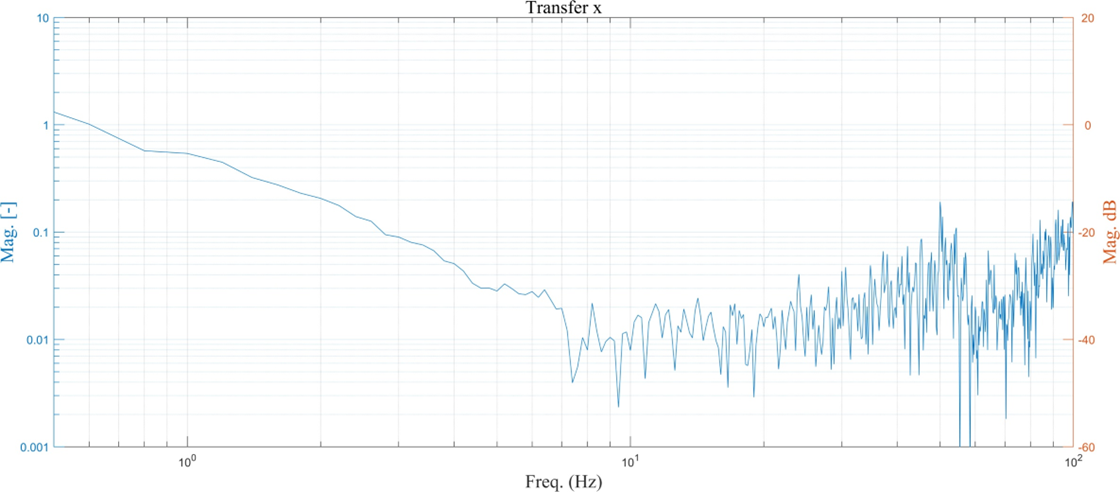

Desktop Active Vibration Isolation Platform Transmissibility Test Curve

	Product Model	Platform Dimensions	Load Range	Vibration Isolation Bandwidth	File	Unit Price	Compare	Lead Time
	DAVT520A New	520×440×103.5mm	5~100kg	0.5~150Hz		Contact		7 weeks	Add Cart
	DAVT600A New	600×500×105.5 mm	10~200kg	0.5~150Hz		Contact		7 weeks	Add Cart

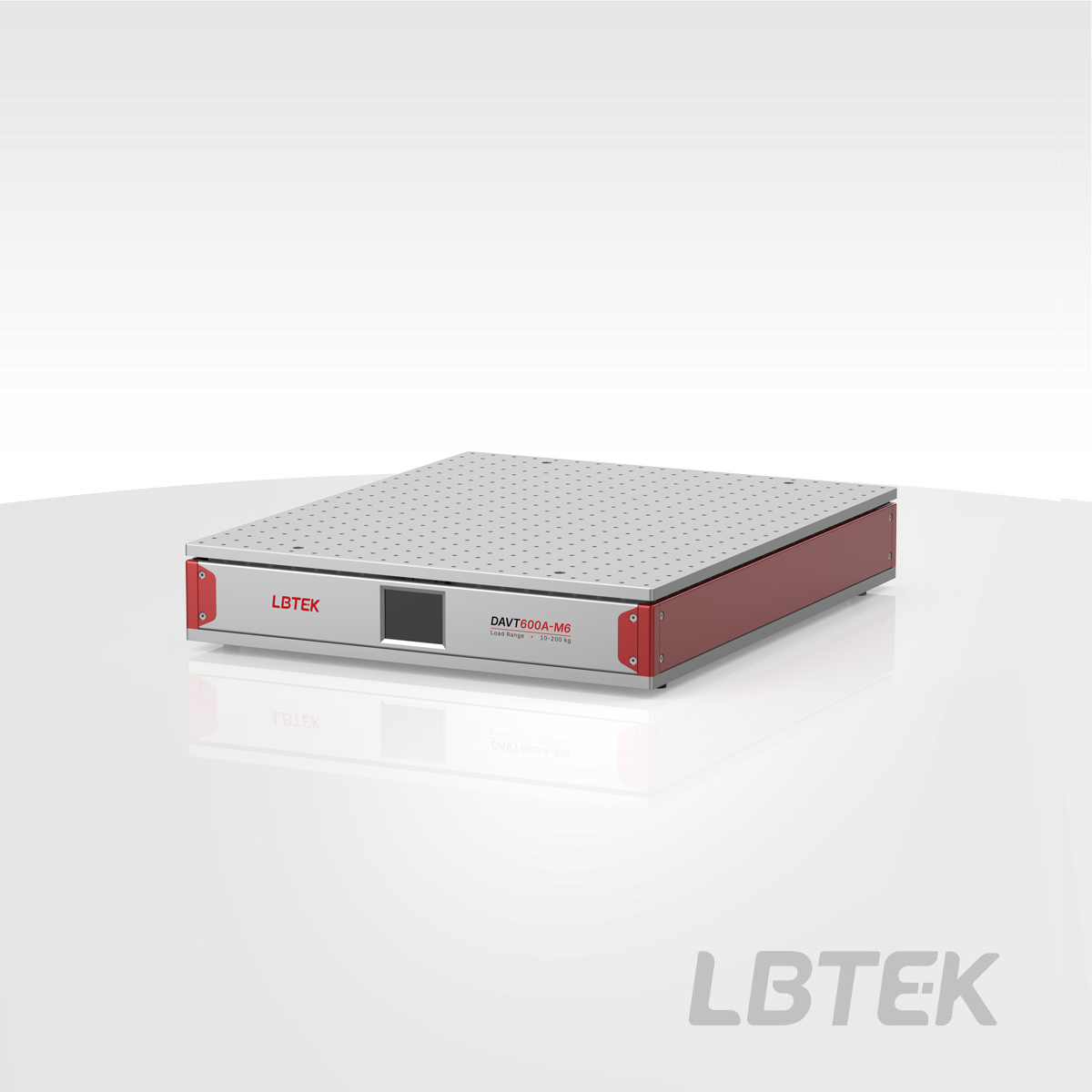

Auto Leveling - Perforated Tabletop

The panel is covered with M6 threaded holes throughout; a small vibration isolation platform for desktop use.
System vibration reduction degrees of freedom: 6
Vibration isolation bandwidth: 0.5~150 Hz
Vibration isolation principle: The actuator provides thrust to actively attenuate the amplitude.

The desktop active vibration reduction series platforms provided by LBTEK - auto-leveling perforated tabletop series products are lightweight and convenient, easy to install, require no air source, and can be used once connected to power. They are simple to operate and can monitor tabletop vibration in real time, with excellent vibration reduction performance. They are suitable for precision Microscope, laser Interferometer, precision experimental workbench, semiconductor, and other instruments and equipment with high vibration requirements.

LBTEK has launched desktop Active Vibration Isolation Platforms in sizes of 520mm×440mm, 600mm×500mm and 800mm×800mm. If you have custom requirement for other special sizes, such as adding threaded holes of other specifications to the stage tabletop, please contact LBTEK customer service.

Desktop Active Vibration Isolation Platform Transmissibility Test Curve

	Product Model	Platform Dimensions	Load Range	Vibration Isolation Bandwidth	File	Unit Price	Compare	Lead Time
	DAVT520A-M6 New	520×440×103.5mm	5~100kg	0.5~150Hz		Contact		7 weeks	Add Cart
	DAVT600A-M6 New	600×500×105.5 mm	10~200kg	0.5~150Hz		Contact		7 weeks	Add Cart
