LBTEK-Transparent style

Product Description

Transparent acrylic sliding door
modular aluminum‑profile rack, no interference with Optical Table vibration isolation.
Main material: 6063-T5 aluminum profile
with high load-bearing compartment

LBTEK transparent instrument racks provide independent storage space for instruments, power supplies, and other accessories. They are equipped with push-pull transparent acrylic sliding doors and a single-layer shelf. Designed as an independent module, they do not cause interference with the original vibration isolation performance of the Optical Table. The instrument rack has a stable structure, is lightweight, and is not easy to rust. It is easy to disassemble, assemble, and transport, simple to install, and aesthetically pleasing, and is compatible with LBTEK standard Optical Table dimensions. Shelf height: 1756 mm, maximum load capacity: 200 kg. If you have other special size requirements, please contact LBTEK technical support.

Attributes

Main material6063-T5 aluminum profile

Maximum Load Capacity of the Sample Stage200 kg

Number of power strips2 items

Sample Stage Height1756 mm

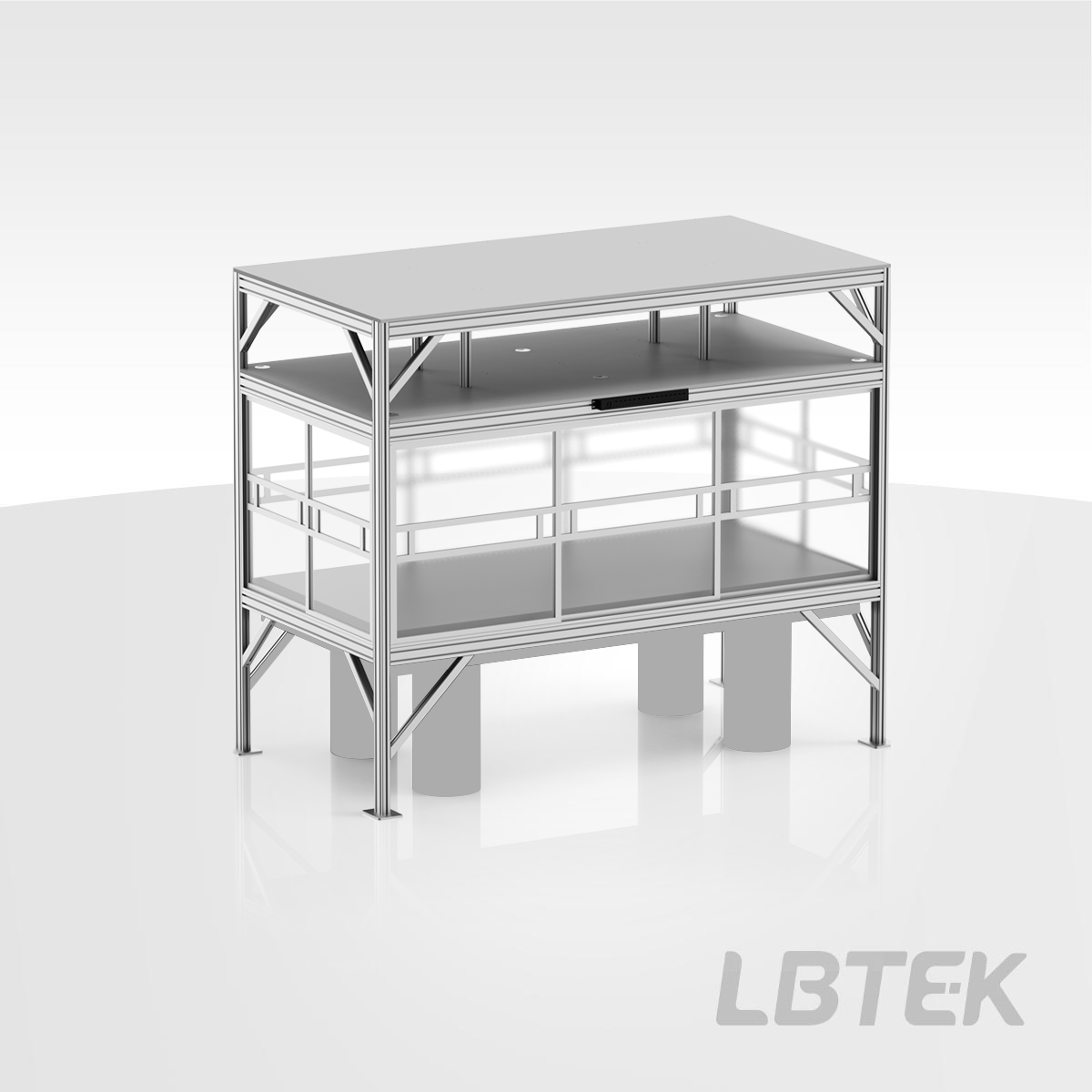

Transparent instrument stand

with pushable acrylic transparent window
With two 8-socket positions, 10 A, 2.5 KW power strip, flexible installation.
Instrument rack overall height 2200 mm
Shelf load capacity 200kg

The LBTEK transparent instrument rack provides storage space for instruments, power supplies, and other accessories. It features a slidable transparent acrylic window and a single-layer shelf. As an independent module, it does not cause interference with Optical Table vibration isolation. It features a reliable structure, light weight, and rust resistance. It offers advantages such as convenient distribution and transportation, simple installation, and an attractive appearance. It is compatible with LBTEK standard Optical Table dimensions, with a shelf height of 1756 mm and a maximum supported weight of 200 kg. If you have other special size requirements, please contact LBTEK technical support.

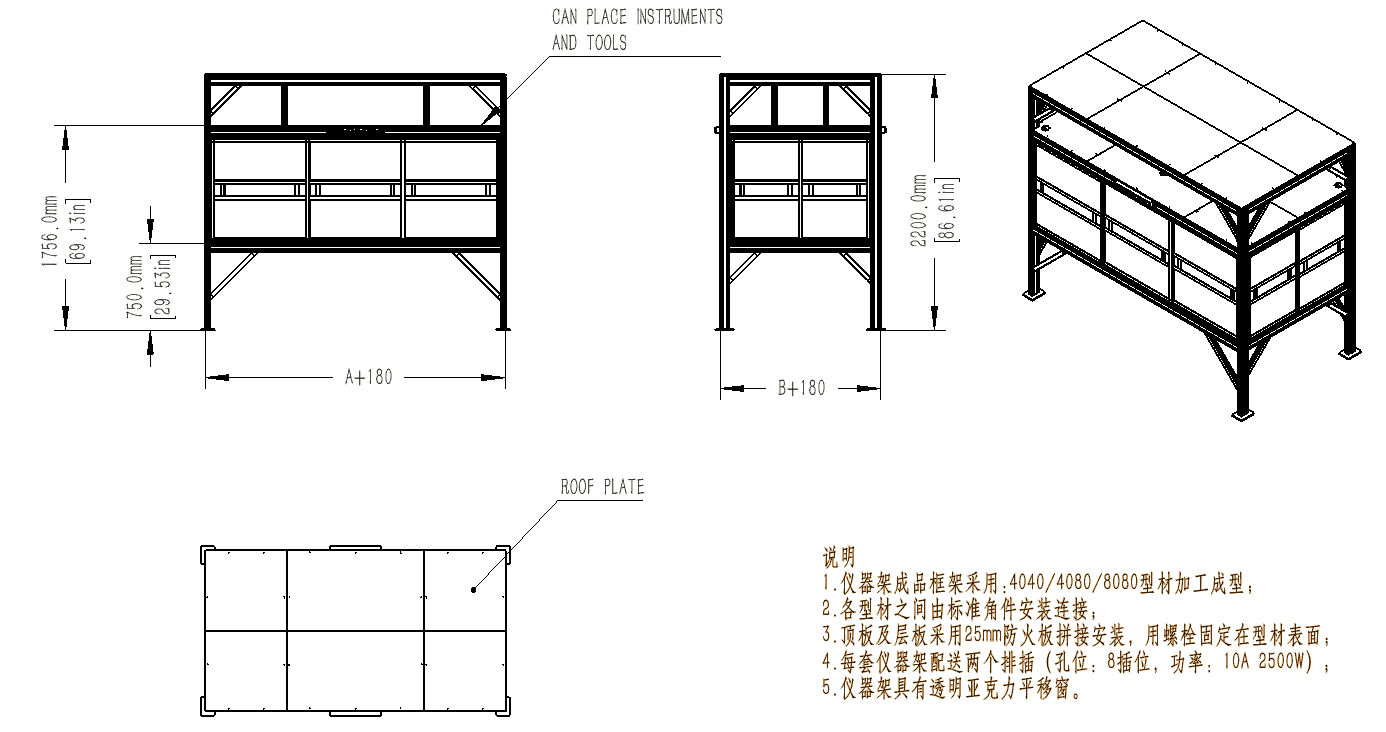

Instrument rack structure description (specific dimensions for each model can be found in the PDF drawings)

Product Model	Compatible with optical platform	Instrument Rack Dimensions	Unit Price	Lead Time
PR2412-T New	Length 2400 mm, width 1200 mm Optical Table	2580 mmx1380 mmx2200 mm	Contact	4 weeks	Add Cart
PR2415-T New	Length 2400 mm, width 1500 mm Optical Table	2580 mmx1680 mmx2200 mm	Contact	4 weeks	Add Cart
PR3015-T New	Length 3000 mm, Width 1500 mm Optical Table	3180 mmx1680 mmx2200 mm	Contact	4 weeks	Add Cart
