LBTEK-Manual leveling

Product Description

Manual horizontal adjustment, easy to operate
6-DOF active vibration isolation, excellent vibration isolation performance
Real-time monitoring and display of tabletop vibration
Vibration isolation level can reach VC-E and VC-F.
Lightweight and convenient, easy to install, ready to use once powered.

LBTEK offers Active Vibration Isolation Platform series - manual leveling. The Active Vibration Isolation Platform is composed of structures such as a base, support elements, a stage, sensors, a controller, and an actuator system. The stage is supported by springs, keeping it in a floating state. The vibration state of the stage is monitored by extremely sensitive sensors. The controller analyzes and processes the feedback signals from the sensors, and controls the actuators to generate real-time reaction forces against the stage's vibration, achieving active vibration isolation in 6 degrees of freedom.

Attributes

Vibration IsolatorMetal spring

System Vibration Isolation Degrees of Freedom6

Vibration Isolation Bandwidth0.5~150Hz

ActuatorVoice Coil Motor

Vibration isolation efficiency80%@2Hz，90%@5Hz，99%@10Hz

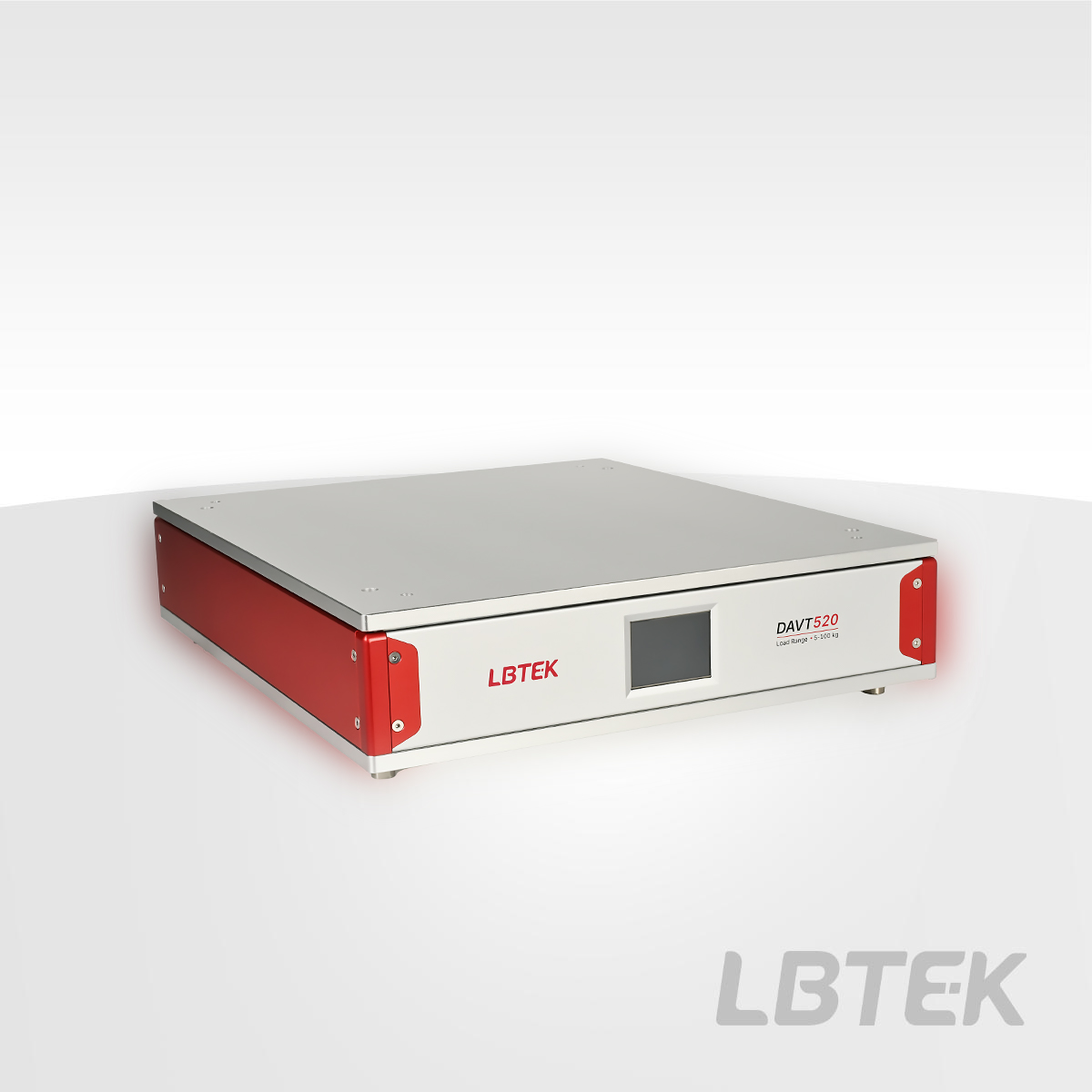

Manual Leveling - Hole-Free Tabletop

Manual leveling, tabletop without M6 threaded holes, small vibration isolation platform for desktop use.
System vibration reduction degrees of freedom: 6
Vibration isolation bandwidth: 0.5~150 Hz
Vibration isolation principle: The actuator provides thrust to actively attenuate the amplitude.

LBTEK's desktop active vibration reduction series platform – manual leveling, hole-free tabletop series – is lightweight and convenient, easy to install, requires no air source, and can be used once connected to power. It is simple to operate, can monitor tabletop vibration in real time, and has excellent vibration reduction performance. It is suitable for precision Microscope, laser Interferometer, precision experimental workbench, semiconductor, and other instruments and equipment with high vibration requirements.

LBTEK has launched desktop Active Vibration Isolation Platform models in sizes 520mm×440mm, 600mm×500mm, and 800mm×800mm. For other special size customization or custom requirement such as adding threaded holes of different specifications to the stage surface, please contact LBTEK customer service.

Desktop Active Vibration Isolation Platform Transmissibility Test Curve

	Product Model	Platform Dimensions	Load Range	Vibration Isolation Bandwidth	File	Unit Price	Compare	Lead Time
	DAVT520-B New	520×440×125 mm	5~100kg	0.5~150Hz		Contact		7 weeks	Add Cart

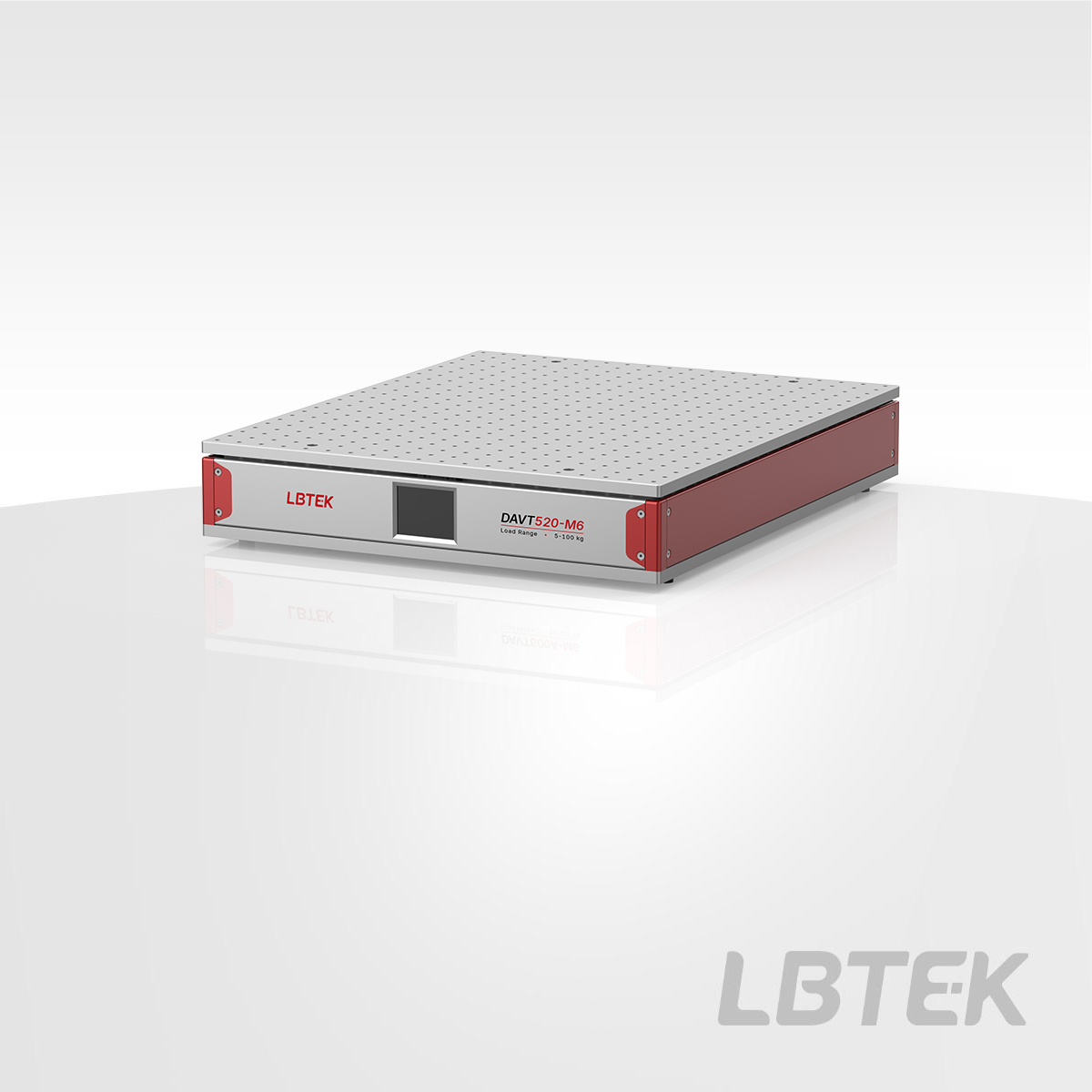

Manual Leveling - Perforated Tabletop

Manual level adjustment, panel covered with M6 threaded holes, small vibration isolation platform for desktop use.
System vibration reduction degrees of freedom: 6
Vibration isolation bandwidth: 0.5~150 Hz
Vibration isolation principle: The actuator provides thrust to actively attenuate the amplitude.

LBTEK's desktop active vibration reduction series platforms - manually leveled perforated tabletop series are lightweight and convenient, easy to install, require no air source, can be used once connected to power, and are simple to operate. They can monitor tabletop vibration in real time and provide excellent vibration reduction performance, making them suitable for precision Microscopes, laser Interferometers, precision experimental operation tables, semiconductors, and other instruments and equipment with high vibration requirements.

LBTEK has launched desktop Active Vibration Isolation Platforms in sizes 520mm×440mm, 600mm×500mm, and 800mm×800mm. If you have custom requirement such as other special sizes or adding threaded holes of other specifications to the stage tabletop, please contact LBTEK customer service.

Desktop Active Vibration Isolation Platform Transmissibility Test Curve

	Product Model	Platform Dimensions	Load Range	Vibration Isolation Bandwidth	File	Unit Price	Compare	Lead Time
	DAVT520-M6 New	520×440×125 mm	5~100kg	0.5~150Hz		Contact		7 weeks	Add Cart
	DAVT600-M6 New	600×500×125 mm	10~200kg	0.5~150Hz		Contact		7 weeks	Add Cart
