- For adapting off-axis parabolic mirrors
- Optical wall outer diameter and thread outer diameter optional
- For Mounting Ø12.7 mm Off-Axis Parabolic Mirrors
- Includes Three M3 Countersunk Holes and One Alignment Pin
- MPSM05TA: SM05 External Thread
- MP1ODA: Ø25.4 mm Smooth Outer Diameter
The adapters from LBTEK are designed for Ø12.7 mm off-axis parabolic mirrors. The MPSM05TA adapter features SM05 (0.535"-40) males, enabling direct mounting of Ø12.7 mm MPM mirrors onto components with SM05 females. Each MPSM05TA includes one SM05R retaining ring and three M3 socket head cap screws. The MP1ODA adapter features a Ø25.4 mm smooth-bore outside diameter, enabling direct installation of Ø12.7 mm MPM mirrors into Ø25.4 mm inner diameter components, and includes three M3 socket head cap screws.
Product Model | Applicable optical component specifications | Adapter Specifications | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
 | MP1ODA | Ø12.7 mm off-axis parabolic mirror | Ø25.4 mm smooth wall | $26.02 | today | Add Cart | ||
| MPSM05TA | Ø12.7 mm off-axis parabolic mirror | SM05 external thread | $21.96 | today | Add Cart |
- For Mounting Ø25.4 mm Off-Axis Parabolic Mirrors
- Includes Three M3 Countersunk Holes and One Alignment Pin
- MPSM1TA: SM1 External Threads
- MP2ODA: Ø50.8 mm Smooth Outer Diameter
The adapters from LBTEK are designed for Ø25.4 mm off-axis parabolic mirrors. The MPSM1TA adapter features SM1 (1.035"-40) males, enabling direct mounting of Ø25.4 mm MPM mirrors onto components with SM1 females. Each MPSM1TA includes one SM1R retaining ring and three M3 socket head cap screws. The MP2ODA adapter features a Ø50.8 mm smooth-bore outside diameter, enabling direct installation of Ø25.4 mm MPM mirrors into Ø50.8 mm inner diameter components, and includes three M3 socket head cap screws.
Off-axis parabolic mirror adapter for AMMC-2B.
Product Model | Applicable optical component specifications | Adapter Specifications | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| MP2ODA | Ø25.4 mm off-axis parabolic mirror | Ø50.8 mm optical wall | $23.93 | today | Add Cart | ||
| MPSM1TA | Ø25.4 mm off-axis parabolic mirror | SM1 External Thread | $19.35 | today | Add Cart |
- For adapting Ø50.8 mm off-axis parabolic mirrors
- Includes 3 M4 counterbore holes and 1 alignment pin
- MPSM2TA: SM2 external thread
- MP30DA: Ø76.2 mm smooth outer diameter

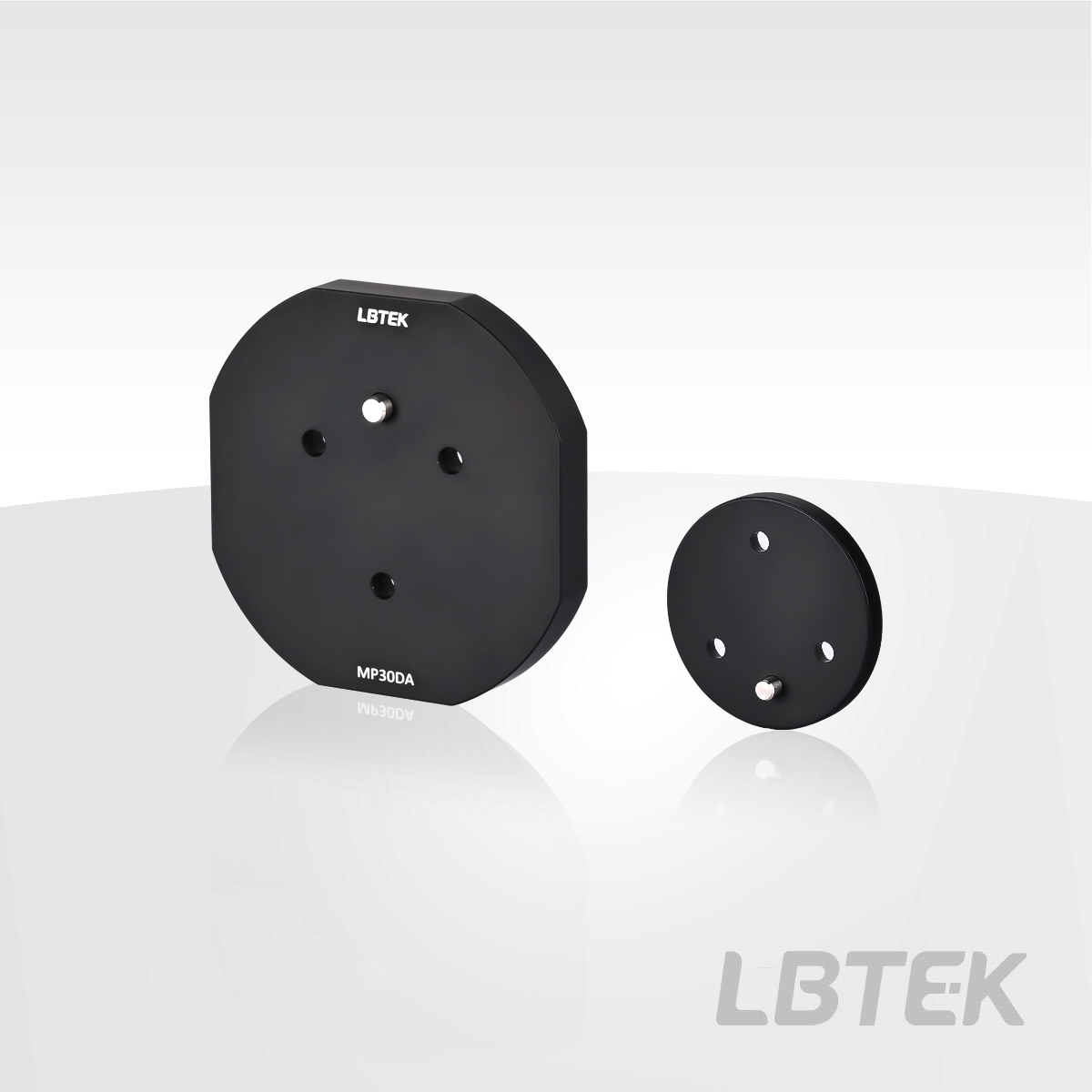

LBTEK adapter for Ø50.8 mm off-axis parabolic mirror. The MPSM2TA adapter features SM2 (2.035"-40) external threads, allowing direct installation of the Ø50.8 mm MPM mirror onto components with SM2 internal threads. It includes 1 SM2R retaining ring and 3 M4 socket head cap screws. The MP30DA adapter features a Ø76.2 mm smooth outer diameter, allowing direct installation of the Ø50.8 mm MPM mirror onto components with a Ø76.2 mm inner bore. It includes 3 M4 socket head cap screws.

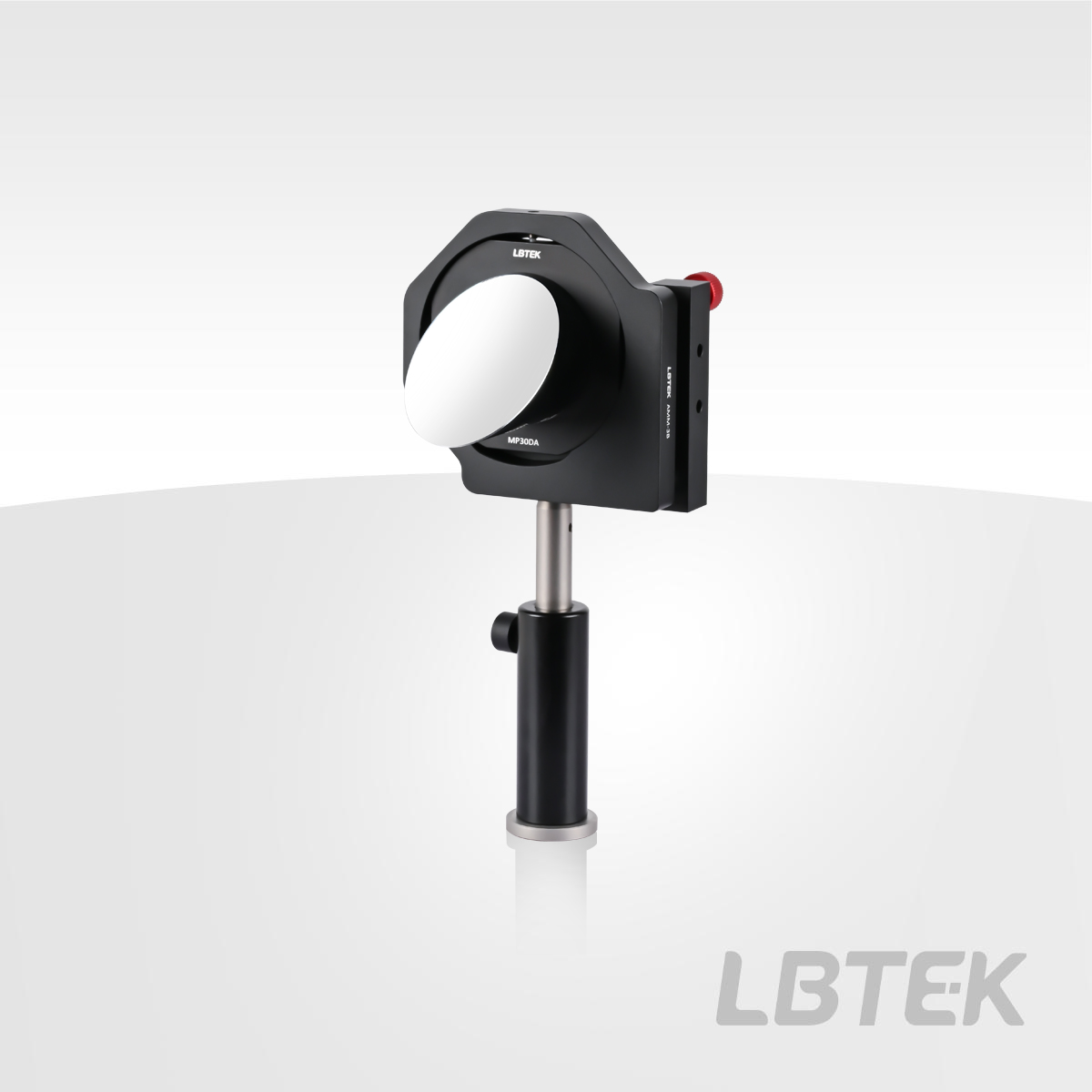

Application Example Diagram
Product Model | Applicable optical component specifications | Adapter Specifications | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| MPSM2TA New | Ø50.8 mm Off-Axis Parabolic Mirror | SM2 External Thread | $25.49 | today | Add Cart | ||
| MP30DA New | Ø50.8 mm Off-Axis Parabolic Mirror | Ø76.2 mm smooth wall | $23.93 | today | Add Cart |
