Material: 6061-T6 Aluminum Alloy;

Various specifications of female and male adapters available;

Mounting of various sized optical components into standard mounts;.

Stainless steel material

With adhesive holes for bonding optical components using epoxy;

Material: 303 or 304 stainless steel;

Various thread adapters;

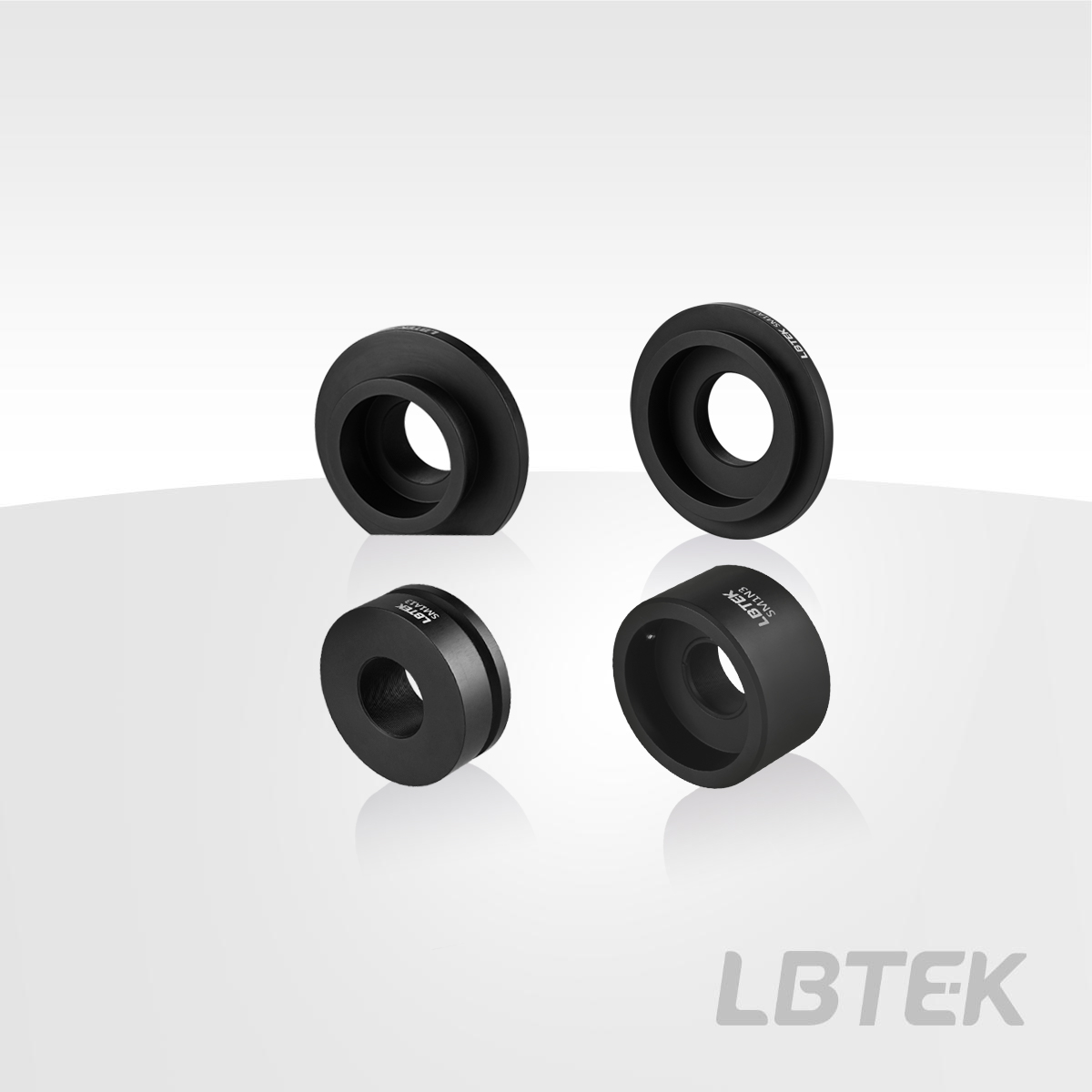

Adapter for converting other sized optical components to SM05 or SM1-series females;

Retaining ring adapters are used in pairs (two per set);

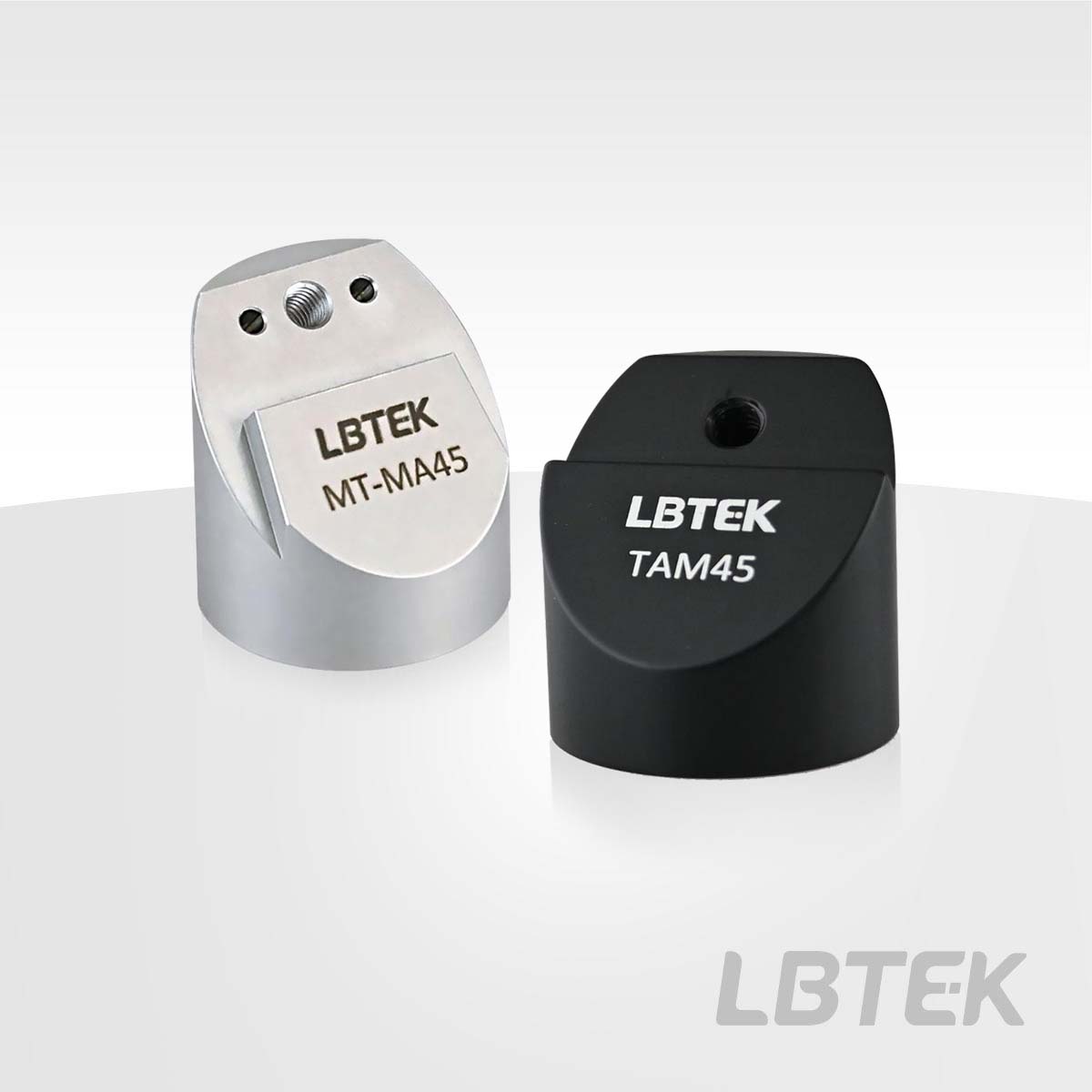

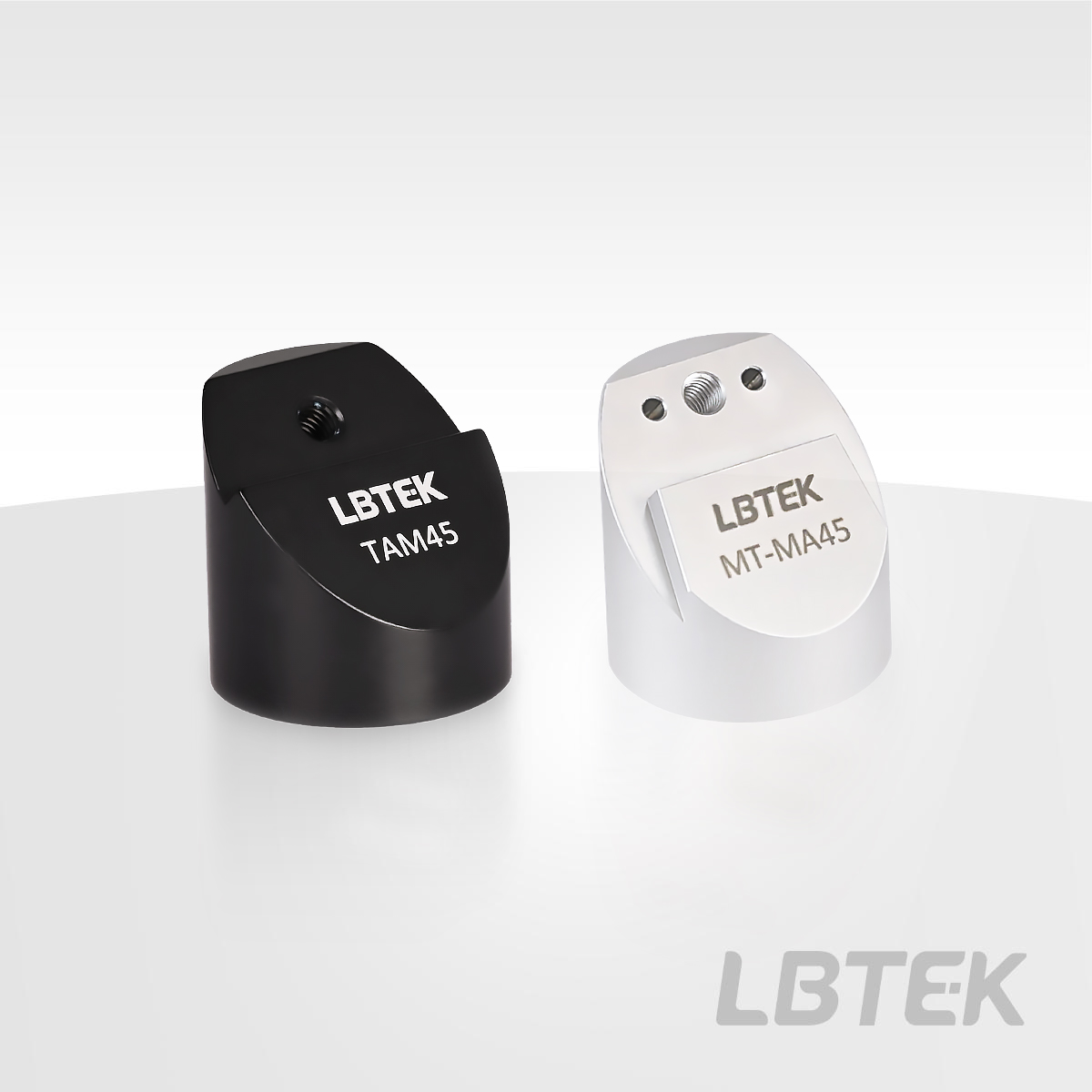

Secure 45° installation of AMM series optical component mounts relative to the working surface;

Top M4 tapped hole for mounts;

Bottom M6 tapped hole for Ø25.0 mm posts or post holder bases installation;

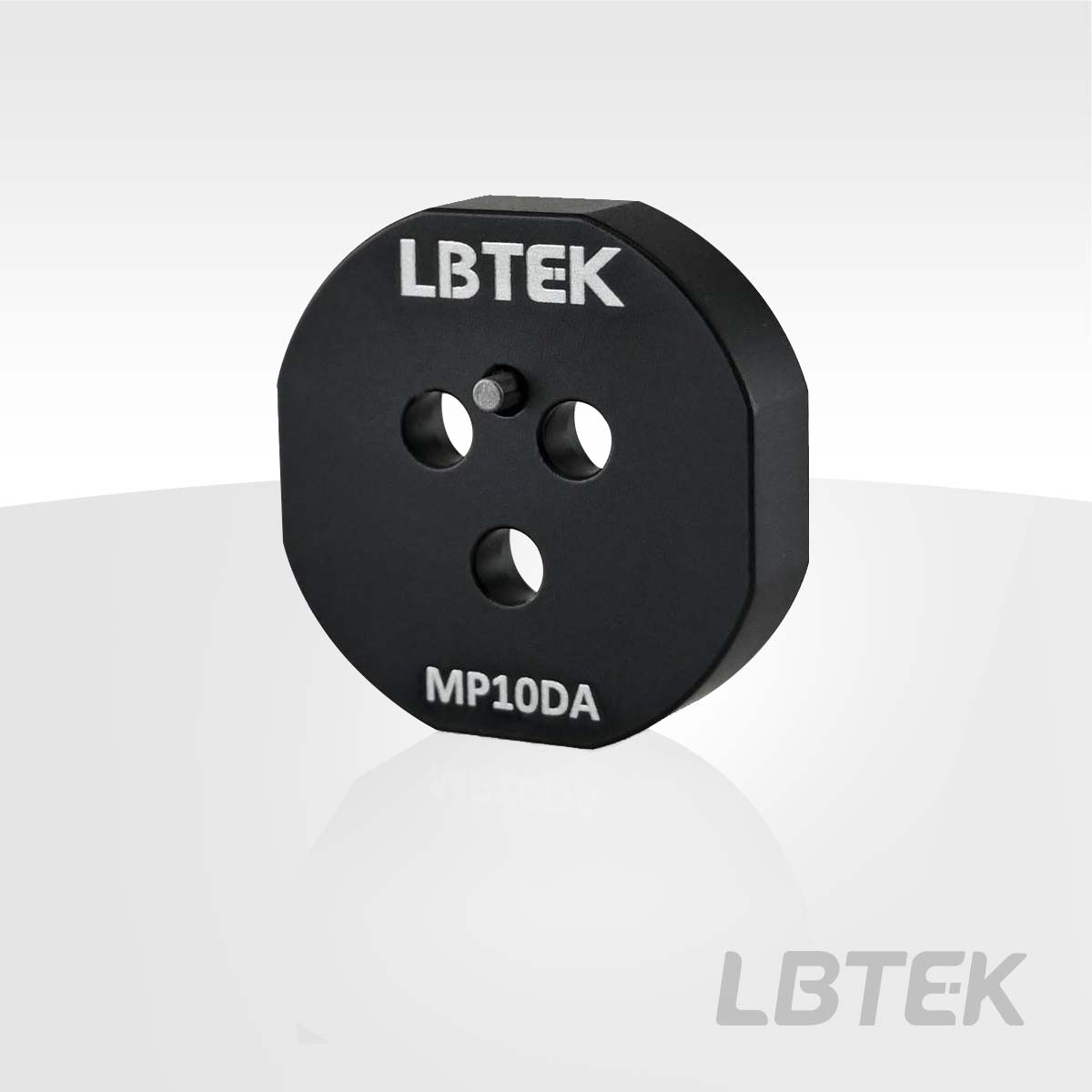

For adapting off-axis parabolic mirrors

Optical wall outer diameter and thread outer diameter optional

Mount the Ø12.7 mm post and accessories to the 30 mm coaxial system

Secure the Ø6 mm coaxial post with set screws, hand-tighten the Ø12.7 mm optical post

Compatible with Ø25.4 mm optical components

Smooth mounting surface;

Free space and coaxial systems are optional;

Cylindrical components fixation, including laser beam expanders;

For Leica DMI, Nikon Eclipse (Ti, Ti2, or upright), Olympus BX and IX, Zeiss Axioskop and Examiner microscopes

Can be connected and used with illumination light sources

Smooth installation surface;

Compatible with coaxial systems;

Fixation for LED spot light;

Smooth outside diameter;

Smooth inner diameter for fixing cylindrical components such as collimators;

Two set screws to secure the mounted components;

Integration of circular optical components or cylindrical components into coaxial systems or optical component mounts;

Adjustable tip and yaw;

It commonly used for light path removal or restoration;

It can be used in conjunction with other optomechanical components for positioning;

It can be fixed at any angle within a certain cone angle range;

Integrated 304 stainless steel construction with excellent rigidity;

Parallelism and perpendicularity error within 0.03mm;

Top M4 countersunk holes, M4 tapped mounting holes on all sides;

Suitable for Ø25 mm posts;

Adapter part is detachable;

Used for various adapter applications;

Material: 6061-T6 Aluminum Alloy;

SM1 external thread, smooth inner wall;

Fixed with set screws;

Plate Adapter, Extended Component Compatibility.

Integrated Multiple M4/M3 Tapped Holes

Suitable for Multi-Axis Plate

Three-point fixation

Main material: 6061-T6 aluminum alloy

Mounting of grating or rectangular mirror to Ø1-inch optical adjustment mount

Material: 304 stainless steel

Suitable for use with Ø6 mm coaxial rods

M3, 4-40 studs optional, available in packs of four
