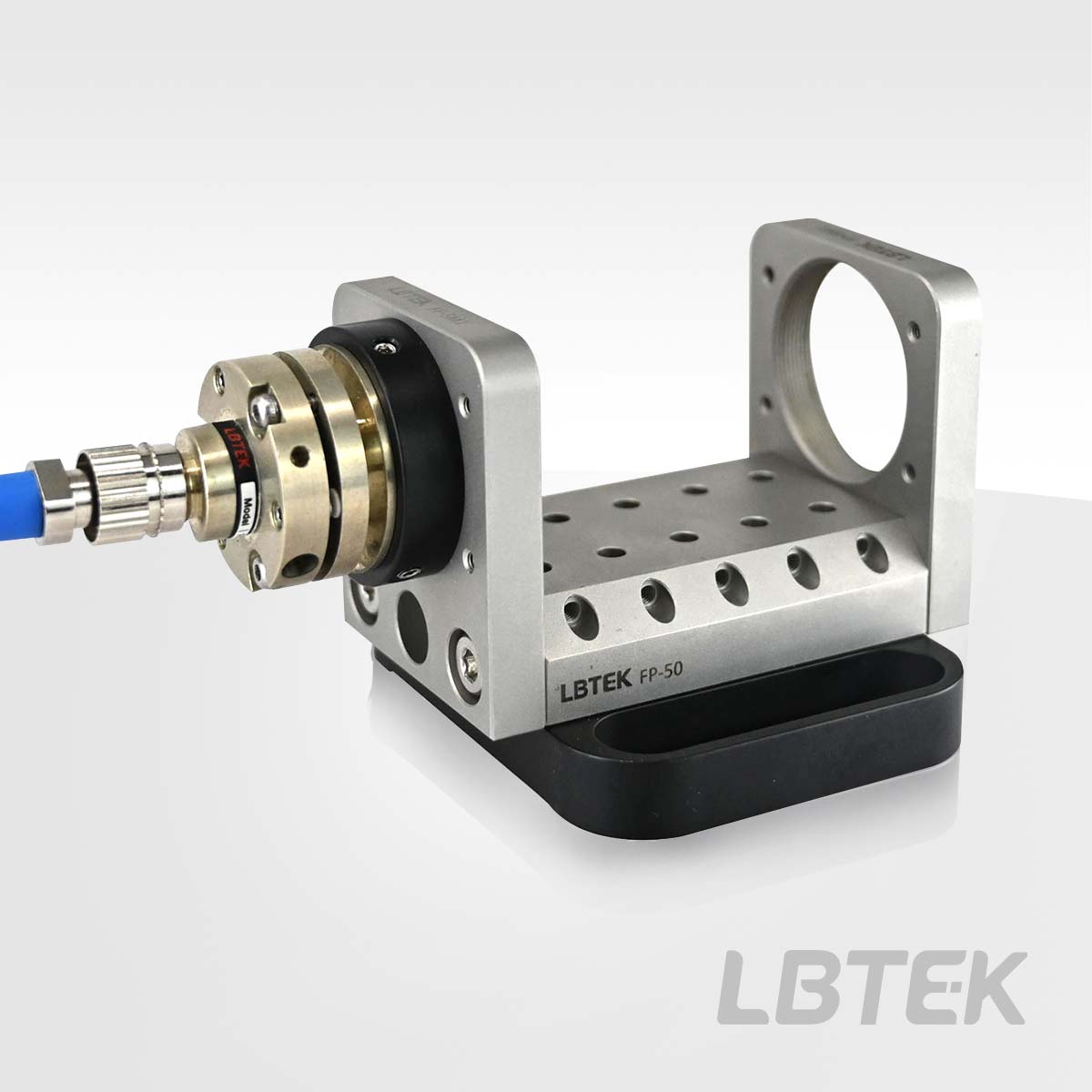

The LBTEK three-axis fiber collimator offers three coating options (A/B/C), covering wavelengths from 350-1700 nm. It is available in three focal lengths: 4 mm, 7.5 mm, and 11 mm. While the connector and fiber remain stationary, the built-in lens provides three degrees of freedom for alignment: pitch and yaw angle adjustment, as well as Z-axis tuning. The pitch and yaw angle adjustment range is ±5°, and the Z-axis travel range is ±1 mm. After inserting the fiber, tighten the side set screw to secure the fiber position. Once alignment is complete, tighten the locking screw on the housing side to fix the Z-axis position. The collimator purchase includes corresponding eccentric adjustment accessories.

LBTEK's FC/PC connector three-axis fiber collimator has a coating wavelength of 350-700 nm; a focal length of 11 mm; when the connector and fiber remain stationary, the built-in lens has three alignment degrees of freedom: pitch and yaw angle alignment and Z-axis adjustment. The pitch and yaw angle travel range is ±5°, and the Z-direction travel range is ±1 mm. After inserting the fiber, tighten the set screw on the side to secure the fiber position. Once alignment is completed, tighten the locking screw on the housing side to fix the Z-axis position. The purchase of the collimator includes corresponding eccentric adjustment components.
