Product Description

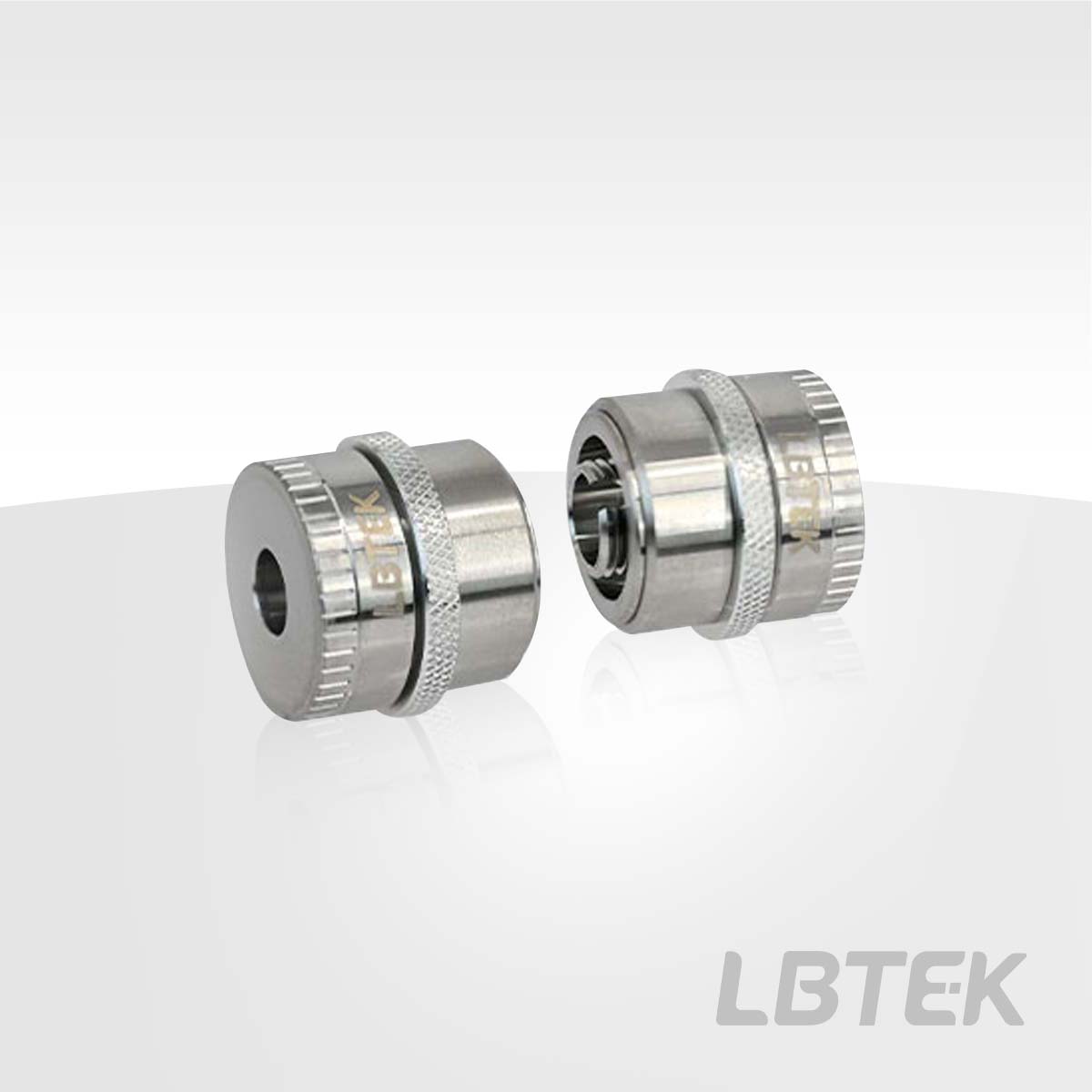

Collimator with adjustable focal length, FC/PC connector
Operating wavelength 350 nm-1700 nm
Aspheric lens design with aspherical aberration correction

The fiber collimator is a commonly used passive optical component in fiber optic signal transmission, capable of converting the divergent light from the fiber output end into collimated light (parallel light) through an internal aspheric lens. LBTEK's rotatable and focus-adjustable fiber collimator includes models with FC/PC fiber connectors, designed for use with single-mode fiber patch cords. It offers rotatable and focus-adjustable collimators with anti-reflection coatings covering ranges of 350 nm-700 nm, 600 nm-1050 nm, and 1050 nm-1700 nm. Additionally, the rotatable and focus-adjustable fiber collimator features a spring and knob mechanism, making focal length adjustment simpler and more convenient, allowing for quick positioning of the collimated state. LBTEK also provides various customization services, including special dimensions, design wavelengths, output beam diameter specifications, and more. For specific customization requirements, please contact LBTEK Technical Support.

Rotary adjustable focus collimator, FC/PC connector

Connector: FC/PC
Focal Length: 4.5 mm
Internal Lens: Aspherical Lens

The rotary adjustable collimator provided by LBTEK features a compact structure and simple, convenient adjustment, making it easy to collimate fiber output light. With an FC/PC interface, the adjustable collimator currently offers three coating wavelength options: 350 nm-700 nm, 600 nm-1050 nm, and 1050 nm-1700 nm. All adjustable collimators are coated with anti-reflection films to reduce reflectivity. For detailed parameters, please refer to the parameter table or curve data. LBTEK provides various customization services. For specific customization requirements, please contact LBTEK Technical Support.

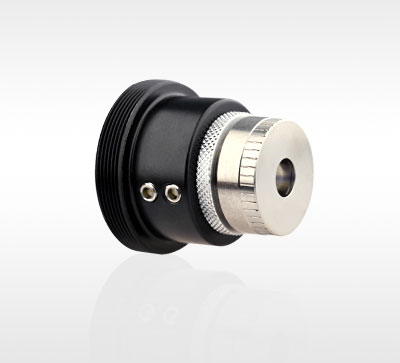

The rotary adjustable focus collimator installed in the TAD-16 (can be adapted with SM1 sleeves)

Product Model	Focal length	Anti-reflection coating range<sup>e</sup>	Output beam waist diameter<sup>a</sup>	Unit Price	Lead Time
RADFCC-11-PC New	11.0 mm	Ravg≤0.5%@1050-1700 nm	2.14 mm	$296.78	6 weeks
RADFCB-11-PC New	11.0 mm	Ravg≤0.5%@600 nm-1050 nm	2.38 mm	$296.78	6 weeks
RADFCA-11-PC New	11.0 mm	Ravg≤0.5%@350 nm-700 nm	2.03 mm	$296.78	6 weeks
RADFCC-7.5-PC New	7.5 mm	Ravg≤0.5%@1050 nm-1700 nm	1.45 mm	$296.78	6 weeks
RADFCB-7.5-PC New	7.5 mm	Ravg≤0.5%@600 nm-1050 nm	1.62 mm	$296.78	6 weeks
RADFCA-7.5-PC New	7.5 mm	Ravg≤0.5%@350 nm-700 nm	1.36 mm	$296.78	6 weeks
RADFCA-4.5-PC	4.5 mm	Ravg≤0.5%@350 nm-700 nm	0.82 mm	$296.78	6 weeks
RADFCB-4.5-PC	4.5 mm	Ravg≤0.5%@600 nm-1050 nm	0.98 mm	$296.78	6 weeks
RADFCC-4.5-PC	4.5 mm	Ravg≤0.5%@1050nm-1700 nm	0.87mm	$296.78	6 weeks

Rotatable adjustable focus collimator, FC/APC interface

Interface: FC/APC
Focal Length: 4.5 mm
Internal Lens: Aspherical Lens

The rotary adjustable focus collimator provided by LBTEK features a compact structure and simple, convenient adjustment, making it easy to collimate fiber optic output light. With an FC/APC interface, the adjustable focus collimator is currently available in three coating wavelength options: 350 nm–700 nm, 600 nm–1050 nm, and 1050 nm–1700 nm. All adjustable focus collimators are coated with anti-reflection coatings to reduce reflectivity. For detailed parameters, please refer to the parameter table or curve data. LBTEK offers a variety of customization services. For specific customization requirements, please contact LBTEK technical support.

The rotary adjustable focus collimator is installed in the TAD-16 (can be adapted with SM1 sleeves).

Product Model	Focal length	Anti-reflection coating range<sup>e</sup>	Output beam waist diameter<sup>a</sup>	Unit Price	Lead Time
RADFCA-4.5-APC New	4.5 mm	Ravg≤0.5%@350 nm-700 nm	0.82 mm	$296.78	6 weeks
RADFCB-4.5-APC New	4.5 mm	Ravg≤0.5%@600 nm-1050 nm	0.98 mm	$296.78	6 weeks
RADFCC-4.5-APC New	4.5 mm	Ravg≤0.5%@1050nm-1700 nm	0.87mm	$296.78	6 weeks

Rotary Adjustable Focus Collimator
