Product Description

Wavelength range 400 - 1700 nm
High precision, high dynamic range, high sampling rate and high stability performance
Free-space or fiber-coupled input
Software supporting extinction ratio (ER) measurement for polarization-maintaining fibers

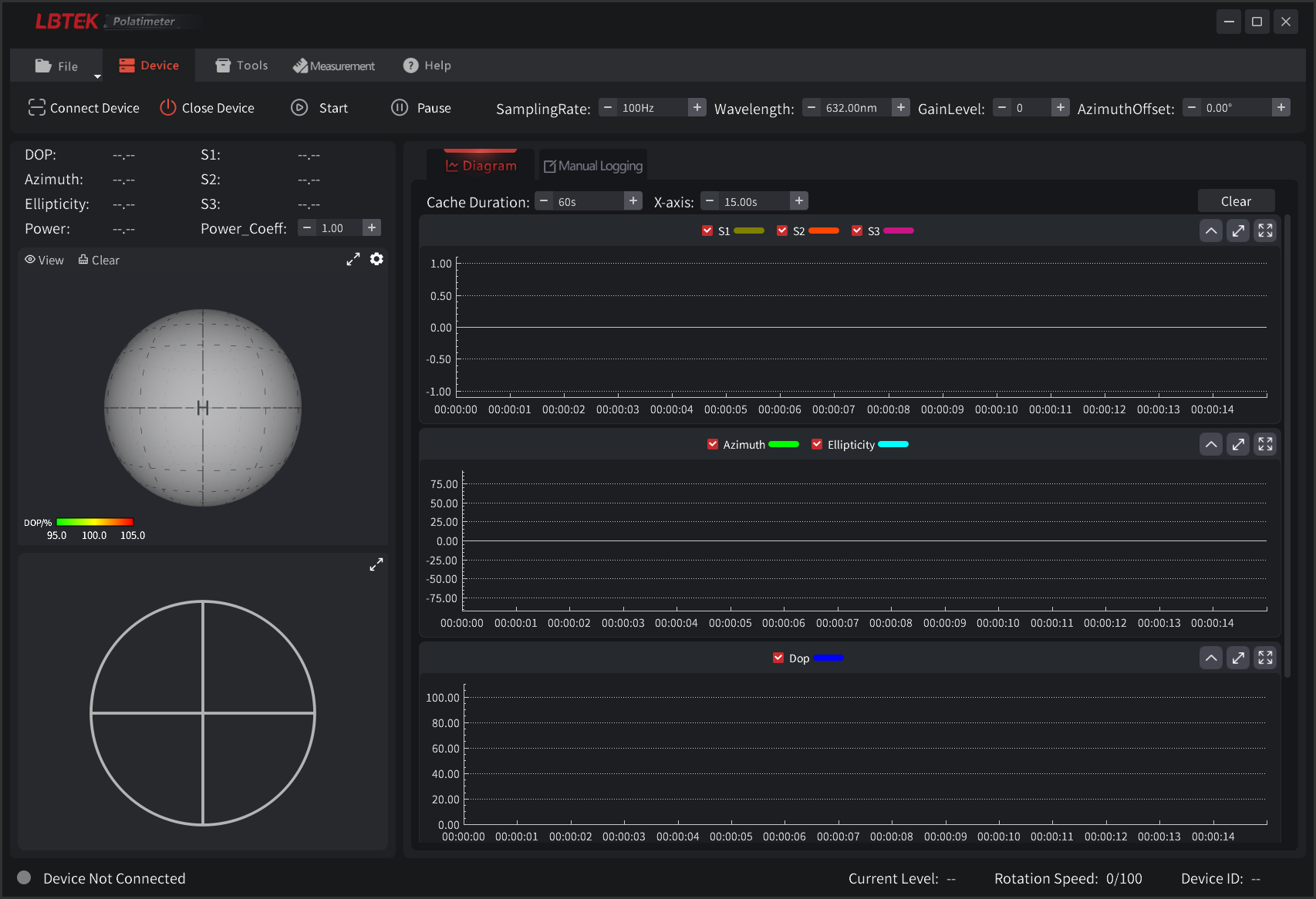

Software providing multiple display modes including Poincaré Sphere, Polarization Ellipse, Curves, and Data Lists

LBTEK's HAWK Series Polarimeter is an instruments for measuring the polarization state of monochromatic-collimated light. The product is based on the principle of rotating waveplate technology, which modulates the incident light by rotating the waveplate, then demodulates it using Fast Fourier Transform (FFT) to obtain correlation coefficients, and finally calculates the Stokes Vector through inversion, deriving parameters such as Azimuth, Ellipticity, and Degree of Polarization (DOP). The HAWK Series Polarimeters can measure the polarization state of any monochromatic-collimated light, offering excellent performance in terms of high precision, high dynamic range, high sampling rate, and high stability.

Diagram

Polarimeters

Wavelength range covers 400 - 1700 nm
Power range: 100 nW - 20 mW
Sampling rate: adjustable from 30 - 190 Hz
Features including ER Measurement, Manual Logging, Long Term Measurement, Alignment Tool, etc.

The HAWK Series Polarimeter measures the state of polarization (SOP) of collimated incident light using the rotating waveplate method. The incident light must be monochromatic coherent light (laser), and the light will terminate inside the instrument. The product accepts a maximum collimated beam diameter of Ø3.0 mm, with a typical polarization degree accuracy of ±1% (maximum ±2%). The typical accuracy for azimuth and ellipticity on the Poincaré Sphere is ±0.1° (maximum ±0.25°). The front panel features SM05 internal threads, SM1 external threads, M3 coaxial system threads, etc., while the base plate provides M4/M6 mounting interfaces for compatibility with various optical components.

Schematic Diagram of Back

Product Model	Wavelength range	Power Range	Unit Price	Lead Time
HAWK-VIS	400 - 700 nm	100 nW-10 mW	$5883.35	3 weeks
HAWK-IR1 New	600 - 1100 nm	1 μW - 20 mW	$5883.35	5 weeks
HAWK-IR2 New	900 - 1700 nm	1 μW - 20 mW	$5883.35	5 weeks
CAL-HAWK	Calibration Service	Calibration Service	$588.34	Contact
