Product Description
- Main material 6061-T6 aluminum alloy
- Black anodized
LBTEK 60 mm coaxial plate mounting base with M6 hole slots and M4 countersunk hole slots, designed for directly securing 60 mm coaxial plates onto optical platforms or breadboards. Each base features a raised edge to prevent rotation of the coaxial plate or mounting base when under force.
Attribute
Main material6061-T6 aluminum alloy
Surface treatmentBlack anodized
Coaxial System Compatibility60 mm coaxial system

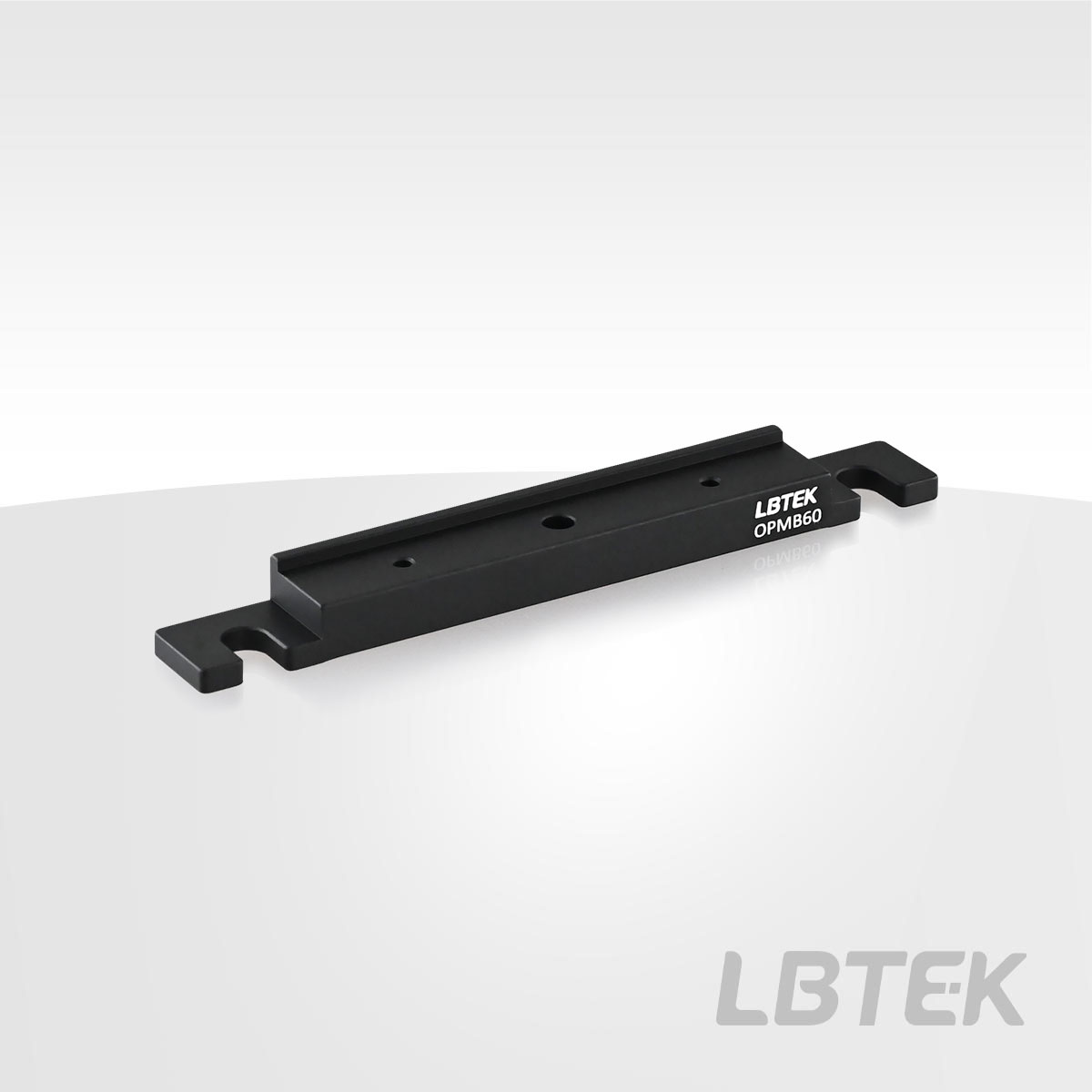

60 mm coaxial mounting base
- Low-profile, horizontal mounting
- Converts 60 mm coaxial plates to optical table or breadboard
- Compatible with 60 mm coaxial systems
The LBTEK 60 mm coaxial mounting base allows for the installation of a 60 mm coaxial plate onto an optical table or breadboard through two M6 slotted holes. The OPMB60 features an M4 countersunk hole at the bottom, which can be connected to the OPB-12.5B using the included M4*12 cylindrical head hex socket screw. Each base is equipped with a raised edge to prevent the coaxial plate from rotating under force.

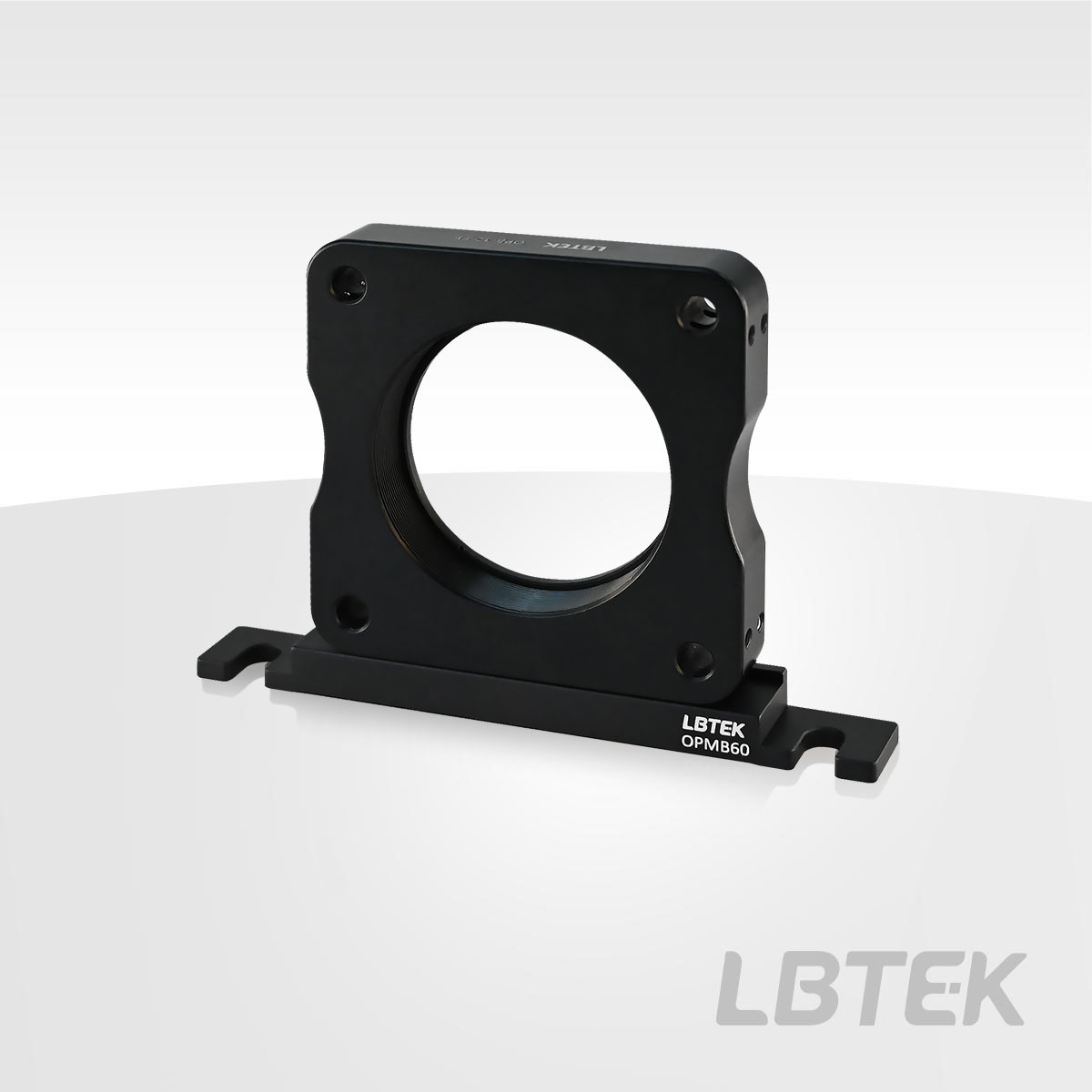

60 mm coaxial plate OPB-12.5B mounted on a 60 mm coaxial mounting base
Product Model | Material | Compatible with coaxial system specifications | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| OPMB60 | 6061-T6 Aluminum Alloy | 60 mm coaxial system | $20.13 | 7 weeks |
