- Application: Deflecting light path
- Gold coating, bevel edge coating
- Operating wavelength: 800 nm-20.0 μm
- Optical material: N-BK7
- Tilted Coating
- Optical Material: N-BK7
- Gold Coating: 800 nm-20.0 μm
- Reflectivity: Ravg >96%

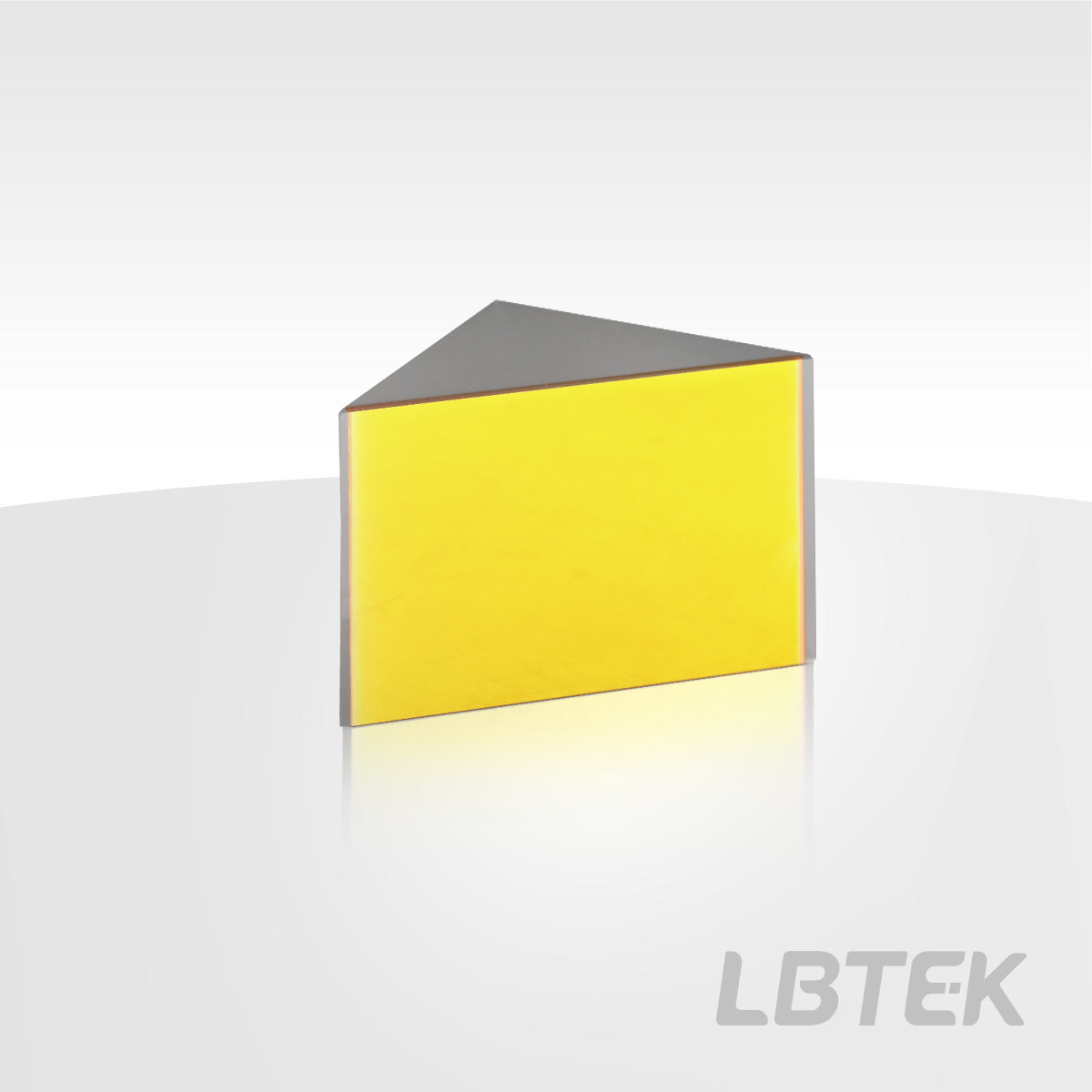

LBTEK right-angle prism mirrors are made from N-BK7 substrate, with the hypotenuse coated with a metallic reflective coating (gold coating, protected by silicon dioxide), which provides high reflectivity (Ravg > 96%) in the wavelength range of 800 nm to 20 μm. In addition to the hypotenuse coating, LBTEK also offers right-angle prism mirrors with right-angle coatings, both of which can be mounted in prism mounts. Currently, LBTEK provides right-angle prism mirrors in five sizes, including: L = 5 mm / 10.0 mm / 12.5 mm / 20.0 mm / 25.0 mm. LBTEK also offers customization services for right-angle prism mirrors with other materials and coating types. For customization needs, please contact LBTEK technical support.

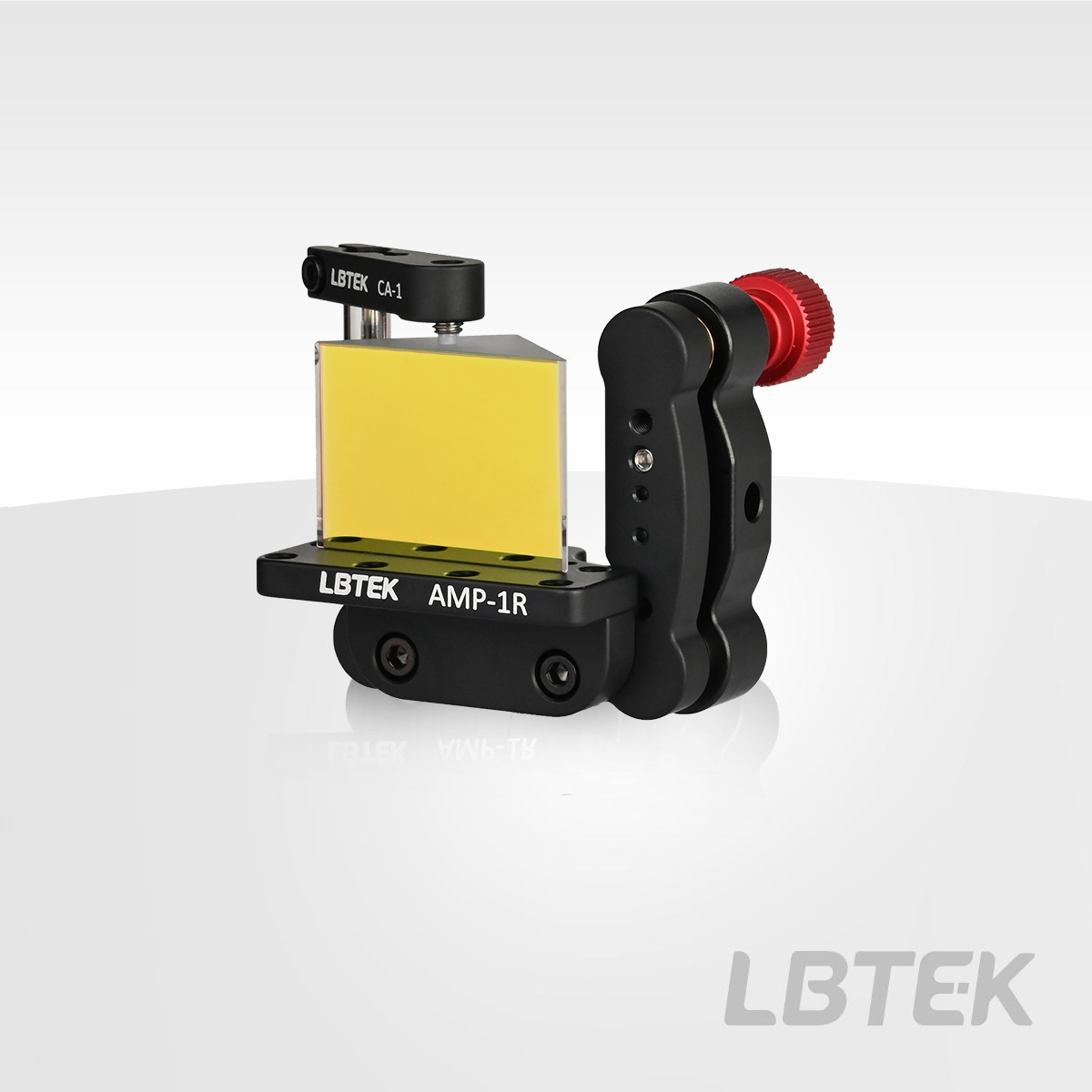

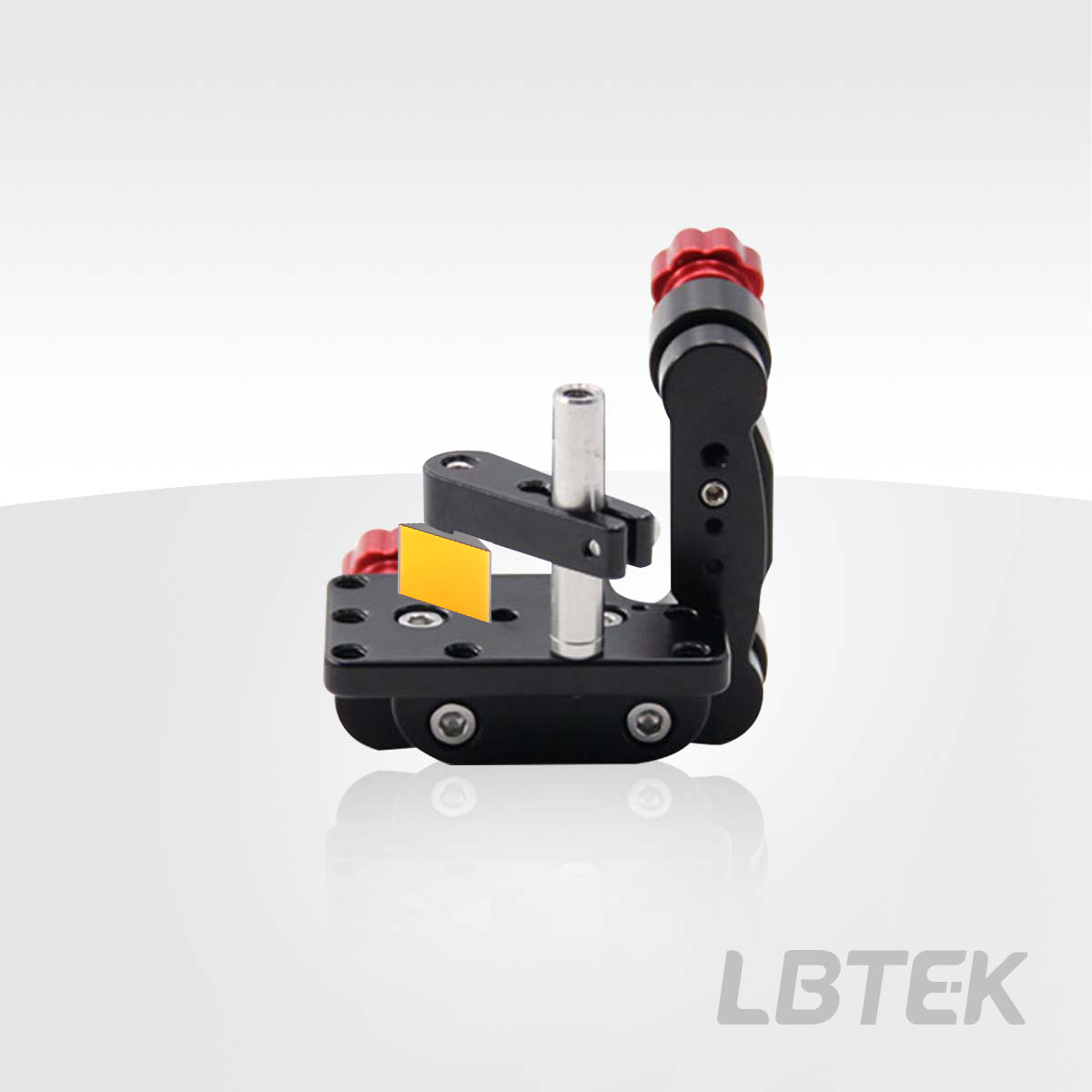

LBTEK Right Angle Prism Mirror Mounted in Prism Mount
Product Model | Operating Wavelength | Reflectivity | Size | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| RAP125-AU New | 800 nm-20.0 μm | Ravg>96% | 25.0 mm×25.0 mm×25.0 mm | $86.81 | 6 weeks | |||
| RAP120-AU New | 800 nm-20.0 μm | Ravg>96% | 20.0 mm×20.0 mm×20.0 mm | $82.24 | 6 weeks | |||
| RAP112-AU New | 800 nm-20.0 μm | Ravg>96% | 12.5 mm×12.5 mm×12.5 mm | $68.38 | 6 weeks | |||
| RAP110-AU New | 800 nm-20.0 μm | Ravg>96% | 10.0 mm×10.0 mm×10.0 mm | $64.98 | 6 weeks | |||
| RAP105-AU New | 800 nm-20.0 μm | Ravg>96% | 5.0 mm×5.0 mm×5.0 mm | $54.13 | 6 weeks |
