- Application: Deflecting light path
- UV-enhanced aluminum coating, bevel coating
- Working wavelength range: 250 nm-600 nm
- Optical material: N-BK7
- Tilted Coating
- Optical Material: N-BK7
- UV Enhanced Aluminum Coating: 250 nm-600 nm
- Reflectivity: Ravg > 90%

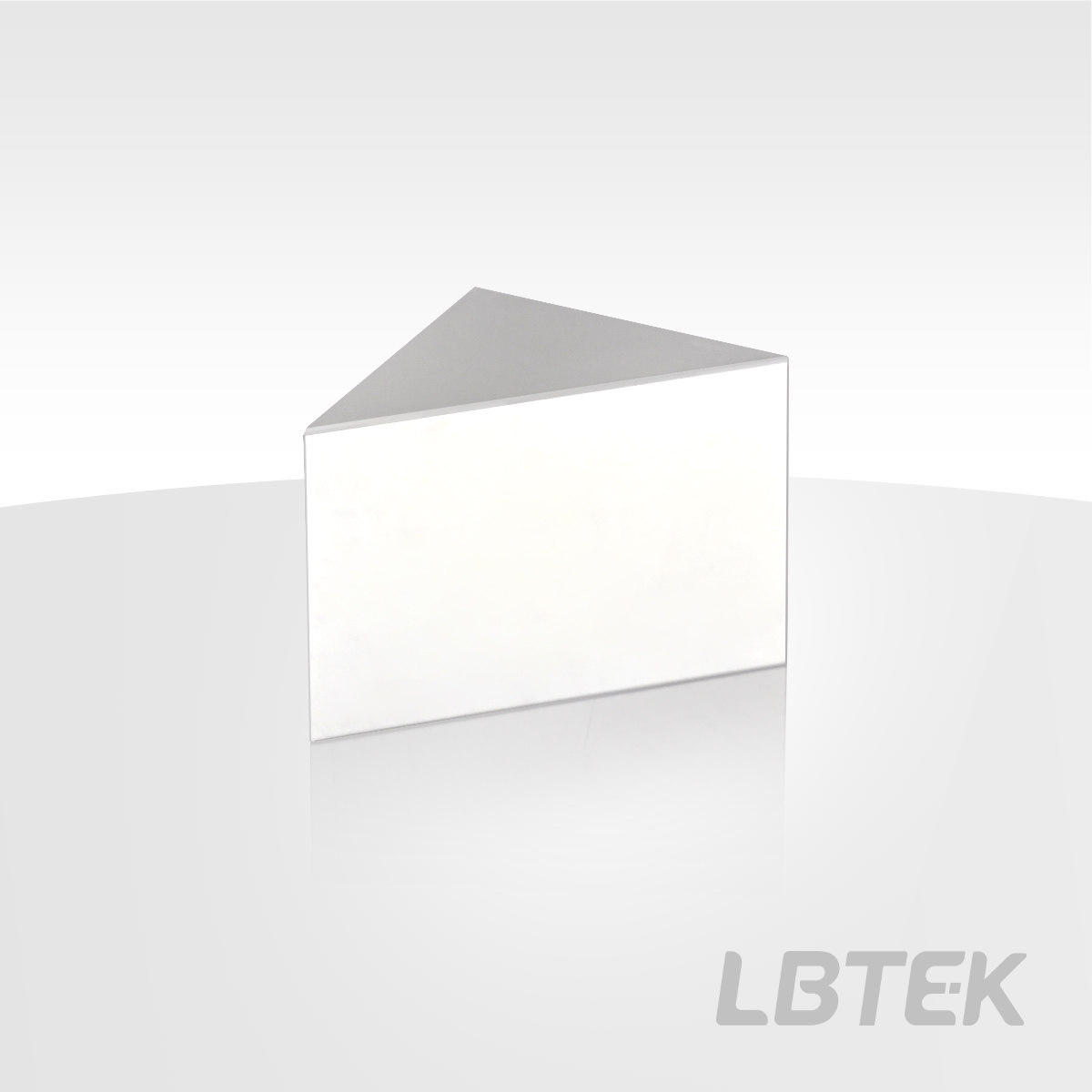

LBTEK right-angle prism mirrors are made of N-BK7 substrate, with the hypotenuse coated with a metal reflective film (UV-enhanced aluminum coating with silicon dioxide protection). This reflective film offers high reflectivity (Ravg > 90%) within the wavelength range of 250 nm to 600 nm. In addition to the hypotenuse coating, LBTEK also provides right-angle prism mirrors with coatings on the right-angle faces. Both types can be mounted in prism mounts. Currently, LBTEK offers right-angle prism mirrors in five sizes: L = 5 mm / 10.0 mm / 12.5 mm / 20.0 mm / 25.0 mm. LBTEK also provides customization services for right-angle prism mirrors with other materials and coating types. For customization needs, please contact LBTEK technical support.
LBTEK Right Angle Prism Mirror Mounted in Prism Mount
Product Model | Operating Wavelength | Reflectivity | Size | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| RAP125-UVAL New | 250 nm-600 nm | Ravg>90% | 25.0 mm×25.0 mm×25.0 mm | $86.81 | 6 weeks | |||
| RAP120-UVAL New | 250 nm-600 nm | Ravg>90% | 20.0 mm×20.0 mm×20.0 mm | $77.92 | 6 weeks | |||
| RAP112-UVAL New | 250 nm-600 nm | Ravg>90% | 12.5 mm×12.5 mm×12.5 mm | $68.38 | 6 weeks | |||
| RAP110-UVAL New | 250 nm-600 nm | Ravg>90% | 10.0 mm×10.0 mm×10.0 mm | $64.98 | 6 weeks | |||
| RAP105-UVAL New | 250 nm-600 nm | Ravg>90% | 5.0 mm×5.0 mm×5.0 mm | $54.13 | 6 weeks |
