Product Description

Made of heat-treated 316L stainless steel with a small thermal expansion coefficient
440C stainless steel ball and sapphire shim, wear-resistant with a small friction coefficient
Suitable for Ø76.2 mm optical components

LBTEK 3-inch MT High-Stability Series Optical Mount offers superior long-term alignment stability compared to standard optical mounts, designed for mounting optical components with a diameter of 76.2 mm. The optical element is secured via flexible spring plates or similar methods. The M6×0.25 fine adjusters provide an angular adjustment range of ±4° for the mount. For adjusting the MT series stainless steel optical mounts, LBTEK offers a range of compatible accessories that users can optionally equip, enabling more convenient and flexible adjustments during use and allowing the mount to adapt to a wider variety of application scenarios.

Attribute

Material316L Stainless Steel

Surface treatmentSandblasting

Adjustable angle±4°

Regulator SpecificationsM6×0.25

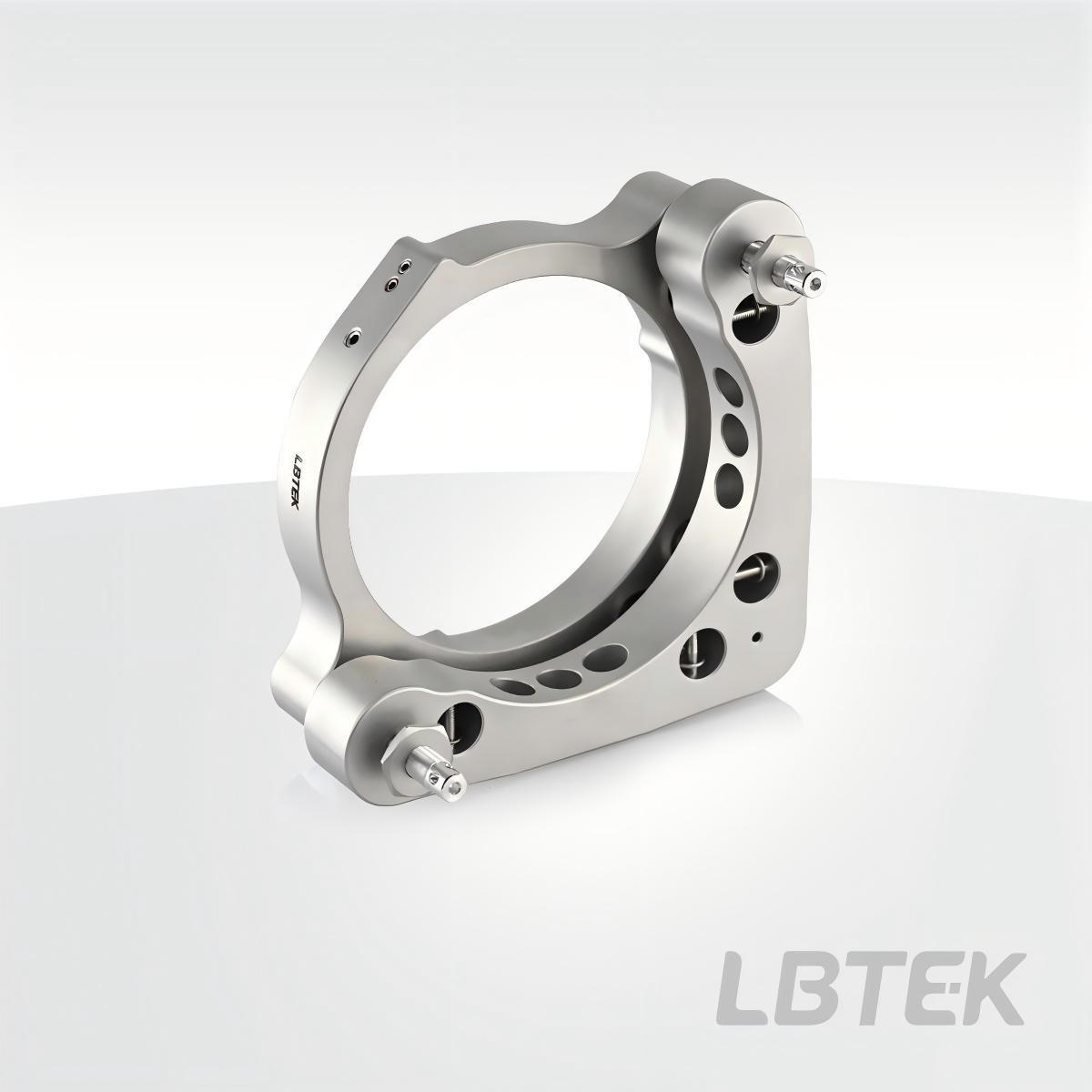

3-inch stainless steel mirror frame, 2 regulators with side holes, with locking nuts

For installing optical components with a diameter of 76.2 mm
2 precision adjusters with side through-holes for easy insertion during fine adjustment
Adjuster, without knob, with locking nut
Adjustable angle ±4°
Adjustment accuracy 0.19°/per revolution
Flexible spring leaf and fixing screws secure the optical component

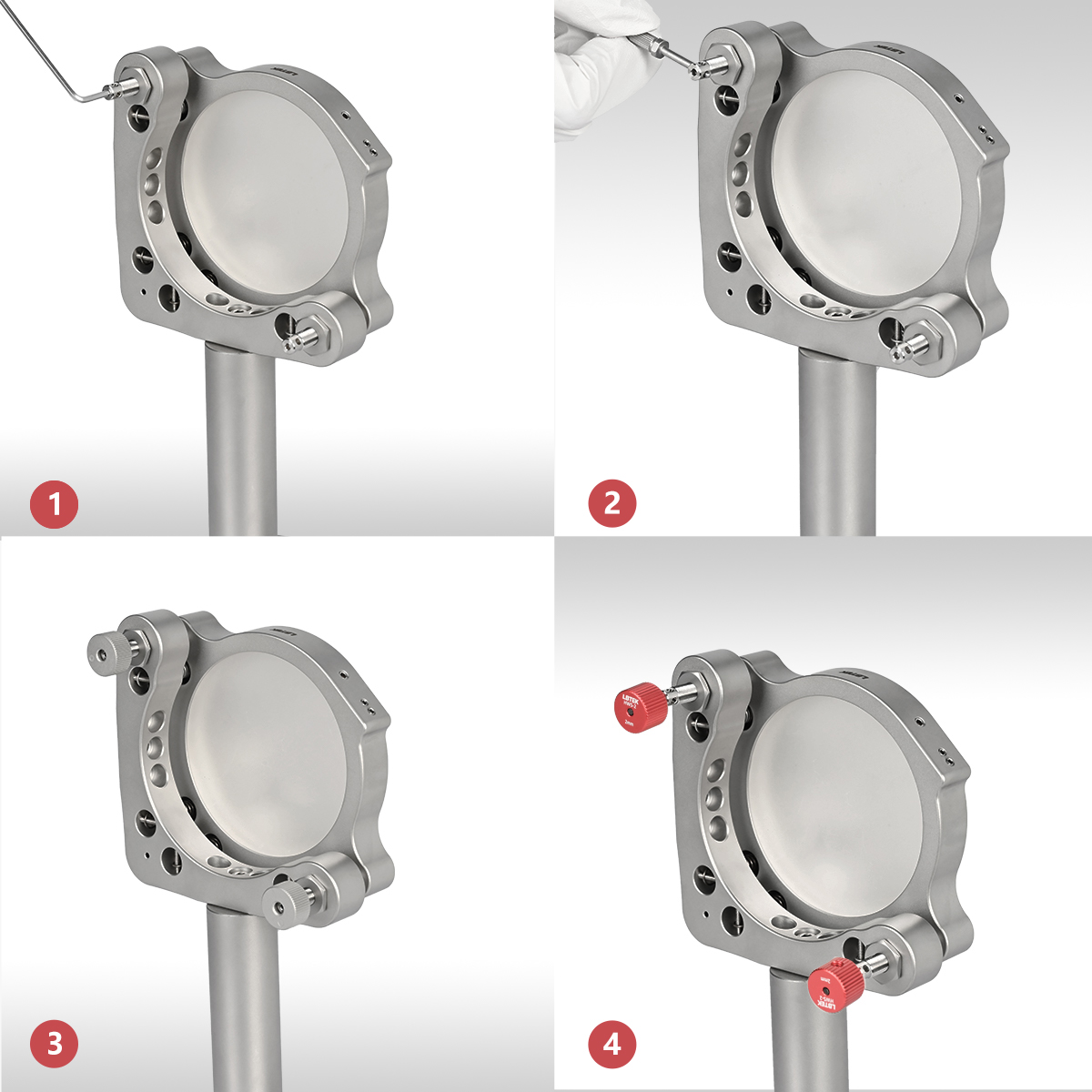

LBTEK 3-inch stainless steel lens mount for mounting optical components with a diameter of 76.2 mm. The optical component is secured via flexible spring leaves and fixing screws. Two M6×0.25 precision adjusters provide the adjustment mount with an angular adjustment range of ±4°. Comes without knobs but with lock nuts; adjustment without knobs requires the use of a hex key. The adjusters feature side through-holes for easy insertion and precise adjustment. The optical adjustment mount has M4 countersunk mounting holes on the side. Includes two M4 thin-head hex socket screws and one each of 2.0 mm and 2.5 mm hex keys with purchase.

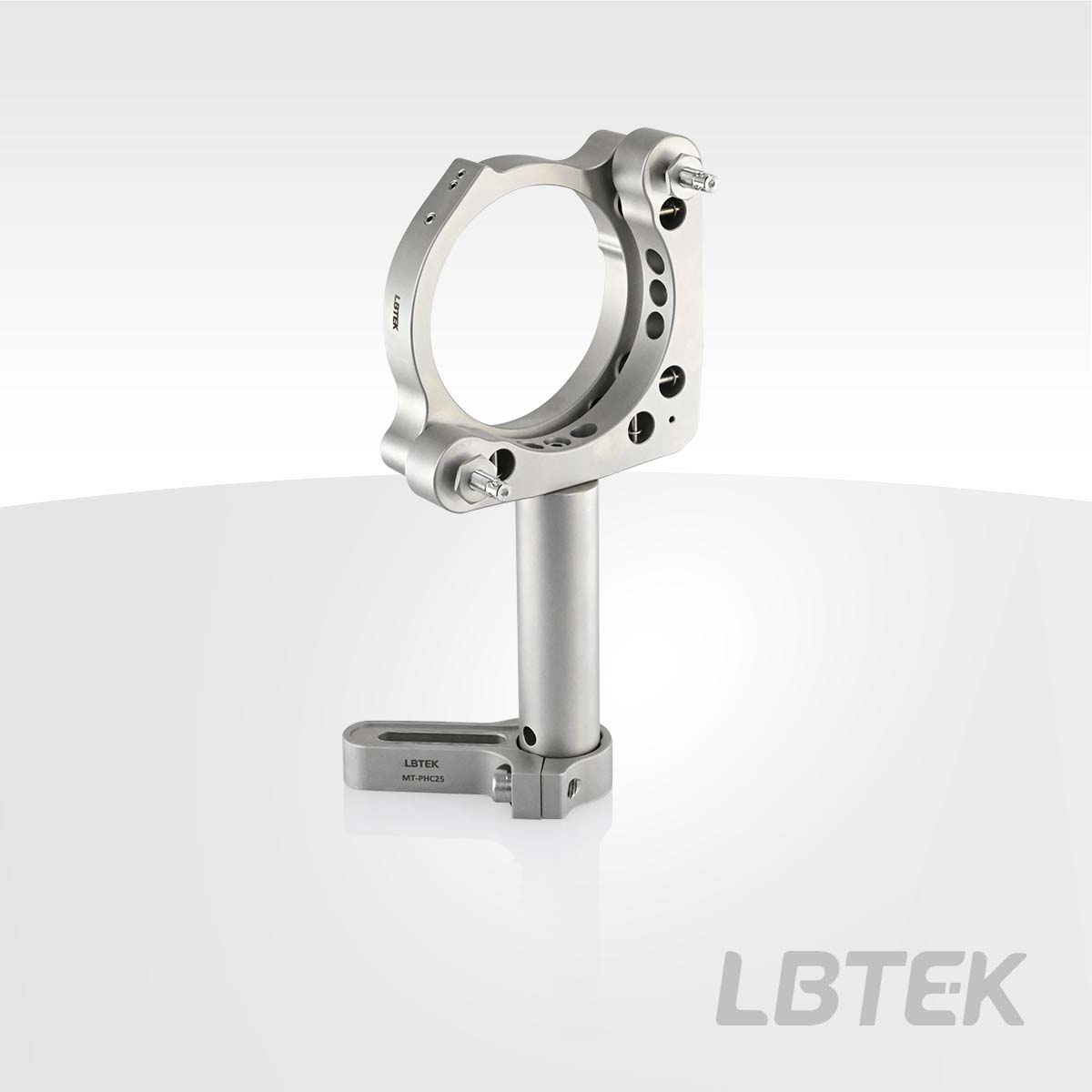

Application Example

	Product Model	Optical component mounting method	Adjuster specifications/quantity	Unit Price	Compare	Lead Time
	MT-AM3 New	Flexible spring piece and fixing screw	No knob, with side hole, with lock nut M6×0.25 precision regulator/2 pcs	$331.95		8 weeks

3-inch Stainless Steel Optical Mount
