Specifications
Tutorial
Feedback
Product Description
- Resistant to high-energy laser radiation
- Suitable for all wavelengths and types of lasers
- Passed the NFPA701:2023 flame resistance standard, self-extinguishing upon flame removal, no dripping or fragmentation
- Ultra-low reflectivity (≈4%), aging-resistant, corrosion-resistant, flame-retardant and high-temperature resistant, damage-resistant, stain-resistant
LBTEK's high-power laser protective curtains are complete solutions composed of composite material curtain fabric with special coating and guide rail components. They can be used with various models and specifications of LBTEK optical platforms. The laser protective curtains are certified according to EN60825-4, which can be found on the certification label. The label also includes the model, safety compliance information, production date, and protection level information. Excellent flame-retardant performance, passing the flame retardant standard NFPA701:2023 test, self-extinguishing when removed from fire, with no melting drops or fragments. These protective curtains have specific connection methods with instrument racks and can be installed together with LBTEK instrument racks. Each curtain panel has hook-and-loop fasteners on both sides, allowing the panels to be connected together. Note: The top cover only blocks ambient light and does not have laser protection or flame-retardant characteristics.
Attributes
colorBlack
MaterialComposite materials with special coatings
Thickness1.4 mm
weight1.7 kg/m²
High Power Aluminum Profile Instrument Rack Light Shield
LBTEK's high-power laser safety curtain is a complete solution consisting of a curtain fabric made of specially coated composite materials and a rail assembly. Each curtain panel has hook-and-loop fasteners (such as Velcro) on both sides, allowing the panels to be attached together. The laser safety curtain moves along the rail via pulleys for easy adjustment. Compatible optical table lengths range from 1200 mm to 4000 mm. For other special size requirements, please contact LBTEK technical support. Note 1: The top cover only blocks ambient light and does not offer laser protection or flame-retardant properties. Note 2: The laser safety curtain is dragged along the top rail of the aluminum profile modular instrument frame. The top rail and the aluminum profile modular instrument frame have a specific installation interface and must be purchased together with the LBTEK aluminum profile modular instrument frame to be used. Please consult LBTEK technical support before purchasing.
Building a laser protection system using high-power light-blocking curtains and aluminum profile combination instrument racks
Product Model | Compatible with optical platform | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|
| SCW2415-HPR | 2.4 m × 1.5 m optical platform | Contact | 6 weeks | Add Cart | ||
| SCW4015-HPR | 4.0 m × 1.5 m optical platform | Contact | 6 weeks | Add Cart | ||
| SCW4012-HPR | 4.0 m×1.2 m optical platform | Contact | 6 weeks | Add Cart | ||
| SCW3615-HPR | 3.6 m × 1.5 m optical table | Contact | 6 weeks | Add Cart | ||
| SCW3612-HPR | 3.6 m × 1.2 m optical platform | Contact | 6 weeks | Add Cart | ||
| SCW3015-HPR | 3.0 m × 1.5 m optical table | Contact | 6 weeks | Add Cart | ||
| SCW3012-HPR | 3.0 m × 1.2 m optical table | Contact | 6 weeks | Add Cart | ||
| SCW2412-HPR | 2.4 m × 1.2 m optical platform | Contact | 6 weeks | Add Cart | ||
| SCW2015-HPR | 2.4 m × 1.5 m optical platform | Contact | 6 weeks | Add Cart | ||
| SCW2012-HPR | 2.0 m × 1.0 m optical table | Contact | 6 weeks | Add Cart | ||
| SCW2010-HPR | 2.0 m × 1.0 m optical table | Contact | 6 weeks | Add Cart | ||
| SCW1812-HPR | 1.8 m × 1.2 m Optical Table | Contact | 6 weeks | Add Cart | ||
| SCW1810-HPR | 1.8 m × 1.0 m optical table | Contact | 6 weeks | Add Cart | ||
| SCW1512-HPR | 1.5 m×1.2 m optical platform | Contact | 6 weeks | Add Cart | ||
| SCW1510-HPR | 1.5 m×1.0 m optical platform | Contact | 6 weeks | Add Cart | ||
| SCW1209-HPR | 1.2 m × 0.9 m optical platform | Contact | 6 weeks | Add Cart |
Aluminum Profile Instrument Rack Light Shields
- With Wheels For Easy Adjustment
- Guide Rail Material: Q235
- High-Temperature Stretching For Anti-Wrinkle, Softening, and Washing

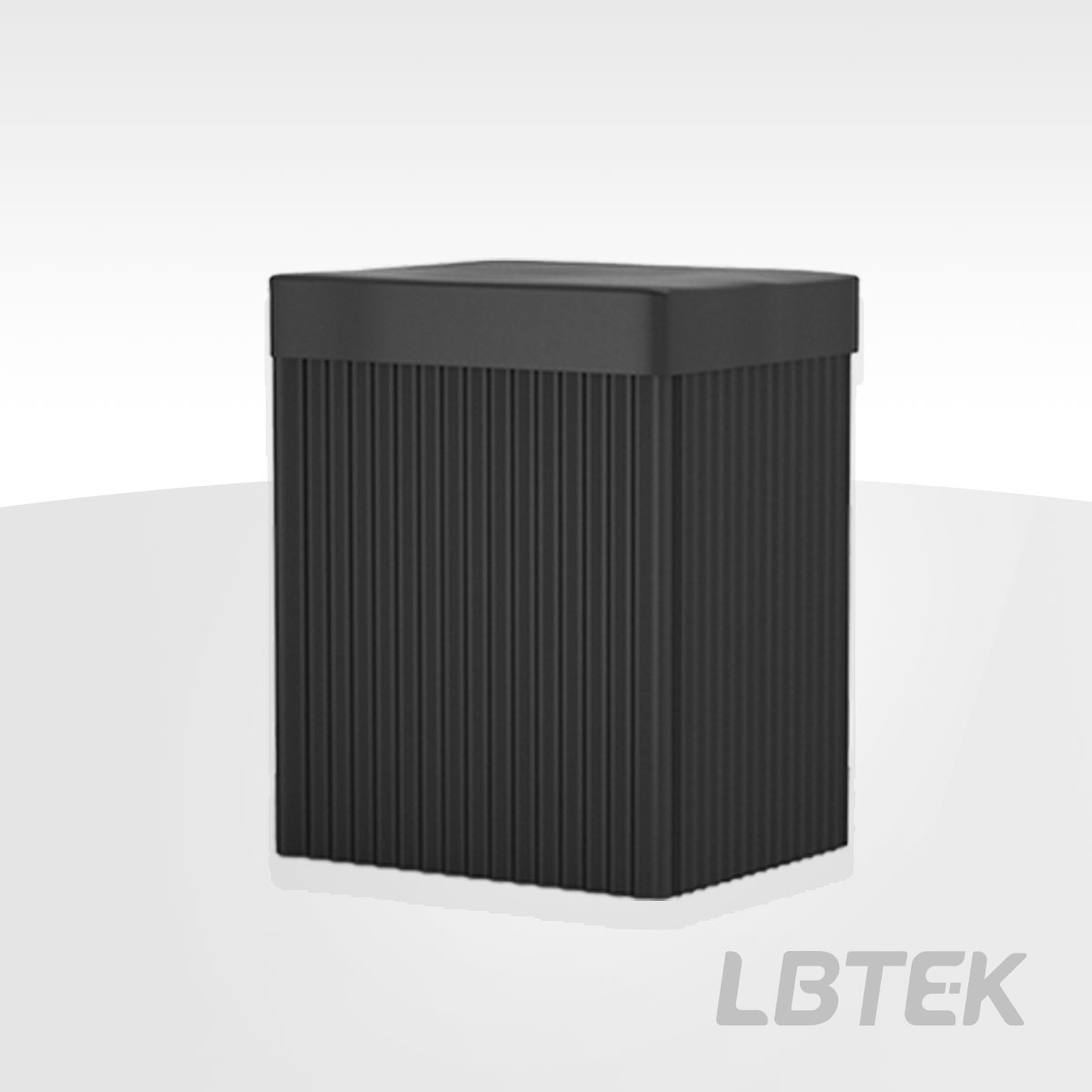

LBTEK Aluminum Profile Instrument Rack Light Shield can be combined with aluminum profile modular instrument racks to form a laboratory darkroom. Its standalone structure does not interfere with the vibration isolation of optical tables. Each curtain panel is equipped with hook-and-loop fasteners on both sides, allowing the panels to be attached together to prevent light leakage. The curtains move along the guide rails via pulleys for easy adjustment. Compatible optical table lengths range from 1200 mm to 4000 mm. For other special size requirements, please contact LBTEK technical support.
Note 1: These light shields are designed only to block ambient light and do not provide laser protection or flame-retardant properties.
Note 2: The light shields are dragged by the top guide rails of the aluminum profile modular instrument rack. The top guide rails and the aluminum profile modular instrument rack have specific installation interfaces, so they must be purchased together with LBTEK aluminum profile modular instrument racks for proper use. Please consult LBTEK technical support before purchasing.

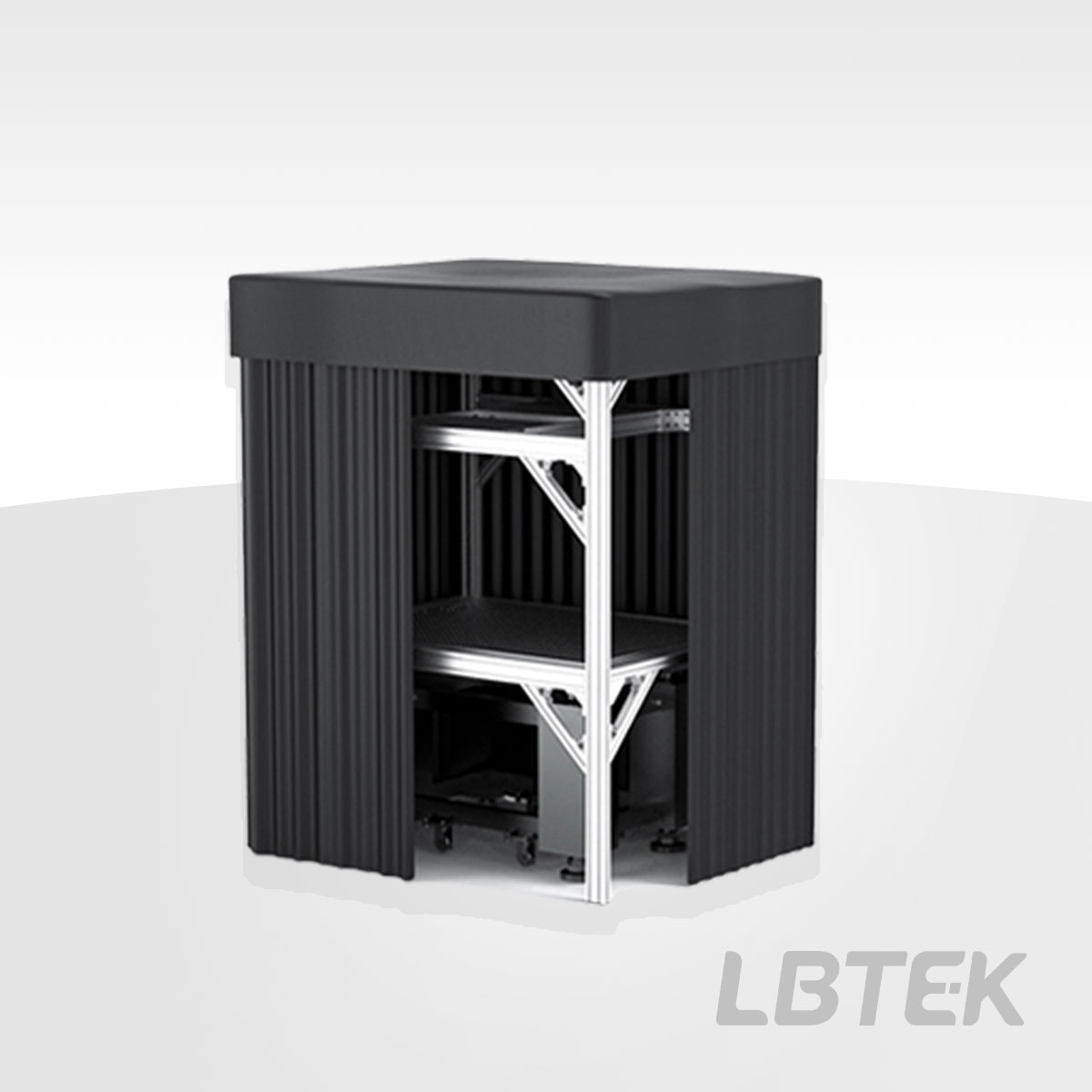

Construct a darkroom using a combination of light-blocking curtains and aluminum profile instrument racks
Product Model | Compatible with optical platform | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|
| SCW4015-PR | 4.0 m × 1.5 m optical breadboard | $613.70 | 4 weeks | Add Cart | ||
| SCW4012-PR | 4.0 m × 1.2 m optical breadboard | $590.56 | 4 weeks | Add Cart | ||
| SCW3615-PR | 3.6 m × 1.5 m optical breadboard | $570.69 | 4 weeks | Add Cart | ||
| SCW3612-PR | 3.6 m × 1.2 m optical breadboard | $554.08 | 4 weeks | Add Cart | ||
| SCW3015-PR | 3.0 m × 1.5 m optical breadboard | $504.27 | 4 weeks | Add Cart | ||
| SCW3012-PR | 3.0 m × 1.2 m optical breadboard | $481.00 | 4 weeks | Add Cart | ||
| SCW2415-PR | 2.4 m × 1.5 m optical breadboard | $441.25 | 4 weeks | Add Cart | ||
| SCW2412-PR | 2.4 m × 1.2 m optical breadboard | $408.04 | 4 weeks | Add Cart | ||
| SCW2015-PR | 2.0 m × 1.5 m optical breadboard | $398.11 | 4 weeks | Add Cart | ||
| SCW2012-PR | 2.0 m × 1.2 m optical breadboard | $391.44 | 4 weeks | Add Cart | ||
| SCW2010-PR | 2.0 m × 1.0 m optical breadboard | $374.83 | 4 weeks | Add Cart | ||
| SCW1812-PR | 1.8 m × 1.2 m optical breadboard | $364.90 | 4 weeks | Add Cart | ||
| SCW1810-PR | 1.8 m × 1.0 m optical breadboard | $348.29 | 4 weeks | Add Cart | ||
| SCW1512-PR | 1.5 m × 1.2 m optical breadboard | $328.42 | 4 weeks | Add Cart | ||
| SCW1510-PR | 1.5 m × 1.0 m optical breadboard | $311.82 | 4 weeks | Add Cart | ||
| SCW1209-PR | 1.2 m × 0.9 m optical breadboard | $291.95 | 4 weeks | Add Cart |
