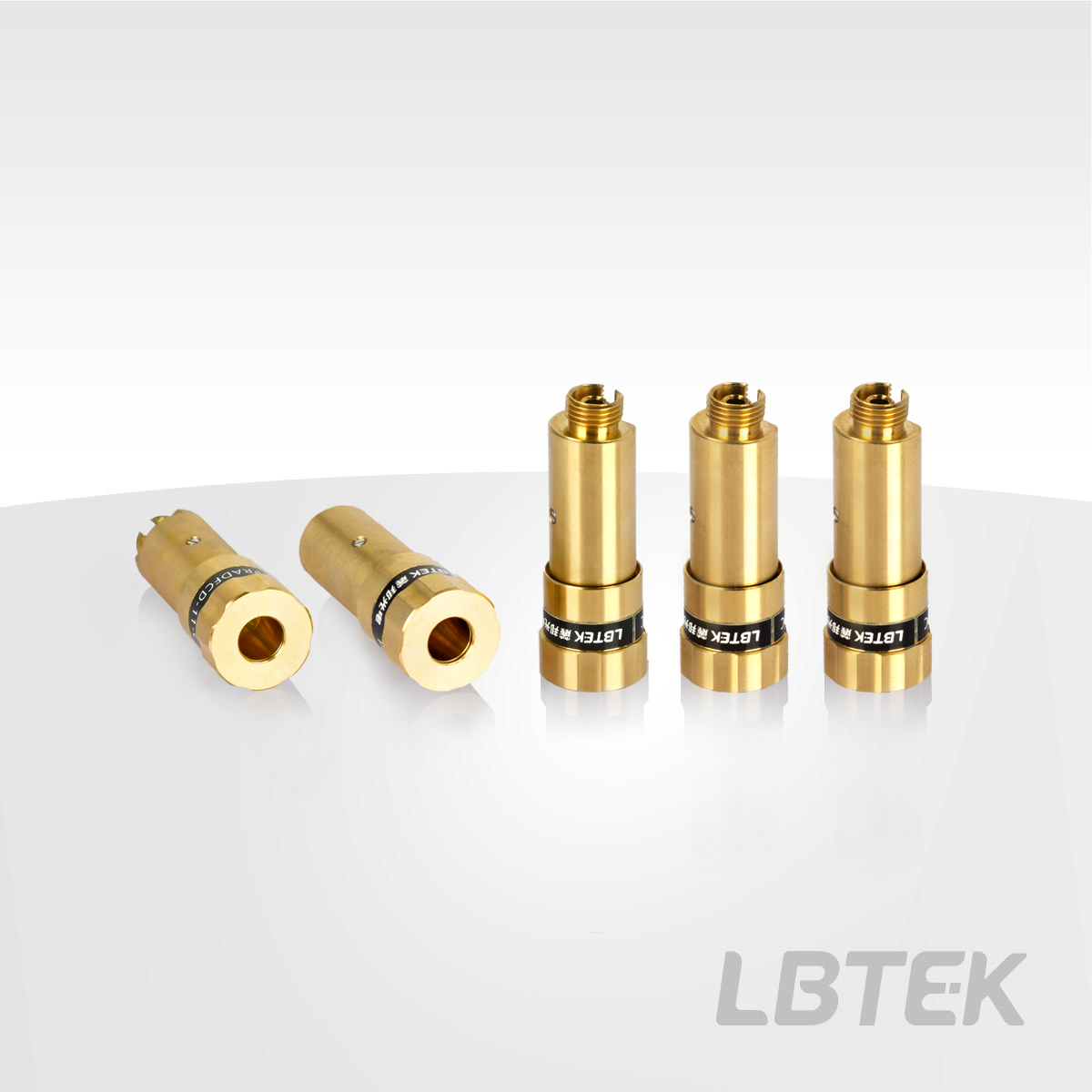

The High-Precision Rotatable Adjustable-Focus Collimator provided by LBTEK features a Compact Form Factor, which simplifies Free-Space-to-Fiber Coupling (during coupling, it is recommended to slightly tighten the locking screw before focal length adjustment to reduce backlash crosstalk). Meanwhile, the rotation precision provides a lateral displacement of up to 0.2 mm per revolution, and with the FC/APC interface, the return loss can be increased. The Adjustbale-Focus Collimator currently offers three coating wavelength options: 400 nm-700 nm/700 nm-1100 nm/1100 nm-1700 nm, with selectable Focal Lengths (f) of 4.6 mm/7.5 mm/11.0 mm. Each Adjustbale-Focus Collimator is coated with an Antireflection Coating (AR Coating) to reduce Reflectance. For detailed parameters, please refer to the parameter table or curve data. LBTEK provides various custom solutions; for specific custom requirements, please contact LBTEK technical support.

The High-Precision Rotatable Adjustable-Focus Collimator provided by LBTEK features a Compact Form Factor, which simplifies Free-Space-to-Fiber Coupling (it is recommended to slightly tighten the locking screw before adjusting the focal length during coupling to reduce backlash interference). Meanwhile, the rotating precision achieves a lateral displacement of up to 0.2 mm/revolution, and is equipped with an FC/PC interface for improved Optical Fiber alignment. The Adjustbale-Focus Collimator is currently available in three coating wavelength options: 400 nm-700 nm/700 nm-1100 nm/1100 nm-1700 nm, with selectable Focal Length (f) of 4.6 mm/7.5 mm/11.0 mm. Each Adjustbale-Focus Collimator is coated with an Antireflection Coating (AR Coating) to reduce Reflectance. For detailed specifications, please refer to the parameter table or curve data. LBTEK provides a variety of custom solutions. For specific custom requirements, please contact LBTEK technical support.

LBTEK stainless steel mount is used for installing Ø12 mm collimators, featuring 2 M4×0.2 precision adjusters without knobs but with locking nuts. The locking nuts are 6 mm hex nuts, adjustable with the MT-TW6 torque wrench. The collimator is secured by flexible spring plates and set screws. The 2 M4×0.2 precision adjusters without knobs but with locking nuts allow for pitch and yaw adjustment of the collimator using a hex key. The optical mount has M4 countersunk mounting holes on the side. The purchase of the LBTEK stainless steel mount includes hex socket ultra-thin head screws and a hex key.

LBTEK is suitable for mounting cylindrical optical components with a diameter of Ø12 mm, and can be installed in adjustment mounts with SM1 threads or adjustment mounts with Ø25.4 mm smooth bore holes, as well as in coaxial systems.
