Product Description

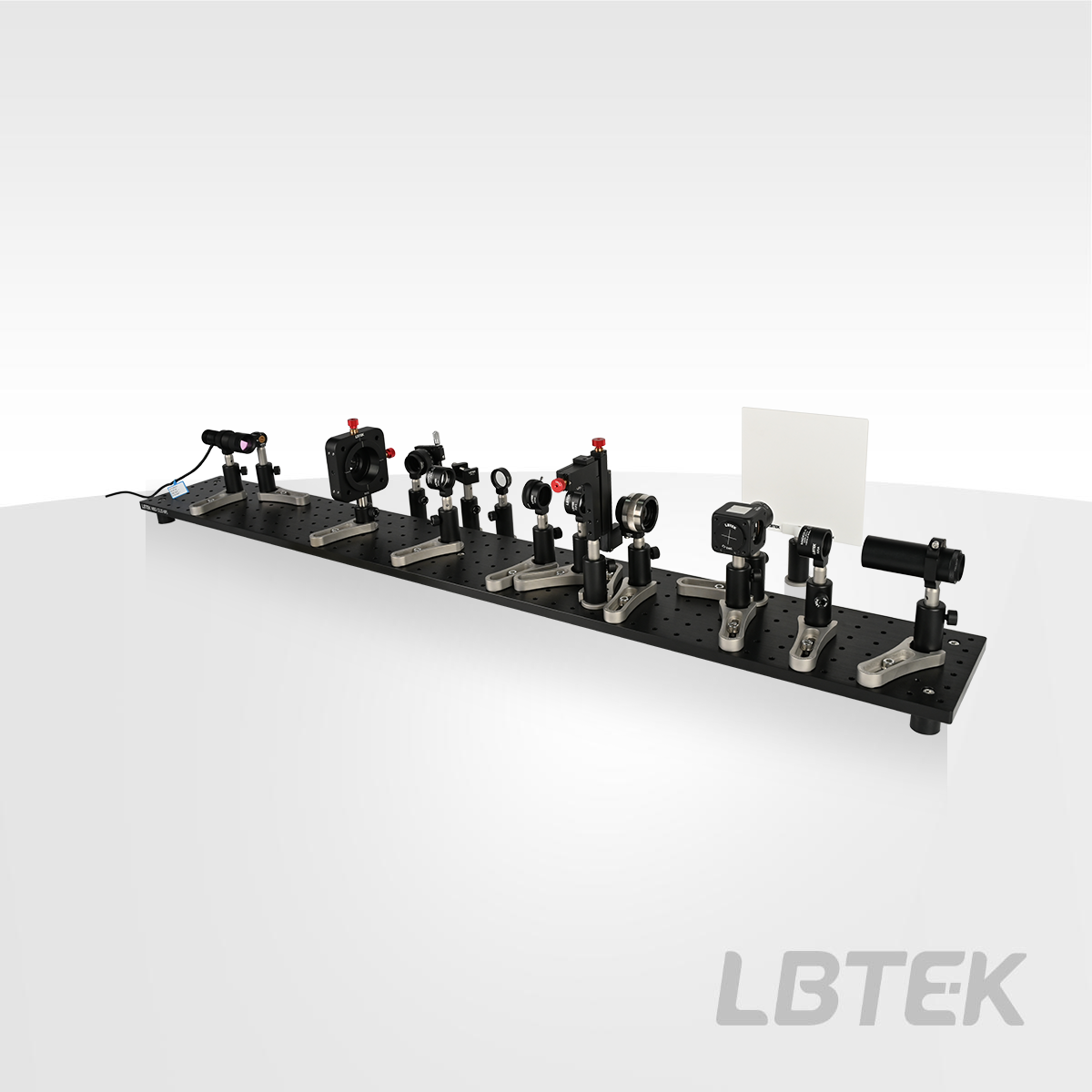

LBTEK's Fourier Optics Teaching System Kit includes components, software, and teaching materials, covering optical characteristics and imaging techniques, suitable for teaching, experiments, and classroom scenarios. The Fourier Optics Teaching System is a modern teaching tool designed for majors such as optics, optoelectronic information science and engineering, and applied physics. Through a teaching model combining theoretical explanation and hands-on experimentation, it helps students understand the abstract mathematical principles and physical essence of Fourier optics, serving as a key educational bridge between fundamental optics and modern optical applications. In this teaching system, the chrome-plated glass target used for observation is engraved with eleven different patterns. A beam splitter and lenses project the patterns from the Fourier plane onto a screen for direct viewing. Students can alter the patterns in the Fourier plane using chrome-plated glass masks, rotating slits, or apertures to achieve various optical effects.
Attribute
Breadboard size150*1200*12.7mm
CameraUSB2.0/2592×1944/2.2 μm×2.2 μm/Color Sensor
Fourier Optics Teaching Experimental Apparatus
  • Optical Imaging
  • Fourier Transform
  • Optical Filtering
  • Image Processing
  • Köhler Illumination

The Fourier Optics teaching system follows a logic of theory-experiment-application, utilizing modular design and step-by-step experiments to help students understand the core principles of Fourier optics and master the experimental operation methods of object-spectrum-image conversion and control.

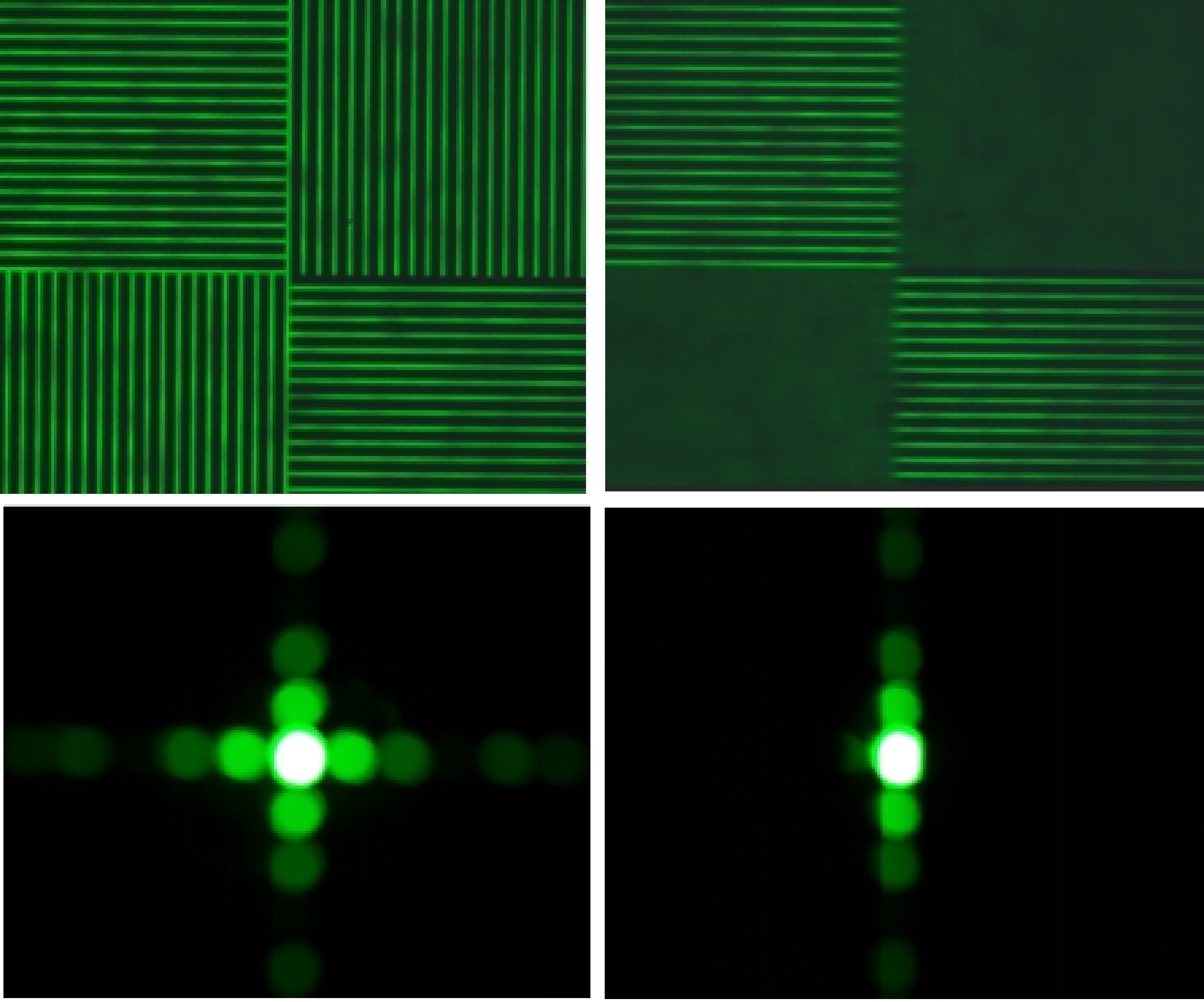

Fourier Transform Experimental Demonstration Diagram

Product Model
Description
Unit Price
Compare
Lead Time
LB-FOP NewFor experimental teaching in Fourier optics imaging and image editing.$5892.77Contact
