Product Description

6 degrees of freedom active vibration isolation with excellent performance
Real-time monitoring and display of tabletop vibration
Vibration isolation level can reach VC-E and VC-F
Lightweight and portable, easy to install, ready to use upon connection to power

LBTEK provides an active vibration isolation series platform. The active vibration isolation platform consists of structures such as a base, support elements, a stage, sensors, a controller, and an actuator system. The stage is supported by springs, keeping it in a floating state. The vibration state of the stage is monitored by highly sensitive sensors. The controller analyzes and processes the feedback signals from the sensors, and then controls the actuators to generate real-time counteracting forces against the stage's vibrations, achieving active vibration isolation in 6 degrees of freedom.

Attribute

Vibration IsolatorMetal Spring

System Vibration Isolation Degrees of Freedom6

Vibration Isolation Bandwidth1~1000Hz

ActuatorVoice Coil Motor

Vibration isolation efficiency60%@2Hz，90%@5Hz，99%@10Hz

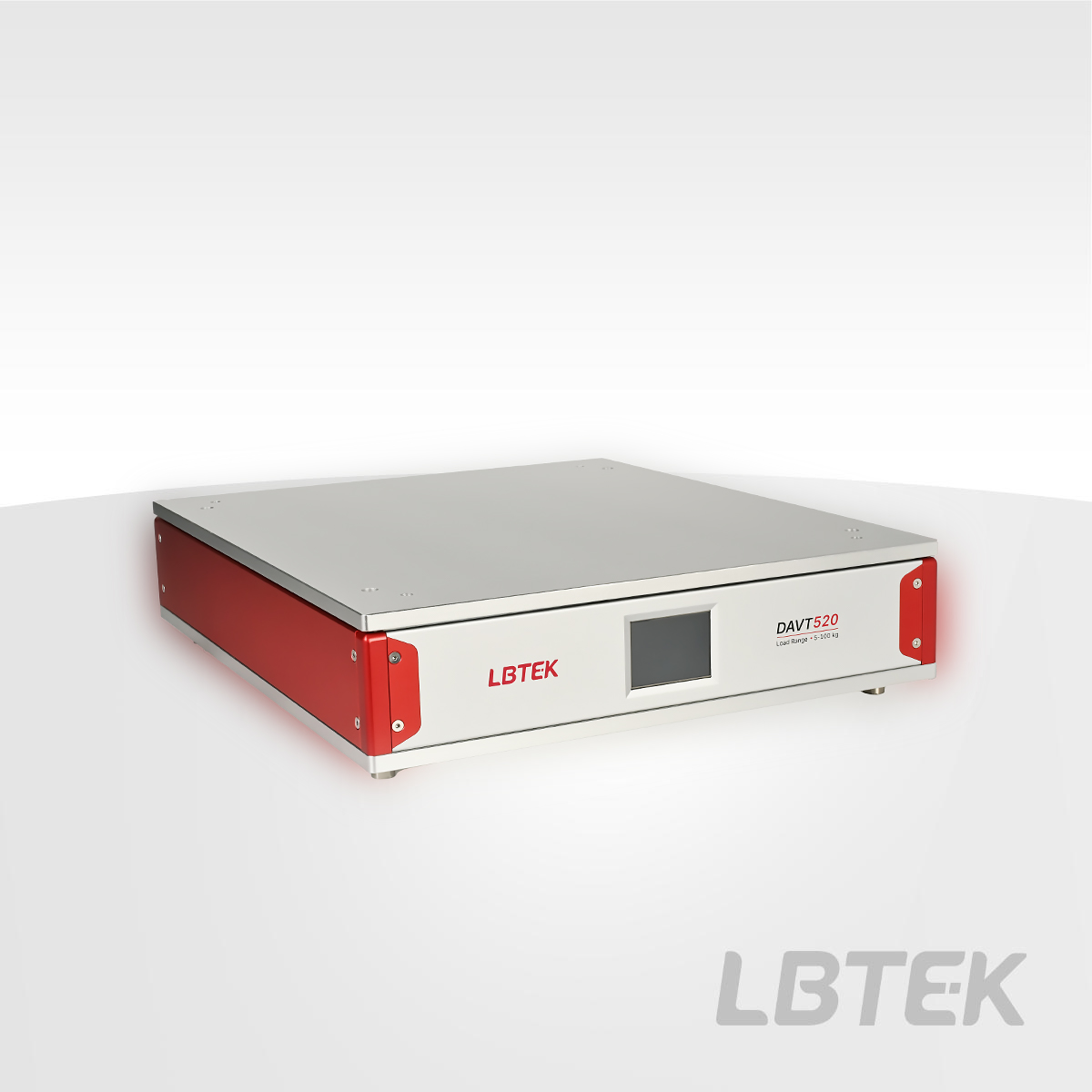

Desktop Active Vibration Isolation Platform

LBTEK offers a series of desktop active vibration isolation platforms that are lightweight, portable, and easy to install. They require no air supply and can be used simply by connecting to a power source. With user-friendly operation, these platforms allow real-time monitoring of tabletop vibration conditions, providing excellent vibration isolation performance. They are suitable for precision instruments and equipment with high vibration sensitivity requirements, such as precision microscopes, laser interferometers, precision laboratory workstations, and semiconductor manufacturing tools.

LBTEK has introduced desktop active vibration isolation platforms in sizes of 520mm × 440mm and 600mm × 500mm. For custom requirements such as other special sizes or the addition of threaded holes on the table surface, please contact LBTEK customer service.

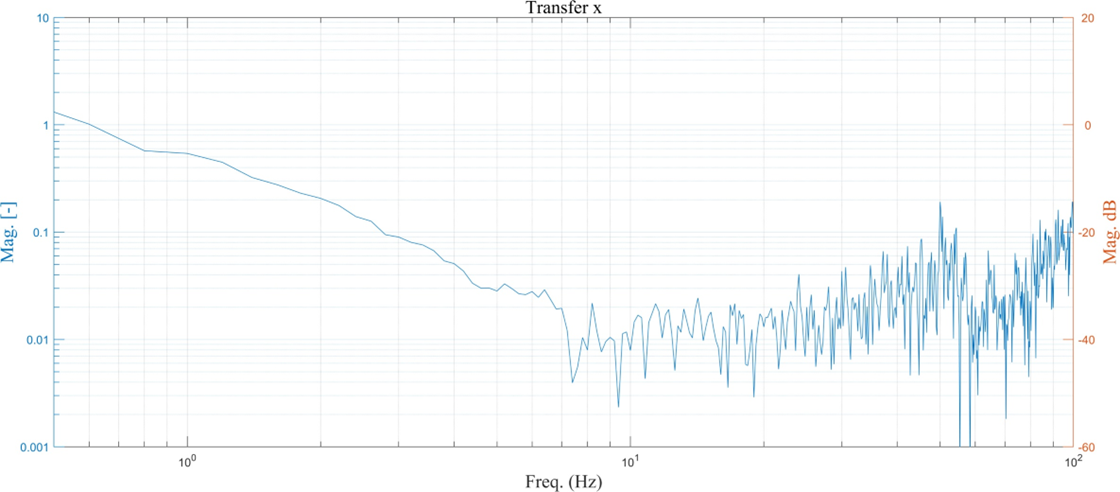

Desktop Active Vibration Isolation Platform Transmissibility Test Curve

	Product Model	Platform Dimensions	Load Range	Vibration Isolation Bandwidth	Unit Price	Compare	Lead Time
	DAVT520 New	520mm×440mm×125mm	5~100kg	1~1000Hz	$7844.47		5 weeks
	DAVT600 New	600mm×500mm×125mm	10~200kg	1~1000Hz	$8236.69		5 weeks
