Product Description
- High flatness, stress-free, stable and reliable
- High rigidity, minimal load deformation
- Low thermal deformation, high dimensional stability
- Non-magnetic, rust-free, and wear-resistant
LBTEK provides high-quality marble plates. The marble plates are sourced from premium rock layers that have undergone extensive natural aging, resulting in stable conditions, minimal thermal deformation, and high dimensional stability. Utilizing precision grinding technology, the marble plates exhibit high flatness, are non-magnetic, rust-free, and wear-resistant, making them an excellent platform for optical experiments, precision instrument testing, semiconductor experiments, and more.
Attribute
Specific gravity3090kg/m<sup>3</sup>
Compressive strength284MPa
Modulus of Elasticity1.0GPa
Coefficient of linear expansion8×10<sup>-6</sup>/℃
Water Absorption Rate＜0.4%
Shore hardness＞103Hs

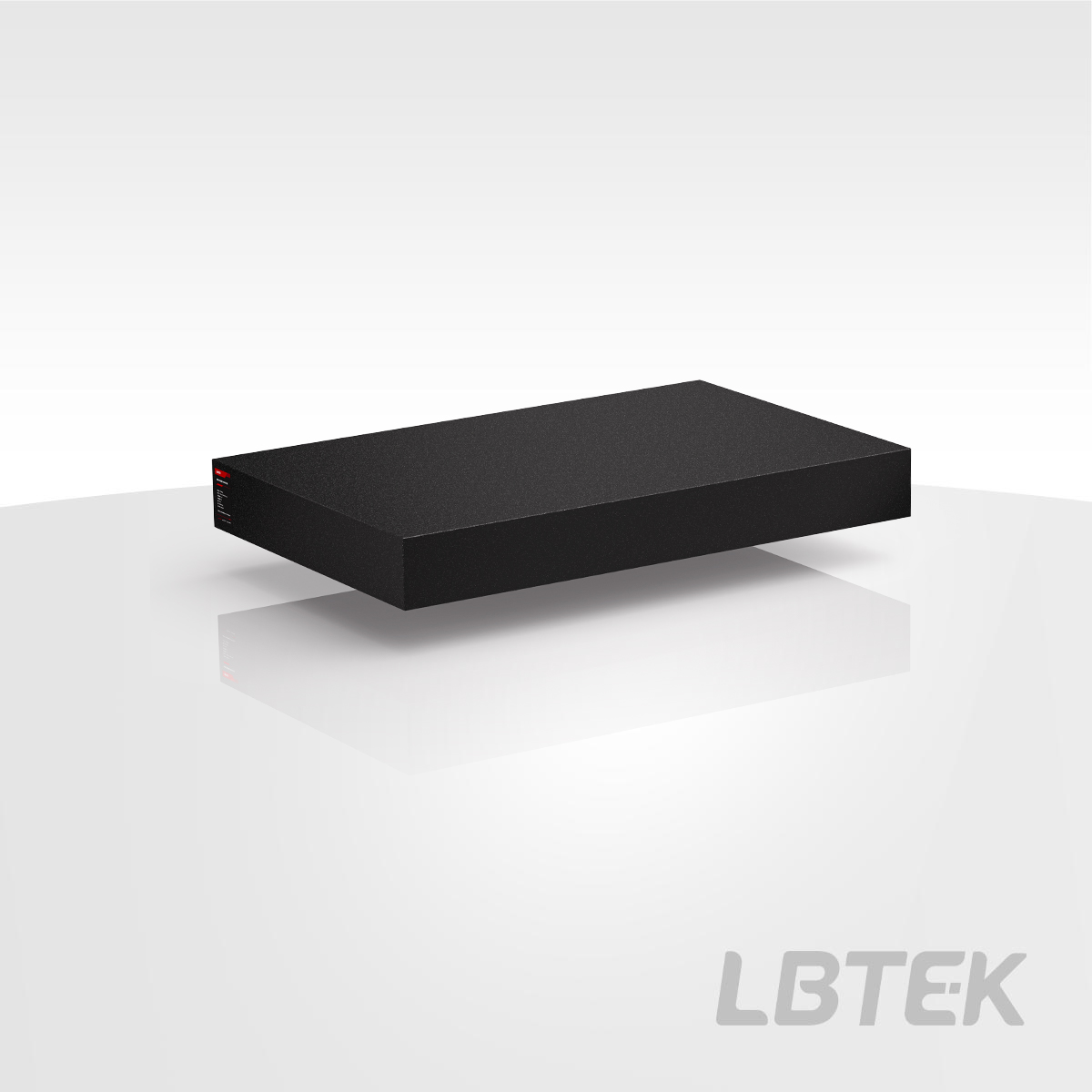

Marble Slab
- Poisson's ratio: 0.32
- Flatness grade: Grade 00
- Surface roughness: 0.8μm
- Dense and uniform structure, black gloss
LBTEK provides high-quality marble plates with stable conditions, low thermal deformation, and high dimensional stability. Using precision grinding technology, the marble plates feature high flatness, and are non-magnetic, rust-free, and wear-resistant.
LBTEK offers marble plates in various sizes ranging from 400mm×250mm×70mm to 2500mm×1600mm×300mm. For custom requirements such as other special sizes or additional threaded holes, please contact LBTEK customer service.

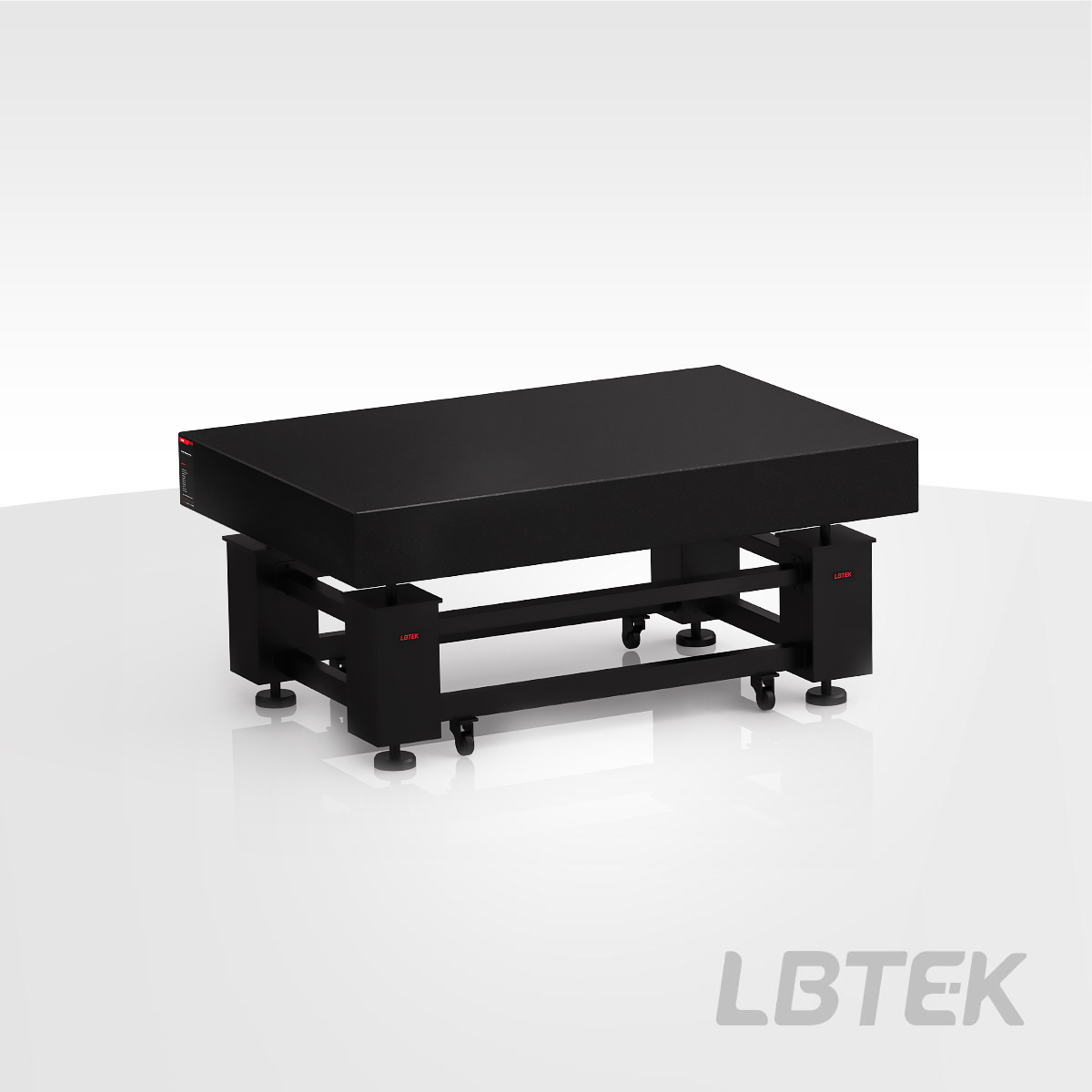

Schematic Diagram of Marble Slab Matched with Vibration Isolation Legs
Product Model | Platform Dimensions | Product weight | Flatness | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| OP2516-G New | 2500mm×1600mm×300mm | 3600kg | 8μm | Contact | 6 weeks | |||
| OP2016-G New | 2000mm×1600mm×300mm | 2880kg | 7μm | Contact | 5 weeks | |||
| OP1610-G New | 1600mm×1000mm×200mm | 960kg | 6μm | Contact | 5 weeks | |||
| OP1007-G New | 1000mm×750mm×150mm | 338kg | 4.5μm | $1085.15 | 4 weeks | |||
| OP0805-G New | 800mm×500mm×130mm | 156kg | 4μm | $496.82 | 4 weeks | |||
| OP0604-G New | 630mm×400mm×100mm | 76kg | 3.5μm | $418.37 | 4 weeks | |||
| OP0402-G New | 400mm×250mm×70mm | 21kg | 3μm | $222.26 | 4 weeks |
