Product Description

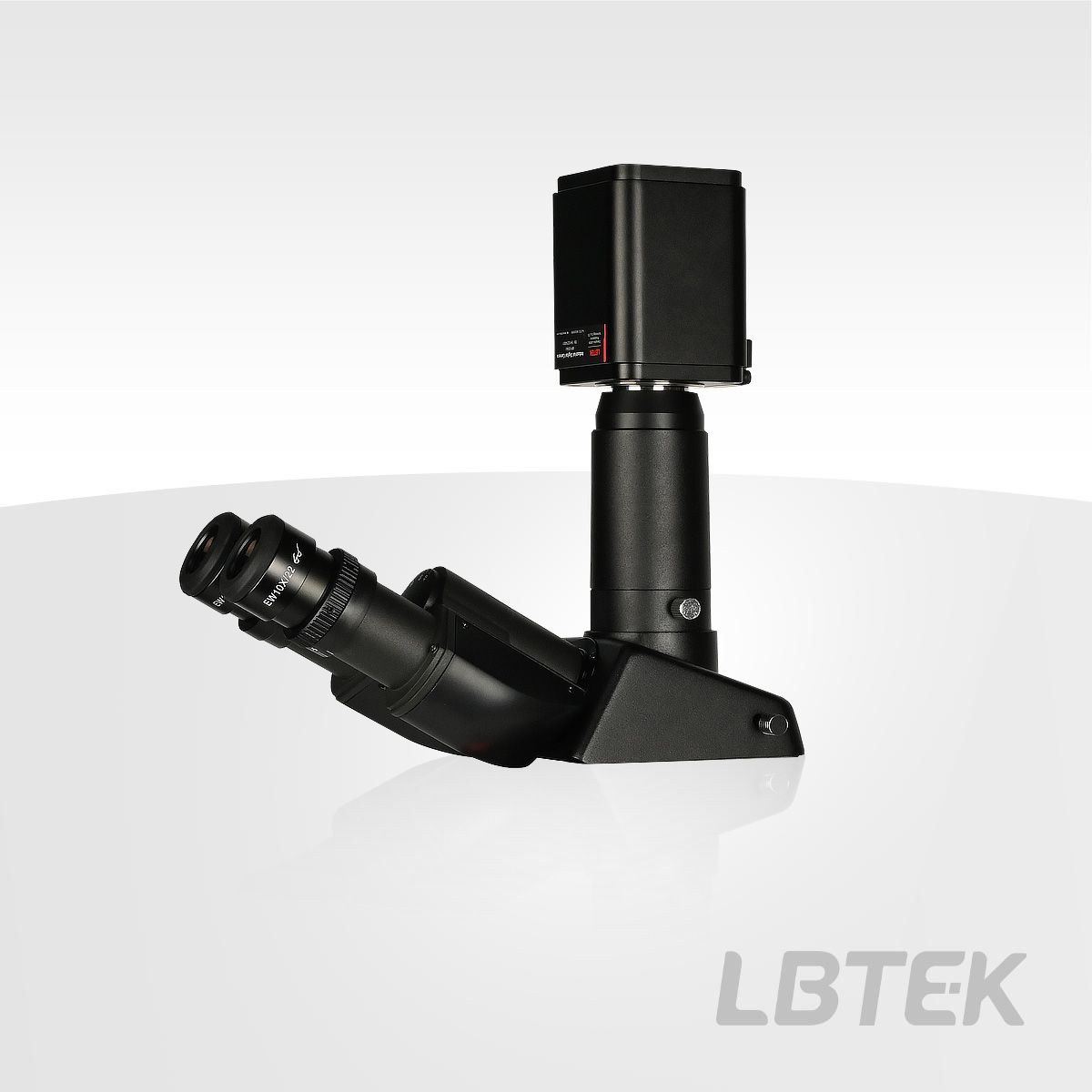

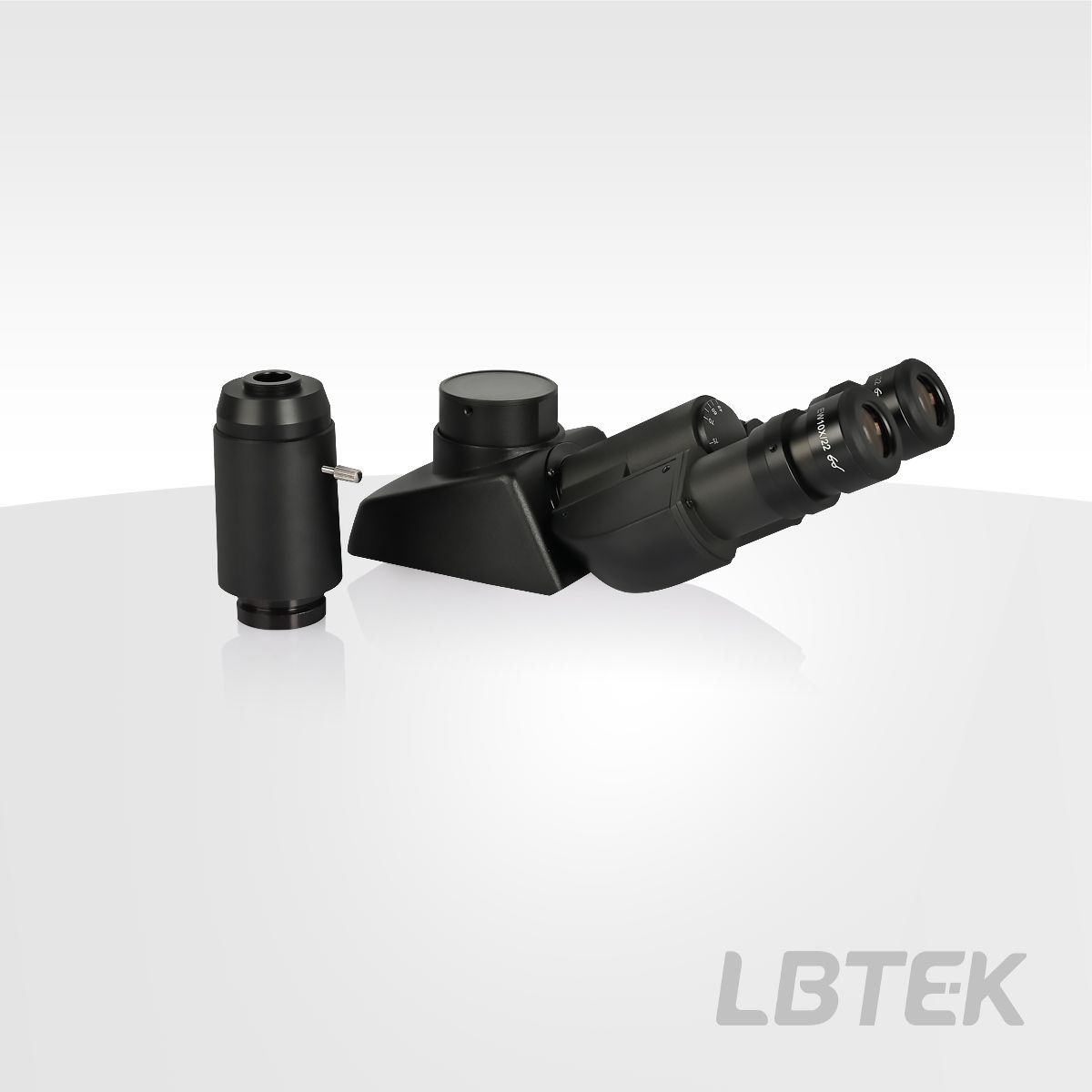

  • Trinocular head with 10X eyepieces and camera port (includes 1X camera adapter with internal C-mount thread)
  • Breadboard and dovetail adapter, compatible with LBTEK coaxial system and SM-thread camera sleeves for building custom widefield components
These wide-field accessories can observe and record images obtained from samples. Trinocular Head LBTEK offers inverted trinocular heads with 10X eyepieces, capable of imaging across the visible and near-infrared (NIR) spectral ranges. Each trinocular head features a camera port on top for mounting a camera via a camera sleeve, and a side lever that allows users to freely switch between the eyepiece and the camera. They all have an internal focal length of 200 mm, which focuses the incident light onto the eyepiece and the camera port. Top Breadboard The breadboard contains an array of M6X1.0 mounting threaded holes, allowing for the construction of custom wide-field observation setups and epi-illumination components on top of the self-assembled microscope main frame. It is available in two sizes: 350.0 mm x 275.0 mm and 450.0 mm x 116.8 mm. The larger version offers a larger workspace and more mounting holes, while the smaller version does not restrict the operating angle. The smaller version also features eight M6X1.0 threaded holes near the Ø1.5-inch through-hole, designed for 30 mm and 60 mm coaxial systems. Dovetail Adapter Using a dovetail interface facilitates the installation of self-assembled microscopy modules, including the wide-field observation components below. A variety of dovetail adapters allow LBTEK's microscopy components to be integrated with standard LBTEK optomechanical systems, such as SM-threaded lens tubes, and 3 mm and 60 mm coaxial systems.
Attribute
Material6061-T6 aluminum alloy
Surface treatmentBlack anodized
Product Model
Material
Surface treatment
Unit Price
Compare
Lead Time
TE-B New6061-T6 aluminum alloyBlack anodized$1464.3today
Swallowtail adapter
  • The dovetail adapter includes dovetail adapters of various male and female dovetail specifications such as D1N.

BTEK Dovetail Adapters include various male and female dovetail specifications such as DIN. The surface is black anodized to reduce stray light reflection. LBTEK continuously introduces new adapters. Please refer to the technical specifications. In addition to standard dovetail adapters, LBTEK also provides custom adapter services for special-sized dovetail specifications. If needed, please contact LBTEK technical support.

Application Example

Product Model
Material
Surface treatment
Unit Price
Compare
Lead Time
SM2-D1N 6061-T6 Aluminum AlloyBlack anodized$31.9today
Top Breadboard For Microscope Main Body Support
  • Bottom with male dovetail block for connecting to the microscope main body bracket
  • Surface M6 threaded through-hole with threaded hole spacing of 25 mm
  • Includes 4 foot blocks to provide support for the breadboard

The LBTEK Top Breadboard undergoes an oxidation blackening treatment, allowing system developers to construct custom wide-field observation setups and epi-illumination pathways on the top of an upright microscope. Each breadboard features a Ø38.1 mm through-hole, with the hole center located on the male dovetail block. This dovetail block enables direct connection of the breadboard to the epi-illumination arm of the microscope main body bracket, or can be used to stack breadboards on top of the epi-illumination module. Additionally, there are 8 M3 threaded holes near the Ø38.1 mm through-hole, designed for 30 mm and 60 mm coaxial systems. The purchase includes 4 M4×12 cylindrical head hex socket screws.

The TBB35 male dovetail is installed into the female dovetail slot of the MSB400.
Product Model
Breadboard size
Unit Price
Compare
Lead Time
TBB45 450.0 mm x 116.8 mm×12.7 mm$448.83today
TBB35 350.0 mm x 275.0 mm×12.7 mm$466.88today
