Product Description

Provides single-axis/two-axis/three-axis manual linear translation stages
Divided into left-side drive and right-side drive types
Linear cross roller guideways, suitable for high load and high positioning accuracy
Multiple single-axis stages can be freely assembled into XY-axis translation stages

LBTEK manual linear translation stages utilize linear cross roller guides and are driven by micrometer heads. The 6.5 mm travel manual linear translation stage features a stage surface size of 30 mm × 30 mm, with M3 threaded holes spaced 11.3 mm apart and M4 threaded holes spaced 12.5 mm apart. Both single-axis and XYZ manual linear translation stages are available, both driven by standard micrometer heads. They are further categorized into left-side drive and right-side drive types, with linear displacement accuracy within 3 μm. Additionally, LBTEK manual linear translation stages can be freely combined to form multi-axis translation stages. The sides are equipped with hex socket locking screws, allowing the stage to be locked in place after reaching the desired position. The fixed base plate of the stage has M6 countersunk threaded holes measuring 75 mm × 50 mm. Using the included hex socket cap screws, it can be directly mounted onto an M6 optical table with hole spacing of 25 mm. In addition to the 6.5 mm travel manual linear translation stage, LBTEK also offers manual linear translation stages with 13 mm and 25 mm travel.

Attribute

Material6061-T6 aluminum alloy

Number of axesSingle-axis/Dual-axis/Triaxial

stroke6.5mm

Surface treatmentBlack anodized

Tabletop size30mm×30mm

6.5mm Single-Axis Linear Translation Stage with Standard Micrometer Head

Single-axis drive, with standard micrometer head
Table size: 30mm × 30mm
Stroke: 6.5mm
Minimum scale of micrometer head: 10 um
Available in two drive types: left-side drive and right-side drive

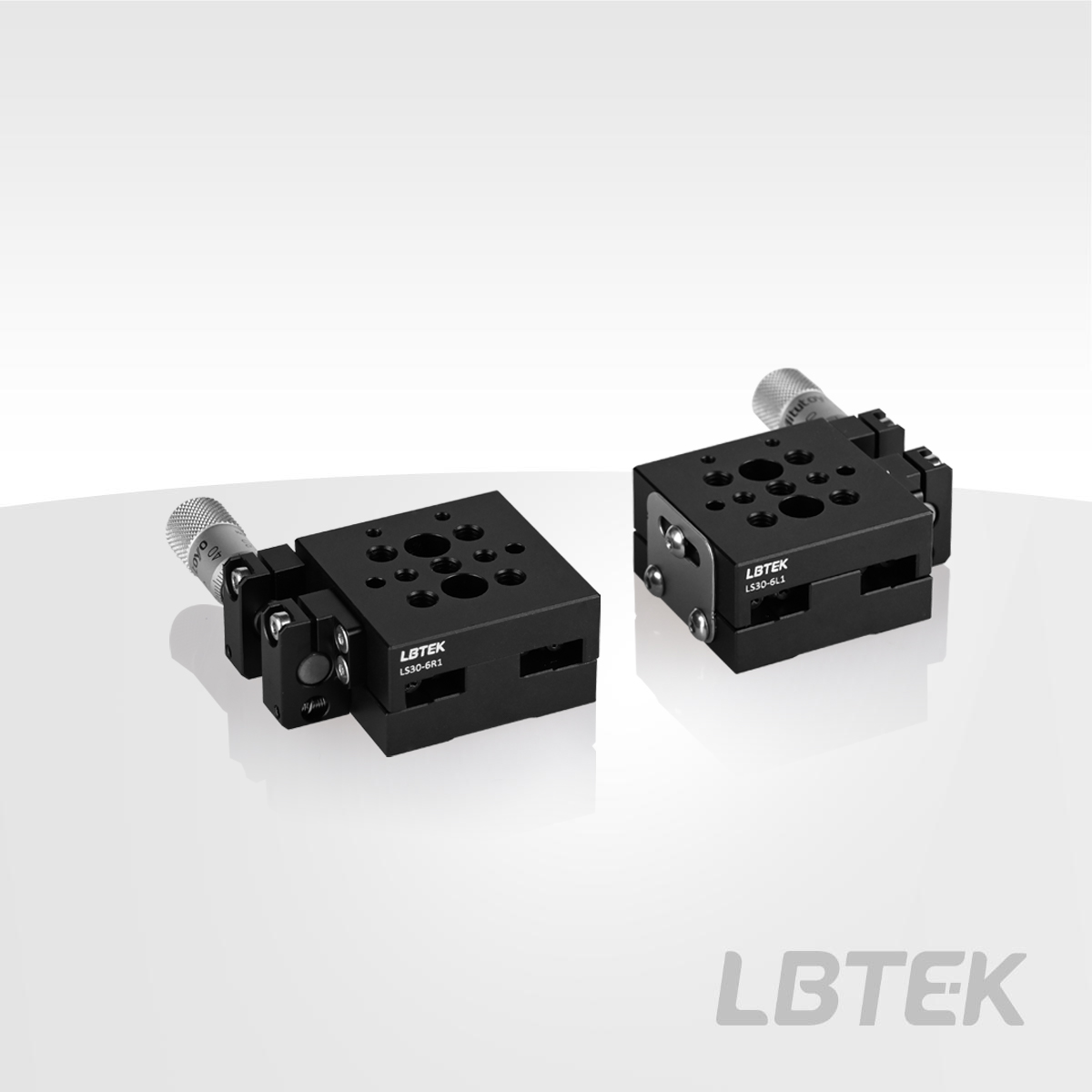

LBTEK's single-axis linear translation stages are available in two drive types: left-side drive and right-side drive. Both utilize a single-axis drive system, equipped with a micrometer head drive, offering a travel range of 6.5 mm, with the micrometer head featuring a minimum graduation of 10 μm. The stage platform measures 30 mm×30 mm and includes M3 and M4 threaded holes. The bottom of the stage is equipped with 2 countersunk positioning holes and 1 M4 threaded hole, allowing the stage to be secured in position using M3 or M4 screws.

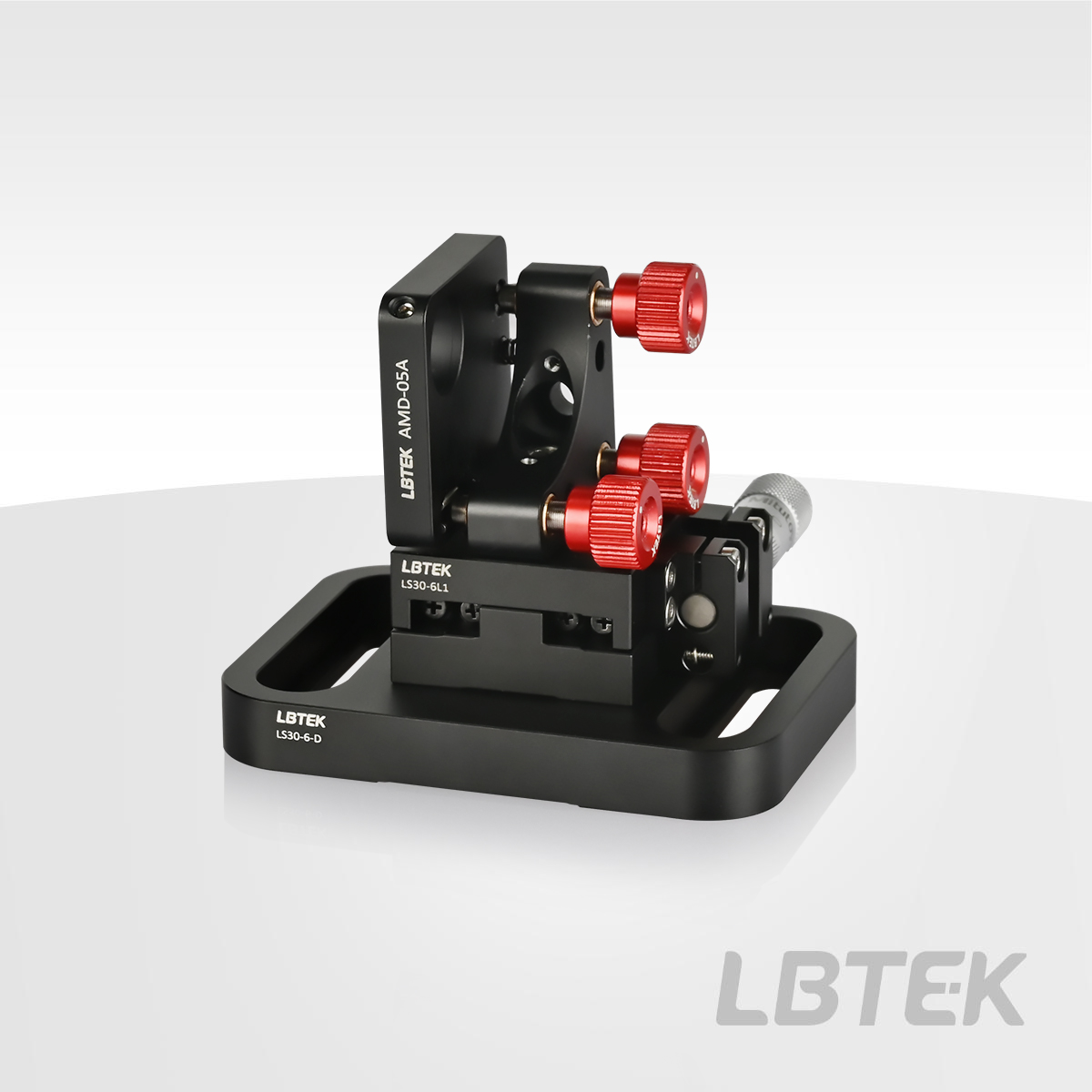

The optical component is mounted on a single-axis linear translation stage.

	Product Model	Tabletop size	stroke	Drive position	Number of axes	Unit Price	Compare	Lead Time
	LS30-6L1 New	30 mm×30 mm	6.5 mm	Left-hand drive	Single Axis	$213.24		today
	LS30-6R1 New	30 mm×30 mm	6.5 mm	Right side drive	Single Axis	$213.24		today

6.5 mm XYZ-axis linear translation stage with standard micrometer heads

XYZ axis drive, with standard micrometer head
Table size: 30 mm × 30 mm
Stroke: 6.5 mm
Minimum scale of micrometer head: 10 um
Available in two drive types: left-side drive and right-side drive

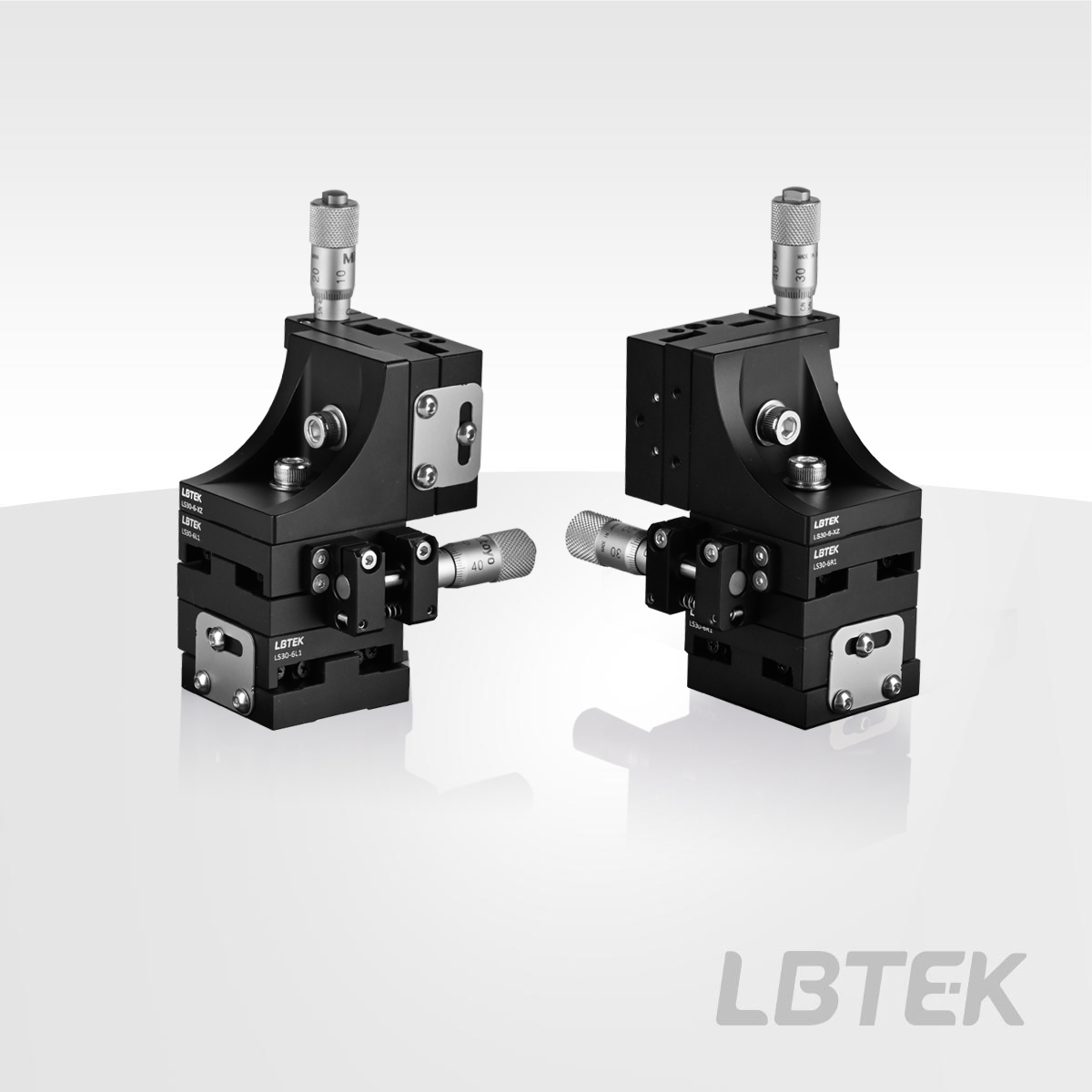

LBTEK's XYZ-axis linear translation stages are available in two drive types: left-side drive and right-side drive. Both utilize XYZ-axis directional drive and come with a micrometer head driver. The travel range is 6.5 mm, and the minimum graduation of the micrometer head is 10 μm. The stage platform size is 30 mm×30 mm, featuring 5×M4 and 2×M3 threaded holes. The bottom of the stage is equipped with 2 countersunk positioning holes and 1 M4 threaded hole, allowing the stage to be secured in position using M3 or M4 screws.

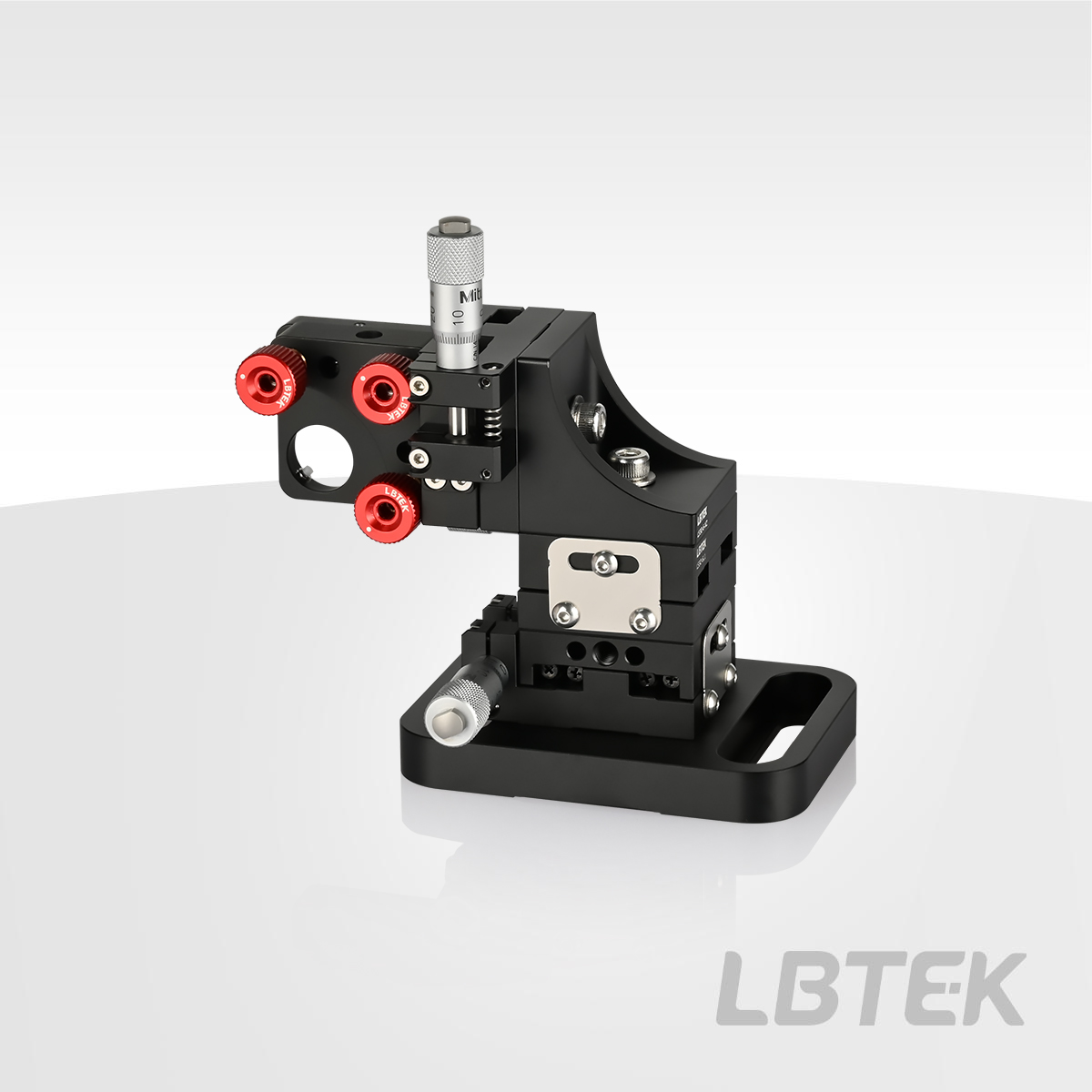

The optical component is mounted on an XYZ-axis linear translation stage.

	Product Model	Tabletop size	stroke	Drive position	Number of axes	Unit Price	Compare	Lead Time
	LS30-6L3 New	30 mm×30 mm	6.5 mm	Left-hand drive	Three-axis	$652.79		today
	LS30-6R3 New	30 mm×30 mm	6.5 mm	Right side drive	Three-axis	$652.79		today

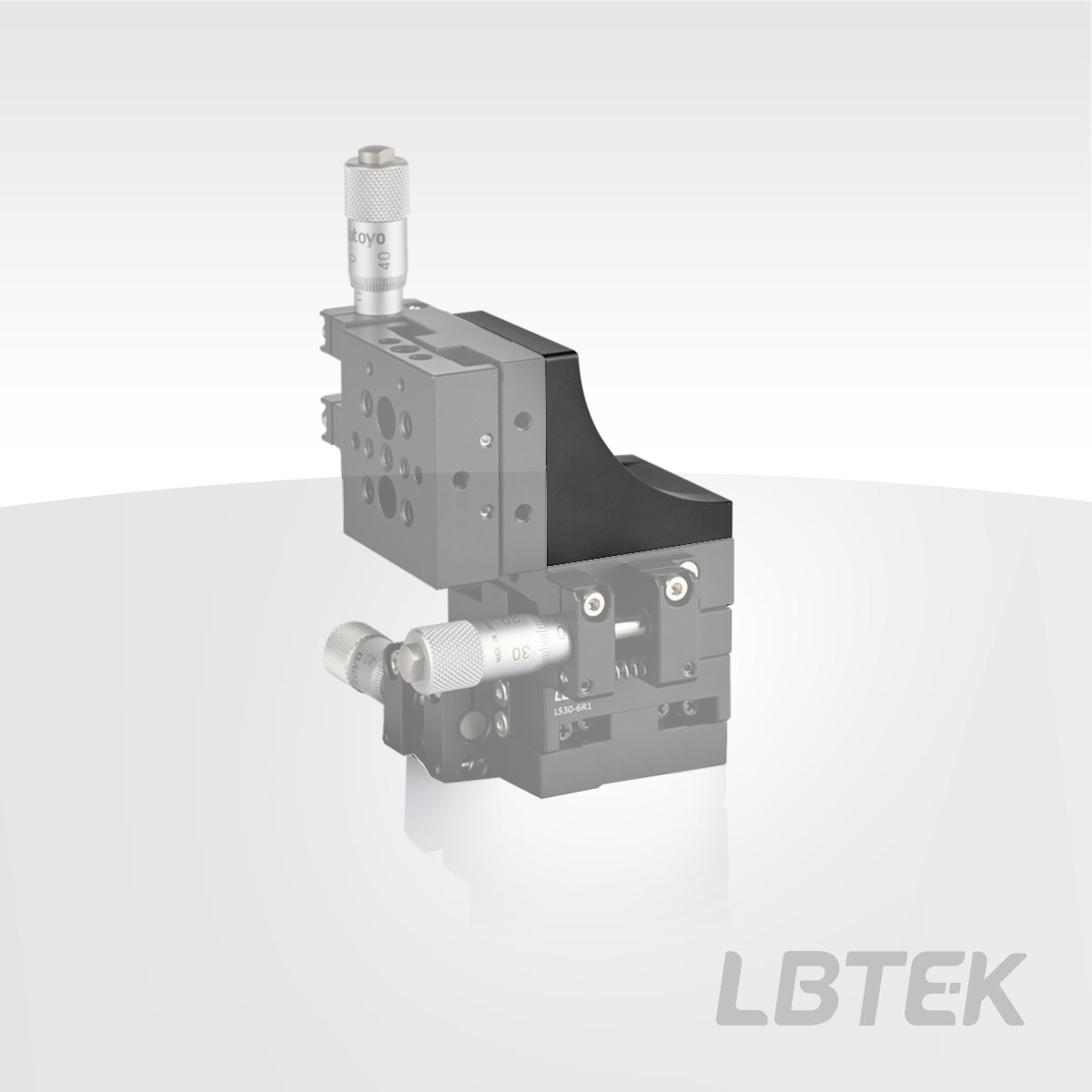

30 mm right-angle adapter plate

Main body material 6061-T6 aluminum alloy
Black anodized
4 Ø2 pin holes, 1 M4 mounting through hole

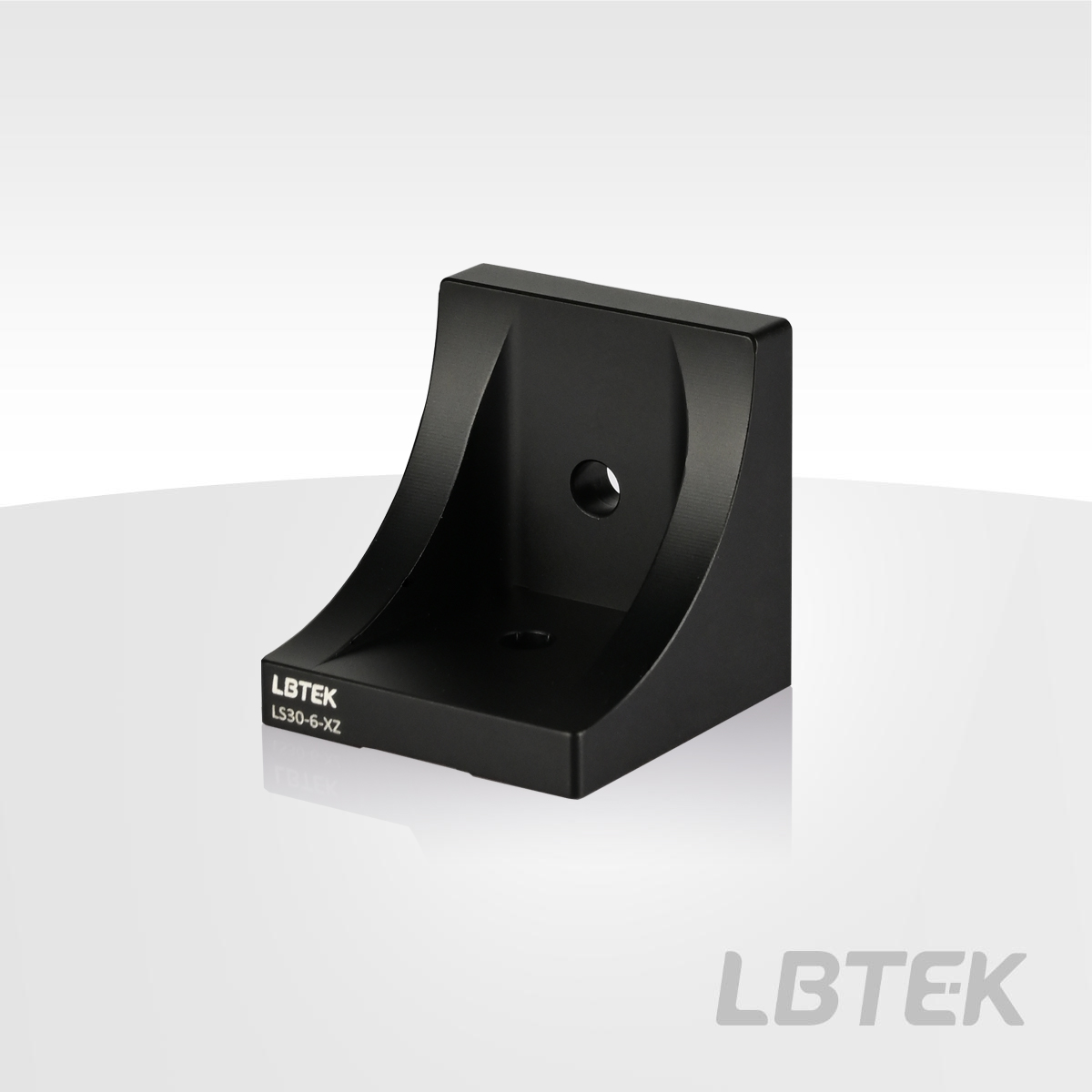

The right-angle adapter plate provided by LBTEK is made of aluminum alloy, featuring high precision and good rigidity. It is equipped with M4 threaded through-holes and four Ø2 pin holes for fixing and connecting mechanical components. It can be used in conjunction with the LS30-6×× series sliders provided by LBTEK. Purchasing the LBTEK right-angle adapter plate includes two M4 cylindrical head hex socket screws.

LS30-6-XZ is suitable for the LS30-6×× series slide table.

	Product Model	Size (mm)	Unit Price	Compare	Lead Time
	LS30-6-XZ New	30 mm×30 mm	$31.64		today

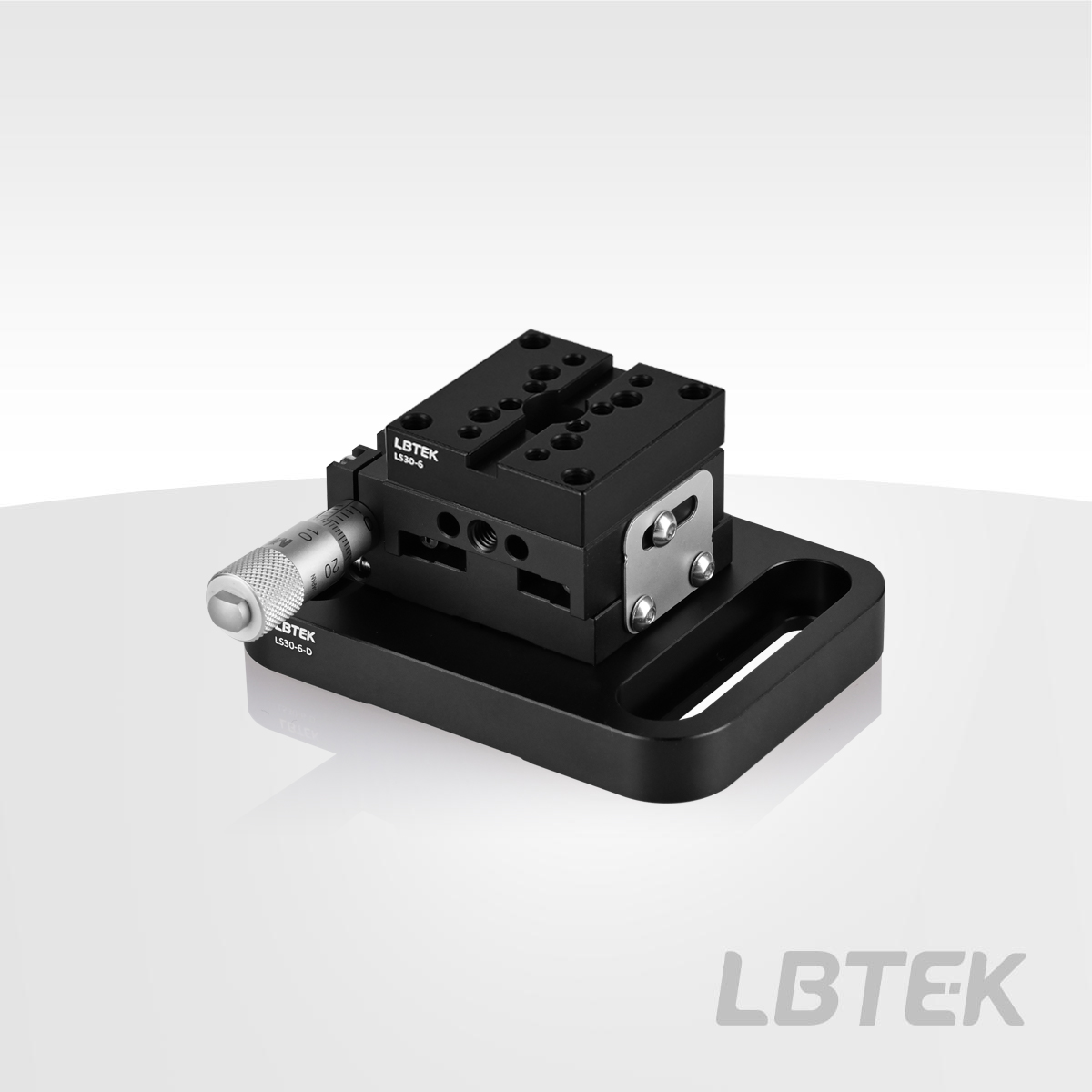

30 mm displacement stage mounting base plate

Main body material 6061-T6 aluminum alloy
Black anodized
2 M6 countersunk mounting waist holes, 4 Ø2 pin holes, 1 M4 countersunk mounting through hole

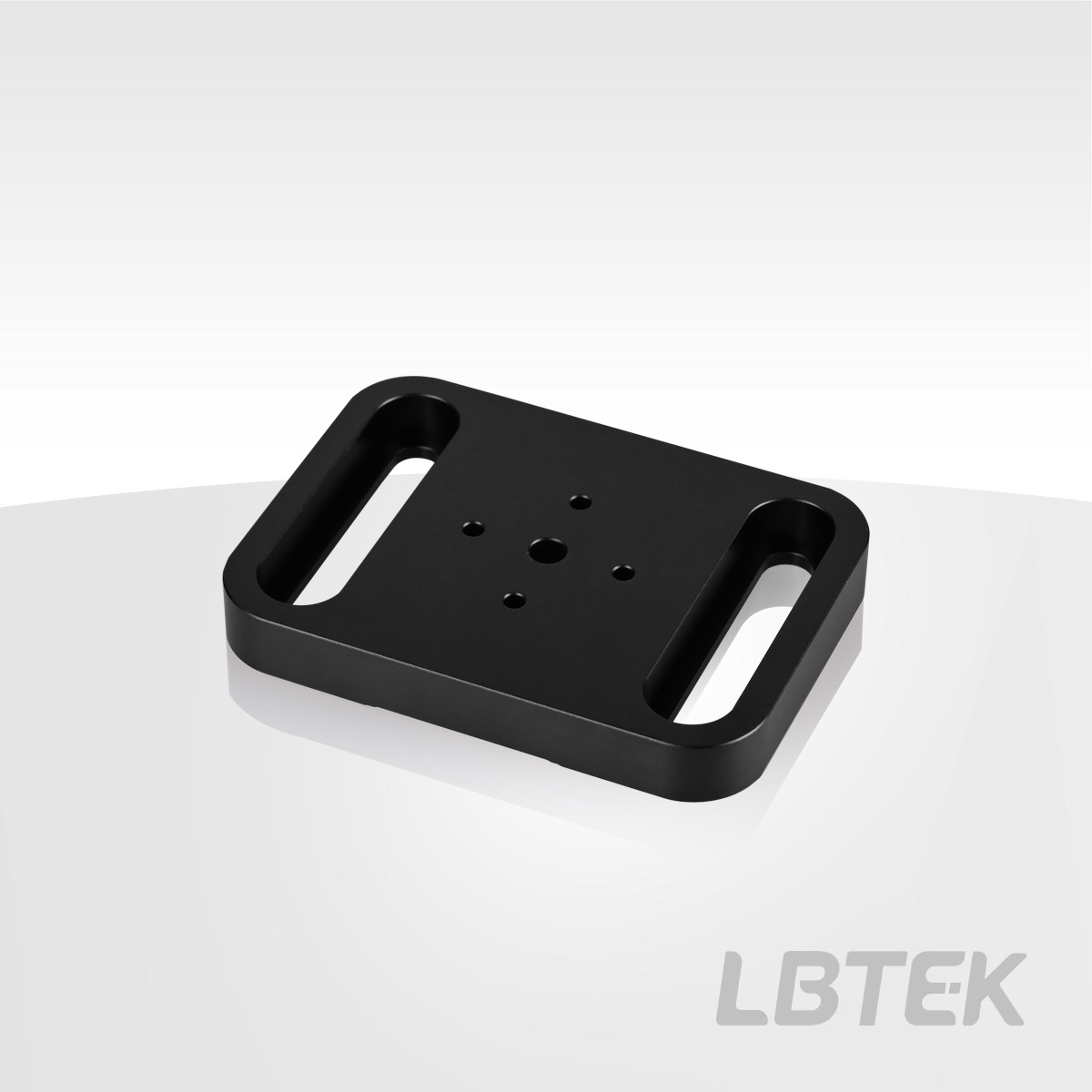

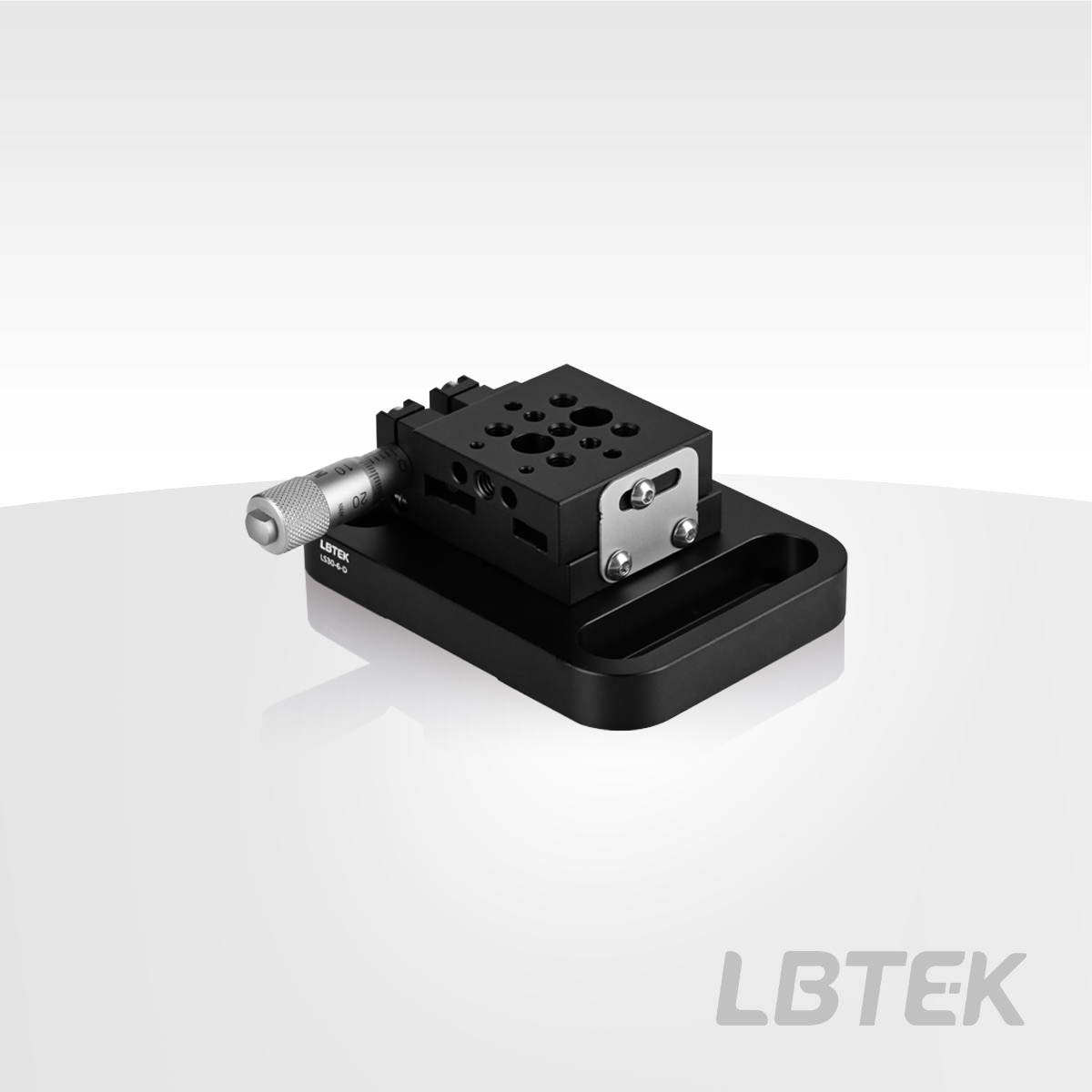

LBTEK offers mounting base plates for displacement stages suitable for mounting stages with a table size of 30 mm×30 mm. Made of aluminum alloy, they feature high precision and good rigidity, and come with M6 countersunk through-holes for mounting, allowing the displacement stage to be fixed onto the base plate. Two M6 countersunk slots are located on both sides of the base plate, with their spacing being a multiple of the threaded hole spacing. M6 socket head cap screws can be used to securely fasten the base plate parallel to an optical table or breadboard. M6 mounting screws are included with purchase.

LS30-6-D is suitable for mounting on a stage with a tabletop size of 30 mm×30 mm.

	Product Model	Applicable stage platform size	Thread hole specifications	Unit Price	Compare	Lead Time
	LS30-6-D New	30 mm × 30 mm	M6	$20.66		today

30 mm displacement stage table adapter plate

Main body material 6061-T6 aluminum alloy
Black anodized
9 M6 threaded holes, 4 M4 threaded holes

The right-angle adapter plate provided by LBTEK is made of aluminum alloy, featuring high precision and good rigidity. It comes with M6 countersunk slots, M4 threaded holes, and M6 threaded holes for securing and connecting mechanical components. It can be used in conjunction with the LS30-6×× series sliders provided by LBTEK and is compatible with THORLABS' optical mount series CT10x. Purchasing the LBTEK LS30-6 adapter plate includes one M4 cylindrical head hex socket screw.

LS30-6 is suitable for the LS30-6×× series slide table.

	Product Model	Tabletop threaded hole specifications	Tabletop size	Unit Price	Compare	Lead Time
	LS30-6 New	M4/M3	30 mm×30 mm	$28.5		today
