Product Description
- Frequency Range: 5 kHz ~ 26.5 GHz
- Number of Ports: 2/4 Ports
- Integrates functions such as S-parameters, impedance, VSWR, TDA time domain analysis, fixture embedding/de-embedding, antenna testing, etc.
The DNA6000 series vector network analyzer provided by LBTEK covers a frequency range from 5 kHz to 26.5 GHz, with output ports available in 2-port and 4-port configurations. The product features a 10.1-inch 1280*800 high-definition touch display. It supports various calibration methods such as frequency response, one-port, response isolation, enhanced response, full two-port, and electrical calibration. It offers multiple display formats including logarithmic magnitude, linear magnitude, VSWR, phase, group delay, Smith chart, and polar coordinates. It is equipped with various standard interfaces such as USB, LAN, and HDMI, enabling precise measurement of the amplitude-frequency characteristics, phase-frequency characteristics, and group delay characteristics of microwave networks.

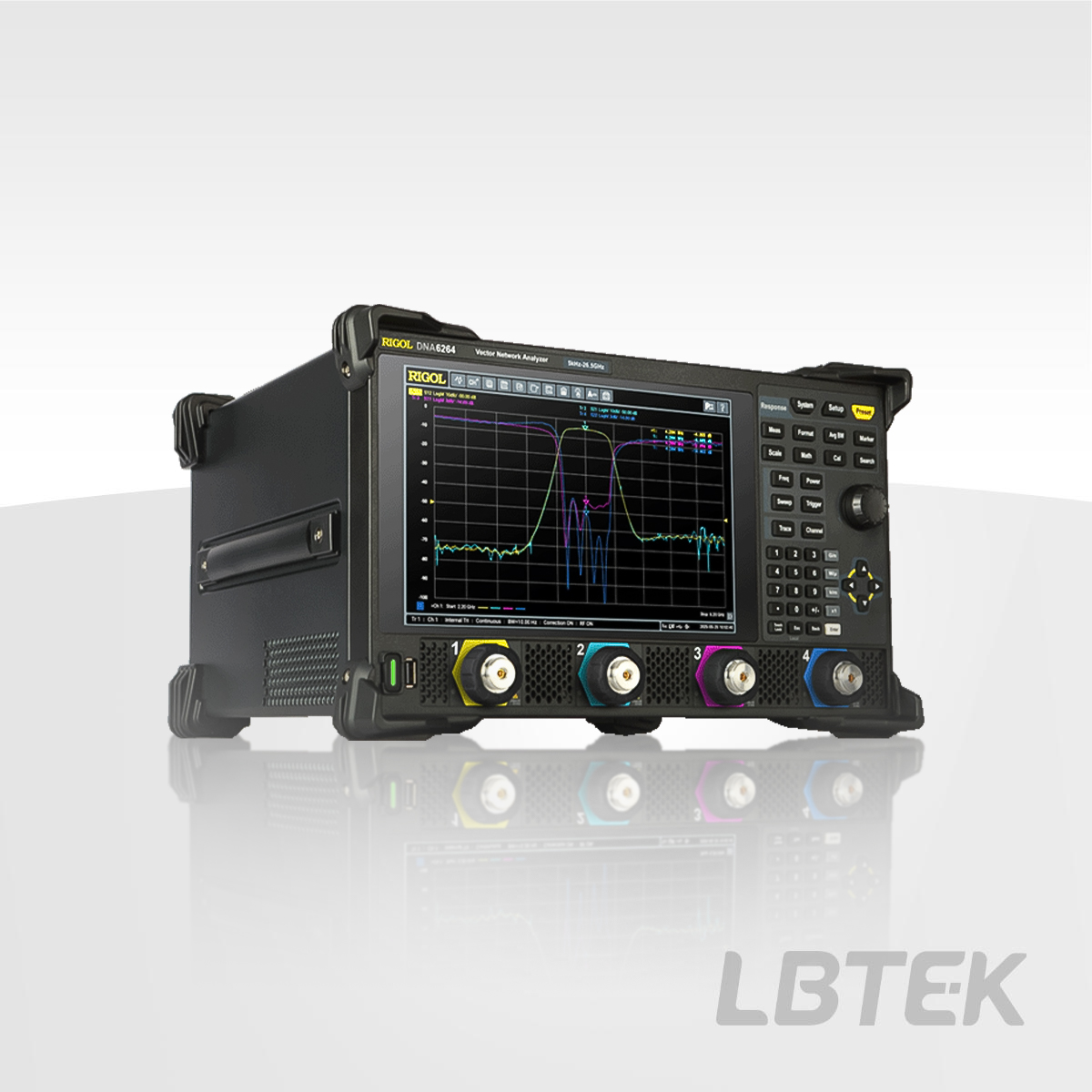

Vector Network Analyzer
- Frequency range: 5 kHz ~ 26.5 GHz
- Frequency resolution: 1 Hz
The DNA6000 series vector network analyzers offer multiple calibration methods such as frequency response, single-port, response isolation, enhanced response, full two-port, and electrical calibration. They feature various display formats including log magnitude, linear magnitude, standing wave ratio, phase, group delay, Smith chart, and polar coordinates, and are equipped with standard interfaces like USB, LAN, and HDMI. These analyzers can accurately measure the amplitude-frequency, phase-frequency, and group delay characteristics of microwave networks. This product is widely used in fields such as electronics, communications, and microwave, and is a common test instrument in industrial and university R&D and mass production processes.
Vector Network Analyzer Interface Diagram
Product Model | frequency range | Number of ports | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
 | DNA6082 New | 5 kHz ~ 8.5 GHz | 2 | $11,817.56 | 5 weeks | Add Cart | ||
| DNA6084 New | 5 kHz ~ 8.5 GHz | 4 | $19,204.44 | 5 weeks | Add Cart | ||
| DNA6142 New | 5 kHz ~ 14 GHz | 2 | $17,727.06 | 5 weeks | Add Cart | ||
| DNA6144 New | 5 kHz ~ 14 GHz | 4 | $26,591.31 | 5 weeks | Add Cart | ||
| DNA6202 New | 5 kHz ~ 20 GHz | 2 | $23,636.56 | 5 weeks | Add Cart | ||
| DNA6204 New | 5 kHz ~ 20 GHz | 4 | $35,455.56 | 5 weeks | Add Cart | ||
| DNA6262 New | 5 kHz ~ 26.5 GHz | 2 | $29,546.06 | 5 weeks | Add Cart | ||
| DNA6264 New | 5 kHz ~ 26.5 GHz | 4 | $44,319.81 | 5 weeks | Add Cart |
