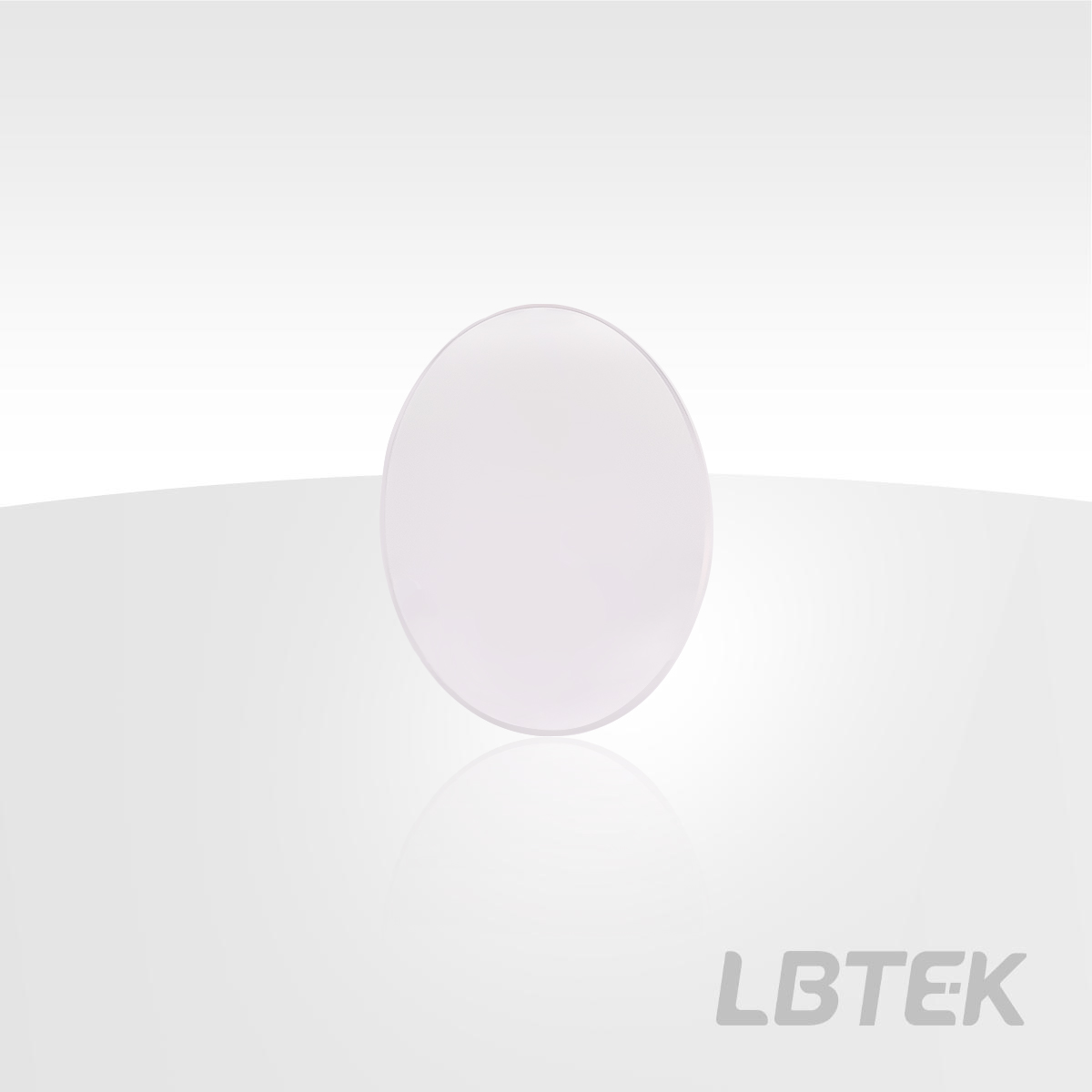

LBTEK High-Power Ring-Shaping DOE is fabricated from UV-grade fused silica using a surface-relief process and shapes an incident TEM₀₀ Gaussian beam into an annular spot. The product is supplied as a bare optic; a compatible mechanical housing is available as an option. The standard product is designed for use with a 650 mm focusing lens. In practice, focusing lenses of other focal lengths can also be used, and the annular spot size scales linearly with the focal length.

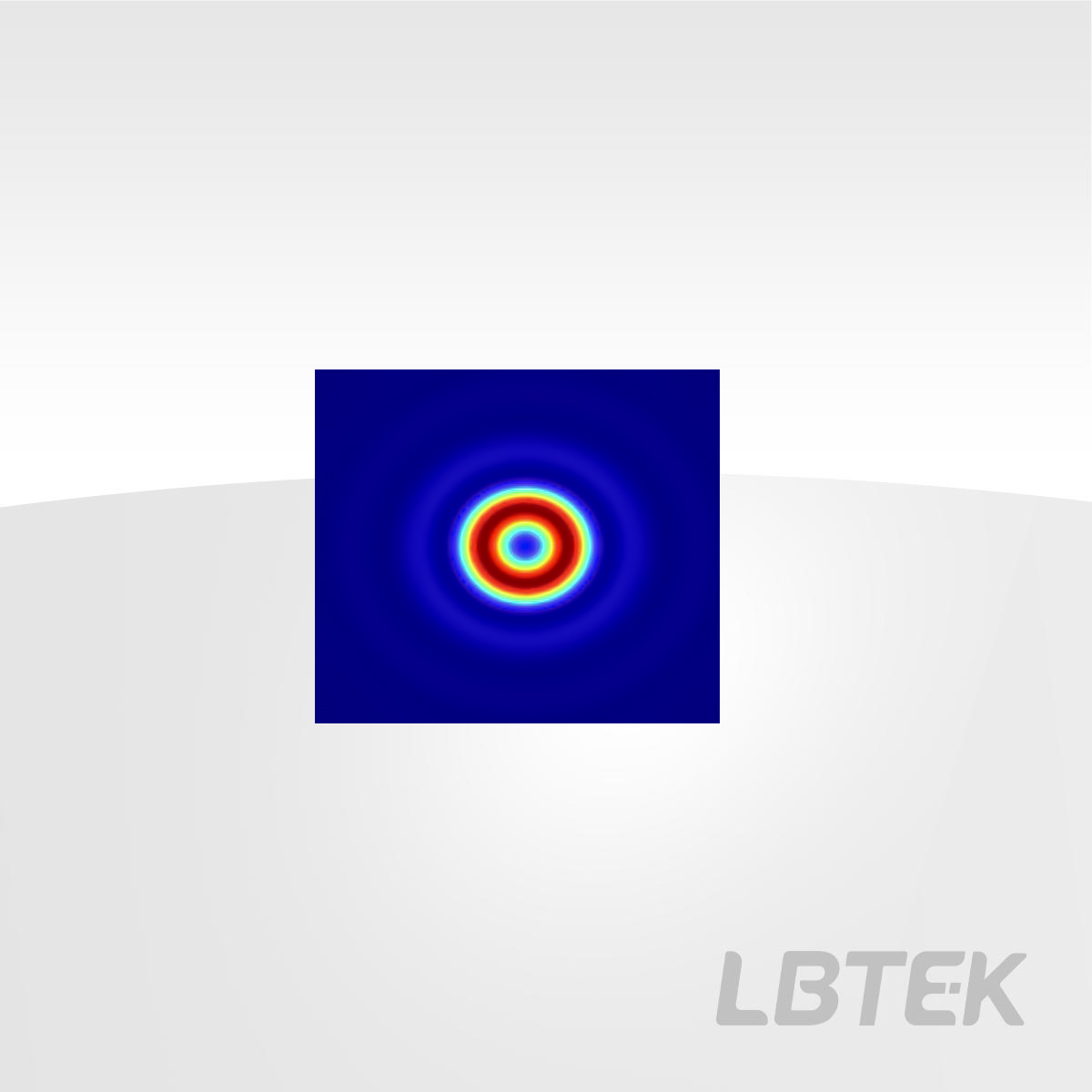

High-Power Ring-Shaping DOE: Ring-Shaping Performance
Product Model | Operating Wavelength | Effective Focal Length (EFL) | Outer diameter of the ring-shaped light spot | Inner diameter of the ring-shaped light spot | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|---|
| DOE25Q-1080-RI1-14 | 1080 nm | 650 mm | 130 μm | 8.8 μm | $2,137.99 | today | Add Cart | |||
| DOE25Q-532-RI1-14 New | 1080 nm | 650 mm | 130 μm | 8.8 μm | $2,137.99 | 6 weeks | Add Cart |


Product Model | Operating Wavelength | Effective Focal Length (EFL) | Outer diameter of the ring-shaped light spot | Point ring energy ratio | File | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|---|
| DOE30Q-1080-RP5-0.9-1-14-SP1 New | 1080 nm | 650 mm | 223 μm | 0.9:1(±10%) | $2,960.29 | 6 weeks | Add Cart | |||
| DOE30Q-1080-RP5-0.9-1-14-SP2 New | 1080 nm | 650 mm | 319 μm | 0.9:1(±10%) | $2,960.29 | 6 weeks | Add Cart |
