Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 700-1100nm

Specifications
Curve
Assembly
Tutorial
Application
Feedback
Product Description
  • Substrate: N-BK7
  • Operating Wavelength: 700 nm-1100 nm
  • Application: Imaging, Beam Expansion or Reduction
Plano-convex lenses have one convex side and one flat side, a positive focal length, and are coated on both sides with an anti-reflection coating (AR) from 700 nm to 1100 nm. They are primarily used to reduce reflectivity within this wavelength range. They are typically used for applications such as beam reduction, focal length reduction, or image magnification. To reduce spherical aberration, plano-convex lenses are used for collimating a beam so that the beam is incident on the curved surface of the lens; when used for point light source collimation, the beam is incident on a flat surface. LBTEK uses N-BK7, the most common lens material, for a variety of lens production. N-BK7 is the most common lens material used in visible and near-infrared applications. Our lenses are meticulously machined and rigorously quality-controlled, ensuring that LBTEK provides high-quality lenses at reasonable prices.
Attribute
Optical component materialN-BK7
Surface finish (scratches/pits)40/20
Curved Aperture3
Design wavelength587.6 nm
Local surface irregularity0.5
Eccentricity≤3 arcmin
Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 700-1100nm
  • Substrate Material: N-BK7
  • Application: Imaging, Collimation, Beam Expansion
  • Mounted in Mechanical Housing
  • Working Wavelength: 700 nm-1100 nm

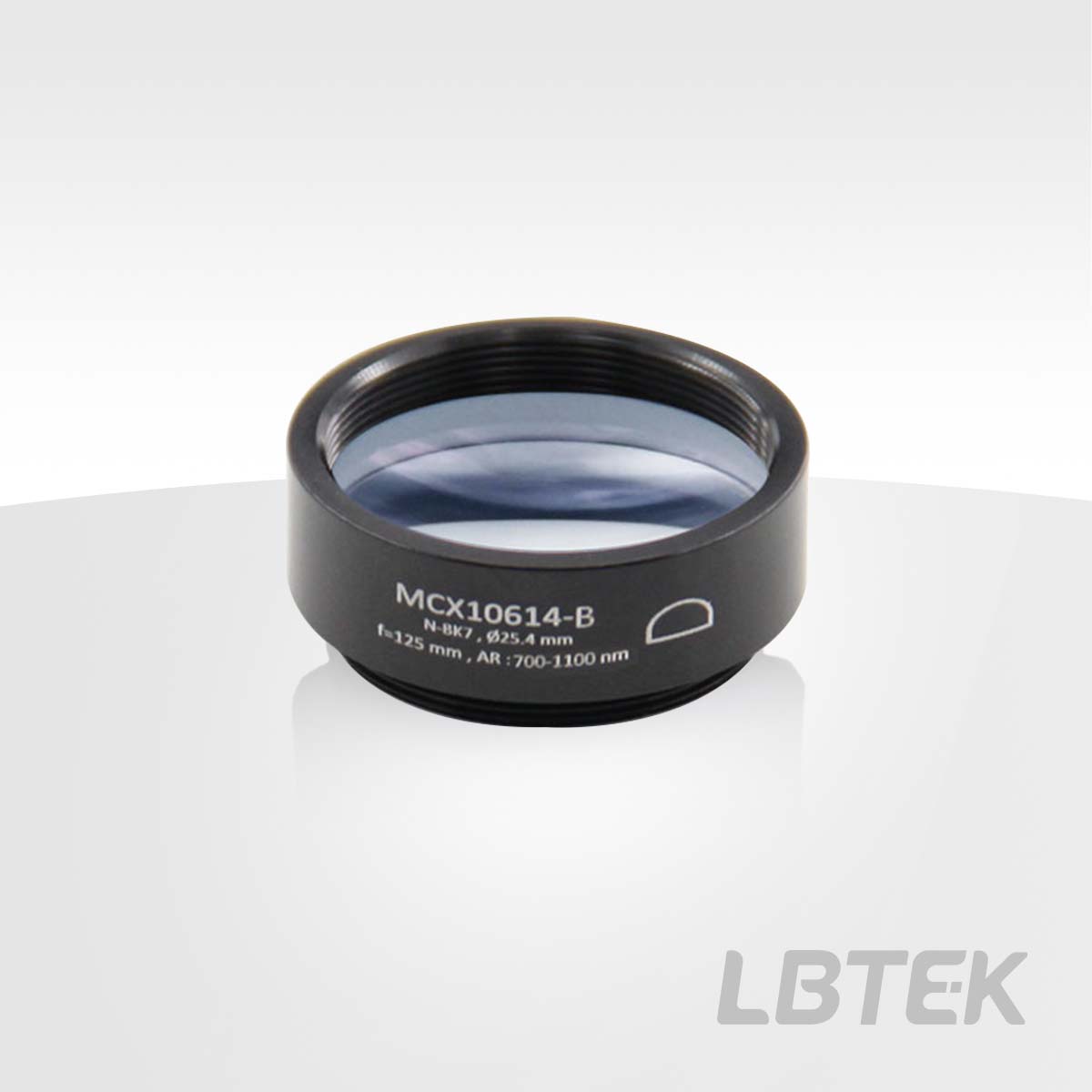

LBTEK plano-convex lenses have positive focal lengths and are commonly used in applications such as imaging or beam collimation. LBTEK plano-convex lenses are manufactured using N-BK7 glass that complies with RoHS standards. N-BK7 is the most commonly used material for high-quality optical components, primarily applied in visible and near-infrared fields. All circular lenses from LBTEK come mounted with standard lens tubes or lens mounting adapters. These mechanical components are engraved with product model, type, diameter, and focal length for easy identification by users.

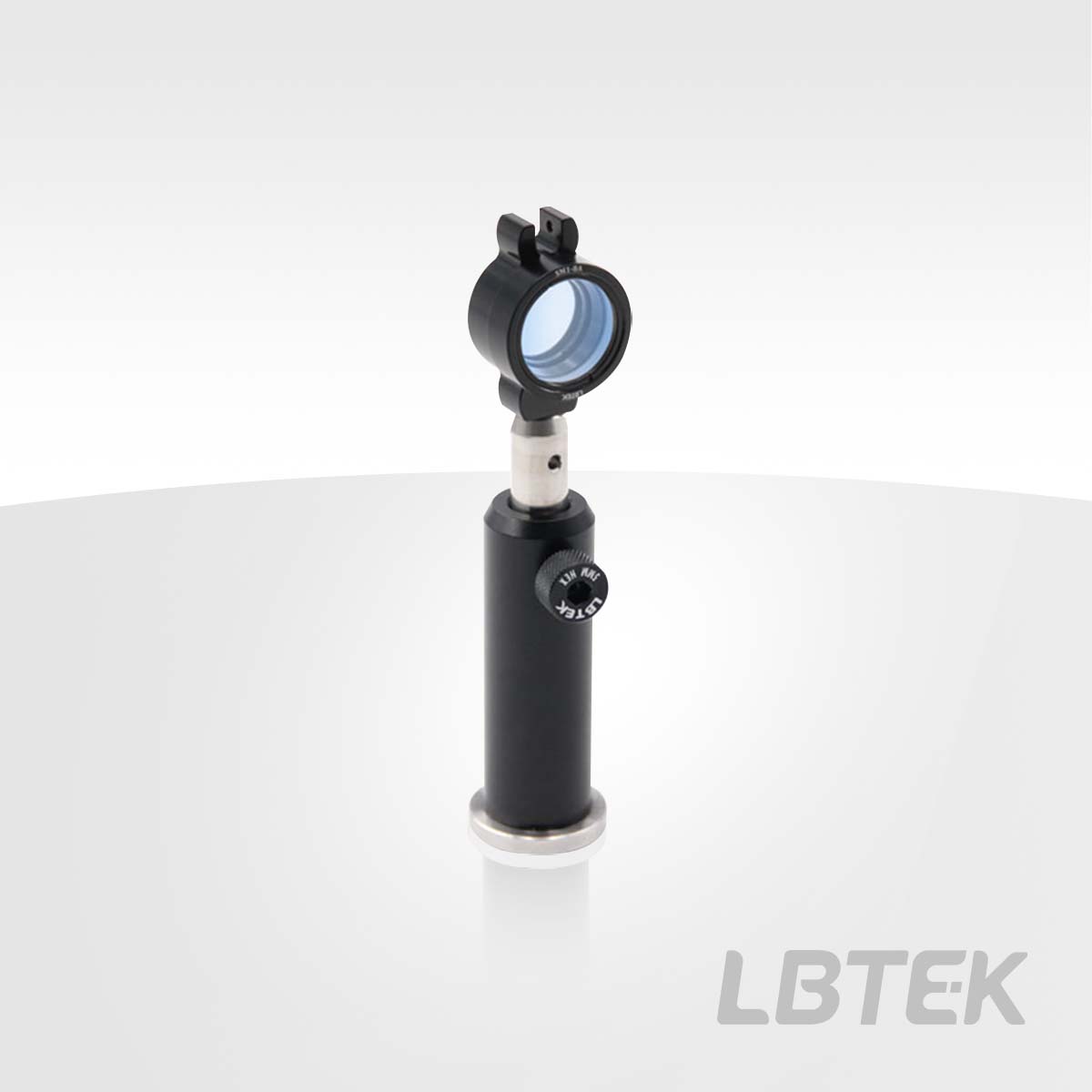

The LBTEK lens housing surface is engraved with product model and other information.

Product Model
Diameter
Focal length
Unit Price
Compare
Lead Time
MCX10823-B 50.8 mm1000.0 mm$60.01today
MCX10822-B 50.8 mm750.0 mm$60.01today
MCX10821-B 50.8 mm500.0 mm$58.05today
MCX10820-B 50.8 mm400.0 mm$58.05today
MCX10819-B 50.8 mm300.0 mm$58.05today
MCX10818-B 50.8 mm250.0 mm$60.01today
MCX10817-B 50.8 mm200.0 mm$57.66today
MCX10816-B 50.8 mm175.0 mm$53.47today
MCX10815-B 50.8 mm150.0 mm$46.02today
MCX10813-B 50.8 mm100.0 mm$58.05today
MCX10812-B 50.8 mm75.0 mm$58.05today
MCX10810-B 50.8 mm60.0 mm$59.23today
MCX10623-B 25.4 mm1000.0 mm$47.85today
MCX10622-B 25.4 mm750.0 mm$42.49today
MCX10621-B 25.4 mm500.0 mm$42.88today
MCX10620-B 25.4 mm400.0 mm$42.88today
MCX10619-B 25.4 mm300.0 mm$42.88today
MCX10618-B 25.4 mm250.0 mm$42.88today
MCX10617-B 25.4 mm200.0 mm$42.88today
MCX10616-B 25.4 mm175.0 mm$42.1today
MCX10615-B 25.4 mm150.0 mm$42.885 weeks
MCX10614-B 25.4 mm125.0 mm$43.28today
MCX10613-B 25.4 mm100.0 mm$41.31today
MCX10612-B 25.4 mm75.0 mm$43.8today
MCX10611-B 25.4 mm60.0 mm$42.49today
MCX10610-B 25.4 mm50.0 mm$44.19today
MCX10609-B 25.4 mm40.0 mm$43.28today
MCX10608-B 25.4 mm35.0 mm$44.58today
MCX10607-B 25.4 mm30.0 mm$44.58today
MCX10606-B 25.4 mm25.4 mm$44.58today
MCX10814-B 50.8 mm125.0 mm$53.34today
MCX10313-B 12.7 mm100.0 mm$37.78today
MCX10310-B 12.7 mm50.0 mm$38.57today
MCX10309-B 12.7 mm40.0 mm$38.57today
MCX10307-B 12.7 mm30.0 mm$38.57today
MCX10305-B 12.7 mm25.0 mm$39.22today
MCX10303-B 12.7 mm15.0 mm$39.22today
MCX10304-B 12.7 mm20.0 mm$39.22today
Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 700-1100nm, Unmounted
  • Substrate Material: N-BK7
  • Working Wavelength: 700 nm-1100 nm
  • Application: Imaging, Collimation, Beam Expansion

LBTEK plano-convex lenses have positive focal lengths and are commonly used in applications such as imaging or beam collimation. LBTEK plano-convex lenses are manufactured using N-BK7 glass that complies with RoHS standards. N-BK7 is the most commonly used material for high-quality optical components, primarily applied in visible and near-infrared fields. All circular lenses from LBTEK can be mounted in LBTEK standard lens tubes, fixed lens mounts, and various coaxial mounting plates. Customers can choose the optimal mounting method for different application scenarios.

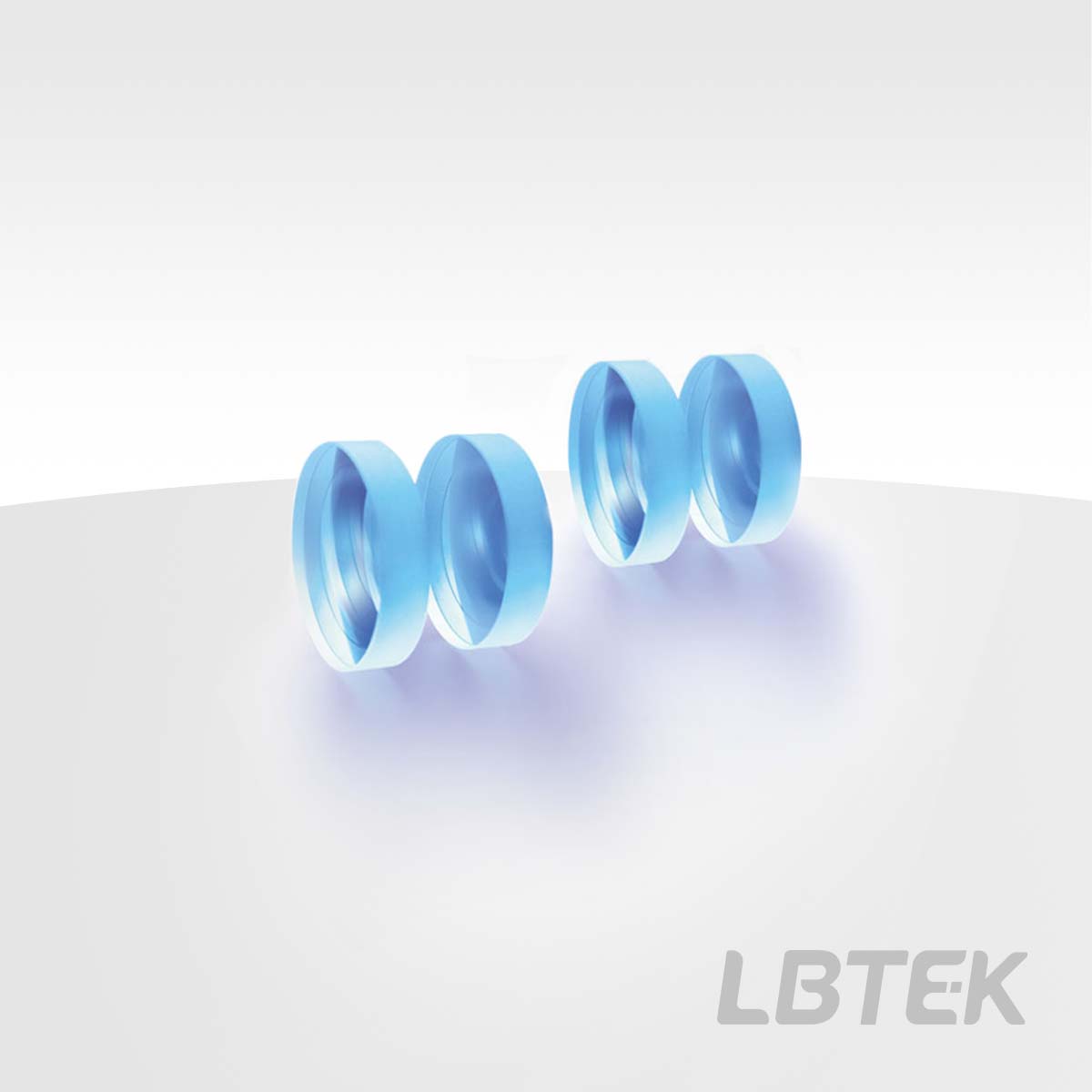

LBTEK unmounted lens is suitable for building compact systems

Product Model
Diameter
Focal length
Unit Price
Compare
Lead Time
CX10317-B 12.7 mm200 mm$28.11today
CX10315-B 12.7 mm150 mm$28.11today
CX10813-B 50.8 mm100.0 mm$41.97today
CX10823-B 50.8 mm1000.0 mm$34.52today
CX10822-B 50.8 mm750.0 mm$45.63today
CX10821-B 50.8 mm500.0 mm$44.06today
CX10820-B 50.8 mm400.0 mm$41.18today
CX10819-B 50.8 mm300.0 mm$41.18today
CX10818-B 50.8 mm250.0 mm$45.63today
CX10817-B 50.8 mm200.0 mm$41.18today
CX10816-B 50.8 mm175.0 mm$45.63today
CX10815-B 50.8 mm150.0 mm$41.18today
CX10812-B 50.8 mm75.0 mm$43.14today
CX10810-B 50.8 mm60.0 mm$45.37today
CX10713-B 30.0 mm100.0 mm$36.483 weeks
CX10623-B 25.4 mm1000.0 mm$32.29today
CX10622-B 25.4 mm750.0 mm$31.12today
CX10621-B 25.4 mm500.0 mm$31.12today
CX10620-B 25.4 mm400.0 mm$31.12today
CX10619-B 25.4 mm300.0 mm$31.12today
CX10618-B 25.4 mm250.0 mm$31.12today
CX10617-B 25.4 mm200.0 mm$32.03today
CX10616-B 25.4 mm175.0 mm$32.03today
CX10615-B 25.4 mm150.0 mm$32.03today
CX10614-B 25.4 mm125.0 mm$31.77today
CX10613-B 25.4 mm100.0 mm$32.03today
CX10612-B 25.4 mm75.0 mm$32.03today
CX10611-B 25.4 mm60.0 mm$32.03today
CX10610-B 25.4 mm50.0 mm$32.69today
CX10609-B 25.4 mm40.0 mm$32.69today
CX10608-B 25.4 mm35.0 mm$33.99today
CX10607-B 25.4 mm30.0 mm$32.95today
CX10606-B 25.4 mm25.4 mm$32.95today
CX10405-B 18.0 mm25.0 mm$32.034 weeks
CX10313-B 12.7 mm100.0 mm$30.33today
CX10310-B 12.7 mm50.0 mm$29.16today
CX10309-B 12.7 mm40.0 mm$29.16today
CX10307-B 12.7 mm30.0 mm$29.16today
CX10305-B 12.7 mm25.0 mm$29.16today
CX10304-B 12.7 mm20.0 mm$30.07today
CX10303-B 12.7 mm15.0 mm$30.33today
CX10204-B 9.0 mm20.0 mm$28.76today
CX10202-B 9.0 mm12.0 mm$28.5today
CX10007-B 6.0 mm30.0 mm$28.37today
CX10814-B 50.8 mm125.0 mm$41.18today
