Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 1100-1650nm

Specifications
Curve
Assembly
Tutorial
Application
Feedback
Product Description
  • Substrate: N-BK7
  • Operating Wavelength: 1100 nm-1650 nm
  • Application: Beam Expansion, Imaging, Beam Reduction
Plano-convex lenses, with one convex side and one flat side, have a positive focal length and are commonly used in applications such as beam reduction, focal length beam reduction, or image magnification. To reduce spherical aberration, plano-convex lenses are used to focus collimated beams so that the beam is incident on a curved surface. When used to collimate point light sources, the beam is incident on a flat surface. LBTEK offers lenses using N-BK7, a common substrate used in visible and near-infrared applications. Our lenses are meticulously machined and rigorously quality-controlled, ensuring that LBTEK provides high-quality lenses at reasonable prices.
Attribute
Optical component materialN-BK7
Surface finish (scratches/pits)40/20
Curved Aperture3
Design wavelength587.6 nm
Local surface irregularity0.5
Eccentricity≤3 arcmin

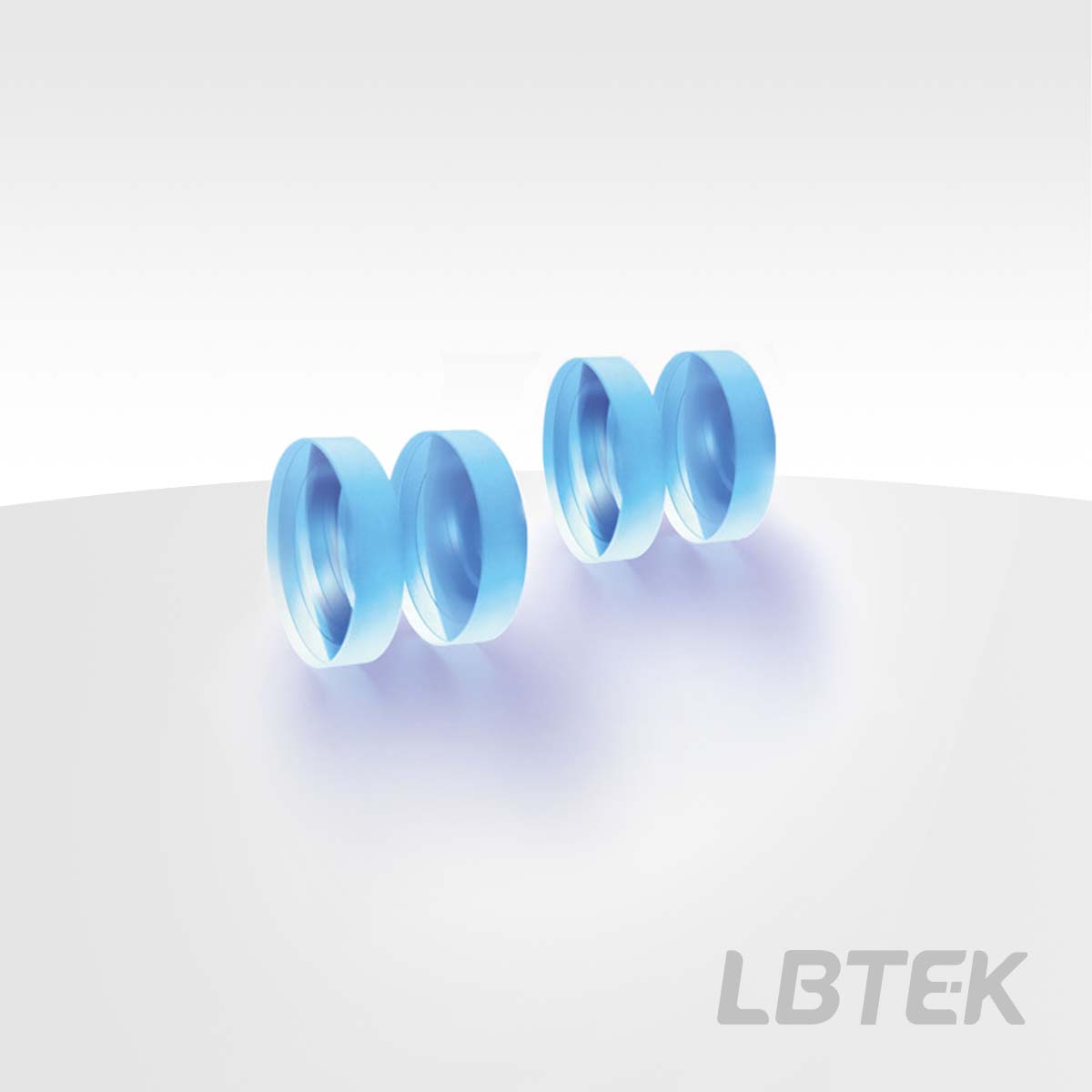

Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 1100-1650nm, Unmounted
  • Substrate Material: N-BK7
  • Operating Wavelength: 1100 nm - 1650 nm
  • Application: Imaging, Collimation, Beam Expansion

LBTEK plano-convex lenses have positive focal lengths and are commonly used in applications such as imaging or beam collimation. LBTEK plano-convex lenses are manufactured using N-BK7 glass that complies with RoHS standards. N-BK7 is the most commonly used material for high-quality optical components, primarily applied in visible and near-infrared fields. All circular lenses from LBTEK can be mounted in LBTEK standard lens tubes, fixed lens mounts, and various coaxial mounting plates. Customers can choose the optimal mounting method for different application scenarios.

LBTEK unmounted lens is suitable for building compact systems

Product Model
Diameter
Focal length
Unit Price
Compare
Lead Time
CX10818-C 50.8 mm250.0 mm$53.216 weeks
CX10713-C 30.0 mm100.0 mm$37.526 weeks
CX10623-C 25.4 mm1000.0 mm$33.996 weeks
CX10622-C 25.4 mm750.0 mm$33.996 weeks
CX10621-C 25.4 mm500.0 mm$33.996 weeks
CX10620-C 25.4 mm400.0 mm$33.996 weeks
CX10619-C 25.4 mm300.0 mm$33.996 weeks
CX10618-C 25.4 mm250.0 mm$33.996 weeks
CX10617-C 25.4 mm200.0 mm$33.996 weeks
CX10616-C 25.4 mm175.0 mm$35.046 weeks
CX10615-C 25.4 mm150.0 mm$35.046 weeks
CX10614-C 25.4 mm125.0 mm$35.046 weeks
CX10613-C 25.4 mm100.0 mm$35.046 weeks
CX10612-C 25.4 mm75.0 mm$35.046 weeks
CX10611-C 25.4 mm60.0 mm$35.436 weeks
CX10610-C 25.4 mm50.0 mm$35.436 weeks
CX10609-C 25.4 mm40.0 mm$36.086 weeks
CX10608-C 25.4 mm35.0 mm$36.086 weeks
CX10607-C 25.4 mm30.0 mm$36.086 weeks
CX10606-C 25.4 mm25.4 mm$36.486 weeks
CX10510-C 25.0 mm50.0 mm$35.436 weeks
CX10313-C 12.7 mm100.0 mm$32.956 weeks
CX10310-C 12.7 mm50.0 mm$31.516 weeks
CX10309-C 12.7 mm40.0 mm$32.166 weeks
CX10307-C 12.7 mm30.0 mm$32.166 weeks
CX10305-C 12.7 mm25.0 mm$32.166 weeks
CX10304-C 12.7 mm20.0 mm$32.956 weeks
CX10303-C 12.7 mm15.0 mm$32.956 weeks
CX10202-C 9.0 mm12.0 mm$32.696 weeks
CX10813-C 50.8 mm100.0 mm$36.746 weeks
CX10003-C 6.0 mm15.0 mm$30.856 weeks
Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 1100-1650nm
  • Substrate Material: N-BK7
  • Operating Wavelength: Anti-Reflection Coating: 1100 nm-1650 nm
  • Application: Imaging, Collimation, Beam Expansion
  • Mounted in Mechanical Housing

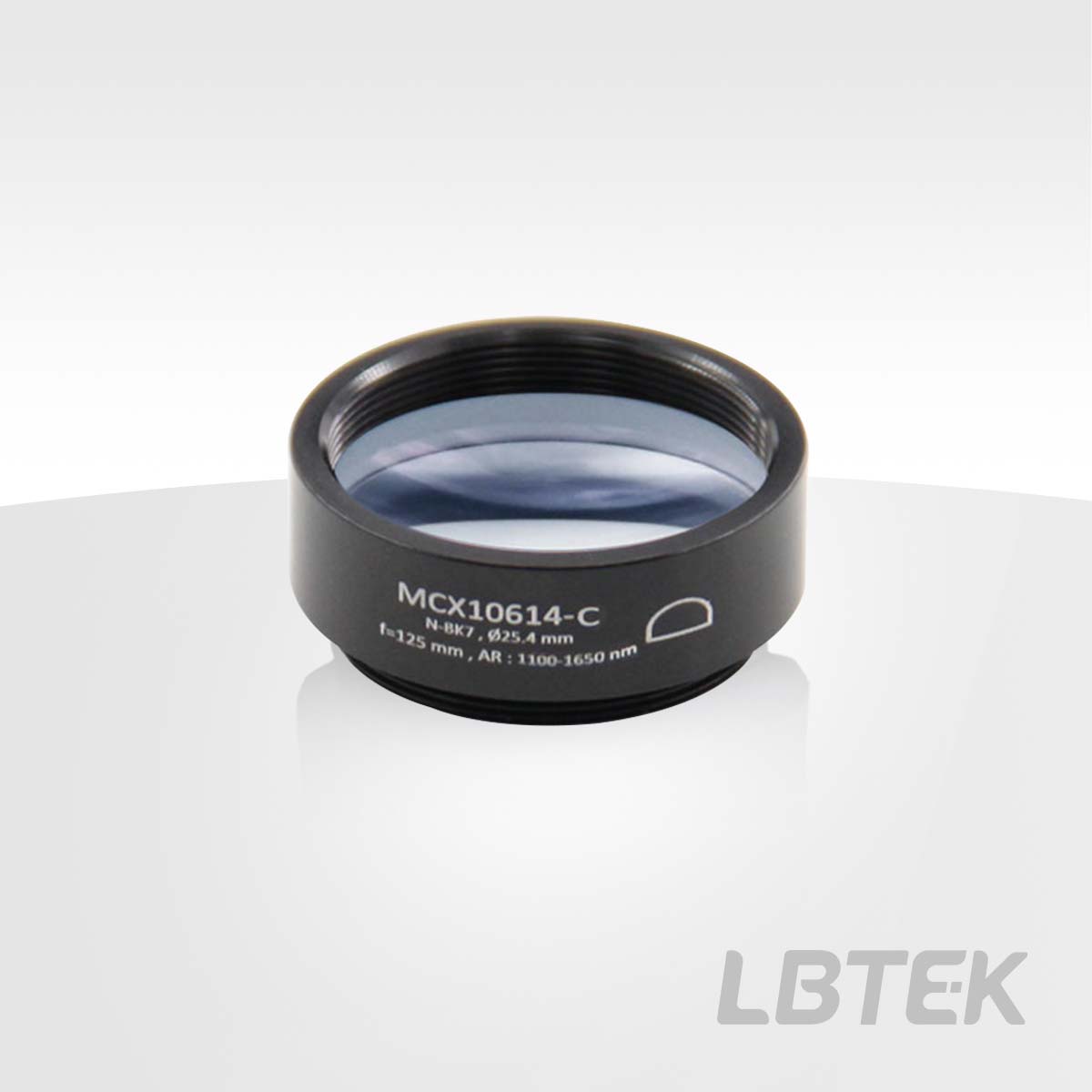

LBTEK plano-convex lenses have positive focal lengths and are commonly used in applications such as imaging or beam collimation. LBTEK plano-convex lenses use N-BK7 glass that complies with RoHS standards. N-BK7 is the most commonly used material for high-quality optical components, primarily applied in visible and near-infrared fields. All circular lenses from LBTEK come mounted with standard lens tubes or lens mounting adapters. These mechanical components are engraved with product model, type, diameter, and focal length on the housing for easy identification.

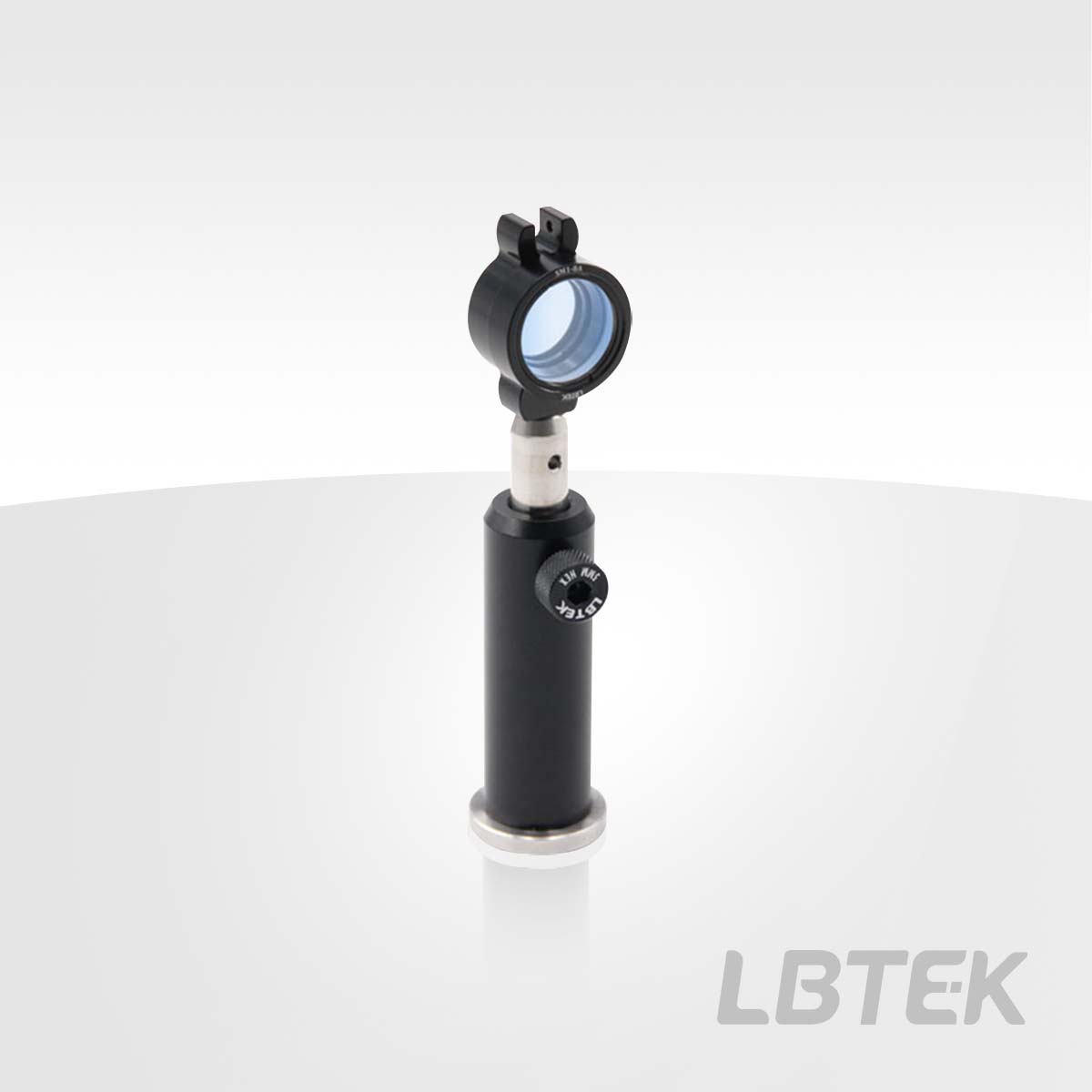

The LBTEK lens housing is engraved with product model and other information.

Product Model
Diameter
Focal length
Unit Price
Compare
Lead Time
MCX10818-C 50.8 mm250.0 mm$66.946 weeks
MCX10813-C 50.8 mm100.0 mm$48.246 weeks
MCX10623-C 25.4 mm1000.0 mm$45.116 weeks
MCX10622-C 25.4 mm750.0 mm$46.026 weeks
MCX10621-C 25.4 mm500.0 mm$46.026 weeks
MCX10620-C 25.4 mm400.0 mm$46.026 weeks
MCX10619-C 25.4 mm300.0 mm$46.026 weeks
MCX10618-C 25.4 mm250.0 mm$46.026 weeks
MCX10617-C 25.4 mm200.0 mm$46.026 weeks
MCX10616-C 25.4 mm175.0 mm$46.026 weeks
MCX10615-C 25.4 mm150.0 mm$46.026 weeks
MCX10614-C 25.4 mm125.0 mm$45.116 weeks
MCX10613-C 25.4 mm100.0 mm$45.116 weeks
MCX10612-C 25.4 mm75.0 mm$47.336 weeks
MCX10611-C 25.4 mm60.0 mm$46.026 weeks
MCX10610-C 25.4 mm50.0 mm$47.336 weeks
MCX10609-C 25.4 mm40.0 mm$46.416 weeks
MCX10608-C 25.4 mm35.0 mm$47.336 weeks
MCX10607-C 25.4 mm30.0 mm$47.336 weeks
MCX10606-C 25.4 mm25.4 mm$47.726 weeks
MCX10510-C 25.0 mm50.0 mm$46.816 weeks
MCX10313-C 12.7 mm100.0 mm$41.446 weeks
MCX10310-C 12.7 mm50.0 mm$41.586 weeks
MCX10309-C 12.7 mm40.0 mm$41.586 weeks
MCX10307-C 12.7 mm30.0 mm$41.586 weeks
MCX10305-C 12.7 mm25.0 mm$42.496 weeks
MCX10303-C 12.7 mm15.0 mm$42.496 weeks
MCX10304-C 12.7 mm20.0 mm$42.496 weeks
