- Optical material: N-BK7
- Operating wavelength: 400 nm-700 nm (anti-reflection coating)
- Application: imaging, beam expansion or reduction, convergence
- Substrate material: N-BK7
- Operating wavelength: 400 nm-700 nm (with coating)
- Application: imaging, beam expansion or reduction, convergence
The LBTEK Double-Convex Lenses have a positive focal length and are commonly used in applications such as imaging or beam collimation. LBTEK manufactures double-convex lenses using N-BK7 glass, which is the most commonly used material for high-quality optical components, primarily for visible and near-infrared applications. All circular lenses from LBTEK are pre-installed with standard lens tubes or lens mounting adapters. These mechanical components are engraved with the product model, type, diameter, and focal length for easy identification of lens parameters.

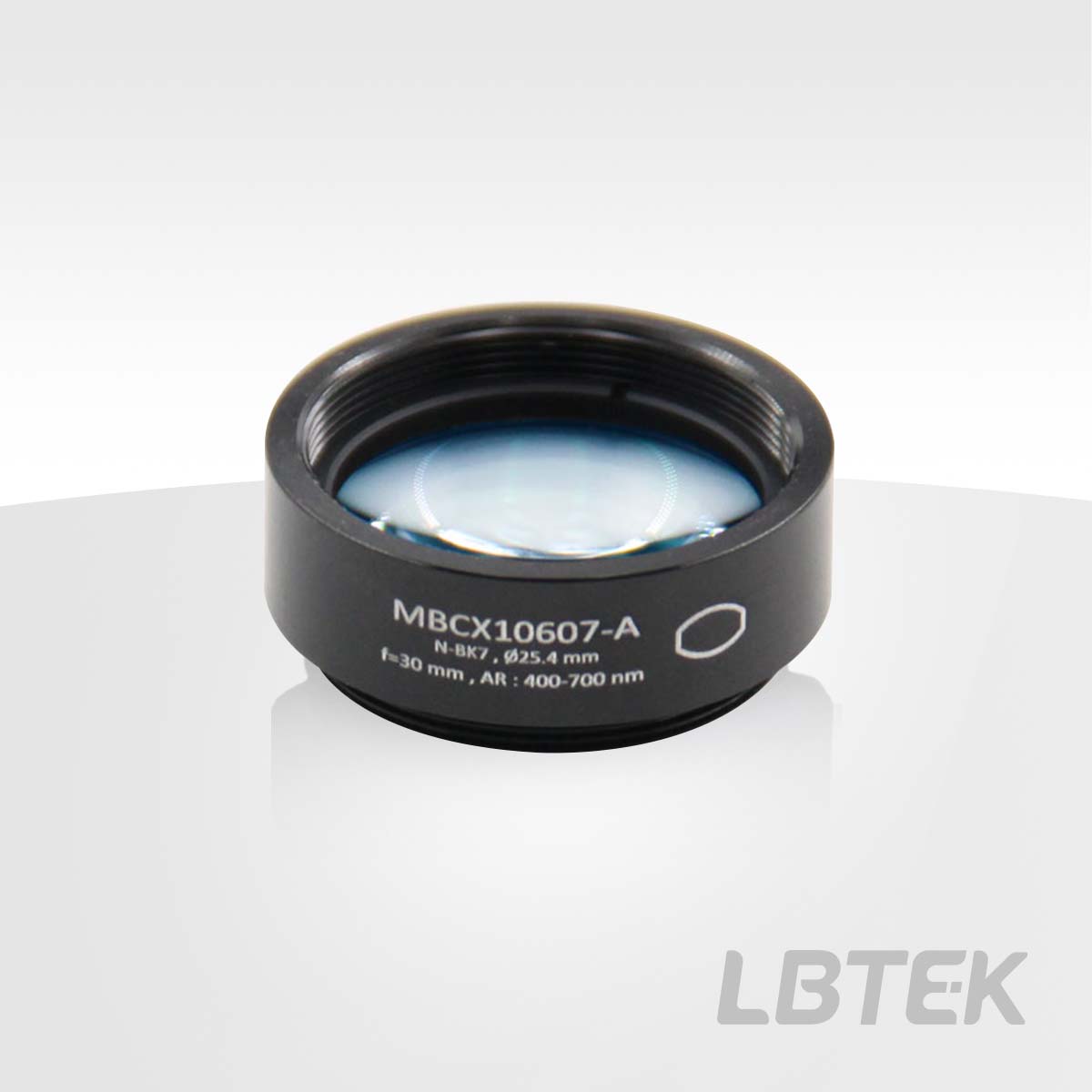

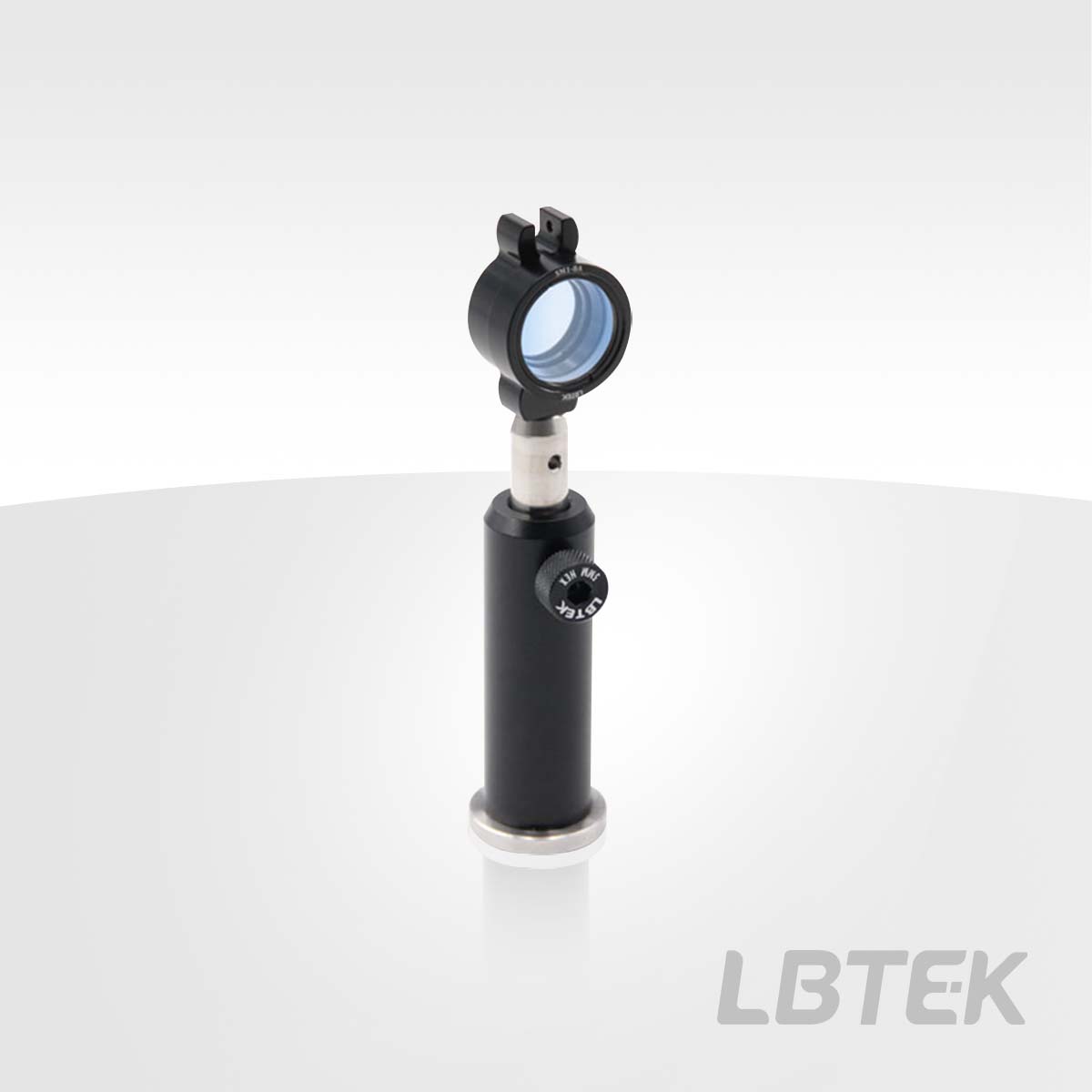

The housing surface of the LBTEK Lens is engraved with the product model and other information.
Product Model | Diameter | Focal length | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
 | MBCX10303-A | 12.7 mm | 15.0 mm | $42.62 | today | Add Cart | |
| MBCX10304-A | 12.7 mm | 20.0 mm | $42.62 | today | Add Cart | |
| MBCX10305-A | 12.7 mm | 25.0 mm | $41.58 | today | Add Cart | |
| MBCX10307-A | 12.7 mm | 30.0 mm | $41.58 | today | Add Cart | |
| MBCX10309-A | 12.7 mm | 40.0 mm | $41.58 | today | Add Cart | |
| MBCX10310-A | 12.7 mm | 50.0 mm | $42.62 | today | Add Cart | |
| MBCX10313-A | 12.7 mm | 100.0 mm | $41.58 | today | Add Cart | |
| MBCX10315-A New | 12.7 mm | 100.0 mm | $40.27 | today | Add Cart | |
| MBCX10621-A | 25.4 mm | 500.0 mm | $45.24 | today | Add Cart | |
| MBCX10606-A | 25.4 mm | 25.4 mm | $47.07 | today | Add Cart | |
| MBCX10607-A | 25.4 mm | 30.0 mm | $44.71 | today | Add Cart | |
| MBCX10608-A | 25.4 mm | 35.0 mm | $45.24 | today | Add Cart | |
| MBCX10609-A | 25.4 mm | 40.0 mm | $44.71 | today | Add Cart | |
| MBCX10610-A | 25.4 mm | 50.0 mm | $46.54 | today | Add Cart | |
| MBCX10611-A | 25.4 mm | 60.0 mm | $44.71 | today | Add Cart | |
| MBCX10612-A | 25.4 mm | 75.0 mm | $45.63 | today | Add Cart | |
| MBCX10613-A | 25.4 mm | 100.0 mm | $45.63 | today | Add Cart | |
| MBCX10614-A | 25.4 mm | 125.0 mm | $45.63 | today | Add Cart | |
| MBCX10615-A | 25.4 mm | 150.0 mm | $45.24 | today | Add Cart | |
| MBCX10616-A | 25.4 mm | 175.0 mm | $44.71 | today | Add Cart | |
| MBCX10617-A | 25.4 mm | 200.0 mm | $45.24 | today | Add Cart | |
| MBCX10618-A | 25.4 mm | 250.0 mm | $45.24 | today | Add Cart | |
| MBCX10619-A | 25.4 mm | 300.0 mm | $45.24 | today | Add Cart | |
| MBCX10620-A | 25.4 mm | 400.0 mm | $45.24 | today | Add Cart | |
| MBCX10622-A | 25.4 mm | 750.0 mm | $45.24 | today | Add Cart | |
| MBCX10623-A | 25.4 mm | 1000.0 mm | $45.24 | today | Add Cart |
- Substrate material: N-BK7
- Operating wavelength: 400 nm-700 nm (anti-reflection coating)
- Application: Imaging, beam expansion or reduction, focusing
The LBTEK Double-Convex Lenses have a positive focal length and are commonly used in applications such as imaging or beam collimation. LBTEK manufactures double-convex lenses using N-BK7 glass, which is the most commonly used material for high-quality optical components, primarily for visible and near-infrared applications. All circular lenses from LBTEK are pre-installed with standard lens tubes or lens mounting adapters. These mechanical components are engraved with the product model, type, diameter, and focal length for easy identification of lens parameters.

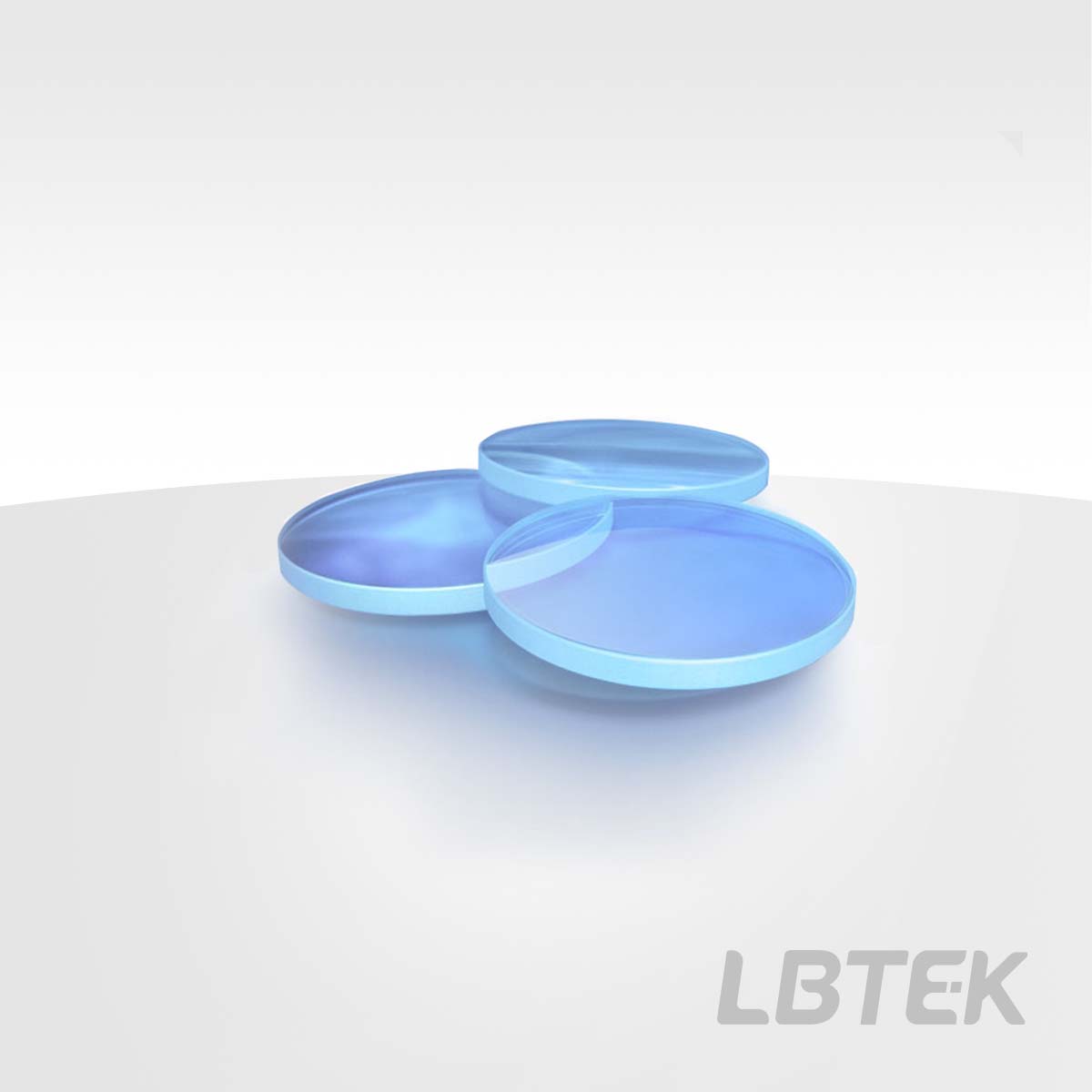

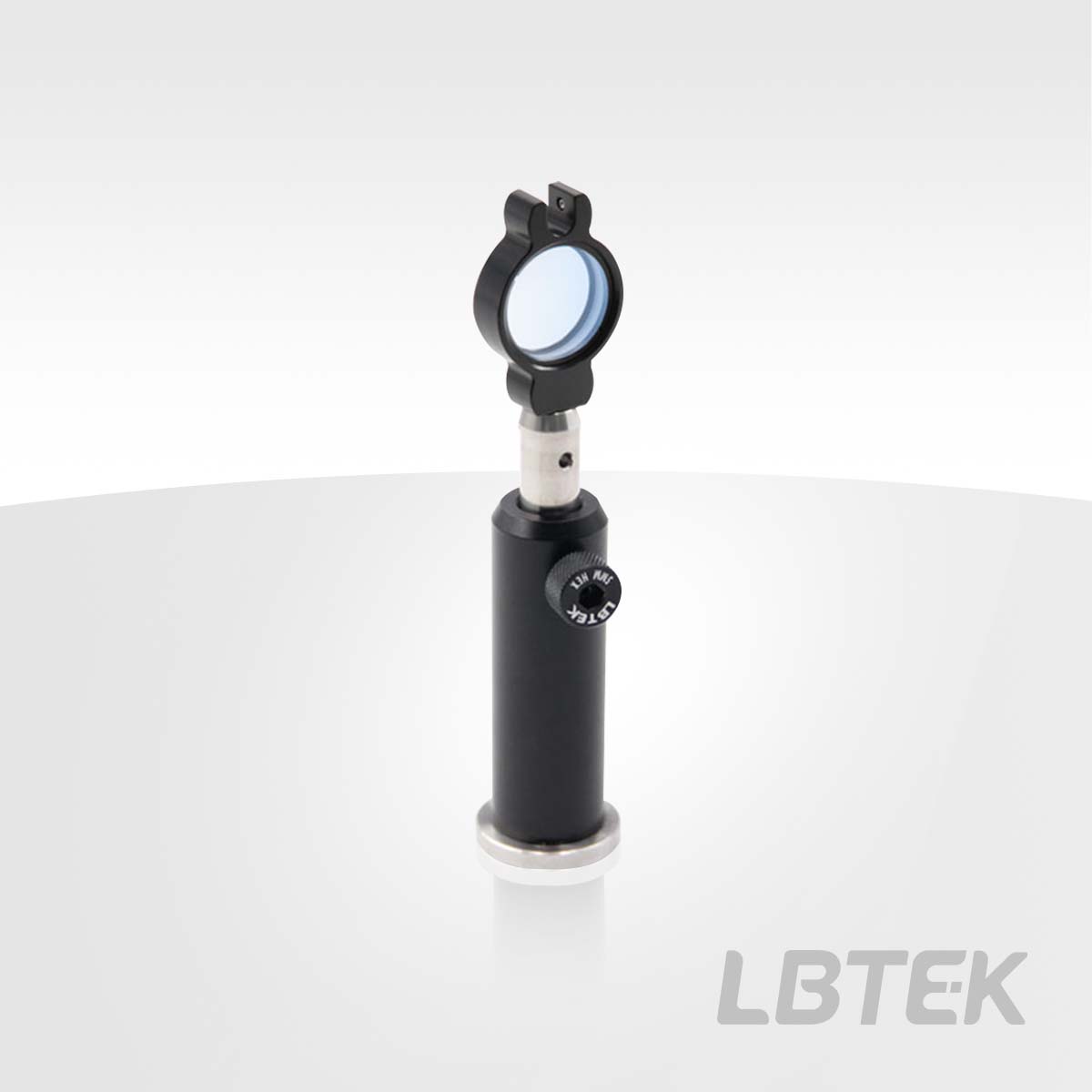

The LBTEK Unmounted Lenses are suitable for building compact systems
Product Model | Diameter | Focal length | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| BCX10001-A | 6.0 mm | 10.0 mm | $32.69 | today | Add Cart | |
| BCX10003-A | 6.0 mm | 15.0 mm | $29.55 | today | Add Cart | |
| BCX10002-A | 6.0 mm | 12.0 mm | $31.12 | today | Add Cart | |
| BCX10207-A | 9.0 mm | 20.0 mm | $31.12 | today | Add Cart | |
| BCX10202-A | 9.0 mm | 12.0 mm | $31.90 | today | Add Cart | |
| BCX10303-A | 12.7 mm | 15.0 mm | $32.82 | 6 weeks | Add Cart | |
| BCX10304-A | 12.7 mm | 20.0 mm | $32.82 | today | Add Cart | |
| BCX10305-A | 12.7 mm | 25.0 mm | $32.03 | today | Add Cart | |
| BCX10307-A | 12.7 mm | 30.0 mm | $32.03 | today | Add Cart | |
| BCX10309-A | 12.7 mm | 40.0 mm | $31.38 | today | Add Cart | |
| BCX10310-A | 12.7 mm | 50.0 mm | $31.38 | today | Add Cart | |
| BCX10313-A | 12.7 mm | 100.0 mm | $31.38 | today | Add Cart | |
| BCX10315-A New | 12.7 mm | 150.0 mm | $30.72 | today | Add Cart | |
| BCX10621-A | 25.4 mm | 500.0 mm | $33.73 | today | Add Cart | |
| BCX10606-A | 25.4 mm | 25.4 mm | $36.22 | today | Add Cart | |
| BCX10607-A | 25.4 mm | 30.0 mm | $36.22 | today | Add Cart | |
| BCX10608-A | 25.4 mm | 35.0 mm | $35.56 | today | Add Cart | |
| BCX10609-A | 25.4 mm | 40.0 mm | $35.17 | today | Add Cart | |
| BCX10610-A | 25.4 mm | 50.0 mm | $35.17 | today | Add Cart | |
| BCX10611-A | 25.4 mm | 60.0 mm | $35.17 | today | Add Cart | |
| BCX10612-A | 25.4 mm | 75.0 mm | $35.17 | today | Add Cart | |
| BCX10613-A | 25.4 mm | 100.0 mm | $34.52 | today | Add Cart | |
| BCX10614-A | 25.4 mm | 125.0 mm | $34.52 | today | Add Cart | |
| BCX10615-A | 25.4 mm | 150.0 mm | $33.73 | today | Add Cart | |
| BCX10616-A | 25.4 mm | 175.0 mm | $33.73 | today | Add Cart | |
| BCX10617-A | 25.4 mm | 200.0 mm | $33.73 | today | Add Cart | |
| BCX10618-A | 25.4 mm | 250.0 mm | $33.73 | today | Add Cart | |
| BCX10619-A | 25.4 mm | 300.0 mm | $33.73 | today | Add Cart | |
| BCX10620-A | 25.4 mm | 400.0 mm | $33.73 | today | Add Cart | |
| BCX10622-A | 25.4 mm | 750.0 mm | $33.73 | today | Add Cart | |
| BCX10623-A | 25.4 mm | 1000.0 mm | $33.73 | today | Add Cart | |
| BCX10823-A | 50.8 mm | 1000.0 mm | $45.63 | today | Add Cart | |
| BCX10822-A | 50.8 mm | 750.0 mm | $45.63 | today | Add Cart | |
| BCX10821-A | 50.8 mm | 500.0 mm | $45.63 | today | Add Cart | |
| BCX10820-A | 50.8 mm | 400.0 mm | $45.63 | 6 weeks | Add Cart | |
| BCX10819-A | 50.8 mm | 300.0 mm | $45.63 | today | Add Cart | |
| BCX10818-A | 50.8 mm | 250.0 mm | $45.63 | today | Add Cart | |
| BCX10817-A | 50.8 mm | 200.0 mm | $45.63 | today | Add Cart | |
| BCX10816-A | 50.8 mm | 175.0 mm | $45.63 | today | Add Cart | |
| BCX10815-A | 50.8 mm | 150.0 mm | $45.63 | today | Add Cart | |
| BCX10814-A | 50.8 mm | 125.0 mm | $45.63 | today | Add Cart | |
| BCX10813-A | 50.8 mm | 100.0 mm | $45.63 | today | Add Cart | |
| BCX10812-A | 50.8 mm | 75.0 mm | $45.63 | today | Add Cart | |
| BCX10811-A | 50.8 mm | 60.0 mm | $45.63 | today | Add Cart |
