Product Description
  • Optical Material: Borofloat Glass
  • Silicon Dioxide Protective Layer
  • Beam Convergence, Collimation, Collection and Imaging
  • Working Wavelength: 250 nm-600 nm
UV-enhanced aluminum-coated concave mirrors are highly suitable for beam focusing or collimation, as well as beam collection in a broad ultraviolet spectral range, offering high reflectivity across a wide spectrum. The reflection of the beam occurs on the metal-coated surface, eliminating chromatic aberration. However, metal coatings are prone to oxidation, discoloration, or peeling in high-humidity environments. LBTEK's UV-enhanced aluminum-coated mirrors feature a protective silicon dioxide layer on the surface to isolate the metal coating from direct contact with air, preventing oxidation and preserving optical performance. LBTEK offers three types of metal-coated mirrors: aluminum-coated, silver-coated, and gold-coated. All our mirrors undergo precision manufacturing and strict quality control to ensure that LBTEK provides high-quality lens products at reasonable prices. For customized metal mirror requests, please contact LBTEK Technical Support.
Attribute
Optical component materialBorofloat glass
Diameter tolerance+0.0/-0.15 mm
Operating Wavelength250 nm-600 nm
ReflectivityRavg>90%
Surface finish (scratches/pits)40/20
Surface irregularityλ/4 @ 633 nm

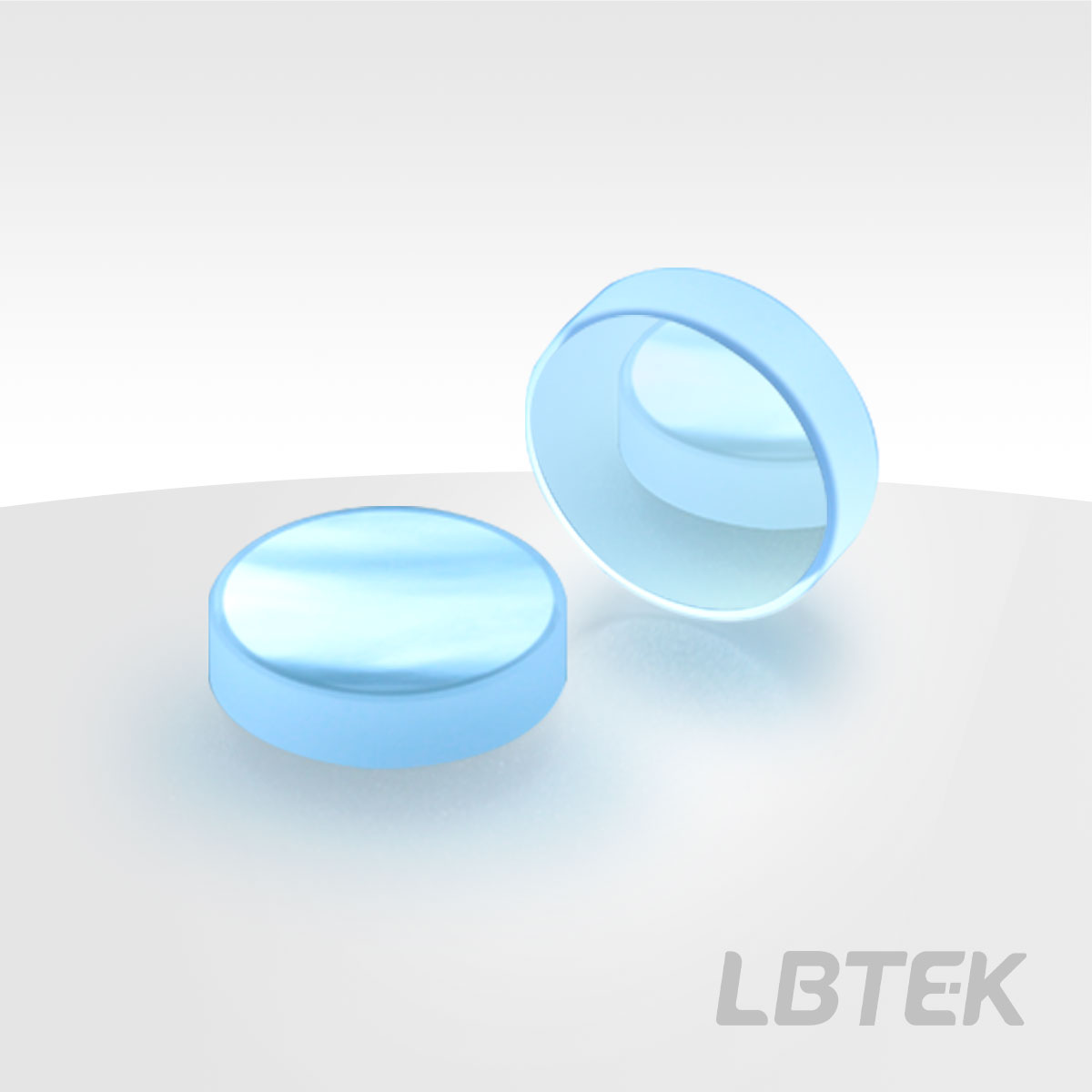

Metal Concave Reflector, UV-enhanced Aluminum Coating: 250 nm-600 nm
  • Substrate Material: Borofloat Glass
  • Silicon Dioxide Protective Layer
  • Beam Focusing, Collimation, Collection and Imaging
  • Operating Wavelength: 250 nm-600 nm
LBTEK offers concave mirrors coated with UV-enhanced aluminum film, which are highly suitable for beam focusing or collimation in the ultraviolet spectral range, as well as beam collection. They exhibit high reflectivity across a broad spectrum. The reflection of the beam occurs on the metal film surface without introducing chromatic aberration. Metal films are prone to oxidation, discoloration, or peeling in high-humidity environments. LBTEK's UV-enhanced aluminum-coated mirrors feature a layer of silicon dioxide protective coating on the surface to isolate the metal film from direct contact with air, preventing oxidation and preserving optical performance.

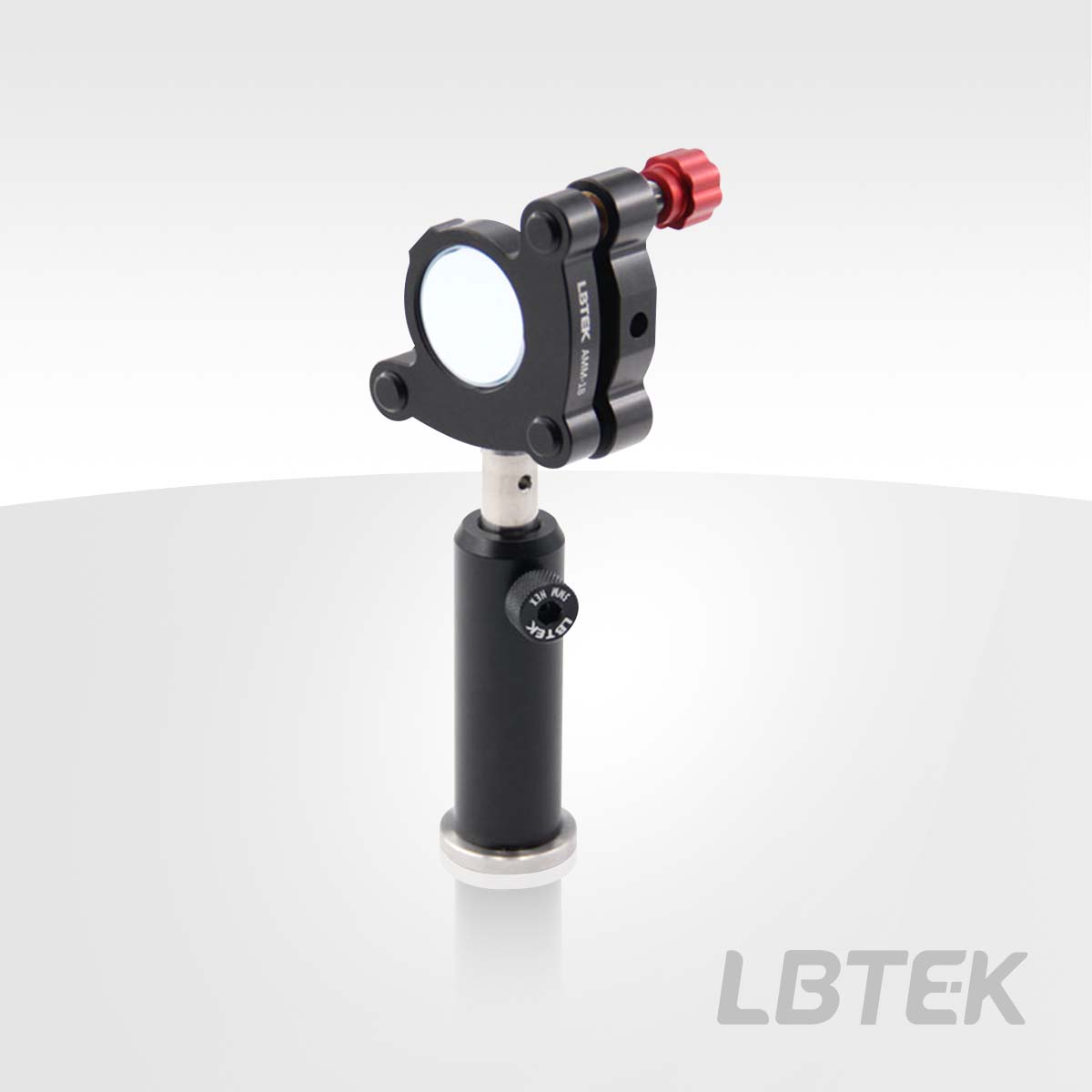

LBTEK mirror mounted in the mirror holder
Product Model
Optical component material
Diameter
Center Thickness
Focal length
Unit Price
Compare
Lead Time
CM10-F200-UVAL NewBorofloat 3325.4 mm6.0 mm-200.0 mm$56.616 weeks
CM10-F150-UVAL NewBorofloat 3325.4 mm6.0 mm-150.0 mm$56.616 weeks
CM10-F500-UVAL Borofloat 3325.4 mm6.27 mm-500.0 mm$68.126 weeks
CM10-F250-UVAL Borofloat 3325.4 mm6.0 mm-250.0 mm$56.61Contact
CM10-F100-UVAL Borofloat 3325.4 mm5.95 mm-100.0 mm$68.126 weeks
CM10-F50-UVAL Borofloat 3325.4 mm5.54 mm-50.0 mm$59.886 weeks
CM10-F25-UVAL Borofloat 3325.4 mm4.71 mm-25.0 mm$59.886 weeks
CM05-F250-UVAL Borofloat 3312.7 mm3.14 mm-250.0 mm$39.096 weeks
CM05-F100-UVAL Borofloat 3312.7 mm3.08 mm-100.0 mm$39.096 weeks
CM05-F25-UVAL Borofloat 3312.7 mm2.78 mm-25.0 mm$39.096 weeks
CM05-F50-UVAL Borofloat 3312.7 mm2.98 mm-50.0 mm$49.556 weeks
