Plano-Convex (PCX) Lenses, N-BK7, Uncoated: 350 nm-2.0 μm

Specifications
Curve
Assembly
Tutorial
Application
Feedback
Product Description
  • Substrate: N-BK7
  • Operating Wavelength: 350 nm-2 μm
  • Application: Beam expansion, imaging, beam reduction
Plano-convex lenses, with one convex side and one flat side, have a positive focal length and are commonly used in applications such as beam reduction, focal length beam reduction, or image magnification. To reduce spherical aberration, plano-convex lenses are used to focus collimated beams so that the beam is incident on a curved surface. When used to collimate point light sources, the beam is incident on a flat surface. LBTEK offers lenses using N-BK7, a common substrate used in visible and near-infrared applications. Our lenses are meticulously machined and rigorously quality-controlled, ensuring that LBTEK provides high-quality lenses at reasonable prices.
Attribute
Optical component materialN-BK7
Surface finish (scratches/pits)40/20
Design wavelength587.6 nm
Curved Aperture3
Local surface irregularity0.5
Eccentricity≤3 arcmin
Plano-Convex (PCX) Lenses, N-BK7, Uncoated: 350 nm-2.0 μm
  • Substrate Material: N-BK7
  • Operating Wavelength: 350 nm-2µm
  • Application: Imaging, Collimation, Beam Expansion
  • Mounted in Mechanical Housing

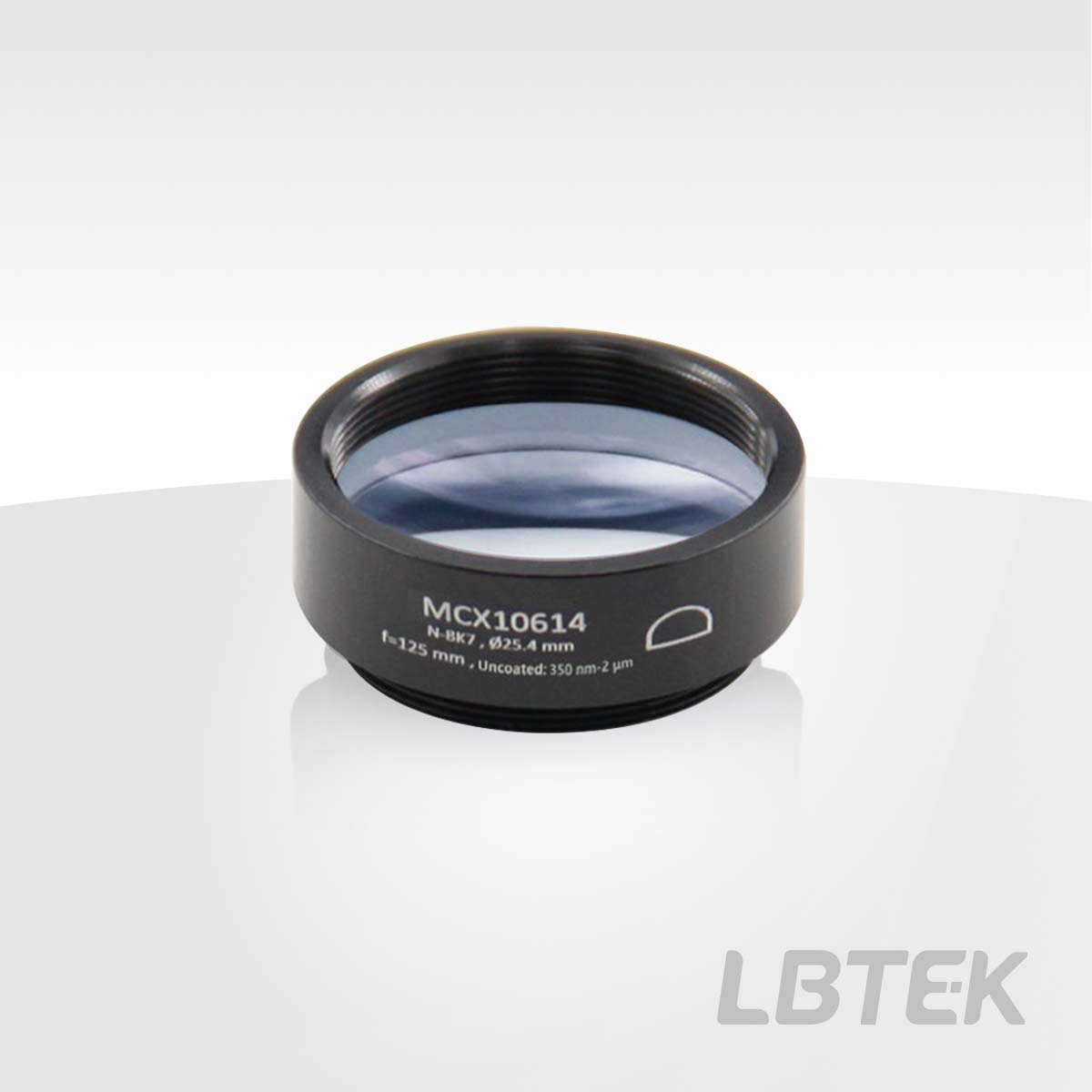

LBTEK plano-convex lenses have positive focal lengths and are commonly used in applications such as imaging or beam collimation. LBTEK plano-convex lenses are manufactured using N-BK7 glass that complies with RoHS standards. N-BK7 is the most commonly used material for high-quality optical components, primarily applied in visible and near-infrared fields. All circular lenses from LBTEK come mounted in standard lens tubes or lens mounting adapters. These mechanical components are engraved with product model, type, diameter, and focal length for easy identification.

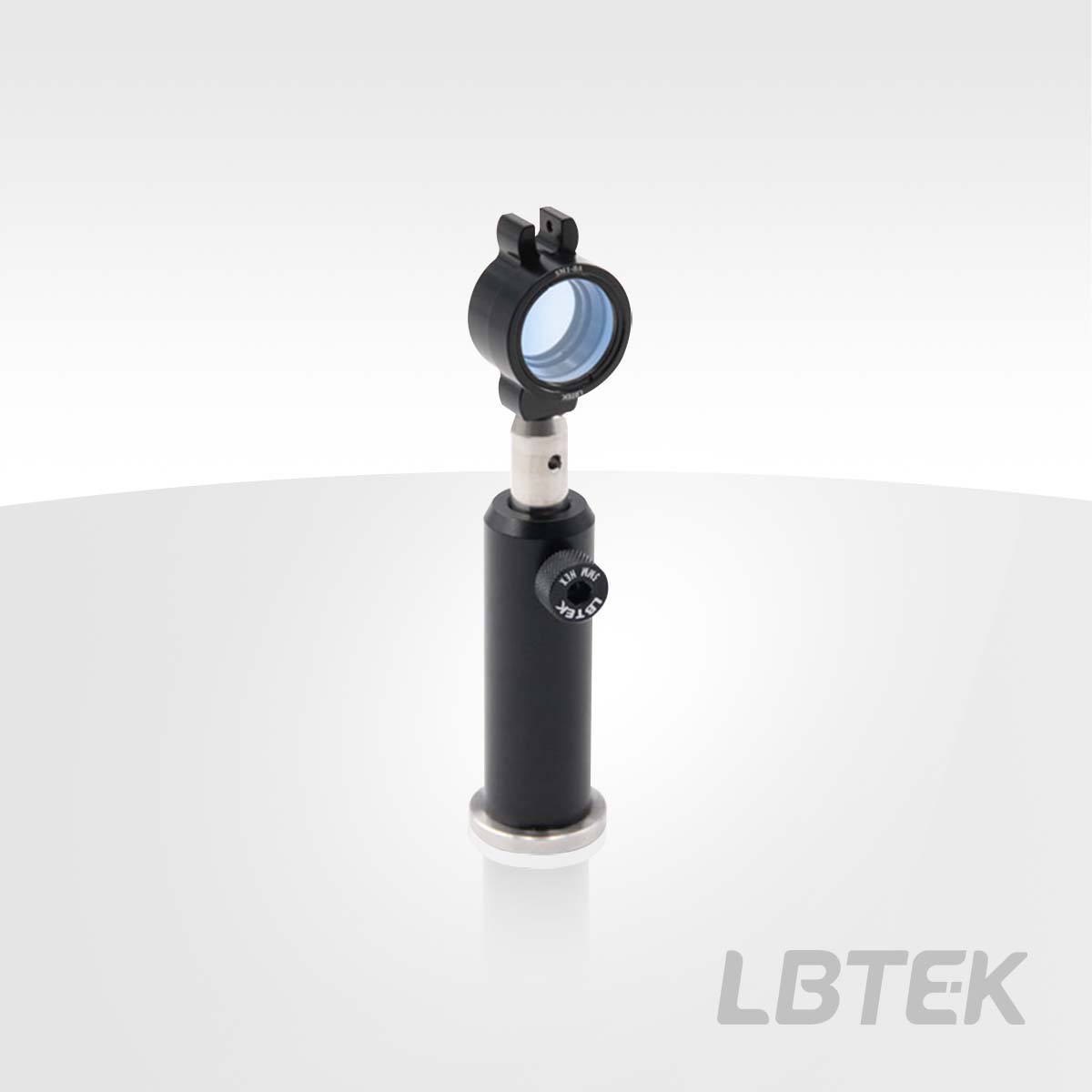

The LBTEK lens housing is engraved with product model and other information.

Product Model
Diameter
Focal length
Unit Price
Compare
Lead Time
MCX10822 50.8 mm750.0 mm$49.29today
MCX10821 50.8 mm500.0 mm$48.64today
MCX10820 50.8 mm400.0 mm$48.64today
MCX10818 50.8 mm250.0 mm$49.68today
MCX10817 50.8 mm200.0 mm$47.72today
MCX10816 50.8 mm175.0 mm$48.64today
MCX10815 50.8 mm150.0 mm$35.3today
MCX10814 50.8 mm125.0 mm$48.64today
MCX10823 50.8 mm1000.0 mm$49.29today
MCX10819 50.8 mm300.0 mm$54.52today
MCX10813 50.8 mm100.0 mm$48.64today
MCX10812 50.8 mm75.0 mm$49.29today
MCX10810 50.8 mm60.0 mm$48.64today
MCX10623 25.4 mm1000.0 mm$32.69today
MCX10622 25.4 mm750.0 mm$32.69today
MCX10621 25.4 mm500.0 mm$32.69today
MCX10620 25.4 mm400.0 mm$32.69today
MCX10619 25.4 mm300.0 mm$32.69today
MCX10618 25.4 mm250.0 mm$32.69today
MCX10617 25.4 mm200.0 mm$32.69today
MCX10616 25.4 mm175.0 mm$33.08today
MCX10615 25.4 mm150.0 mm$33.34today
MCX10614 25.4 mm125.0 mm$33.34today
MCX10613 25.4 mm100.0 mm$33.34today
MCX10612 25.4 mm75.0 mm$33.34today
MCX10611 25.4 mm60.0 mm$33.34today
MCX10610 25.4 mm50.0 mm$33.73today
MCX10609 25.4 mm40.0 mm$33.34today
MCX10608 25.4 mm35.0 mm$34.78today
MCX10607 25.4 mm30.0 mm$33.73today
MCX10606 25.4 mm25.4 mm$34.78today
MCX10510 25.0 mm50.0 mm$34.12today
MCX10506 25.0 mm25.4 mm$34.25today
MCX10313 12.7 mm100.0 mm$28.24today
MCX10310 12.7 mm50.0 mm$28.24today
MCX10309 12.7 mm40.0 mm$28.24today
MCX10307 12.7 mm30.0 mm$28.24today
MCX10305 12.7 mm25.0 mm$28.24today
MCX10303 12.7 mm15.0 mm$28.24today
MCX10304 12.7 mm20.0 mm$28.24today

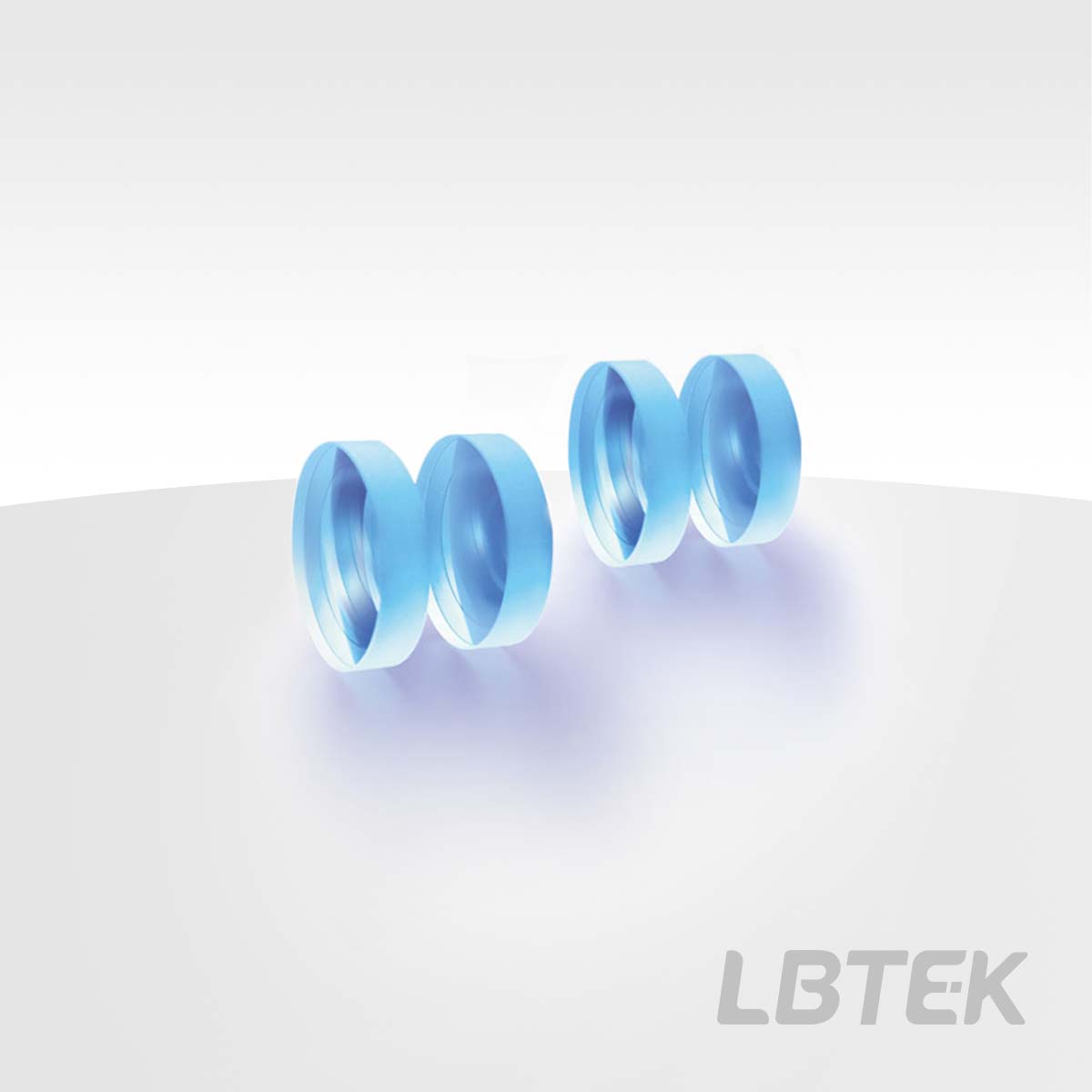

Plano-Convex (PCX) Lenses, N-BK7, Uncoated: 350 nm-2.0 μm, Unmounted
  • Substrate Material: N-BK7
  • Operating Wavelength: 350 nm-2.0 µm
  • Application: Imaging, Collimation, Beam Expansion

LBTEK plano-convex lenses have positive focal lengths and are commonly used in applications such as imaging or beam collimation. LBTEK plano-convex lenses use N-BK7 glass that complies with RoHS standards. N-BK7 is the most commonly used material for high-quality optical components, primarily applied in visible and near-infrared fields. All circular lenses from LBTEK can be mounted in LBTEK standard lens tubes, fixed lens mounts, and various coaxial mounting plates. Customers can choose the optimal mounting method for different application scenarios.

LBTEK unmounted lens is  suitable for building compact systems.

Product Model
Diameter
Focal length
Unit Price
Compare
Lead Time
CX10919 75.0 mm300.0 mm$81.84today
CX10917 75.0 mm200.0 mm$85.11today
CX10915 75.0 mm150.0 mm$85.11today
CX10822 50.8 mm750.0 mm$35.82today
CX10821 50.8 mm500.0 mm$32.69today
CX10820 50.8 mm400.0 mm$32.69today
CX10818 50.8 mm250.0 mm$35.82today
CX10817 50.8 mm200.0 mm$31.25today
CX10816 50.8 mm175.0 mm$35.82today
CX10815 50.8 mm150.0 mm$31.25today
CX10814 50.8 mm125.0 mm$31.25today
CX10823 50.8 mm1000.0 mm$35.82today
CX10819 50.8 mm300.0 mm$32.69today
CX10812 50.8 mm75.0 mm$33.73today
CX10810 50.8 mm60.0 mm$34.78today
CX10713 30.0 mm100.0 mm$25.16 weeks
CX10623 25.4 mm1000.0 mm$20.13today
CX10622 25.4 mm750.0 mm$20.4today
CX10621 25.4 mm500.0 mm$20.4today
CX10620 25.4 mm400.0 mm$20.4today
CX10619 25.4 mm300.0 mm$20.4today
CX10618 25.4 mm250.0 mm$20.4today
CX10617 25.4 mm200.0 mm$20.66today
CX10616 25.4 mm175.0 mm$20.92today
CX10615 25.4 mm150.0 mm$21.31today
CX10614 25.4 mm125.0 mm$21.57today
CX10613 25.4 mm100.0 mm$21.57today
CX10612 25.4 mm75.0 mm$22.1today
CX10611 25.4 mm60.0 mm$22.1today
CX10610 25.4 mm50.0 mm$22.75today
CX10609 25.4 mm40.0 mm$22.75today
CX10608 25.4 mm35.0 mm$22.75today
CX10607 25.4 mm30.0 mm$23.14today
CX10606 25.4 mm25.4 mm$23.4today
CX10510 25.0 mm50.0 mm$23.01today
CX10506 25.0 mm25.4 mm$24.32today
CX10405 18.0 mm25.0 mm$21.7today
CX10404 18.0 mm20.0 mm$22.36today
CX10313 12.7 mm100.0 mm$18.96today
CX10310 12.7 mm50.0 mm$18.96today
CX10309 12.7 mm40.0 mm$18.96today
CX10307 12.7 mm30.0 mm$19.35today
CX10305 12.7 mm25.0 mm$19.09today
CX10304 12.7 mm20.0 mm$19.74today
CX10303 12.7 mm15.0 mm$19.87today
CX10204 9.0 mm20.0 mm$18.57today
CX10202 9.0 mm12.0 mm$19.09today
CX10007 6.0 mm30.0 mm$18.176 weeks
CX10003 6.0 mm15.0 mm$18.17today
CX10813 50.8 mm100.0 mm$31.51today
