Product Description
- Optical Material: UV Fused Silica
- Operating Wavelength: 400 nm-700 nm
LBTEK offers precision UV fused silica windows with excellent transmission performance from the ultraviolet to near-infrared spectrum. For details, see the transmittance curve.
LBTEK provides uncoated windows, as well as anti-reflection coated windows for 250 nm-400 nm, 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1650 nm wavelength ranges. Various thicknesses are available, and customized services for special sizes and coating specifications can also be provided. For inquiries, please contact LBTEK Technical Support.
Attribute
Optical component materialUV fused silica
Operating Wavelength400 nm -700 nm
Surface Flatness (@633 nm)λ/10
Surface finish (scratches/pits)20/10
Clear Aperture90% CA
Surface Parallelism≤5 arcsec

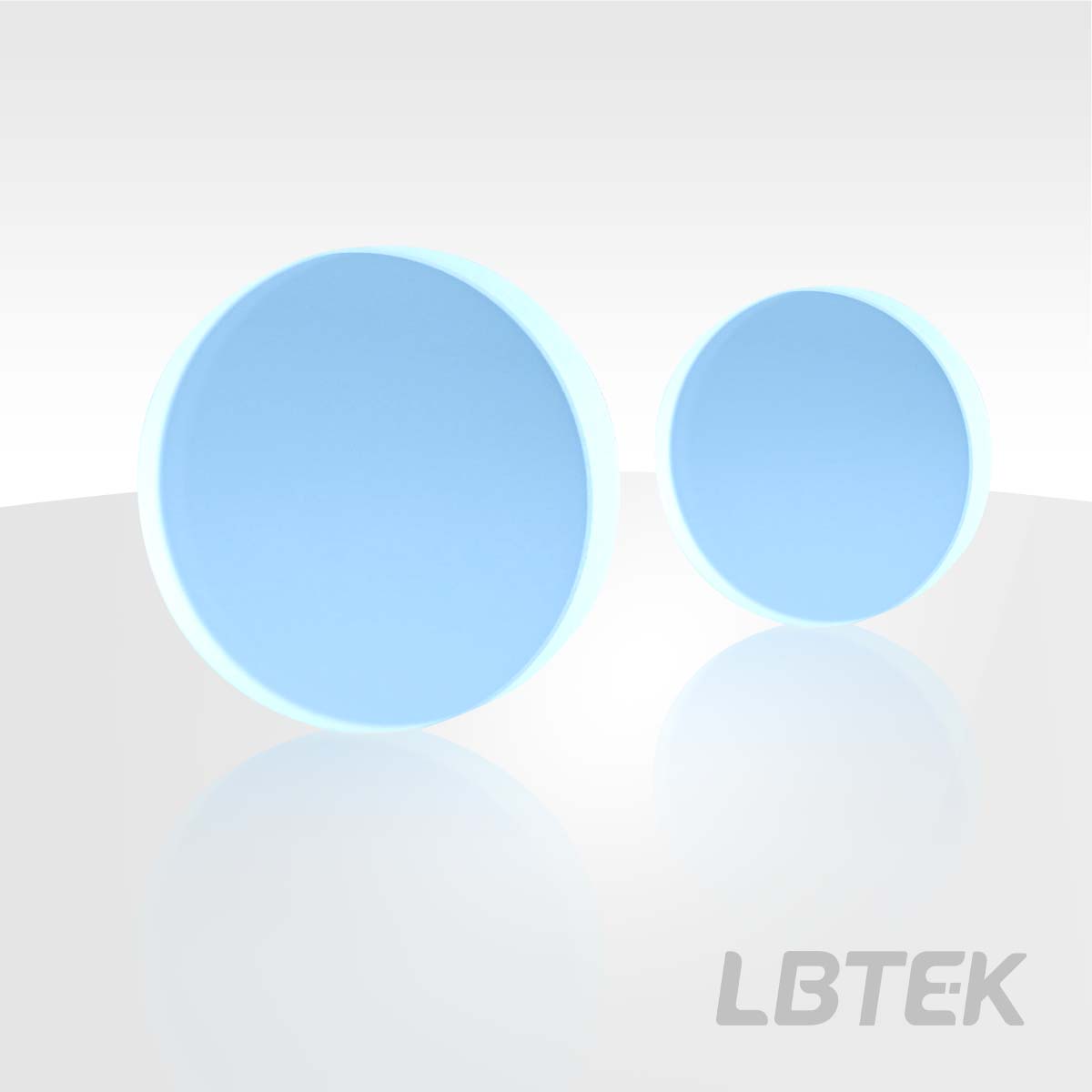

UV Fused Silica Windows, AR Coating: 400 nm-700 nm
- Optical Material: UV Fused Silica
- Operating Wavelength: 400 nm-700 nm
UV fused silica windows exhibit high transmittance from the ultraviolet to near-infrared spectral range. All LBTEK circular windows can be mounted in LBTEK standard lens tubes, fixed lens mounts, and various coaxial mounting plates. Customers can select the optimal mounting solution for different application scenarios.

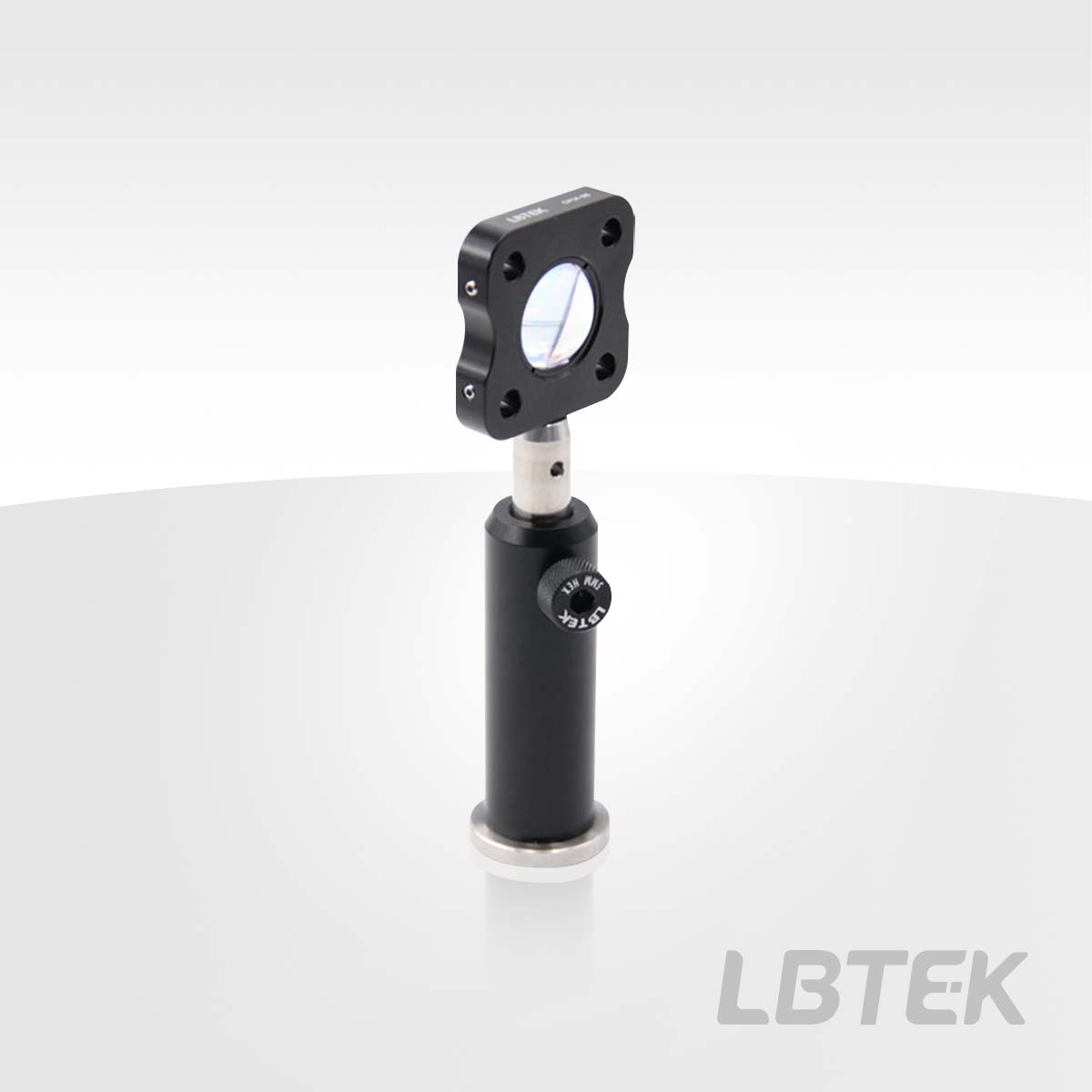

LBTEK window installed in the coaxial plate
Product Model | Optical component material | Diameter | Thickness | Clear Aperture | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
| OW22-A | UV fused silica | 25.4 mm | 5.0 mm | 90% CA | $97.93 | today | |||
| OW21-A | UV fused silica | 12.7 mm | 3.0 mm | 90% CA | $87.73 | today | |||
| OW22-532-SP New | UV fused silica | 25.4 mm | 5.0 mm | 90% CA | $107.73 | today |
