Product Description
- Purpose: Deflecting light path
- Broadband dielectric coating, Hypotenuse-coated
- Working wavelength: 400 nm-750 nm, 750 nm-1100 nm
- Optical material: N-BK7
Mirrors are used to redirect light beams. LBTEK's N-BK7 broadband dielectric reflective coating boasts a reflectivity exceeding 99% across the operating wavelength range. LBTEK offers right-angle prism dielectric mirrors in various sizes. LBTEK also offers custom mirrors made of other materials and coatings. For custom requirements, please contact our technical support team.
Diagram
Attributes
MaterialN-BK7
Operating Wavelength400 nm-750 nm 、750 nm-1100 nm
ReflectivityRavg>99% (45° angle of incidence)
Surface Flatness (@633 nm)λ/10
Angular tolerance±3 arcmin
Surface Quality (Scratch/Dig)10/5
CoatingBevel edge coating

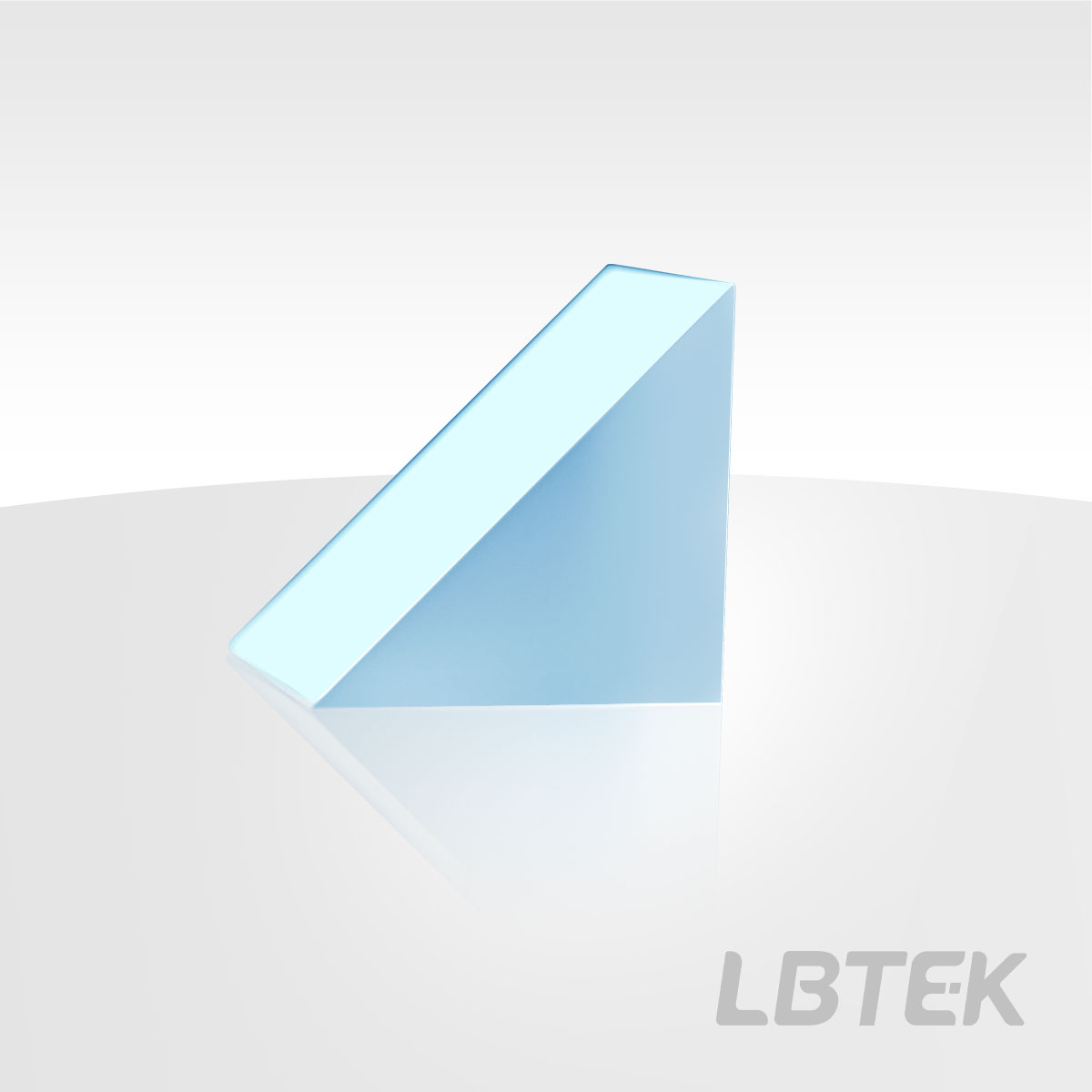

Broadband Dielectric Mirrors, Hypotenuse-Coated, Right-Angle Prisms
- Hypotenuse-Coated
- Application: Beam deflection
- Optical material: N-BK7
A mirror is used to change the direction of the light beam. LBTEK's broadband dielectric reflective coating achieves a reflectivity of over 99% within the working wavelength range. LBTEK offers various sizes of right-angle prism dielectric mirrors. Additionally, LBTEK provides customized services for mirrors with other materials and coatings. For customization needs, please contact our technical support.

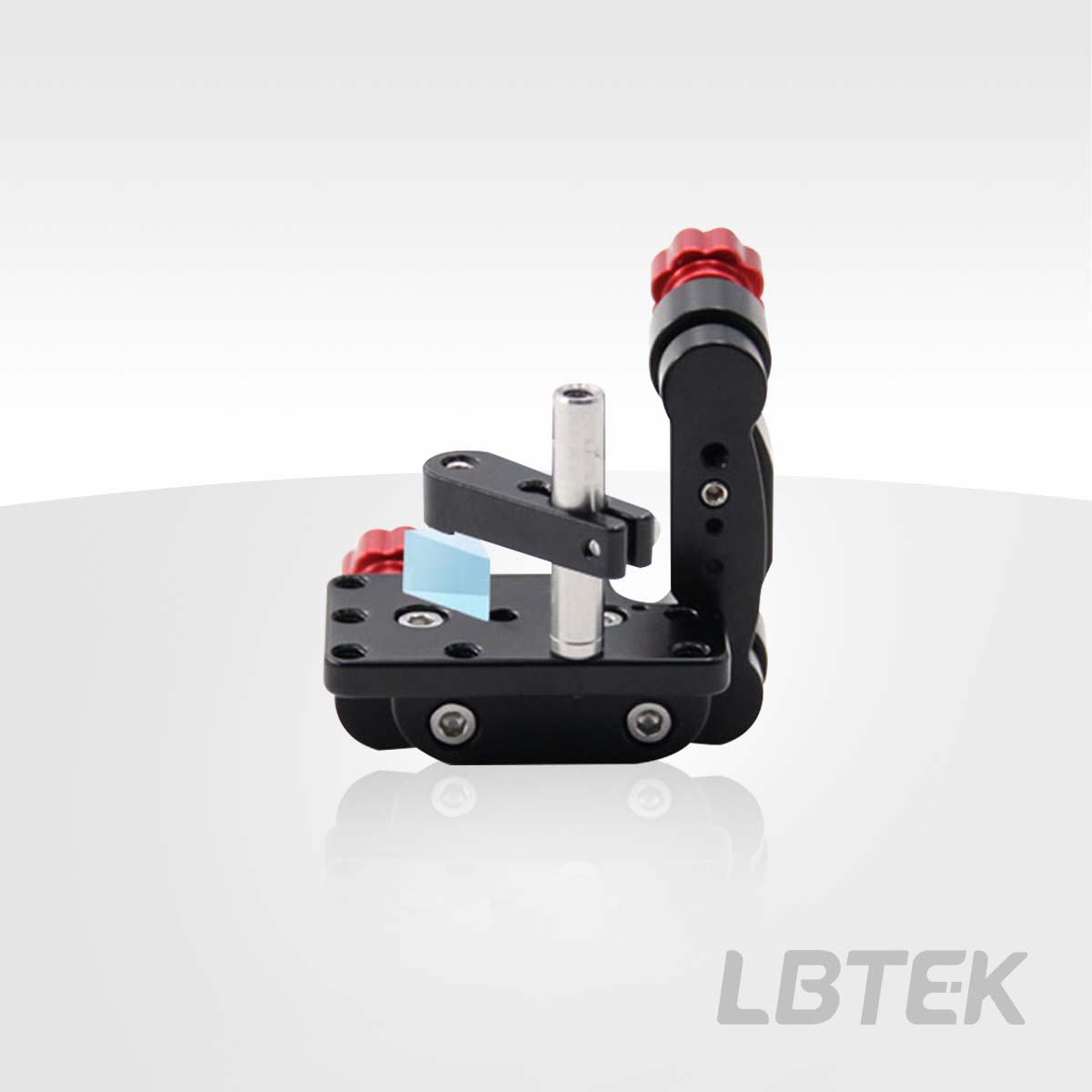

LBTEK right-angle prism mirror mounted in the prism mount
Product Model | Operating Wavelength | Size | Clear Aperture | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
 | RAP120-A | 400 nm-750 nm | 20.0 mm×20.0 mm×20.0 mm | 70% L x W | $131.79 | today | Add Cart | |
| RAP112-A | 400 nm-750 nm | 12.5 mm×12.5 mm×12.5 mm | 70% L x W | $119.37 | today | Add Cart | |
| RAP105-A | 400 nm-750 nm | 5.0 mm×5.0 mm×5.0 mm | 70% L x W | $88.12 | today | Add Cart | |
| RAP125-A | 400 nm-750 nm | 25.0 mm×25.0 mm×25.0 mm | 70% L x W | $149.44 | today | Add Cart | |
| RAP110-A | 400 nm-750 nm | 10.0 mm×10.0 mm×10.0 mm | 70% L x W | $104.85 | today | Add Cart | |
| RAP125-B | 750 nm-1100 nm | 25.0 mm×25.0 mm×25.0 mm | 70% L x W | $152.44 | today | Add Cart | |
| RAP120-B | 750 nm-1100 nm | 20.0 mm×20.0 mm×20.0 mm | 70% L x W | $134.40 | today | Add Cart | |
| RAP112-B | 750 nm-1100 nm | 12.5 mm×12.5 mm×12.5 mm | 70% L x W | $123.03 | today | Add Cart | |
| RAP110-B | 750 nm-1100 nm | 10.0 mm×10.0 mm×10.0 mm | 70% L x W | $107.99 | today | Add Cart | |
| RAP105-B | 750 nm-1100 nm | 5.0 mm×5.0 mm×5.0 mm | 70% L x W | $89.95 | today | Add Cart |
