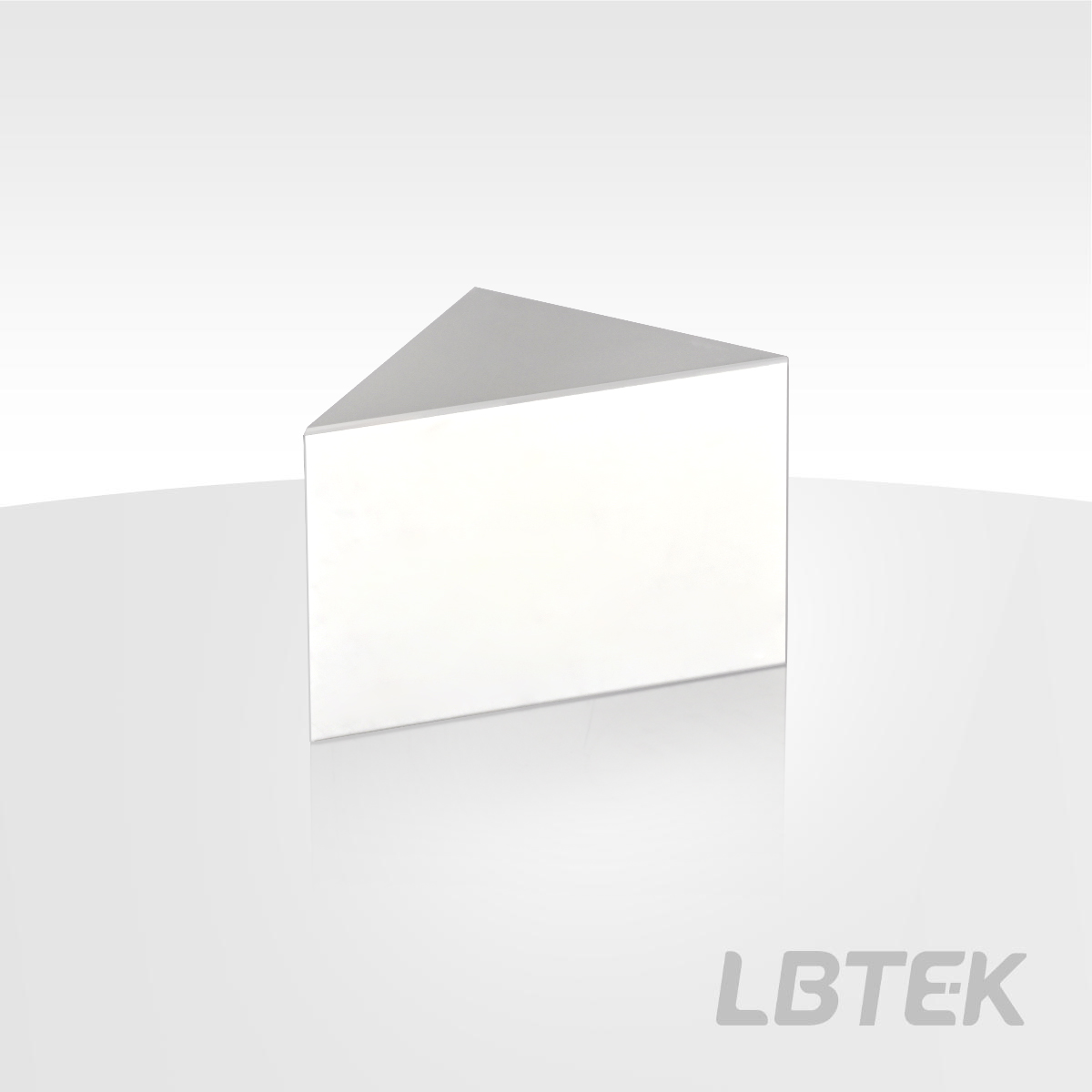

Product Description
- Purpose: Deflecting light path
- Silver coating, Hypotenuse-Coated
- Operating wavelength: 450 nm-20.0 μm
- Optical material: N-BK7
Mirrors are used to redirect light beams. LBTEK's N-BK7 broadband metallic silver coating offers a reflectivity greater than 96% within the operating wavelength range. LBTEK offers a variety of sizes of right-angle prism metal-coated mirrors. LBTEK also offers custom mirrors made of other materials and coatings. For custom requirements, please contact our technical support team.

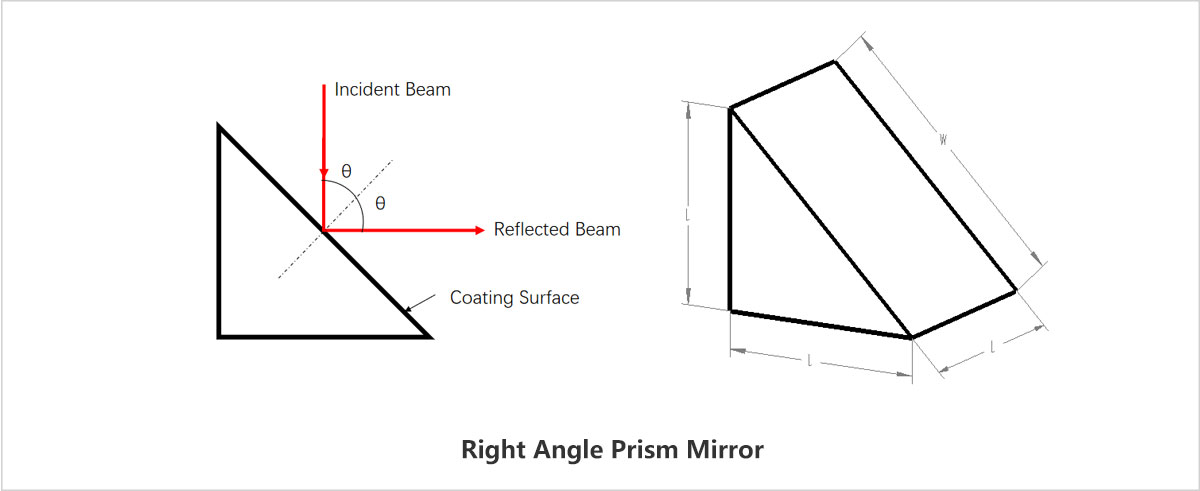

Diagram
Attributes
MaterialN-BK7
Angular tolerance±3 arcmin
Operating Wavelength450 nm-20.0 μm
CoatingBevel edge coating
ReflectivityRavg>96% (6° incidence angle)
Surface Flatness (@633 nm)λ/10
Surface Quality (Scratch/Dig)40/20
Broadband Metal-Coated Right-Angle Prism Mirrors, Silver Coating, 450 nm-20.0 μm, Right-Angle Prisms
- Application: Beam deflection
- Optical material: N-BK7
- Working wavelength: 450 nm-20.0 μm
Mirrors are used to redirect light beams. LBTEK's broadband metallic silver coatings offer a reflectivity greater than 96% within the operating wavelength range. LBTEK offers right-angle prism dielectric coating mirrors in various sizes. LBTEK also offers custom mirrors made of other substrates and coatings. For custom requirements, please contact our technical support.

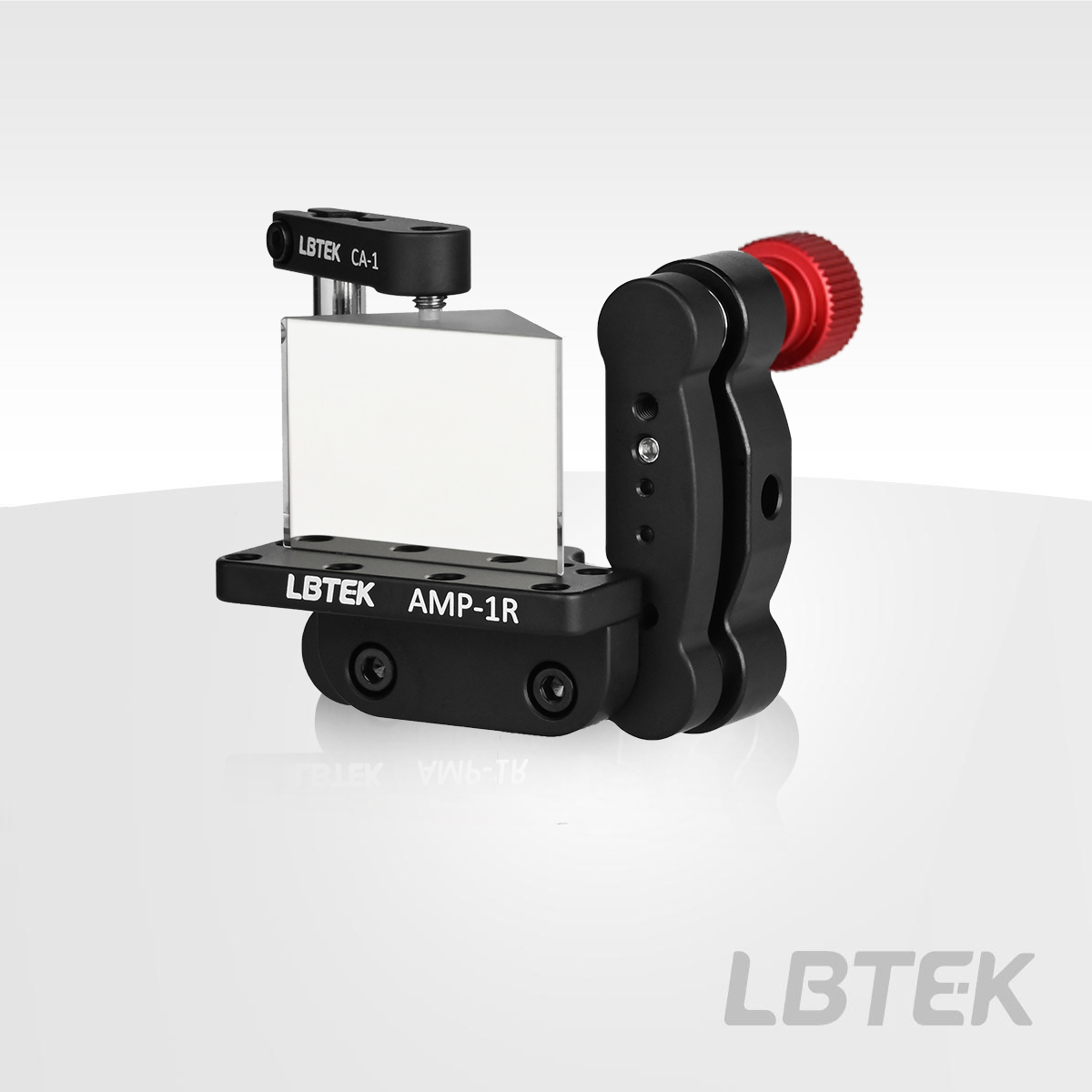

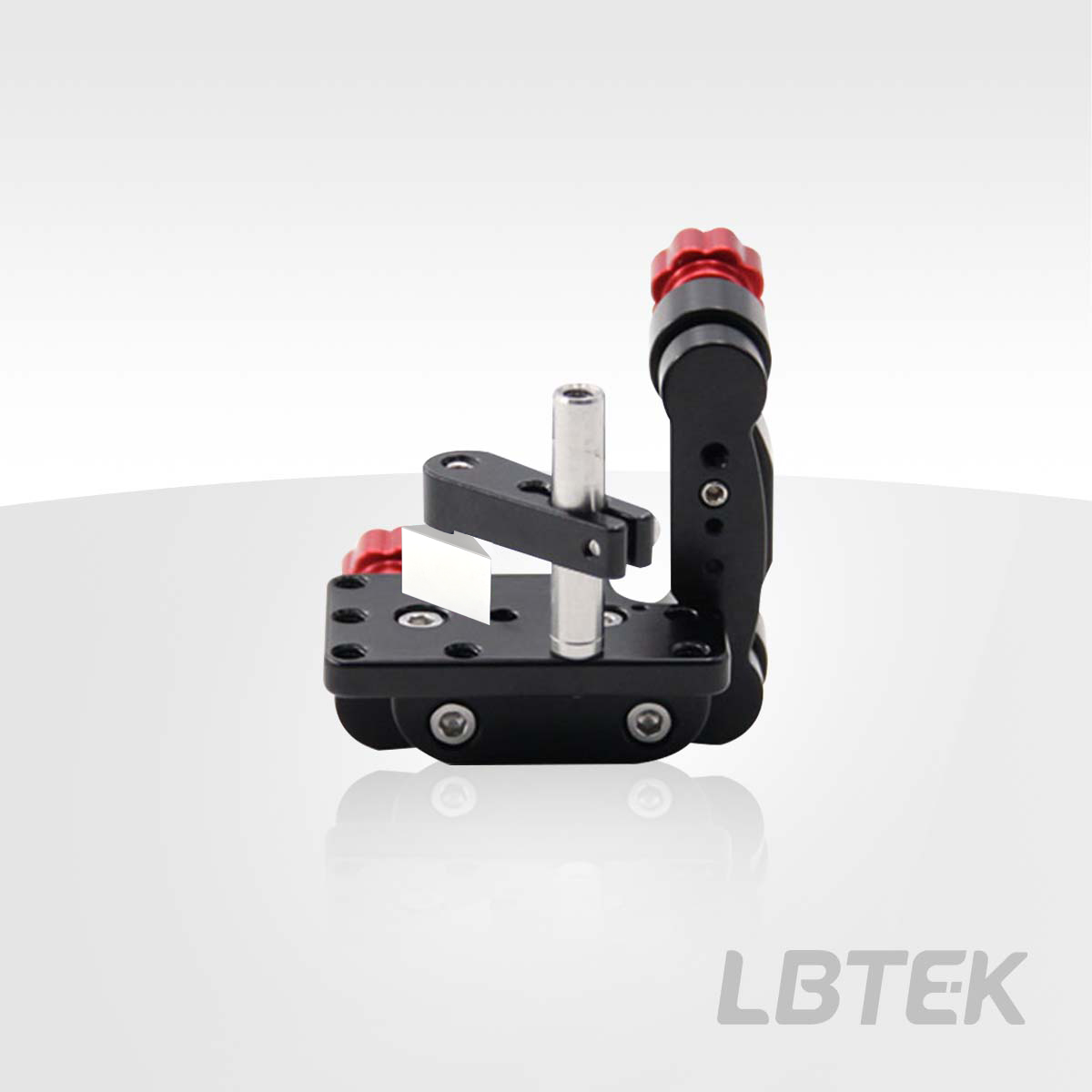

LBTEK right-angle prism mirror mounted in the prism mount
Product Model | Material | Size | Reflectivity | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
 | RAP105-AG | N-BK7 | 5.0 mm×5.0 mm×5.0 mm | Ravg>96%a (45° angle of incidence) | $54.91 | today | Add Cart | |
| RAP110-AG | N-BK7 | 10.0 mm×10.0 mm×10.0 mm | Ravg>96%a (45° angle of incidence) | $63.41 | today | Add Cart | |
| RAP112-AG | N-BK7 | 12.5 mm×12.5 mm×12.5 mm | Ravg>96%a (45° angle of incidence) | $72.69 | today | Add Cart | |
| RAP120-AG | N-BK7 | 20.0 mm×20.0 mm×20.0 mm | Ravg>96%a (45° angle of incidence) | $78.71 | today | Add Cart | |
| RAP125-AG | N-BK7 | 25.0 mm×25.0 mm×25.0 mm | Ravg>96%a (45° angle of incidence) | $86.29 | today | Add Cart |
