Product Description

The optimal choice for high-power applications
Best performance design for spherical single lenses
Achieves diffraction-limited performance with small input beam diameters
Operating wavelength: 400 nm-700 nm (with anti-reflection coating)

LBTEK Best Form Lenses are specifically designed to minimize spherical aberration in spherical lens systems. For spherical lenses, a given focal length can be achieved with different combinations of surface radii, but each configuration introduces varying levels of spherical error. Best form lenses optimize the radii of curvature on both surfaces to achieve the lowest spherical aberration, making them ideal for use at infinite conjugates. LBTEK Best Form Lenses are manufactured from RoHS-compliant N-BK7 glass, one of the most widely used materials for high-quality optical components. To meet diverse application needs, LBTEK offers both uncoated best form lenses and AR-coated versions optimized for 400–700 nm, 700–1100 nm, and 1100–1650 nm. All lenses undergo precision manufacturing and strict quality control, ensuring that LBTEK delivers high-performance optical components at competitive prices.

Attribute

Optical component materialN-BK7

Operating Wavelength400 nm-700 nm

Surface finish (scratches/pits)20/10

Curved Aperture3

Focal length tolerance±1%

Local surface irregularity0.5

Design wavelength587.6 nm

Eccentricity≤3 arcmin

Best Form Lens, N-BK7, AR Coating: 400 nm-700 nm

Substrate Material: N-BK7
Operating Wavelength: 400 nm-700 nm (AR Coating)
Application: Imaging, Beam Collimation, Focusing

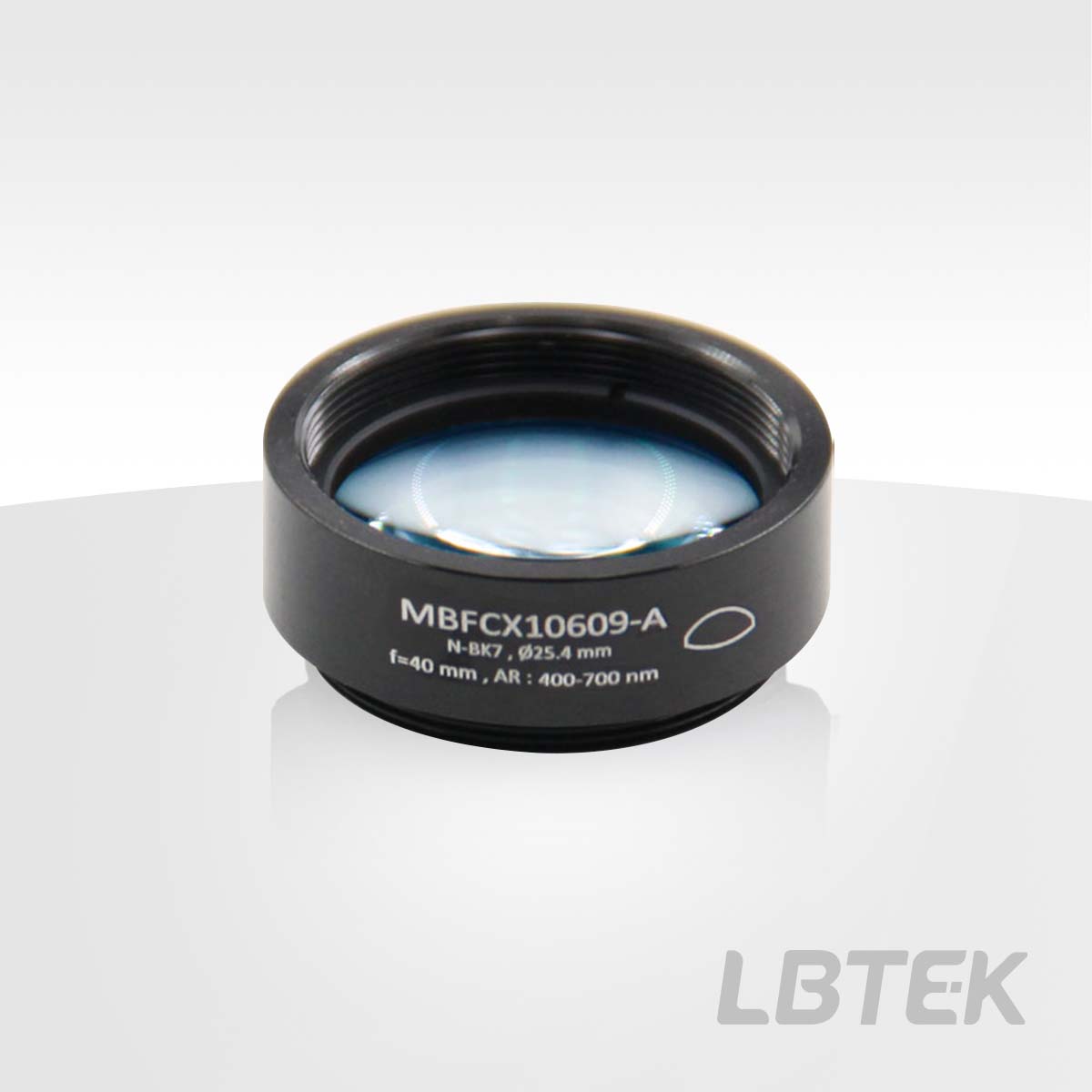

LBTEK's best form lenses are an ideal replacement for cemented lenses in high-power applications at infinite conjugates. Since best form lenses can optimize the spot size to the minimum, they theoretically achieve diffraction-limited performance. To obtain the best focusing effect, the surface with a smaller radius of curvature should face the collimated light source. All circular lenses from LBTEK come pre-installed with standard lens sleeves or lens mounting adapters. These mechanical components are engraved with the product model, type, diameter, and focal length for easy identification of lens parameters by users.

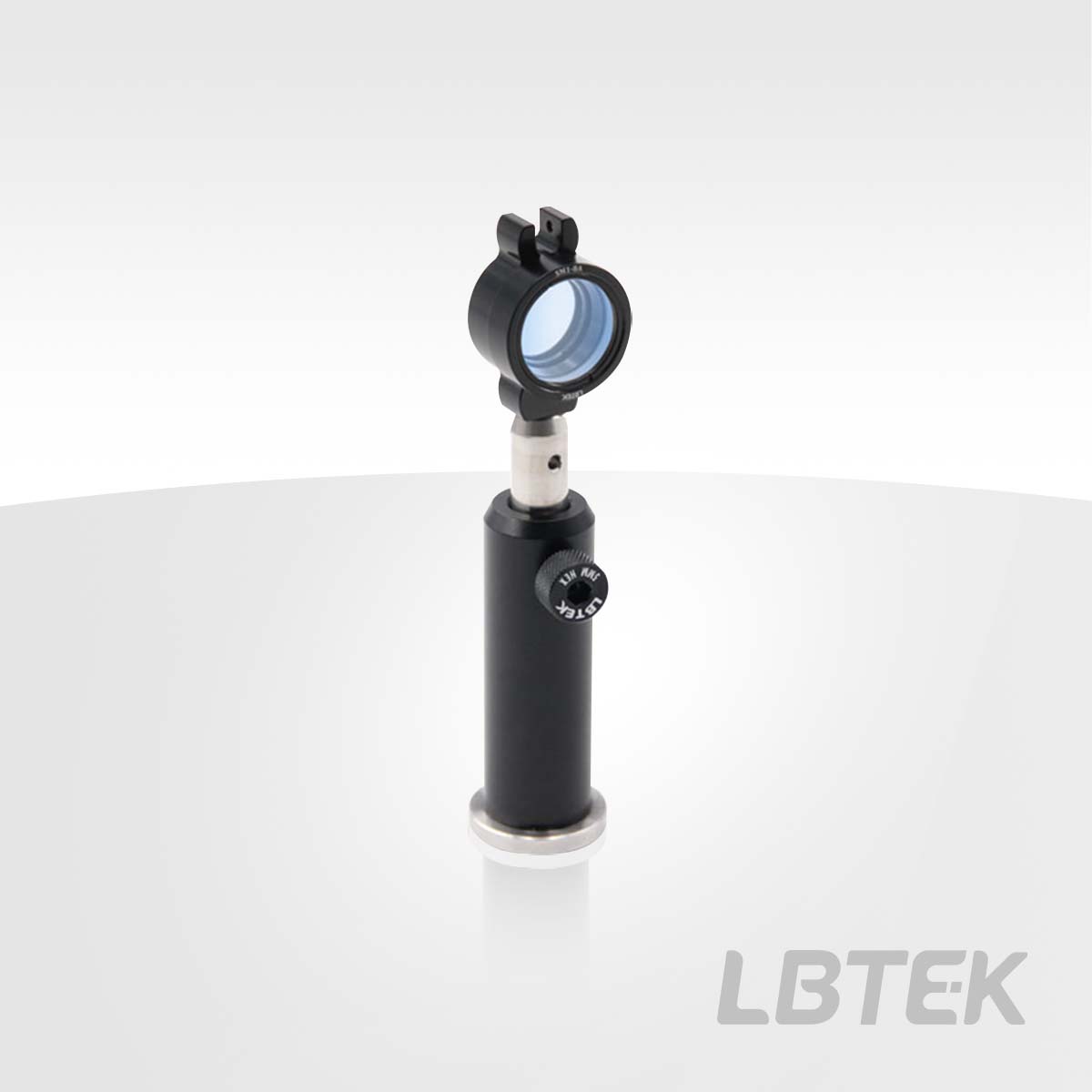

The LBTEK lens housing surface is engraved with product model and other information.

	Product Model	Diameter	Focal length	Unit Price	Compare	Lead Time
	MBFCX10609-A	25.4 mm	40.0 mm	$63.93		6 weeks
	MBFCX10613-A	25.4 mm	100.0 mm	$63.93		6 weeks

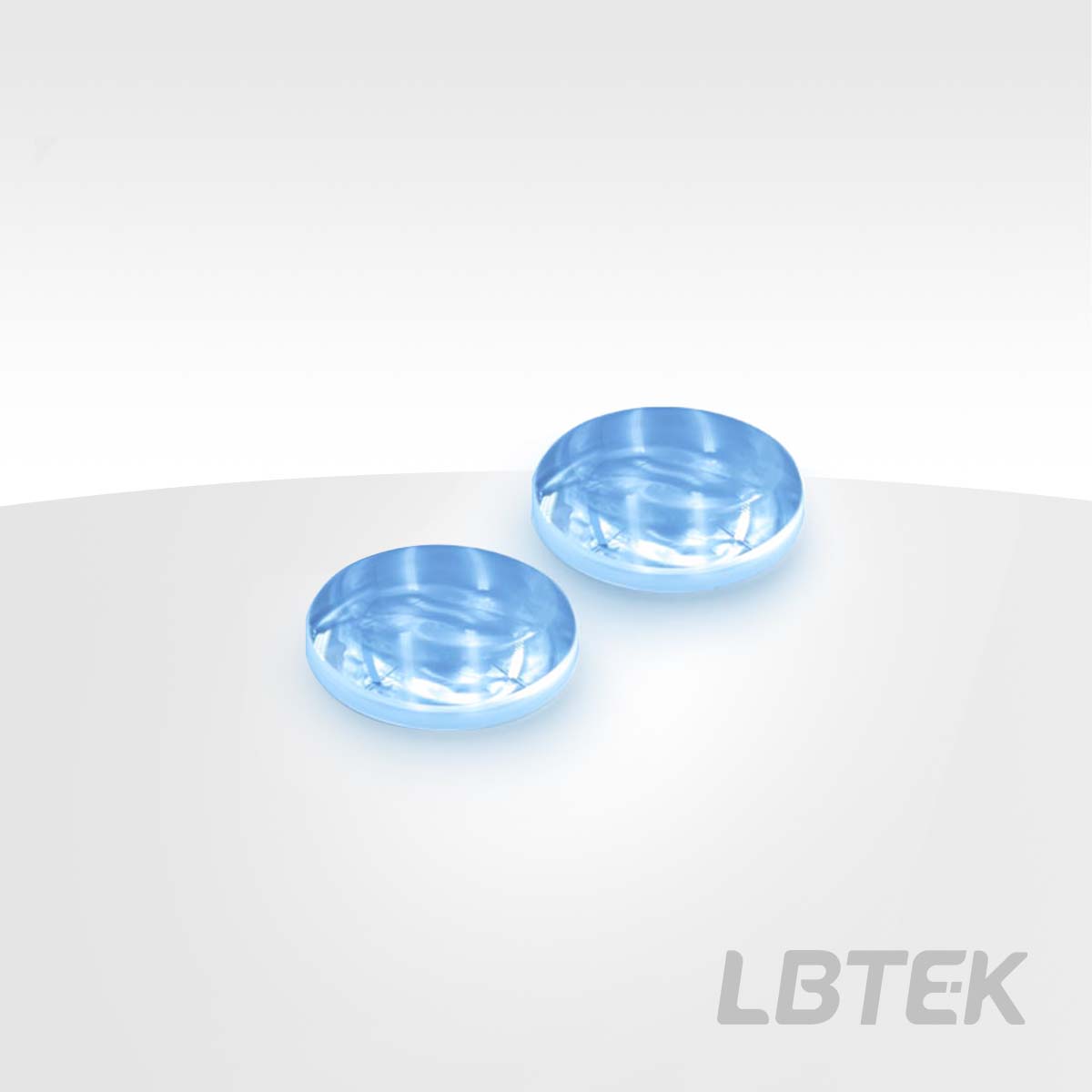

Best Form Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted

Substrate Material: N-BK7
Operating Wavelength: 400 nm-700 nm (AR Coating)
Application: Imaging, Beam Collimation, Focusing

LBTEK's best-form lenses are an ideal replacement for cemented lenses in high-power applications at infinite conjugates. Since best-form lenses can optimize the spot size to the minimum, they theoretically achieve diffraction-limited performance. To obtain the best focusing effect, the surface with a smaller radius of curvature should face the collimated light source. All circular lenses from LBTEK can be mounted in LBTEK standard lens sleeves, fixed lens mounts, and various coaxial mounting plates. Customers can choose the optimal mounting method for different application scenarios.

LBTEK lens not installed, suitable for building compact systems

Product Model	Diameter	Focal length	Unit Price	Lead Time
BFCX10617-A	25.4 mm	200.0 mm	$50.73	7 weeks
BFCX10615-A	25.4 mm	150.0 mm	$50.47	7 weeks
BFCX10610-A	25.4 mm	50.0 mm	$50.47	7 weeks
BFCX10612-A	25.4 mm	75.0 mm	$50.47	7 weeks
BFCX10613-A	25.4 mm	100.0 mm	$51.9	6 weeks
BFCX10609-A	25.4 mm	40.0 mm	$52.56	6 weeks
