- For mounting optical components such as prisms and cubes
- ±4° pitch and yaw adjustment with 0.4° per rotation
- Compatible with adjustable clamping arms or adjustable mirror mounts
- The post has an M4 threaded hole at the top and an M4 stud at the bottom
- Maximum clamping height 24.7 mm, 40 mm, 60 mm
- Extendable length
LBTEK Height-Adjustable Clamping Arm is used to press cubic optical components onto the platform, featuring an M4 mounting stud at the bottom. The clamping height options are 24.7 mm, 40 mm, and 60 mm.
Securing the prism with the adjustable 2D prism mount
Product Model | Maximum clamping height | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|
| CA-3 | 60 mm | $20.26 | 5 weeks | |||
| CA-2 | 40 mm | $18.96 | 5 weeks | |||
| CA-1 | 24.7 mm | $17 | 6 weeks |
- Extension post with a top M4 threaded hole and a bottom M4 stud
- Available in lengths of 31.5 mm, 50 mm, and 71 mm
- Extendable length
The LBTEK Clamping Arm Height Extension Post can be threaded onto the clamping arm to increase the height. It comes in three models: CA-1E, CA-2E, and CA-3E, with lengths of 31.5 mm, 50 mm, and 71 mm respectively.
Extending the clamping arm's length
Product Model | Extented length | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|
| CA-3E | 71 mm | $5.62 | 4 weeks | |||
| CA-2E | 50.0 mm | $5.23 | 4 weeks | |||
| CA-1E | 31.5 mm | $4.97 | 5 weeks |
- Material: 6061-T6 Aluminum Alloy
- Including adjustable clamping arm CA-1 (available for separate purchase), clamping optical components up to 26 mm in height
- ±4° pitch and yaw adjustment, with 0.4° per rotation
The LBTEK 2D Adjustable Mounting Platform is suitable for mounting optical components such as prisms and cubes. It comes with 2 adjusters and features a tabletop size of 49 mm × 49 mm. The included adjustable clamping arm CA-1 (available for separate purchase) can clamp optical components with a maximum height of 26mm.
The right-angle prism is mounted on a 2D adjustable mounting platform.
Product Model | Adjustable pitch/yaw angle range | Adjustment accuracy | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| APM-1 | ±4° | 0.4°/rotation | $62.89 | 4 weeks |
- Material: 6061-T6 aluminum alloy
- ±4° pitch/yaw adjustment with 0.4° per rotation
- Number of adjusters: three

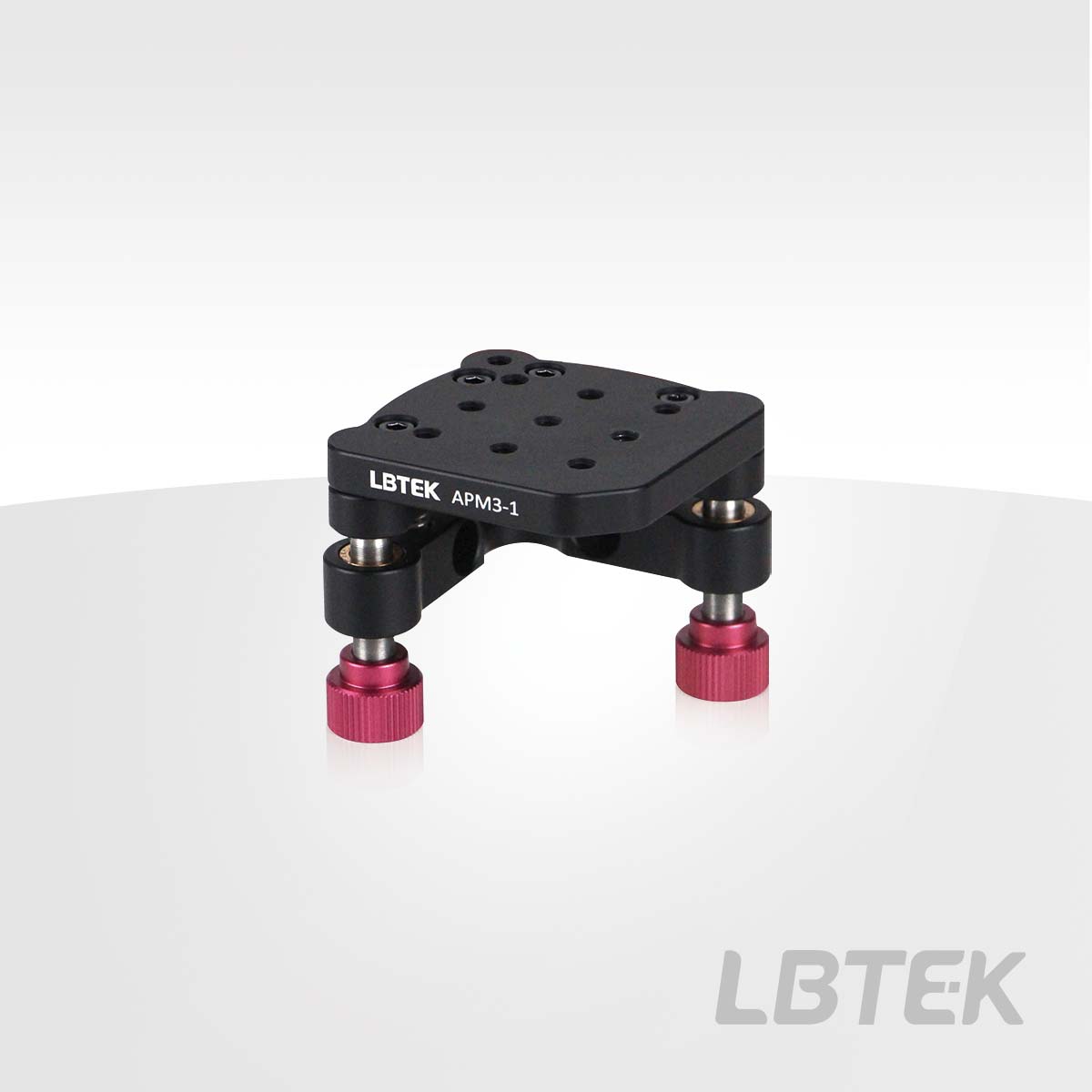

The LBTEK Platform Mount is suitable for optical components such as prisms and cubes. It features 3 adjusters that enable ±4° pitch/yaw adjustment. The table size is 49 mm × 49 mm with 10 M4 through-holes, allowing it to be used with the adjustable clamping arm CA-1 to hold optical components with a maximum height of 24.7 mm. The mount platform is connected to the back plate with four M3×8 hex socket head cap screws, and two M4 countersunk holes on the side can be used to secure the mount.
The optical delay-line mirror mount is on the platform.
Product Model | Adjustable pitch/yaw angle range | Adjustment accuracy | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| APM3-1 | ±4° | 0.4°/rotation | $101.98 | 6 weeks |
